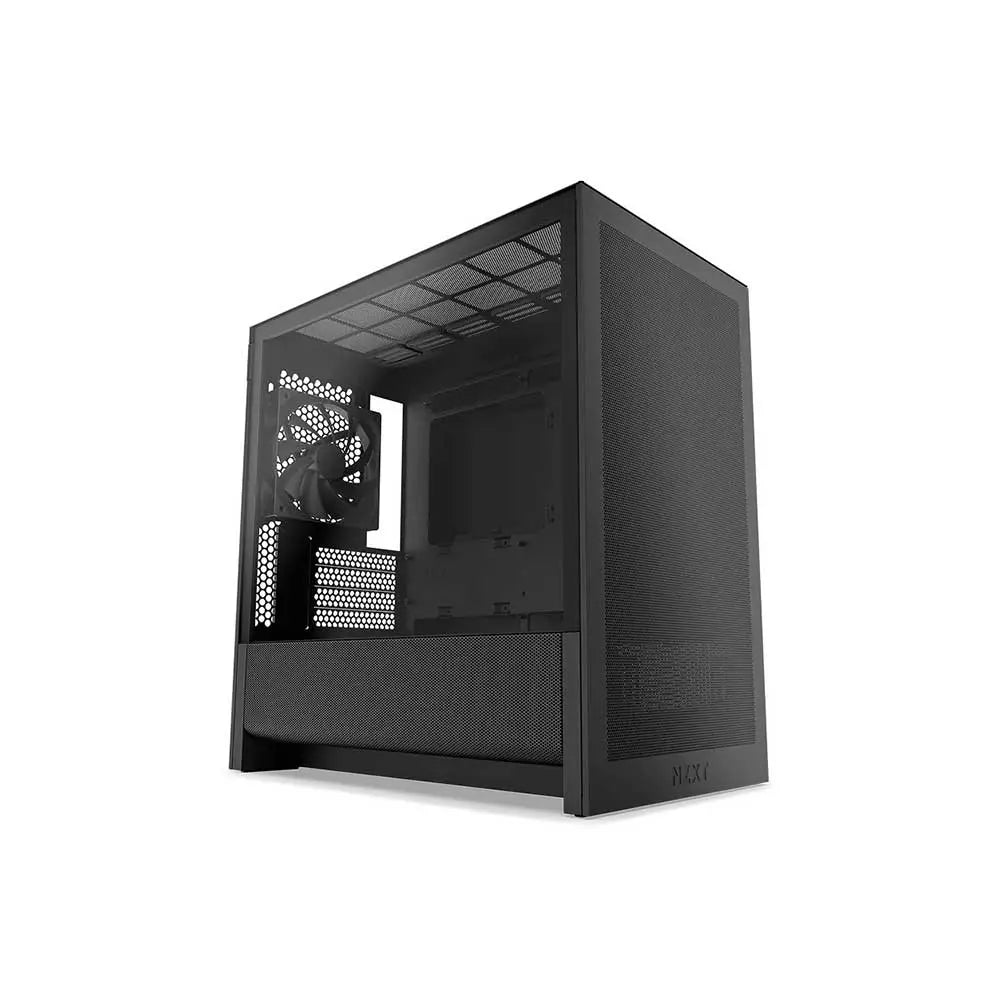

NZXT H3 Flow MATX Mid Tower Cabinet ( Black )

Features of NZXT H3 Flow MATX Mid Tower Cabinet ( Black )





The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.

• Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
• High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.
• Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
• Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
• Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
• Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
• Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
• Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning—no tools required.

Space-Saving Design

The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

Optimized Airflow

Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

Full-Size GPU Support

Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).



Specifications of NZXT H3 Flow MATX Mid Tower Cabinet ( Black )

Product Code	CC-H31FB-01
Cabinet Size	MID-TOWER
Color	Black
Material	SGCC Steel, Tinted Tempered Glass
Expansion Slots	4
Motherboard Size	M-ATX,M-ITX
Max CPU Cooler Height	170mm
Max PSU Length	185mm
Max Gpu Length	377mm
Max 3.5" HDD	1
Max 2.5" SSD	1+2
Pre Installed Fans	1
Max Fan Support	7
Radiator Support	280mm,240mm
Front I/O Panel	USB 3.2, USB Type-C
Warranty	2 Years
Note***	***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
