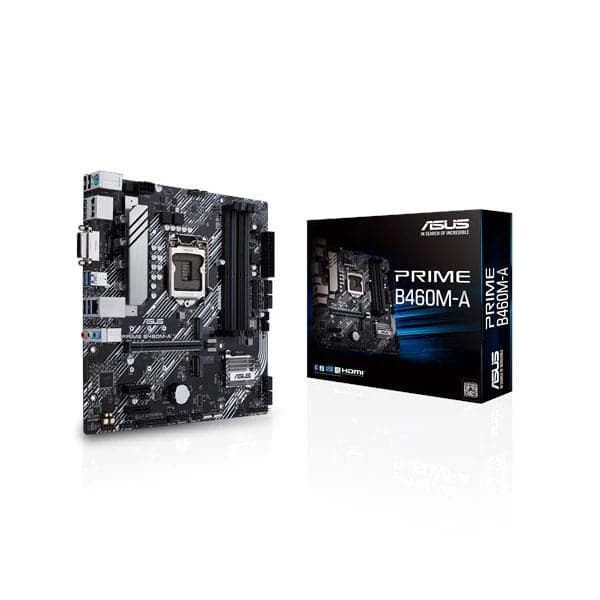

ASUS Prime B460M-A Motherboard: Unleash 10th Gen Intel Performance with DDR4 Support

Experience Unrivaled Performance with the ASUS Prime B460M-A Motherboard

Unlock the full potential of your 10th Gen Intel® Core™ processors with the ASUS Prime B460M-A motherboard. Engineered for both daily users and dedicated DIY PC builders, this motherboard boasts a robust power design, advanced cooling solutions, and intuitive tuning options for a seamless and powerful computing experience. Get ready for enhanced productivity and thrilling gaming sessions!

Fine-Tune Your System with Comprehensive Controls

The ASUS Prime series is renowned for its extensive control capabilities. The Prime B460M-A motherboard empowers you to meticulously adjust every aspect of your system, ensuring optimal performance tailored to your workflow. Maximize your productivity and efficiency with tools designed for precision.

Stay Cool Under Pressure

Built to handle demanding workloads, the Prime B460M-A features multiple onboard heatsinks and a variety of hybrid fan headers. This robust cooling system ensures your rig remains stable and operates at peak performance, even during intensive tasks.

A Solid Foundation for Your Build

Designed to support the increased cores and bandwidth of 10th Gen Intel® processors, the Prime B460M-A provides all the essential features for daily productivity. Enjoy stable power delivery, intelligent cooling, and flexible transfer options that keep your system ready for action.

Elevate Your Experience with Thoughtful Details

From crystal-clear audio delivered by premium Japanese capacitors to customizable RGB lighting effects that personalize your setup, the Prime B460M-A motherboard enhances every aspect of your user experience. Create a unique and immersive PC environment that reflects your style.

Exceptional Audio for Immersive Sound

Discover unparalleled audio quality with intelligent design and premium hardware components. The onboard audio features deliver an elevated sound experience, making every moment more immersive.

Detailed Specifications: ASUS Prime B460M-A DDR4 Motherboard

CPU	Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B460
Memory	Intel® B460 Chipset 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor- Intel® UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b 1 x DVI-D *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Expansion Slots	Intel® 10th Gen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® B460 Chipset 2 x PCIe 3.0/2.0 x1
Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio	Realtek® ALC887 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s)
Software Features	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update AI Charger ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
ASUS Special Features	ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS Safeslot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM ASUS Sync - Standard RGB header(s)
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x SPI TPM header 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
Warranty	3 Years
Note	*M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. ***Features, Price and Specifications are subject to change without notice.

Note: This is a custom-built system. Final configuration may vary based on component availability. Assembly begins after order confirmation.
