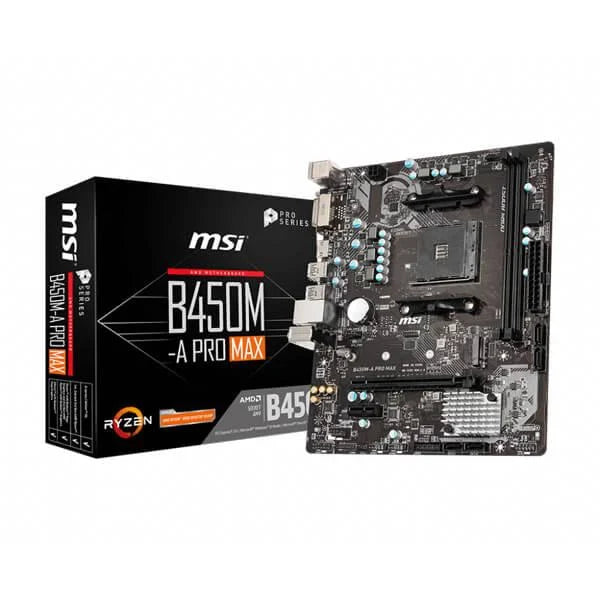

MSI B450M-A Pro Max AM4 Motherboard: Unleash Your PC's Potential with DDR4 Support and Enhanced Performance

Unleash the Power of Your AMD Ryzen™ Processor with the MSI B450M-A Pro Max Motherboard

Experience unparalleled performance and stability with the MSI B450M-A Pro Max, an AMD AM4 motherboard designed for gamers and professionals alike. Inspired by sophisticated architectural design, this motherboard boasts Core Boost, DDR4 Boost, Turbo M.2, and USB 3.2 Gen1 technologies to elevate your computing experience.

Key Features for an Unrivaled Build

• Broad CPU Compatibility: Fully supports 1st, 2nd, and 3rd Gen AMD^® Ryzen™ processors, including those with Radeon™ Vega Graphics, ensuring you have the power you need for any task.
• High-Speed Memory Support: Equipped with DDR4 Boost, it supports memory speeds of up to 4133 (OC) MHz, delivering lightning-fast data access.
• Blazing-Fast Storage: Turbo M.2 technology maximizes performance for NVMe based SSDs, utilizing PCIe Gen3 x4 for rapid load times and data transfers.
• Immersive Audio: Audio Boost rewards your ears with studio-grade sound quality, creating a truly immersive audio experience for gaming and entertainment.
• Intelligent Performance Boost: X-Boost technology automatically detects and enhances the performance of your storage and USB devices.
• Optimized Power Delivery: Core Boost features a premium layout and fully digital power design, providing stable power delivery to support more cores and deliver superior performance.

Designed for Builders and Professionals

MSI motherboards are engineered with DIY users in mind, featuring convenient design elements like easy-to-access pin-headers and strategically placed SATA & USB ports, making the building process smooth and efficient.

Advanced Cooling Solutions

Keep your system running optimally with robust cooling. MSI motherboards feature an excellent power design coupled with solid, heavy heatsinks and ample fan headers for reliable performance, even under heavy loads.

Intuitive BIOS and Powerful Software

Leverage years of MSI's expertise with user-friendly performance-enhancing tools and software. Get the most out of your motherboard with applications designed for optimal control and customization.

Extensive Compatibility

Built with strict quality standards, MSI motherboards offer excellent compatibility with a wide range of components and devices, thanks to features like convenient pin-header keep-out zones and user-friendly port placement.

Elevated Performance for Every Need

Whether you're a gamer or a prosumer, MSI motherboards deliver the latest solutions for enhanced performance. Enjoy faster CPU and memory speeds, along with rapid storage and USB transfer rates, giving you a competitive edge.

Superior Storage Options

Support for the latest storage standards, including multiple SATA 6Gb/s ports and an M.2 slot, ensures you can connect any ultra-fast storage device for faster game loading and a significant advantage.

Professional Audio and Network Experience

MSI Audio Boost delivers breathtaking, studio-quality sound, while the integrated LAN controller ensures a stable and uninterrupted online experience, perfect for professional workflows and immersive entertainment.

Stunning Aesthetics

The PRO Series motherboards feature a sophisticated industrial design with neutral color schemes that perfectly complement RGB lighting, allowing you to create a visually stunning and personalized gaming rig.

Built to Last

With a commitment to quality and reliability, MSI motherboards are developed using high-quality components and rigorous testing, ensuring stable operation even under extreme conditions.

Specifications

Model	B450M-A-PRO-MAX
Processor	Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset	AMD® B450 Chipset
Memory	2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required. Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory
Slots	1 x PCIe 3.0 x16 slotSupports x16 speed1st, 2nd and 3rd Gen AMD Ryzen™ Supports x8 speedRyzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics A-series Athlon™ X4 Supports x4 speedAMD® Athlon™ with Radeon™ Vega Graphics PCIe 2.0 x1 slot
Onboard Graphics	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with Graphicss Maximum shared memory of 2048 MB
Storage	AMD® B450 Chipset 4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M)Supports PCIe 3.0 x4 and SATA 6Gb/s1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen™ with Radeon™ Vega Graphics 2nd Gen AMD Ryzen™ with Radeon™ Graphics Supports PCIe 3.0 x2 and SATA 6Gb/sAMD® Athlon™ with Radeon™ Vega Graphics A-series Athlon™ X4 Supports 2242/2280/22110 storage devices
USB	AMD® B450 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
LAN	1 x Realtek® 8111H Gigabit LAN controller
Internal Connectors	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper
Back Panel Ports	Mouse DVI-D Port USB 3.2 Gen1 LAN Port Keyboard HDMI Port USB 2.0 Ports HD Audio Connectors
Dimensions	9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) m-ATX Form Factor
Mounting	6 mounting holes
Operating System	Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
