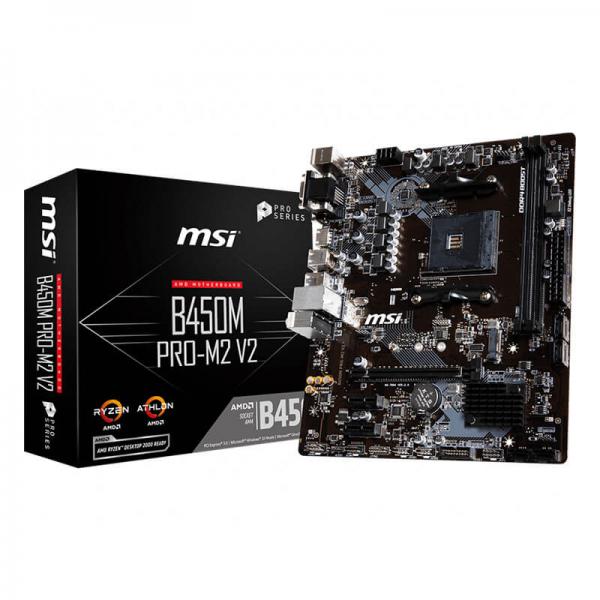

MSI B450M Pro-M2 V2: Optimized AM4 Motherboard for Ryzen Processors with DDR4 Boost and Turbo M.2

Unlock Peak Performance with the MSI B450M Pro-M2 V2 DDR4 AMD Motherboard

Elevate your PC building experience with the MSI B450M Pro-M2 V2, an exceptional motherboard designed for the AMD AM4 socket. Whether you're a gamer, content creator, or power user, this motherboard provides the stability, speed, and features you need to push your system to its limits.

1. Broad CPU Support: Fully compatible with AMD® Ryzen 1st and 2nd Generation processors, as well as Ryzen™ with Radeon™ Vega Graphics and Athlon™ with Radeon™ Vega Graphics, ensuring a wide range of upgrade options.
2. High-Speed DDR4 Memory: Experience lightning-fast performance with support for DDR4 memory up to 3466+(OC) MHz, perfect for demanding applications and gaming.
3. Turbo M.2: Maximize the potential of your NVMe SSDs with the Turbo M.2 slot, delivering blistering read and write speeds through PCI-E Gen3 x4.
4. DDR4 Boost: Our advanced DDR4 Boost technology ensures pure data signals for unparalleled performance and rock-solid stability, crucial for overclocking and system responsiveness.
5. Audio Boost: Immerse yourself in rich, studio-quality sound with Audio Boost, designed to deliver an exceptional audio experience for your games and media.
6. EZ Debug LED: Simplify troubleshooting with the intuitive EZ Debug LED, providing a quick and easy way to identify any potential hardware issues.
7. X-Boost: Effortlessly enhance your storage and USB device performance with X-Boost, intelligent software that automatically detects and optimizes your connected hardware.
8. Core Boost: Featuring a premium layout and a fully digital power design, Core Boost delivers stable power to more cores, ensuring optimal performance for your processor.
9. PCI-E Steel Armor: Protect your valuable graphics cards from bending and electromagnetic interference (EMI) with the robust PCI-E Steel Armor.

Comprehensive Specifications

Socket	AM4
CPU (Max Support)	Ryzen
Chipset	AMD® B450 Chipset
DDR4 Memory	1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
Memory Channel	Dual
DIMM Slots	2
Max Memory (GB)	32
PCI-E x16	1
PCI-E Gen	Gen3
PCI-E x1	2
SATAIII	4
M.2 Slot	1
TPM (header)	1
LAN	10/100/1000*1
USB 3.1 ports (Front)	2(Gen1, Type A)
USB 3.1 ports (Rear)	4(Gen1, Type A)
USB 2.0 ports (Front)	4
USB 2.0 ports (Rear)	2
Serial ports(Front)	1
Parallel Port(Front)	1
Audio ports (Rear)	Realtek® ALC887 Codec
DVI-D	1
VGA	1
HDMI	1
DirectX	12
Form Factor	m-ATX
Operating System	Support for Windows® 10 64-bit
	Support for Windows® 7 64-bit
	* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Note: This is a custom-built system. Final configuration may vary based on component availability. Assembly begins after order confirmation.
