MSI B650M Project Zero AM5 Motherboard: Ultimate Simplicity & Performance with DDR5 Support

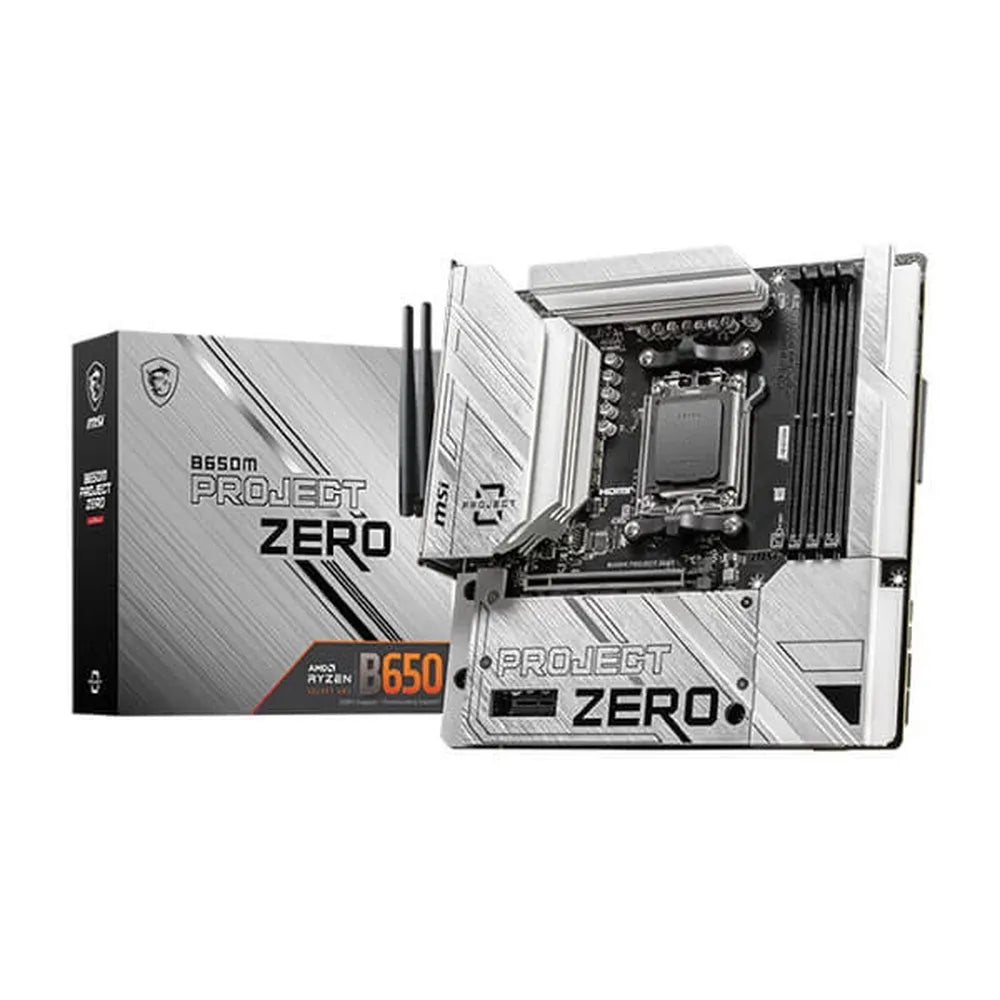

Discover the MSI B650M Project Zero DDR5 AMD Motherboard

Elevate your PC build with the MSI B650M Project Zero Motherboard, meticulously designed for AMD Ryzen 7000 Series Desktop Processors. Experience unparalleled speed and stability with DDR5 memory support, reaching up to an incredible 7600+(OC) MHz. Featuring a cutting-edge 2.5G LAN and AMD Wi-Fi 6E Solution, this motherboard ensures seamless connectivity for all your gaming and productivity needs.

Embrace Absolute Simplicity

The B650M PROJECT ZERO redefines aesthetics by ingeniously relocating essential connectors like power, fan headers, and pin headers to the rear of the motherboard. This innovative design results in a remarkably clean and clutter-free front view, allowing the sophisticated design of your motherboard, liquid cooler, and graphics card to take center stage.

Unleash Peak Performance with Direct 10+2+1 Phases Power Design

Push the boundaries of performance with an aggressive VRM design engineered for maximum power delivery. Featuring 8 + 8-pin power connectors and MSI's exclusive Core Boost technology, the B650M PROJECT ZERO is built to handle the most demanding gaming loads with unwavering stability.

Optimized Cooling for Enthusiasts

Designed to flawlessly integrate with the most popular All-In-One and custom water cooling solutions. The dedicated water pump PIN header supports up to 3 amps, giving you complete control over pump speed. An integrated 'keep-out-zone' ensures easy and safe installation for a perfect fit every time.

Engineered for Speed: Optimized PCB Solution

Experience blazing-fast data transfers and enhanced reliability. The optimized PCB design provides higher bandwidth and quicker transfer speeds, ensuring robust and consistent circuit transmission for all your components.

Effortless Cable Management: Back-Connect Design

The B650M PROJECT ZERO's revolutionary back-connect design moves vital interfaces such as motherboard power, CPU power, fan pins, and SATA ports to the rear. This not only simplifies cable management but also dramatically enhances the visual appeal of your build, creating a pristine and professional look.

Future-Ready Storage Solutions

Equipped with the latest storage standards, MSI PROJECT ZERO series motherboards empower you to connect any ultra-fast storage device. Load games in an instant, accelerate level transitions, and gain a decisive advantage over your opponents.



Comprehensive Specifications



Model	B650M PROJECT ZERO
Chipset	AMD B650
CPU	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
