MSI B760M GAMING PLUS WIFI Motherboard: Unleash 13th Gen Intel Power with DDR5 & PCIe 4.0

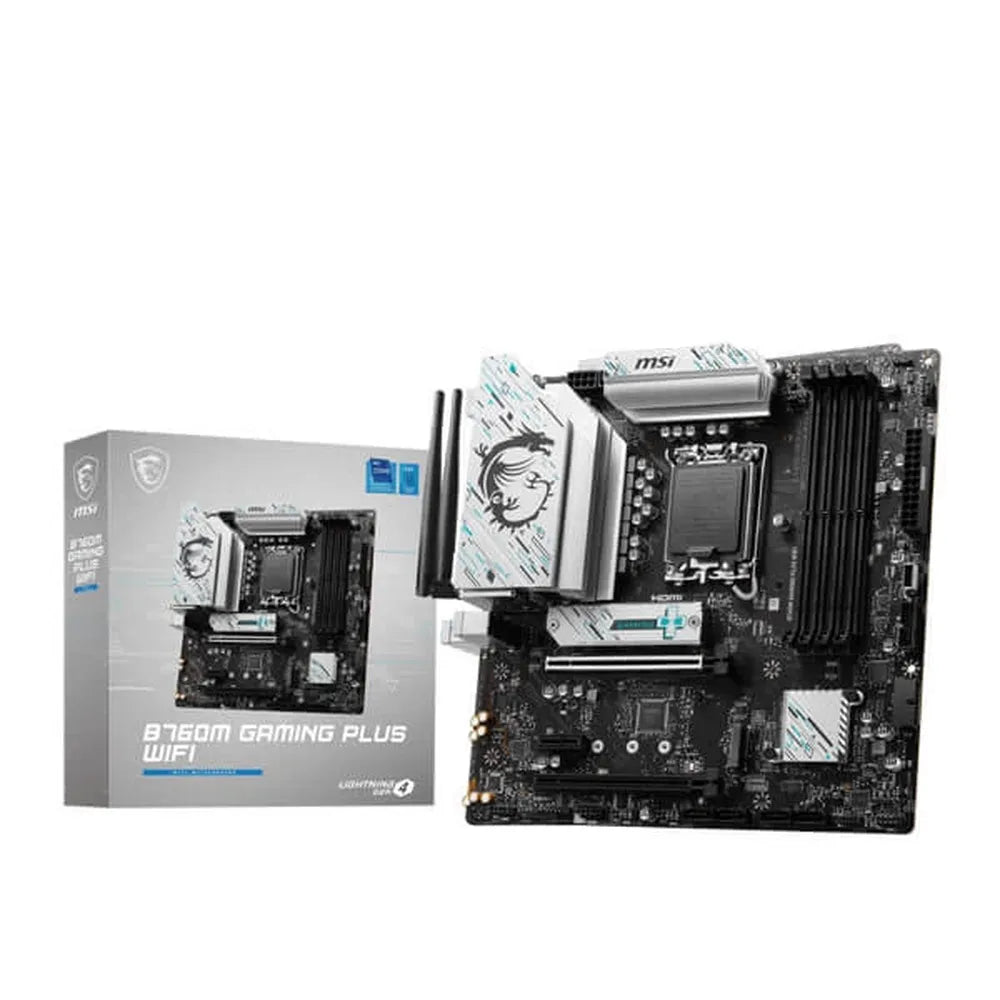

Unleash Peak Performance with the MSI B760M GAMING PLUS WIFI DDR5 Motherboard

Elevate your gaming and multitasking experience with the MSI B760M GAMING PLUS WIFI motherboard. Engineered for the latest Intel 12th & 13th Gen Core Processors (LGA 1700 socket), this mATX powerhouse is your gateway to blazing-fast performance and cutting-edge technology. Experience unparalleled speed with DDR5 Memory Boost up to 6800+MHz (OC), PCIe 4.0 x16 for graphics, and lightning-fast Gen4 M.2 storage.

Robust Power Delivery for Maximum Performance

The 12+1+1 DUET RAIL POWER SYSTEM ensures a stable and sustained power supply to your CPU, even under heavy loads. Combined with exclusive Core Boost technology and dual power connectors, this motherboard is built to handle demanding tasks and provide a non-stop gaming experience.

Exploit the Full Power of Your Intel Core Processor

Designed for gamers and power users, the MSI B760M GAMING PLUS WIFI motherboard leverages the revolutionary architecture of 12th, 13th, and 14th generation Intel Core processors. Achieve high frequencies and experience superior gaming performance, conquer opponents with confidence, and explore immersive virtual worlds.

Experience the Latest in Memory and Connectivity

LATEST DDR5 MEMORY WITH SMT SLOT: Dive into a new era of memory performance with DDR5. Our dedicated SMT welding process and MSI Memory Boost technology ensure a clean, pure, high-frequency DDR5 signal for optimized performance and lower latency. Memory Extension Mode further enhances capability, allowing you to effortlessly discover the best configuration for your needs.

LIGHTNING-FAST CONNECTIVITY: Dominate the competition with a PCIe 4.0 x16 slot for your graphics card, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr for rapid storage, and USB 3.2 Gen 2 10Gbps ports for high-speed data transfer. The 2.5G LAN with Wi-Fi 6E solution provides a secure, stable, and fast network connection for professional and multimedia use.

Premium Cooling and High-Quality Design

Stay cool under pressure with a premium thermal solution featuring an extended heatsink, high-performance MOSFET thermal pads (7W/mK), and additional choke thermal pads. The high-quality 6-layer PCB with 2oz thickened copper ensures durability and system stability.

Immersive Audio Experience

Reward your ears with Audio Boost, delivering studio-grade sound quality for the most immersive gaming experience.

Key Specifications

Model Number	B760M-GAMING-PLUS-WIFI
Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Note: This is a custom-built system. Final configuration may vary based on component availability. Assembly begins after order confirmation.
