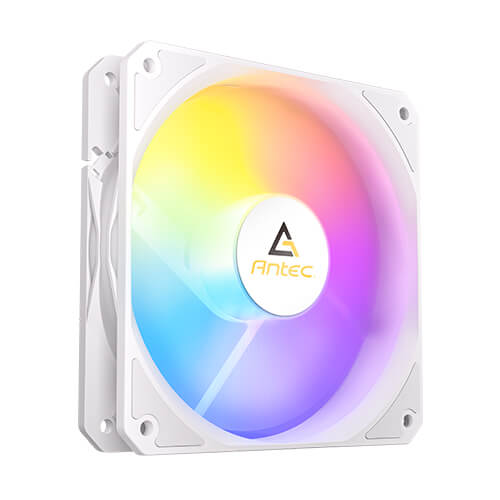

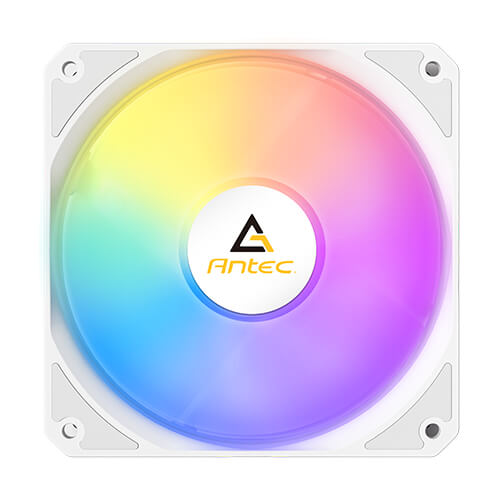

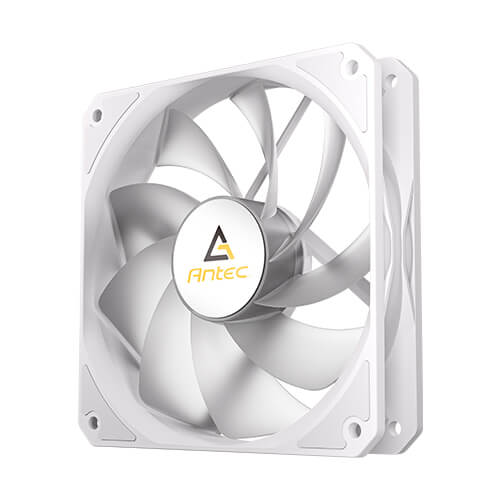

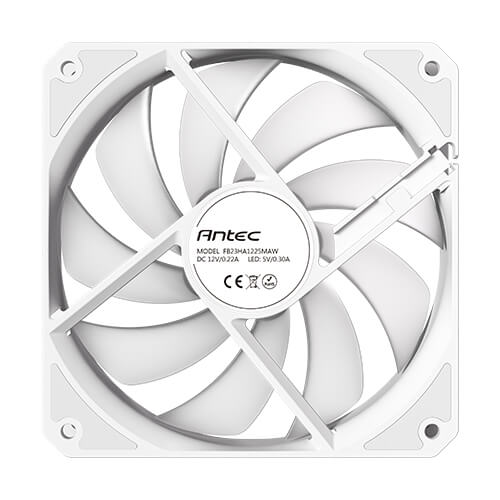

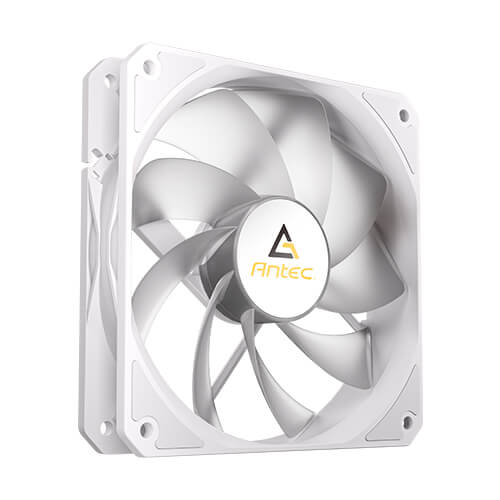

Antec P12R ARGB White 120mm Reverse Cabinet Fan

₹779

The Antec P12R ARGB White is a 120mm reverse-blade PWM fan built for cabinet airflow with full-spectrum ARGB lighting. It uses a hydraulic bearing for quiet, long-term operation and is designed to maintain steady airflow and pressure across its PWM speed range.

Full specifications ↓

Key features

Reverse 9-blade fan design for intake airflow
Full-spectrum ARGB lighting
PWM speed control
Hydraulic bearing for quiet long-life operation
4-pin fan connector with separate 3-pin LED connector

Technical specifications

Model Name	P12R ARGB / P12R ARGB White
Fan Type	ARGB PWM Fan
Dimensions	120 x 120 x 25 mm
Bearing Type	Hydraulic Bearing
Fan Speed	600±100~1500±150 RPM
Airflow	55.31~61.46 CFM (max.)
Air Pressure	0.87~1.07 mmH₂O (max.)
Fan Noise Level	14.2~29.5 dB(A)
Lifespan	30,000 hours / 40℃ \| 40,000 hours / 25℃
Connector	FAN: 4-pin \| LED: 3-pin
Rated Voltage	FAN: DC 12 V \| LED: DC 5 V
Operation Voltage	FAN: DC 7.0-13.8 V
Rated Current	FAN: 0.15 A (0.22A (max.)) \| LED: 0.3 A
UPC	0-761345-40042-8 (P12R PWM ARGB White)

Understand This Product — TechCureIndia

What it does

A 120mm case fan that moves air through a PC chassis while providing ARGB lighting, controlled via PWM for adjustable speed.

What the key specifications mean

Fan Speed: Indicates how much airflow and noise you get at different PWM settings, from 600±100 RPM up to 1500±150 RPM.
Airflow: Maximum CFM shows how much air the fan can push at top speed.
Air Pressure: Shows the fan's ability to push air through restrictions like radiators or filters.
Fan Noise Level: Range of 14.2 to 29.5 dB(A) tells buyers how audible the fan will be at low vs high speed.
Bearing Type: Hydraulic bearing design supports quieter and longer operation compared to basic sleeve bearings.
Lifespan: Rated hours at 40℃ and 25℃ give an estimate of expected operational life under different thermal conditions.
Connector: Separate 4-pin PWM fan connector and 3-pin ARGB connector mean fan speed and lighting are controlled independently.
Rated Voltage / Operation Voltage: Confirms the fan runs on standard 12V PC power with an operating range of 7.0-13.8V.

Practical benefits

Adjustable airflow via PWM for balancing cooling and noise
ARGB lighting for visual customization
Reverse blade design intended for smoother intake airflow
Quiet operation from hydraulic bearing and anti-vibration design

Who it suits

Gaming PC builders wanting RGB aesthetics
Users assembling custom intake/exhaust airflow configurations
Builders needing a PWM-controllable quiet fan

Compatibility and installation

Requires a 4-pin PWM fan header on the motherboard or fan controller
Requires a compatible 3-pin ARGB header or ARGB controller for lighting control
Fits standard 120mm fan mounting locations
120 x 120 x 25 mm form factor for standard 120mm fan mounts
Runs on DC 12V fan power and DC 5V LED power
Uses separate 4-pin fan and 3-pin LED connectors

Important limitations

Specification verification required for PWM RPM range discrepancy between marketing copy and official spec sheet

Package contents

Specification verification required.

Buy separately:

Motherboard or fan hub with 4-pin PWM header
ARGB-compatible 3-pin header or controller for lighting sync

Check before you buy

Confirm your motherboard or fan hub has an available 4-pin PWM header
Confirm an ARGB 3-pin header is available for lighting control
Verify fan mounting clearance for 25mm thickness

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website (official product page). Specifications on the official website are final.

Antec P12R ARGB White 120mm Reverse Cabinet Fan — specifications

Brand	ANTEC
Category	PC Fan
Model / MPN	P12R-ARGB-WHITE
Radiator/fan size	120 mm
Lighting	ARGB
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
