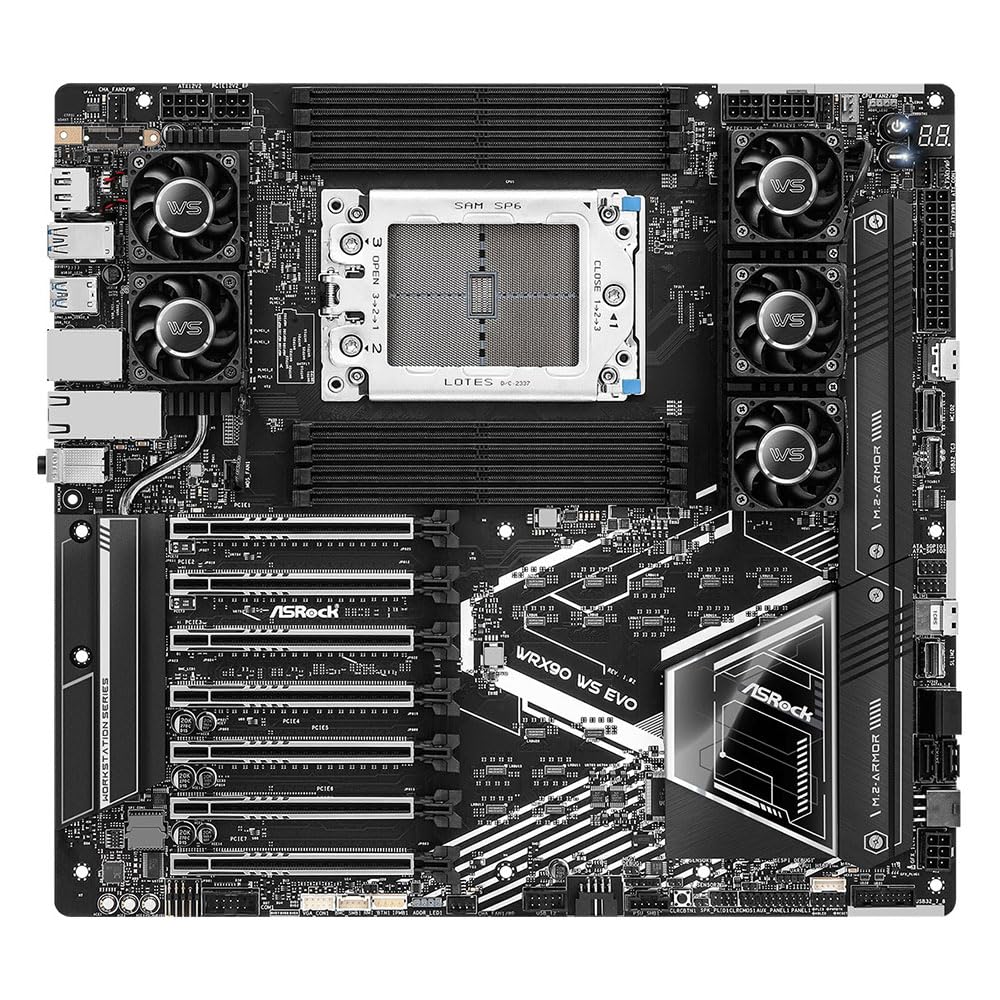

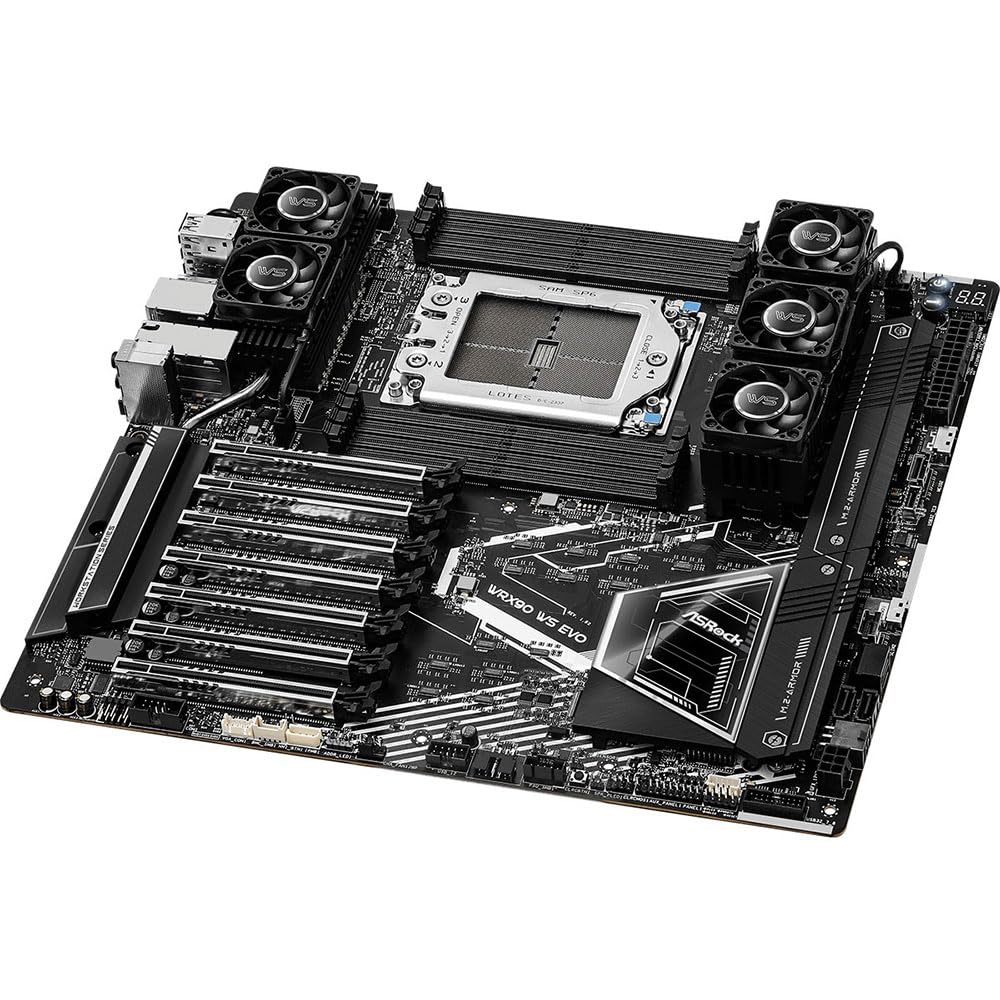

ASRock WRX90 Ws Evo Motherboard

₹103,250

MRP ₹124,599 (incl. of all taxes)

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The ASRock WRX90 Ws Evo Motherboard is a high-performance board designed to be the backbone of professional workstation builds. It is built for users who prioritize stability, connectivity, and significant upgrade headroom.

Full specifications ↓

Highlights

Supports AMD Ryzen Threadripper PRO 9000 and 7000 WX-Series Processors
Features an 18+3+3 Power Phase Design with 110A SPS for stable power delivery
Includes 8 DDR5 DIMM slots supporting up to 2TB of ECC registered memory
Equipped with 7 PCIe 5.0 x16 slots for high-speed expansion
Provides dual 10 Gigabit LAN ports and a dedicated IPMI LAN
Features a Blazing M.2 socket supporting PCIe Gen5x4 at 128 Gb/s

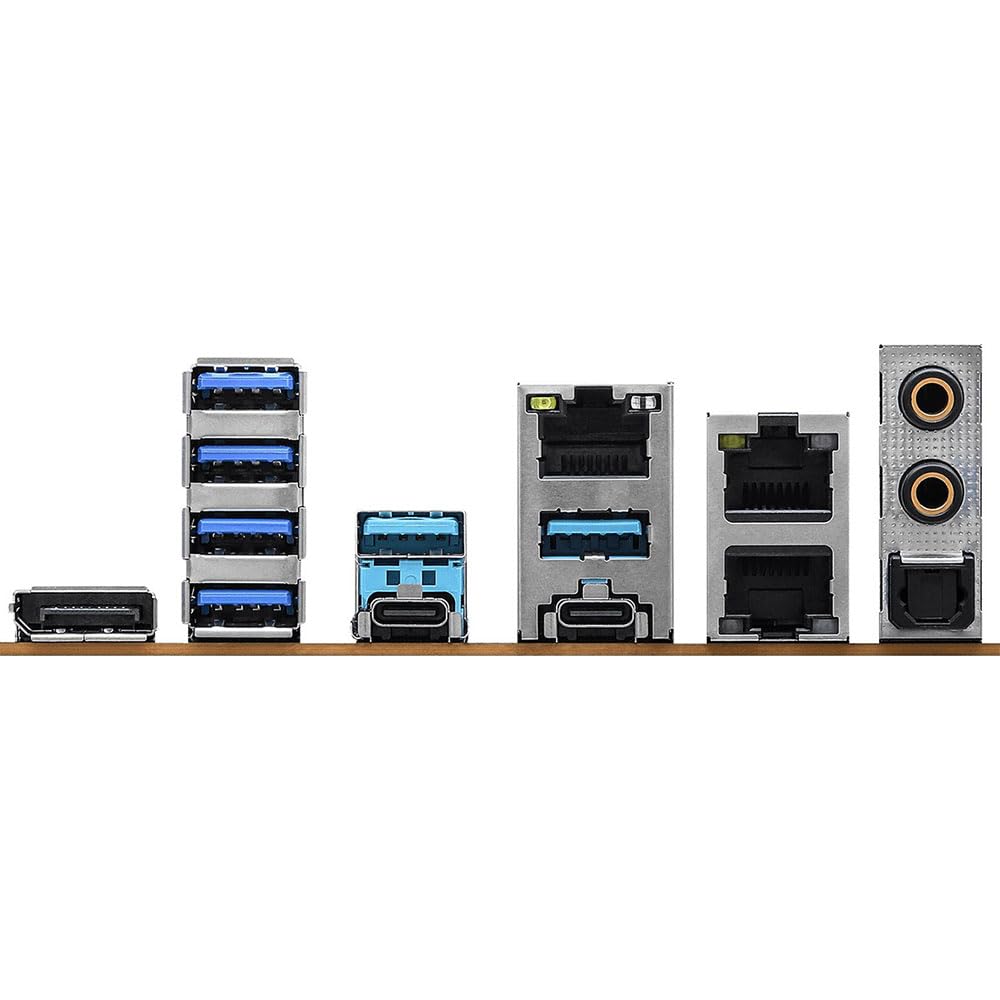

Includes 2 x USB4 Type-C and 4 x USB 3.2 Gen2 Type-A ports on the rear
Supports RAID 0, 1, and 10 for both SATA and M.2 NVMe storage devices

Specifications

CPU	Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors
Socket	Supports AMD Socket sTR5
Power Design	18+3+3 Power Phase Design, 110A SPS Design for VCore
Memory	8 x DDR5 DIMM Slots, Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
Max. capacity of system memory	2TB
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Aspeed AST2600 BMC Controller – 1 x DisplayPort 1.1a with max. resolution up to 1920×1200 @ 60Hz*
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahim
LAN	2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2) – Support PXE
Dedicated IPMI	1 x Dedicated IPMI (Realtek RTL8211F)
Slots	7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*- 15μ Gold Contact in VGA PCIe Slots
Blazing M.2	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
Hyper M.2	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
MCIO Connector	2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
SlimSAS SFF-8654 Connector (SLIM1)	1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
SlimSAS SFF-8654 Connector (SLIM2)	1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
SATA3	4 x SATA3 6.0 Gb/s Connectors
RAID	RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB CPU	2 x USB4 Type-C (Rear) – 4 x USB 3.2 Gen2 Type-A (Rear)

Who should buy it

This motherboard is for professionals building high-end workstations who need massive memory and high-speed connectivity. Users looking for standard home desktop motherboards should consider other options.

Compatibility

This motherboard works with AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors and uses the AMD Socket sTR5.

Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors
Supports AMD Socket sTR5

Frequently asked questions

What type of memory can I use?

It supports 8 DDR5 DIMM slots for DDR5 ECC and buffered memory (RDIMM/RDIMM-3DS) with a maximum capacity of 2TB.

What networking options are available?

The board features 2 x 10 Gigabit LAN ports and 1 x Dedicated IPMI LAN.

Does it support high-speed M.2 storage?

Yes, it includes a Blazing M.2 socket that supports PCIe Gen5x4 mode at 128 Gb/s.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	ASRock
Category	Motherboard
Model / MPN	WRX90
CPU	Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors
Socket	Supports AMD Socket sTR5
Power Design	18+3+3 Power Phase Design, 110A SPS Design for VCore
Memory	8 x DDR5 DIMM Slots, Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
Max. capacity of system memory	2TB
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Aspeed AST2600 BMC Controller – 1 x DisplayPort 1.1a with max. resolution up to 1920×1200 @ 60Hz*
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahim
LAN	2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2) – Support PXE
Dedicated IPMI	1 x Dedicated IPMI (Realtek RTL8211F)
Slots	7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*- 15μ Gold Contact in VGA PCIe Slots
Blazing M.2	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
Hyper M.2	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
MCIO Connector	2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
SlimSAS SFF-8654 Connector (SLIM1)	1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
SlimSAS SFF-8654 Connector (SLIM2)	1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
SATA3	4 x SATA3 6.0 Gb/s Connectors
RAID	RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB CPU	2 x USB4 Type-C (Rear) – 4 x USB 3.2 Gen2 Type-A (Rear)
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
