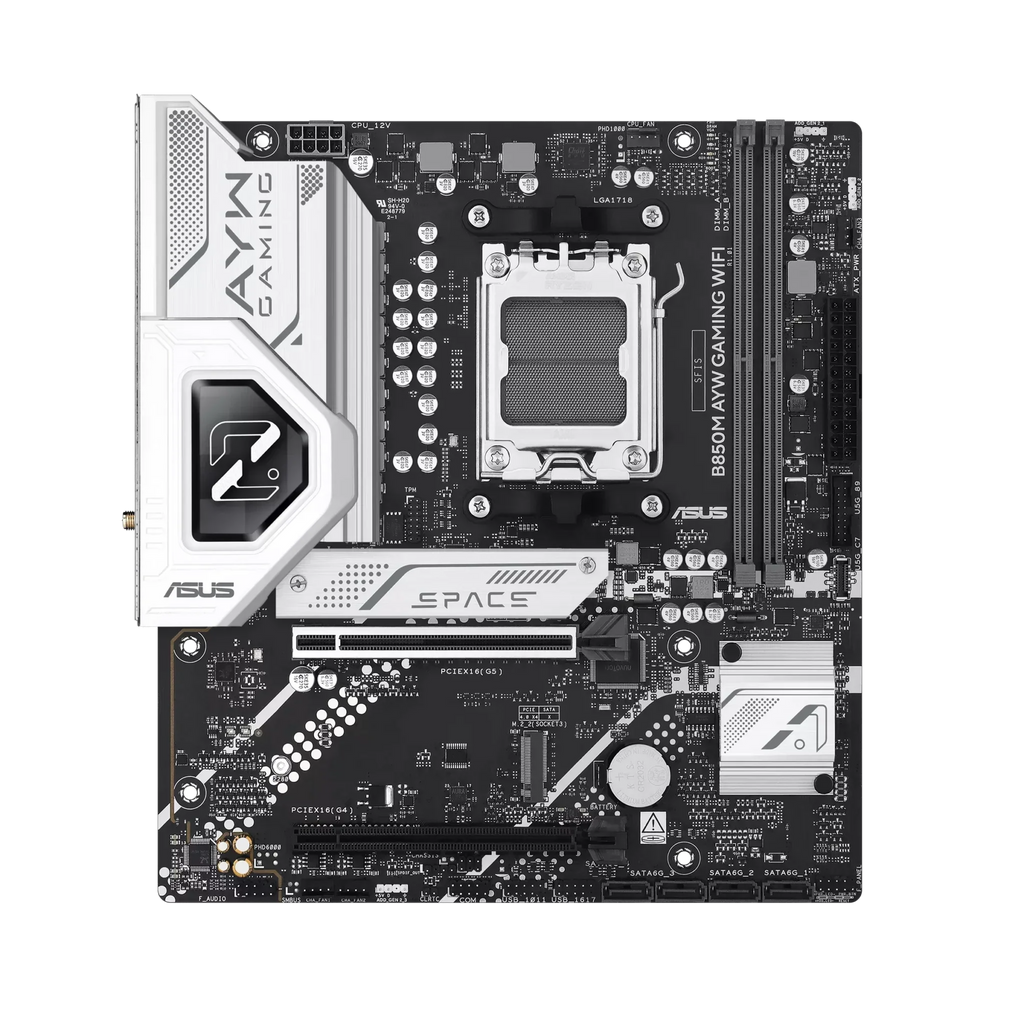

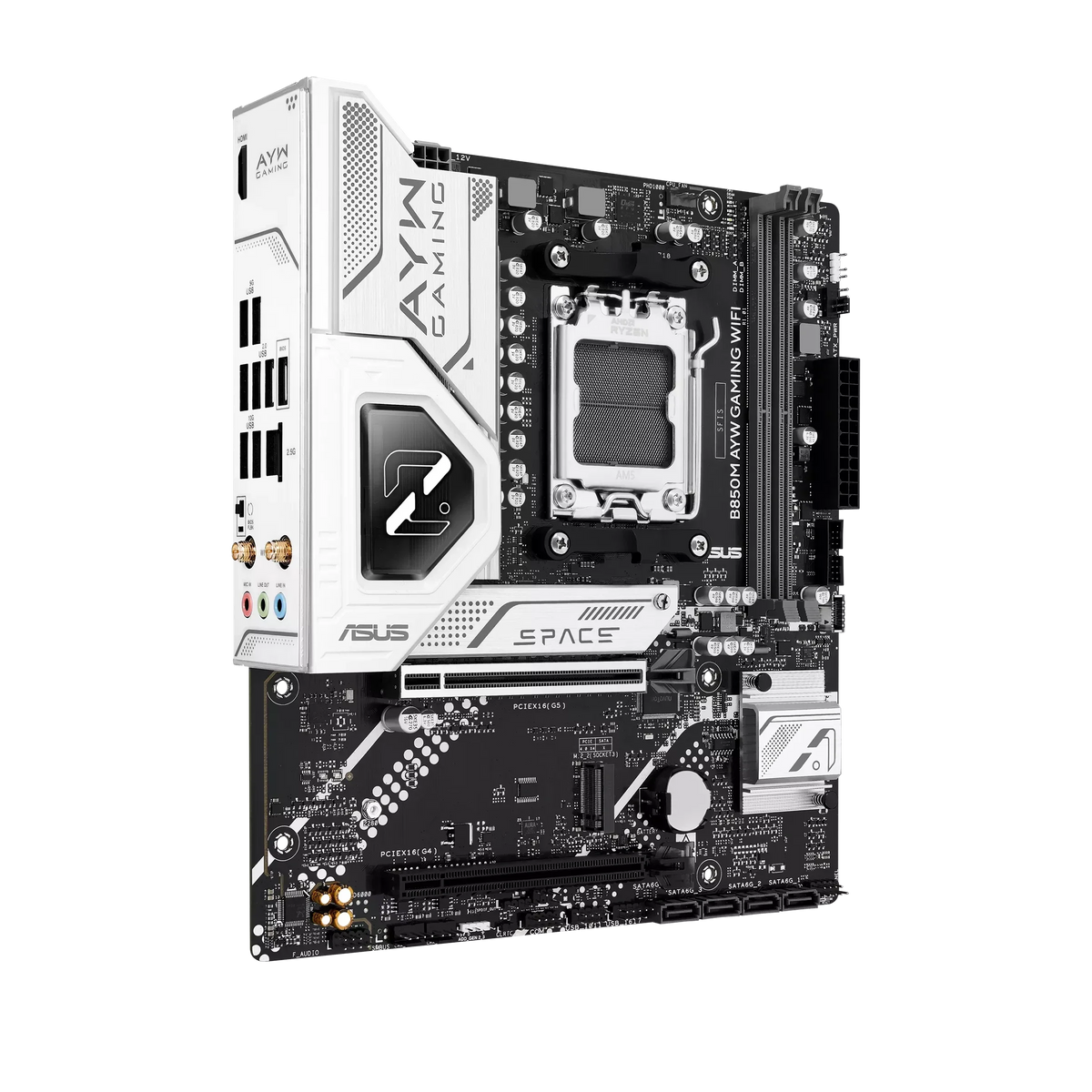

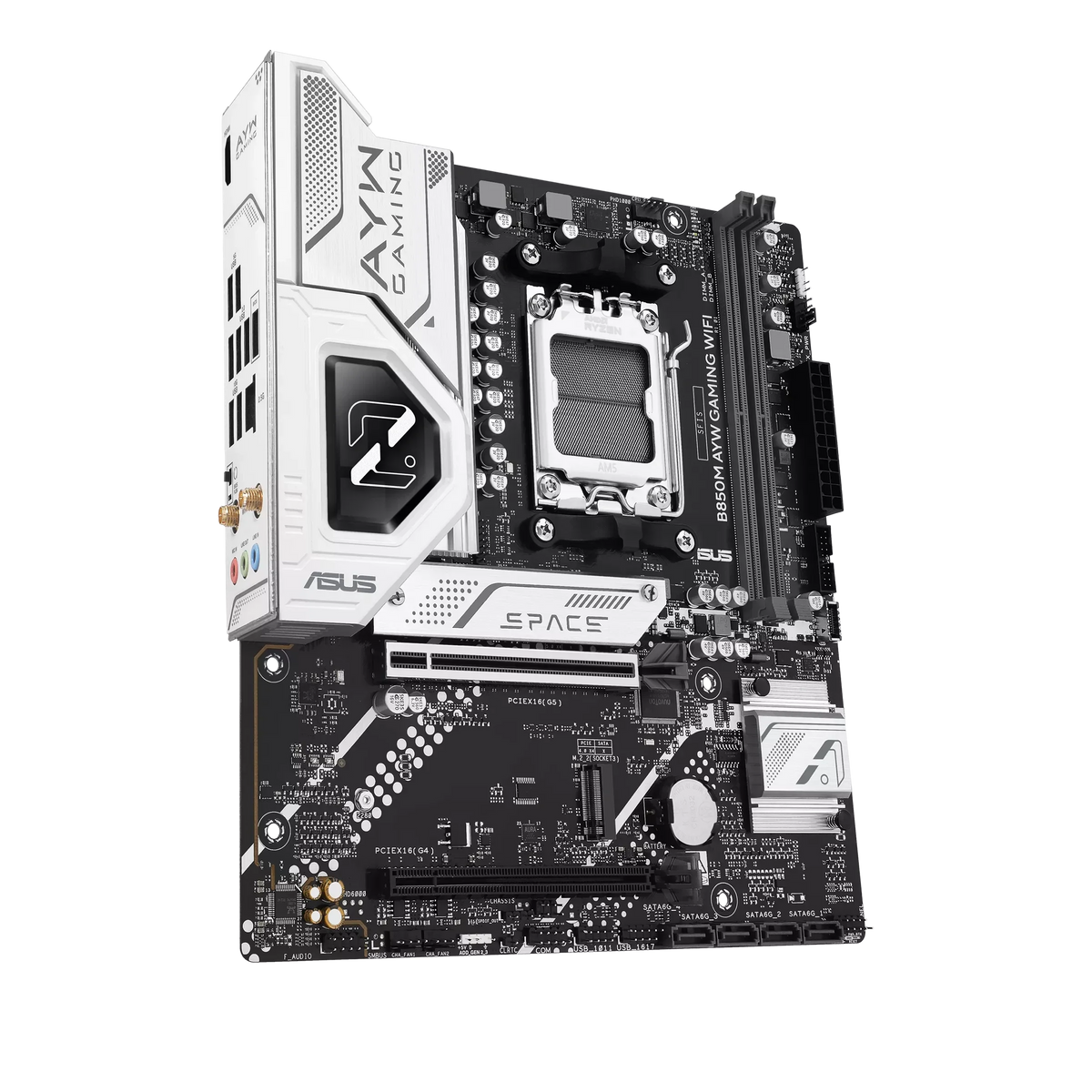

ASUS B850M AYW GAMING WIFI DDR5 Micro-ATX AM5 Motherboard

₹11,300

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

The ASUS B850M AYW is a B850 Micro-ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors, with DDR5 memory support.

Full specifications ↓

Key specifications

Socket	AM5
Chipset	B850
Memory	DDR5
Form factor	Micro-ATX
Wi-Fi	Yes
CPU support	AMD AM5
Maximum memory	128GB
Memory support	DDR5

Compatibility

Supports AMD Ryzen 7000, 8000 and 9000 series processors (socket AM5).
Takes DDR5 memory only.
Fits Micro-ATX and larger cabinets.

Frequently asked questions

Which processors work with the ASUS B850M AYW?

AMD Ryzen 7000, 8000 and 9000 series. Newer chips may need a BIOS update.

Does the ASUS B850M AYW support DDR5?

Yes.

Does the ASUS B850M AYW have Wi-Fi?

Yes, Wi-Fi is built in.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

ASUS B850M AYW GAMING WIFI DDR5 Micro-ATX AM5... — specifications

Brand	ASUS
Category	Motherboard
Model / MPN	B850M-AYW-GAMING-WIFI
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B850 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5
Memory speeds (OC)	Supports up to 8200+MT/s (Ryzen 9000), 8400+MT/s (Ryzen 8000), 8000+MT/s (Ryzen 7000)
Memory types	ECC and Non-ECC, Un-buffered DIMM; Dual channel memory architecture; Supports EXPO™ and ASUS Enhanced Memory Profile (AEMP)
Total M.2 slots	2 x M.2 slots (Key M)
M.2 support (with Ryzen 9000/7000)	M.2_1: type 2280 (supports PCIe 5.0 x4); M.2_2: type 2280 (supports PCIe 4.0 x4)
M.2 support (with Ryzen 8000)	M.2_1: type 2280 (supports PCIe 4.0 x4); M.2_2: type 2280 (supports PCIe 4.0 x4/x2)
SATA	4 x SATA 6Gb/s ports
RAID support	Ryzen 9000: RAID 0/1/5/10; Ryzen 8000: RAID 0/1; Ryzen 7000: RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet; ASUS LANGuard
Wireless & Bluetooth	Wi‑Fi 6 (1x1, 802.11ax) supporting 2.4/5 GHz; Bluetooth v5.3
Rear USB (total)	8 ports on rear
Rear USB detail	2 x USB 10Gbps (Type-A); 2 x USB 5Gbps (Type-A); 4 x USB 2.0 (Type-A)
Front USB connectors/headers	1 x USB 5Gbps connector (supports USB Type-C); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery	Max. 5V/3A
Audio codec	Realtek 7.1 Surround Sound High Definition Audio CODEC (supports up to 24‑Bit/192 kHz playback)
Audio features	Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers; Jack-detection, Multi-streaming, Front Panel Jack-retasking

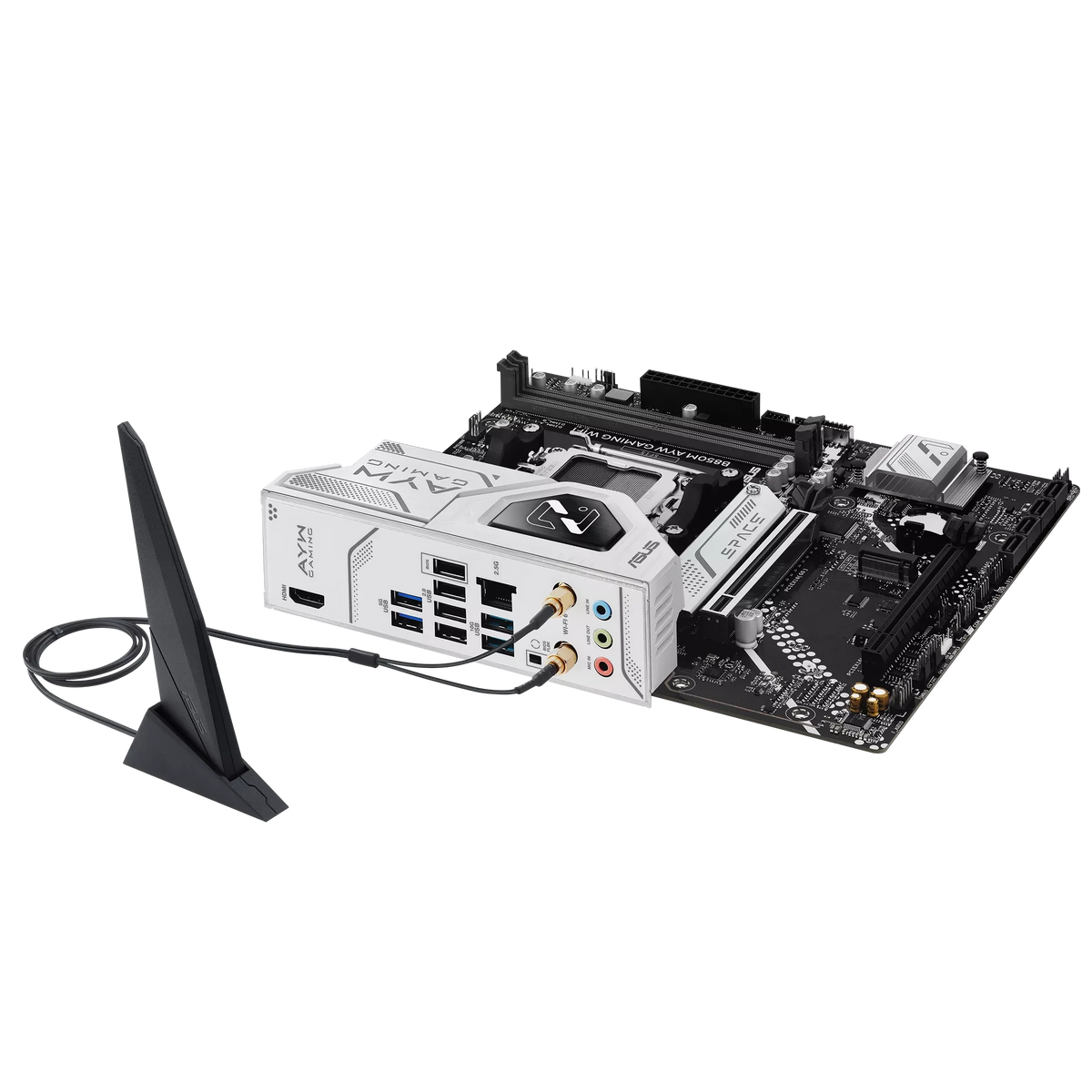

Back panel I/O (summary)	2 x USB 10Gbps (Type-A); 2 x USB 5Gbps (Type-A); 4 x USB 2.0; 1 x HDMI; 1 x Wi‑Fi module; 1 x Realtek 2.5Gb Ethernet; 3 x Audio jacks; 1 x BIOS FlashBack button
Internal I/O — fan headers	1 x 4‑pin CPU fan header; 3 x 4‑pin chassis fan headers
Internal I/O — miscellaneous	3 x Addressable RGB Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (F_AUDIO); 1 x S/PDIF Out header; 1 x SPI TPM header (14‑1pin); 1 x 10‑1 pin Front Panel System header
Special features — protection	ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless‑Steel Back I/O)
Special features — Q‑Design	M.2 Q‑Latch; Q‑DIMM; Q‑LED; Q‑Slot; Q‑Dashboard
Thermal solution	M.2 heatsink; VRM heatsink design
BIOS	256 Mb Flash ROM, UEFI AMI BIOS; BIOS CAP Filename: A5686.CAP
Manageability	WOL by PME, PXE
Operating system support	Windows® 11, Windows® 10 64‑bit
Form Factor	micro‑ATX 9.6 inch x 8.7 inch (24.4 cm x 22.1 cm)

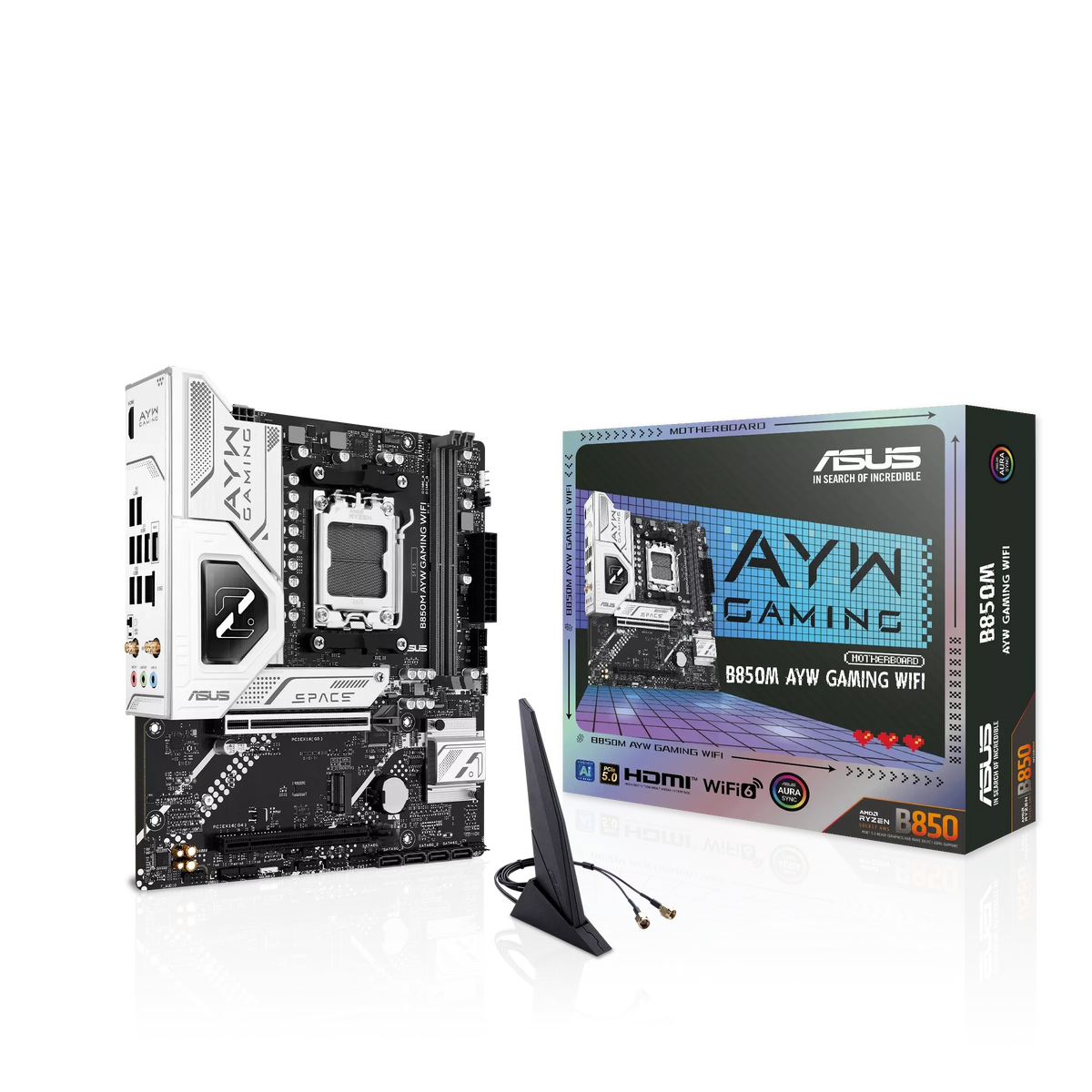

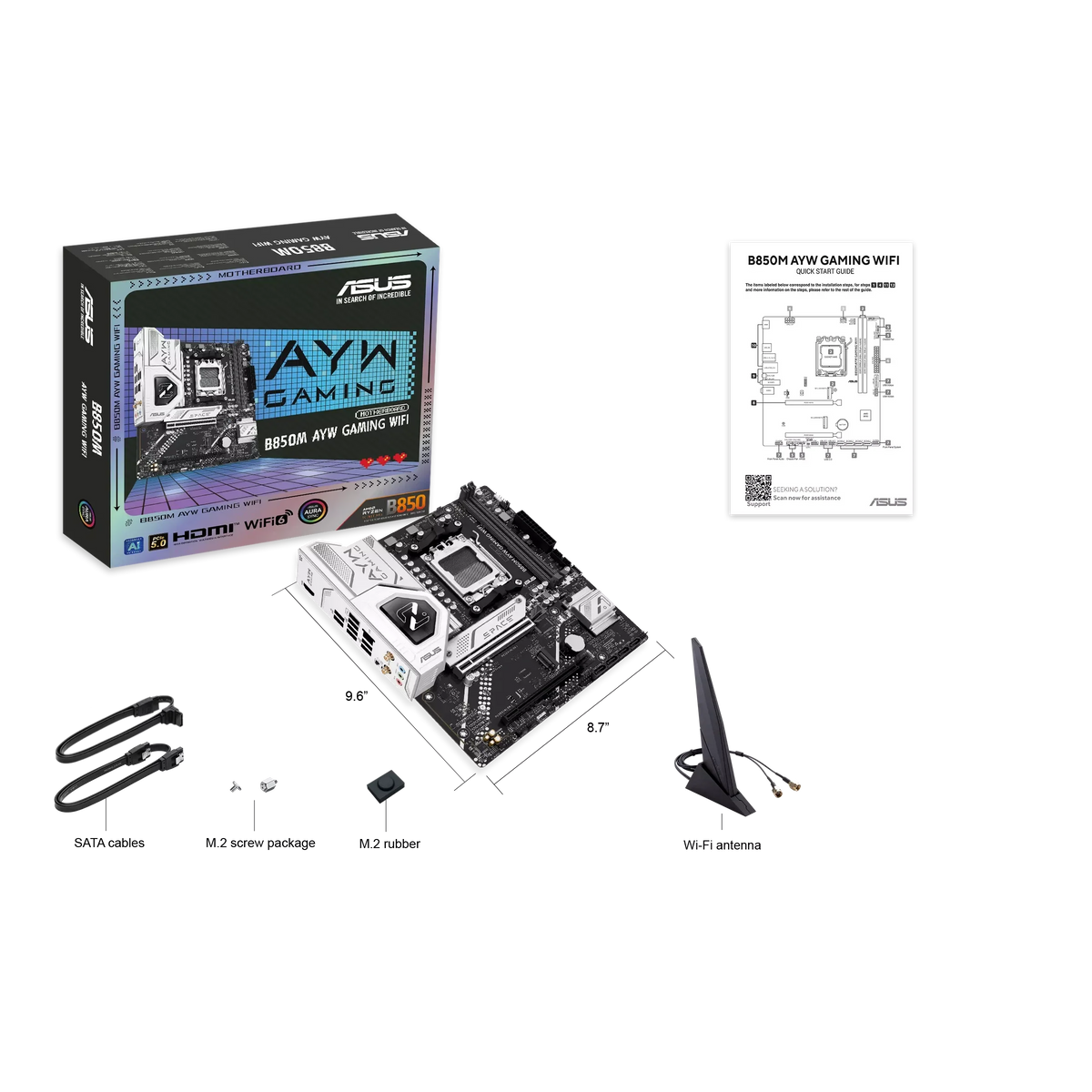

Package contents	1 x B850M AYW GAMING WIFI motherboard; 2 x SATA 6Gb/s cables; 1 x ASUS Wi‑Fi moving antenna; 1 x M.2 rubber package; 1 x Screw package for M.2 SSD; 1 x Quick start guide
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
