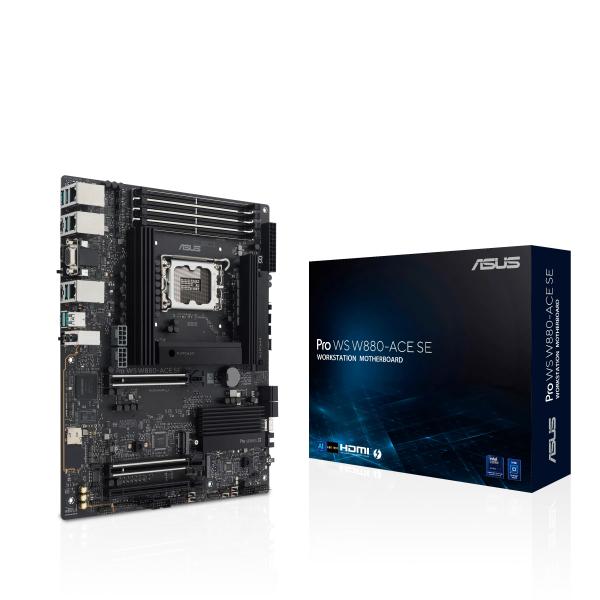

ASUS Pro WS W880-ACE SE Motherboard

₹54,890

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The Pro WS W880-ACE SE is a high-performance workstation motherboard designed for demanding computing tasks. It supports Intel® Core™ Ultra Processors (Series 2) and is built for AI applications, content creation, and professional workloads.

Full specifications ↓

Highlights

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 socket for future-ready AI computing
8+1+2+2 teamed power stages with ProCool II power connectors for robust performance
Dual 2.5Gb Ethernet ports for fast network connectivity
Thunderbolt™ 4 port for high-speed data transfer and display output
Four M.2 slots with PCIe 5.0 and PCIe 4.0 support for fast storage options
Realtek ALC1220P 7.1 Surround Sound for high-quality audio
BIOS FlashBack™ button for easy system recovery
Server-grade IPMI remote management with dedicated BMC controller

Specifications

CPU	Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset	Intel® W880 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5
Memory Speed	Support up to 9066+MT/s (OC), ECC and Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture	Dual channel memory architecture
Graphics	1 x HDMI™ port\n1 x Intel® Thunderbolt™ 4 port (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*\n1 x VGA port from AST2600
Expansion Slots	Intel® Core™ Ultra Processors (Series 2)\n2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)\nIntel® W880 Chipset\n1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports\nIntel® Core™ Ultra Processors (Series 2)\nM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)\nM.2_2 slot (Key M), type 2280 (supports PCIe4.0 x4 mode)\nIntel® W880 Chipset\nM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)\nM.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)\nSlimSAS_1 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately. *\n4 x SATA 6Gb/s ports
Ethernet	2 x Intel® 2.5Gb Ethernet\n1 x Realtek 1Gb Ethernet dedicated for AST2600
USB	Rear USB (Total 8 ports)\n1 x Thunderbolt™ 4 port (1 x USB Type-C®)\n1 x USB 20Gbps port (1 x USB Type-C®)\n6 x USB 10Gbps ports (6 x Type-A)\nFront USB (Total 7 ports)\n1 x USB 20Gbps connector (supports USB Type-C® )\n1 x USB 5Gbps header supports 2 additional USB 5Gbps ports\n2 x USB 2.0 headers supports 4 additional USB 2.0 ports
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC\n- Impedance sense for front and rear headphone outputs\n- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers\n- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking\n- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)\n- Supports up to 32-Bit/192 kHz playback*"\nAudio Features\n- Audio Shielding\n- Premium audio capacitors

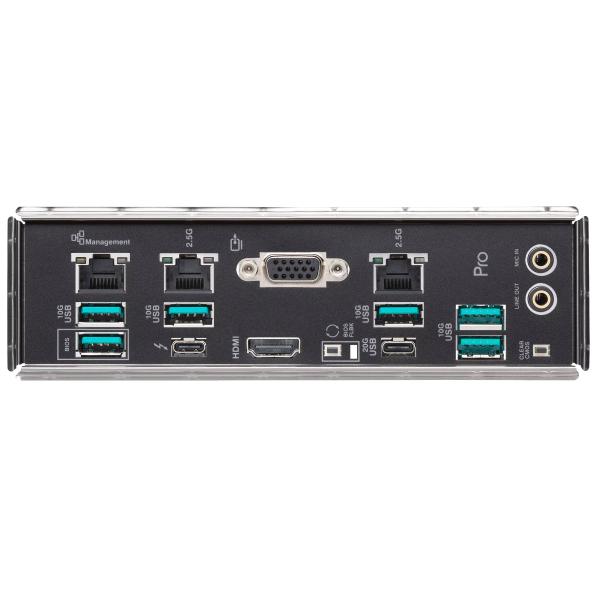

Back Panel I/O Ports	1 x Thunderbolt™ 4 USB Type-C® port\n1 x USB 20Gbps port (1 x USB Type-C®)\n6 x USB 10Gbps ports (6 x Type-A)\n1 x HDMI™ port\n2 x Intel® 2.5Gb Ethernet port\n1 x Realtek 1Gb Ethernet dedicated for AST2600\n1 x VGA port from AST2600\n2 x Audio jacks\n1 x BIOS FlashBack™ button\n1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related\n1 x 4-pin CPU Fan header\n1 x 4-pin CPU OPT Fan header\n5 x 4-pin Chassis Fan headers\n1 x W_PUMP+ header\nPower Related\n1 x 24-pin Main Power connector\n2 x 8-pin +12V CPU Power connector\nStorage Related\n4 x M.2 slots (Key M)\n4 x SATA 6Gb/s ports\n1 x SlimSAS connector\nUSB\n1 x USB 20Gbps connector (supports USB Type-C® )\n1 x USB 5Gbps header supports 2 additional USB 5Gbps ports\n2 x USB 2.0 header supports 4 additional USB 2.0 ports\nMiscellaneous\n1 x Chassis Intrusion header\n1 x COM Port header\n1 x Front Panel Audio header (F_AUDIO)\n1 x 10-1 pin Front Panel System header\n1 x Thermal Sensor header\n1 x Thunderbolt™ (USB4®) header\n1 x SPI TPM header (14-1 pin)
BIOS	256 Mb Flash ROM UEFI AMI BIOS(text-based)
Manageability	WOL by PME, PXE
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	ATX Form Factor\n12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Who should buy it

This motherboard is ideal for professionals working with AI, deep learning, and content creation. It may not be the best choice for users needing basic computing tasks or older processors not supported by Intel® Core™ Ultra Processors (Series 2).

Compatibility

Works with Intel® Core™ Ultra Processors (Series 2), LGA1851 socket. Supports Windows 11 (22H2 & later) and Windows 10 64-bit (21H2 & later). Requires Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 for full functionality.

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later).
Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.

What's in the box

2 x SATA 6Gb/s cables
1 x AMI license sticker
1 x I/O shield
1 x M.2 Q-Latch packages
2 x M.2 rubber packages
1 x Q-connector
1 x ACC Express activation key card
1 x Quick start guide

Frequently asked questions

What is the maximum memory speed supported by the Pro WS W880-ACE SE?

The Pro WS W880-ACE SE supports memory speeds up to 9066+MT/s (OC), with ECC and Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM) memory.

How many PCIe 5.0 slots does the Pro WS W880-ACE SE have?

The Pro WS W880-ACE SE has 2 x PCIe 5.0 x16 slots that support x16 or x8/x8 modes.

Does the Pro WS W880-ACE SE support Intel Core Ultra 200S Plus Series processors?

Yes, the Pro WS W880-ACE SE supports Intel® Core Ultra 200S Plus Series processors for Windows 11 (version 25H2 and later).

What is the purpose of the BMC on the Pro WS W880-ACE SE?

The BMC on the Pro WS W880-ACE SE provides server-grade IPMI remote management and onboard BMC controller for hardware and software-level management.

Can the Pro WS W880-ACE SE handle dual graphics cards?

Yes, the Pro WS W880-ACE SE is engineered to support dual graphics cards, making it ideal for content creation, AI, and deep learning.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	ASUS
Category	Motherboard
Model / MPN	Pro WS W880-ACE SE
CPU	Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
Chipset	Intel® W880 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5
Memory Speed	Support up to 9066+MT/s (OC), ECC and Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture	Dual channel memory architecture
Graphics	1 x HDMI™ port\n1 x Intel® Thunderbolt™ 4 port (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*\n1 x VGA port from AST2600
Expansion Slots	Intel® Core™ Ultra Processors (Series 2)\n2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)\nIntel® W880 Chipset\n1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports\nIntel® Core™ Ultra Processors (Series 2)\nM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)\nM.2_2 slot (Key M), type 2280 (supports PCIe4.0 x4 mode)\nIntel® W880 Chipset\nM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)\nM.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)\nSlimSAS_1 connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via an adapter cable. The cable is purchased separately. *\n4 x SATA 6Gb/s ports
Ethernet	2 x Intel® 2.5Gb Ethernet\n1 x Realtek 1Gb Ethernet dedicated for AST2600
USB	Rear USB (Total 8 ports)\n1 x Thunderbolt™ 4 port (1 x USB Type-C®)\n1 x USB 20Gbps port (1 x USB Type-C®)\n6 x USB 10Gbps ports (6 x Type-A)\nFront USB (Total 7 ports)\n1 x USB 20Gbps connector (supports USB Type-C® )\n1 x USB 5Gbps header supports 2 additional USB 5Gbps ports\n2 x USB 2.0 headers supports 4 additional USB 2.0 ports
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC\n- Impedance sense for front and rear headphone outputs\n- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers\n- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking\n- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)\n- Supports up to 32-Bit/192 kHz playback*"\nAudio Features\n- Audio Shielding\n- Premium audio capacitors
Back Panel I/O Ports	1 x Thunderbolt™ 4 USB Type-C® port\n1 x USB 20Gbps port (1 x USB Type-C®)\n6 x USB 10Gbps ports (6 x Type-A)\n1 x HDMI™ port\n2 x Intel® 2.5Gb Ethernet port\n1 x Realtek 1Gb Ethernet dedicated for AST2600\n1 x VGA port from AST2600\n2 x Audio jacks\n1 x BIOS FlashBack™ button\n1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related\n1 x 4-pin CPU Fan header\n1 x 4-pin CPU OPT Fan header\n5 x 4-pin Chassis Fan headers\n1 x W_PUMP+ header\nPower Related\n1 x 24-pin Main Power connector\n2 x 8-pin +12V CPU Power connector\nStorage Related\n4 x M.2 slots (Key M)\n4 x SATA 6Gb/s ports\n1 x SlimSAS connector\nUSB\n1 x USB 20Gbps connector (supports USB Type-C® )\n1 x USB 5Gbps header supports 2 additional USB 5Gbps ports\n2 x USB 2.0 header supports 4 additional USB 2.0 ports\nMiscellaneous\n1 x Chassis Intrusion header\n1 x COM Port header\n1 x Front Panel Audio header (F_AUDIO)\n1 x 10-1 pin Front Panel System header\n1 x Thermal Sensor header\n1 x Thunderbolt™ (USB4®) header\n1 x SPI TPM header (14-1 pin)
BIOS	256 Mb Flash ROM UEFI AMI BIOS(text-based)
Manageability	WOL by PME, PXE
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	ATX Form Factor\n12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
