ASUS ROG Ryuo IV SLC 360 ARGB Black, 360mm AIO CPU Liquid Cooler

Key features

• 360mm aluminum radiator for high heat dissipation
• Copper coldplate with pre-applied thermal compound
• 6.67-inch AMOLED display on pump head
• 3x ROG Ryuo IV MF-12C ARGB 120mm fans included
• PWM/DC fan control for flexible speed management
• Sleeved FEP tubing rated at 200mm length
• AURA Sync support for lighting coordination
• Broad socket support for AMD and Intel platforms

Understand This Product — TechCureIndia

What it does

This is a 360mm closed-loop liquid cooling system that transfers heat from the CPU to a radiator using a pump-driven water block, cooled further by three attached ARGB fans.

What the key specifications mean

• Water Block Dimension: Indicates the physical footprint of the pump/coldplate unit, relevant for checking clearance around the CPU socket area.
• Block Material (CPU Plate): Copper offers efficient heat transfer from the CPU to the coolant.
• Pump Motor Speed: Shows the operating RPM range of the pump, affecting coolant circulation rate.
• Radiator Dimension: A 394 x 140 x 32mm radiator requires a case with a 360mm fan mount, usually at the top or front.
• Radiator Material: Aluminum construction balances heat dissipation and weight.
• Tube: Sleeved FEP tubing improves durability and resistance to degradation over time.
• Tube Length: 200mm tube length should be checked against case dimensions for pump and radiator placement.
• Fan Speed: 800-2650 RPM range allows adjustment between quiet operation and maximum airflow.
• Fan Static Pressure: 5.45 mmH2O indicates the fans' ability to push air through the radiator fins.
• Fan Air Flow: 71.44 CFM reflects the volume of air each fan can move at full speed.
• Fan Noise: 39.6 dB(A) is the rated noise output at maximum fan speed.
• Fan Control Mode: Supports both PWM and DC headers, compatible with most motherboards.

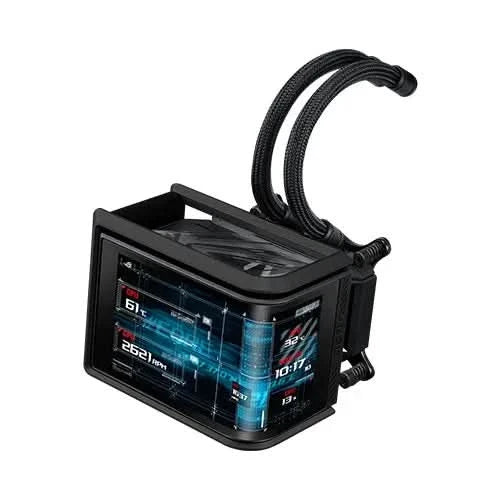

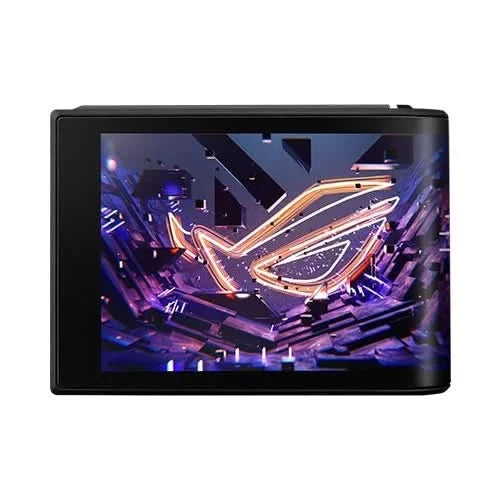

• Display: The 6.67-inch AMOLED screen can show system stats or custom images via supported ASUS software.
• AURA Sync Support: Allows lighting synchronization with other AURA Sync-compatible components.
• AMD Compatibility: Supports AM5 and AM4 socket motherboards.
• Intel Compatibility: Supports LGA 1851 and LGA 1700 socket motherboards.

Practical benefits

• High cooling capacity suitable for high-wattage CPUs
• Customizable display for monitoring or aesthetics
• RGB lighting integration across the build
• Quieter operation at lower fan speeds, higher airflow when needed

Who it suits

• Enthusiasts building high-performance gaming or workstation PCs
• Users wanting strong CPU cooling for overclocked or power-hungry processors
• Builders who want ARGB lighting and a customizable display as a centerpiece

Compatibility and installation

• Requires AM5 or AM4 socket motherboard (AMD) or LGA 1851/1700 socket (Intel)
• Case must support a 360mm radiator (394 x 140 x 32mm)
• Motherboard should have PWM/DC fan headers for fan control
• AURA Sync-compatible motherboard needed for full lighting synchronization
• Requires mounting space for a 360mm radiator with three 120mm fans
• Pump/water block dimensions of 133 x 105 x 123mm need adequate clearance near the CPU socket
• Tube length of 200mm should be checked against case layout for radiator and pump positioning
• Uses PWM/DC headers for fan speed control

Important limitations

• Specification verification required for maximum TDP support
• Specification verification required for AMOLED display software features beyond AURA Sync

Package contents

• 1 x CPU Liquid Cooler (pre-applied thermal compound)
• 3 x 120 mm ARGB Radiator Fan
• 1 x ROG VIP card
• 1 x ROG Sticker
• 1 x Quick Start Guide
• 1 x Accessory Pack of Screws and Brackets
• 1 x Tube fastener

Buy separately:

• Compatible motherboard with required socket
• Case supporting a 360mm radiator

Check before you buy

• Confirm case has sufficient clearance for a 360mm radiator and 25mm thick fans
• Verify motherboard socket matches AM5, AM4, LGA 1851, or LGA 1700
• Check for available PWM/DC fan headers and AURA Sync header on motherboard

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website (official product page). Specifications on the official website are final.
