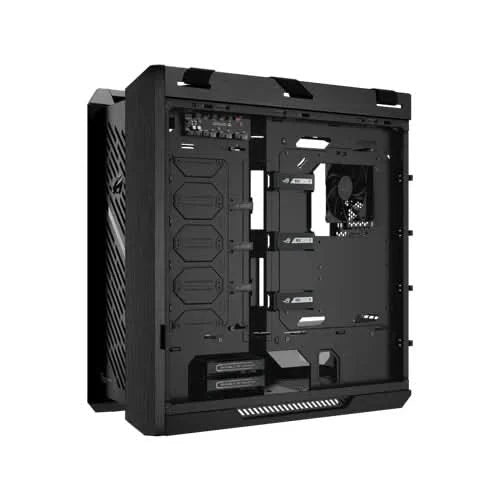

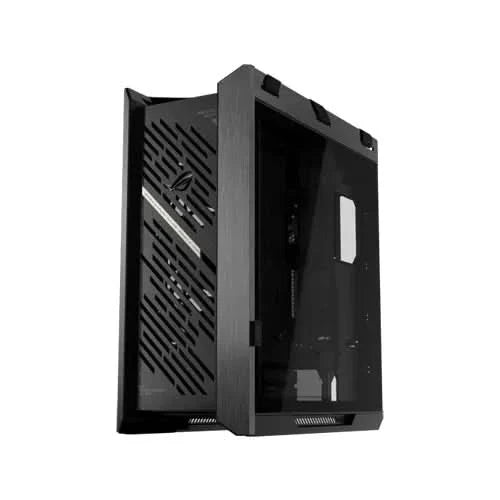

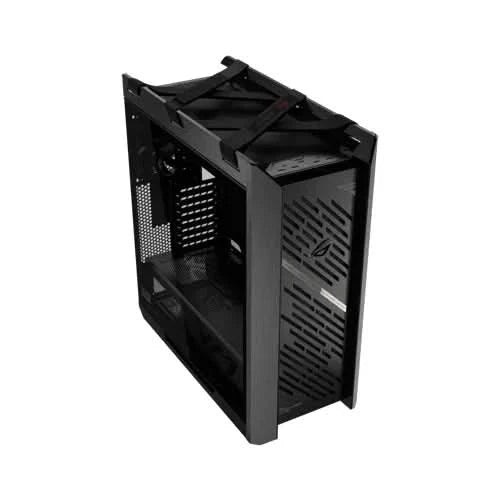

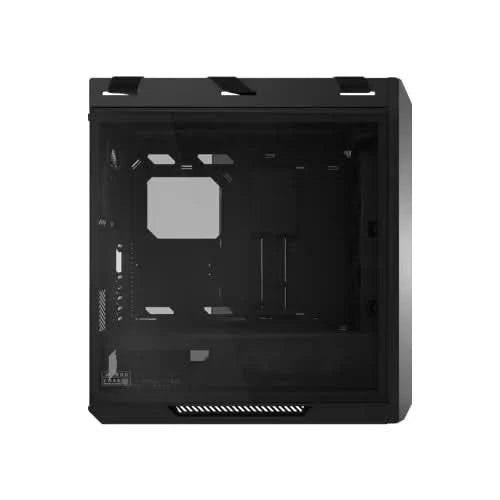

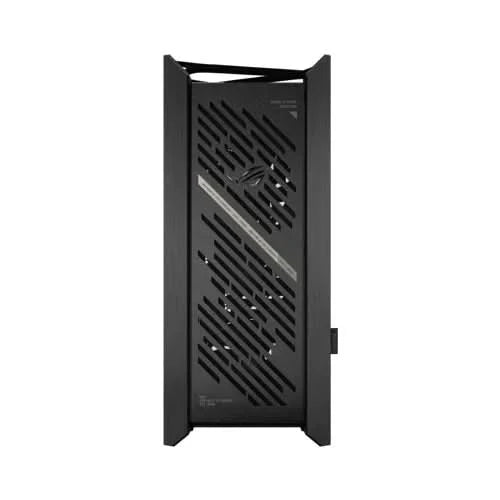

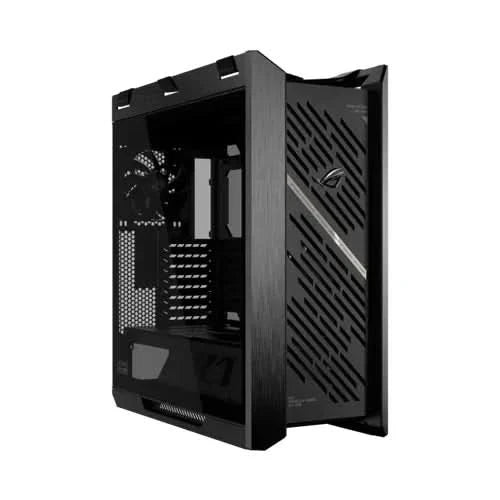

ASUS ROG Strix Helios II GX601S E-ATX Mid Tower Gaming Cabinet, Black

Key features

• Supports EATX, ATX, Micro-ATX and Mini-ITX motherboards
• Dual tempered glass side panels
• 4 pre-installed 140 mm PWM fans (3 front, 1 rear)
• Front radiator support up to 420 mm
• Top radiator support up to 360 mm
• 8 + 2 vertical expansion slots for GPU mounting
• Front USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen1 ports
• Removable dust filters on front, top and bottom
• ARGB (Aura Sync) lighting support
• Includes PWM fan and ARGB LED extension hub

Understand This Product — TechCureIndia

What it does

This is a PC cabinet that houses the motherboard, graphics card, storage drives, power supply and cooling hardware, providing airflow, cable routing and expansion for a custom-built desktop.

What the key specifications mean

• Motherboard Support: Determines which motherboard form factors (EATX, ATX, Micro-ATX, Mini-ITX) can be installed in this case.
• Drive Bays: Shows how many 2.5" SSDs and 2.5"/3.5" combo drives can be mounted for storage.
• Expansion Slots: Indicates how many PCIe cards, including a vertically mounted GPU, can be fitted.
• Front I/O Port: Lists the USB and audio ports accessible at the front of the case for everyday connections.
• Radiator Support (Front/Top/Rear): Defines the maximum radiator sizes that can be mounted in each location for liquid cooling.
• Cooling Support (Front/Top/Rear): Shows the number and size of fans that can be installed in each section.
• Pre-installed Fans: Confirms the fans already fitted at purchase, reducing the need to buy extra fans immediately.
• Maximum CPU Cooler Height: Sets the tallest air cooler that will physically fit under the side panel.
• Maximum GPU Length: Sets the longest graphics card that will fit inside the case.
• Maximum PSU Length: Sets the longest power supply unit that can be installed.
• Maximum Cable Management Space: Indicates how much room is behind the motherboard tray for routing cables.
• Removable Dust Filters: Shows which panels have filters that can be taken out for cleaning.
• AURA Sync: Indicates ARGB lighting compatibility for synchronized lighting effects with compatible components.

Practical benefits

• Fits large components including long GPUs and tall PSUs
• Pre-installed fans reduce initial cooling setup cost
• Multiple radiator mounting positions support custom liquid cooling
• Tempered glass panels allow build visibility
• Removable dust filters simplify maintenance

Who it suits

• High-performance gaming PC builds
• Builds using EATX or ATX motherboards
• Systems requiring large GPUs or custom liquid cooling loops
• Users who want an ARGB-lit showcase build

Compatibility and installation

• Motherboard must be EATX, ATX, Micro-ATX or Mini-ITX form factor
• Graphics card length must not exceed 450 mm
• Power supply length must not exceed 220 mm
• CPU cooler height must not exceed 190 mm
• Radiators must match the supported sizes for the chosen mounting location
• Case dimensions: 250 x 565 x 591 mm
• Weight: 18 Kg
• Cable management space: 33 mm behind the motherboard tray
• Dust filters located at front, top and bottom panels
• Front I/O includes USB Type-C, USB-A and audio connections

Important limitations

• Rear radiator support is limited to 120 mm or 140 mm only
• Top radiator support does not extend beyond 360 mm
• Cable management space is limited to 33 mm
• Maximum GPU length is capped at 450 mm
• Maximum PSU length is capped at 220 mm

Package contents

• 4 pre-installed 140 mm PWM fans (3 front, 1 rear)
• Extension hub supporting up to 6 PWM fans and 6 ARGB LED strips

Buy separately:

• Motherboard, CPU, GPU, RAM and storage drives
• Power supply unit
• Additional case fans beyond the pre-installed ones, if desired
• Liquid cooling radiator and AIO/custom loop components, if desired

Check before you buy

• Confirm your motherboard form factor matches the supported sizes
• Verify your GPU length is within the 450 mm limit
• Verify your PSU length is within the 220 mm limit
• Check your CPU cooler height does not exceed 190 mm
• Confirm your chosen radiator size fits the intended mounting location

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.
