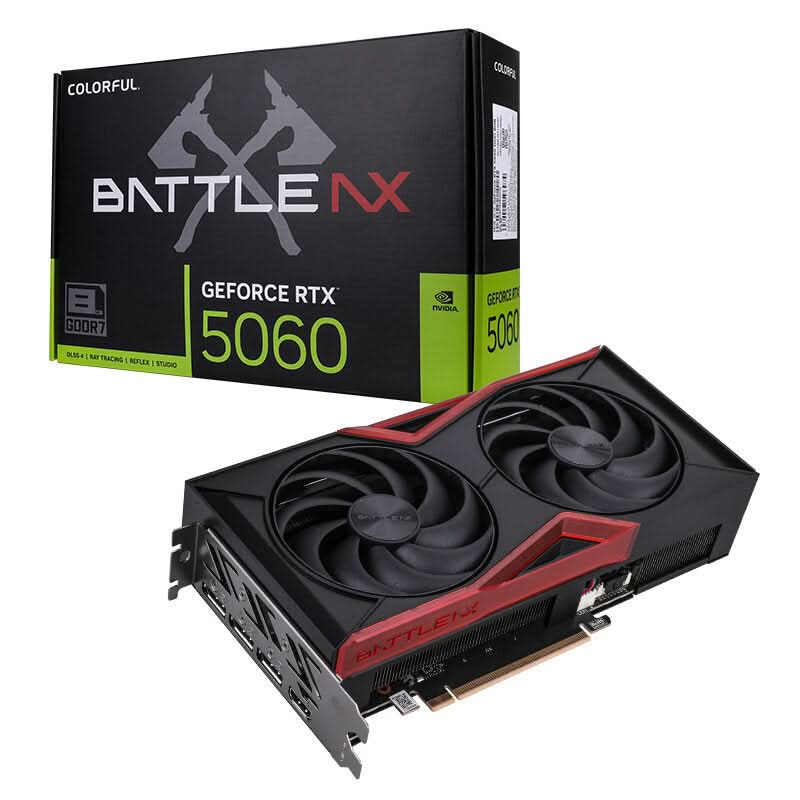

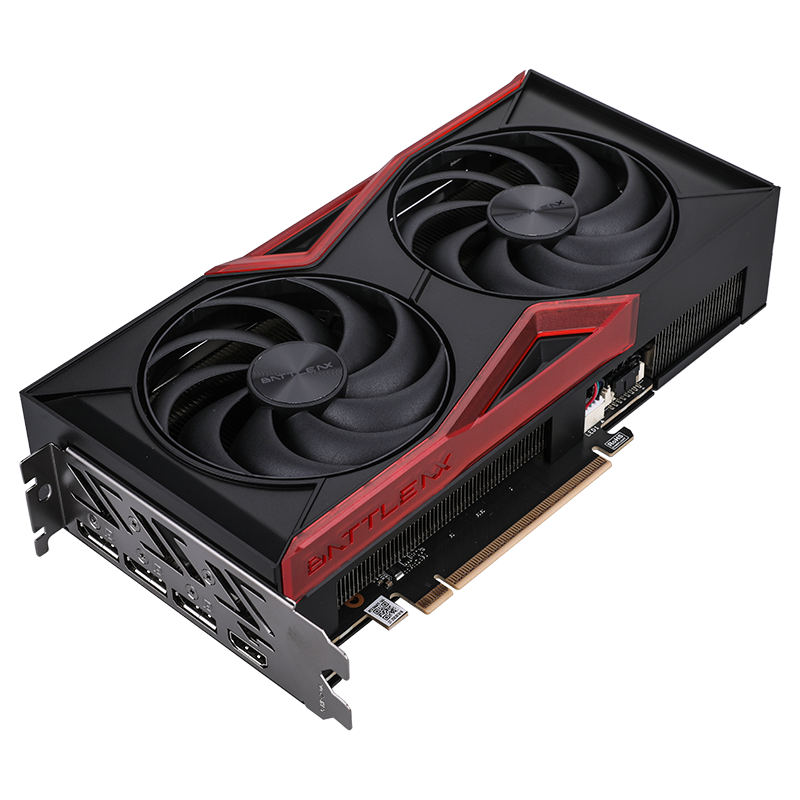

COLORFUL BATTLE AX GEFORCE RTX 5060 NB DUO 8GB-V GRAPHIC CARD

Key features

• Red and black color contrast design with a metallic hollowed backboard

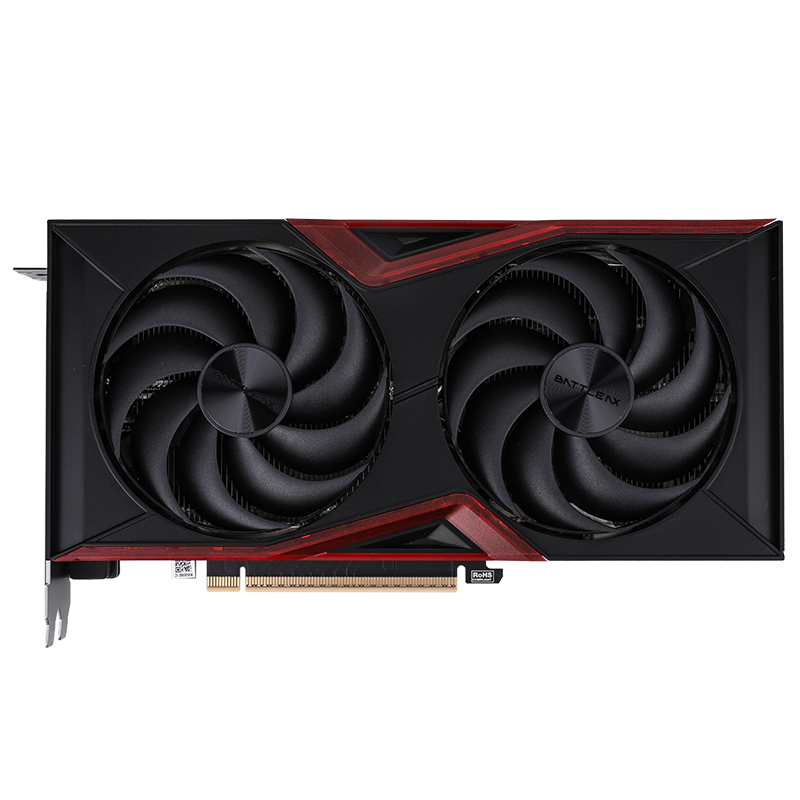

• Axe-style cooling system using two 90mm ring-shaped fans
• Slim two-slot cooler profile in a compact 231mm card length
• RGB lighting on the side and on the "Battle Ax" logo, adjustable via iGame Center app
• GDDR7 memory with 448GB/s bandwidth on a 128-bit bus
• DLSS 4, Reflex, and Studio support for supported applications

Understand This Product — TechCureIndia

What it does

This is a discrete desktop graphics card based on the GeForce RTX 5060 GPU, used to render graphics, games, and GPU-accelerated workloads.

What the key specifications mean

• CUDA Cores (3840): Indicates the GPU's core count, relevant to overall graphics processing capability for this model tier.
• Core Clock (Base 2280MHz / Boost 2497MHz): Shows the operating frequency range the GPU can run at under load.
• Memory Size (8GB GDDR7): Determines how much video memory is available for textures and frame buffers at this card's tier.
• Memory Bus Width (128-bit) / Bandwidth (448GB/s): Affects how quickly data can move between the GPU and memory.
• TDP (145W) / Power Suggest (550W): Tells the buyer the card's power draw and the minimum recommended PSU wattage for the system.
• Power Connector (8-pin): Specifies the type of PCIe power cable required from the power supply.

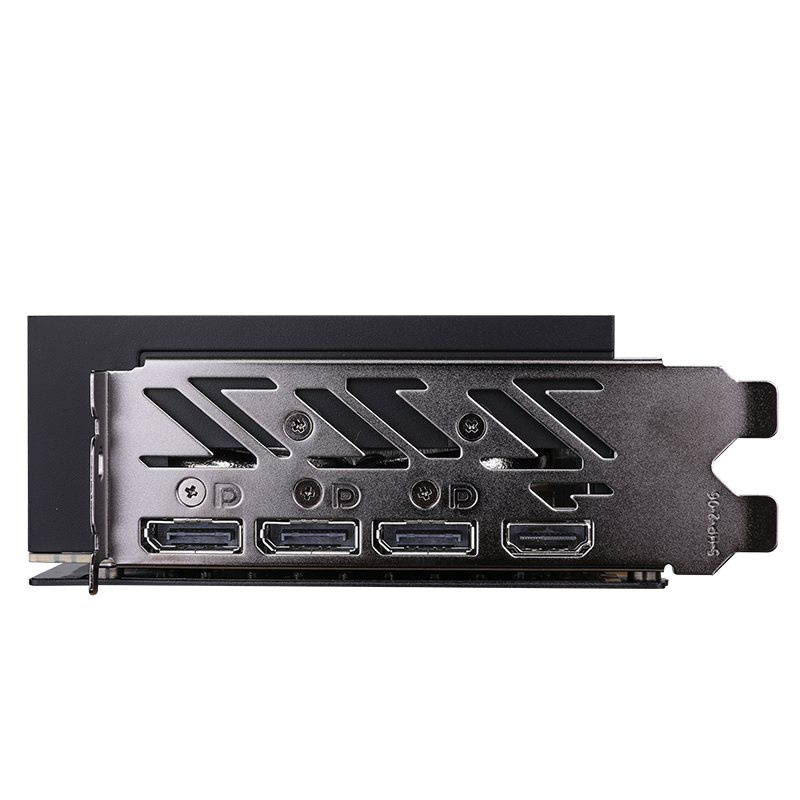

• Display Ports (3x DP2.1b + HDMI2.1b): Defines how many and what type of display outputs are available for monitors.
• Card Length (231mm) / Product Size (231x120x48.9mm): Helps confirm the card will physically fit inside the intended PC case.
• Cooler Profile (Slim two-slot): Indicates how much case width/slot space the card occupies.
• NV Technology Support (DLSS 4/Reflex/Studio): Indicates which NVIDIA software features are supported for compatible games and applications.
• DirectX (DirectX 12 Ultimate/OpenGL 4.6): Confirms the graphics APIs supported by the card.

Practical benefits

• Compact 231mm length suits smaller or mid-tower cases
• Dual 90mm fan cooling intended to manage heat during sustained use
• RGB lighting with software-based customization for aesthetic builds
• GDDR7 memory offering higher bandwidth than previous-generation memory types

Who it suits

• Users building a compact or mid-tower PC needing a modern RTX 5060 card
• Buyers wanting RGB aesthetics with software-controlled lighting
• General gaming and content workloads supporting DLSS 4 and Reflex

Compatibility and installation

• Requires a motherboard with a PCIe slot (slot type not specified in FACTS)
• Needs a display cable matching DP2.1b or HDMI2.1b output
• Software features (DLSS 4, Reflex, Studio) require supporting games/applications
• Power supply must provide an 8-pin PCIe power connector
• Minimum recommended PSU wattage is 550W
• Card occupies a slim two-slot width and measures 231x120x48.9mm
• Dual 90mm fans require adequate case airflow for cooling

Important limitations

• 8GB memory capacity may limit use in very memory-intensive workloads
• 128-bit memory bus width is a fixed hardware limitation for this model
• Specification verification required for PCIe interface version

Package contents

• Specification verification required.

Buy separately:

• Power supply unit (if existing PSU does not meet 550W recommendation or lacks 8-pin connector)
• Display cables (DisplayPort 2.1b or HDMI 2.1b) if not already owned

Check before you buy

• Confirm your PSU has an available 8-pin PCIe power connector and meets the 550W recommendation
• Verify your case can accommodate a 231mm-long, two-slot-width card
• Ensure your monitor supports DP2.1b or HDMI2.1b for intended connection
• Check that your motherboard has a compatible PCIe slot

Warranty

3 years manufacturer warranty, serviced through the brand's authorised service network. TechCure India helps you with the claim.

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.
