Cooler Master Elite Gold 750W 80 Plus Gold Fully Modular Power Supply (MPX-7505-AFAG-NBIN)

Highlights

• 750W output with 80 PLUS Gold efficiency (≥90% @ Typical Load).
• Supports ATX 12V Ver. 3.1 and PCIe Gen 5.1 standards (suitable for RTX 50 GPUs as stated).

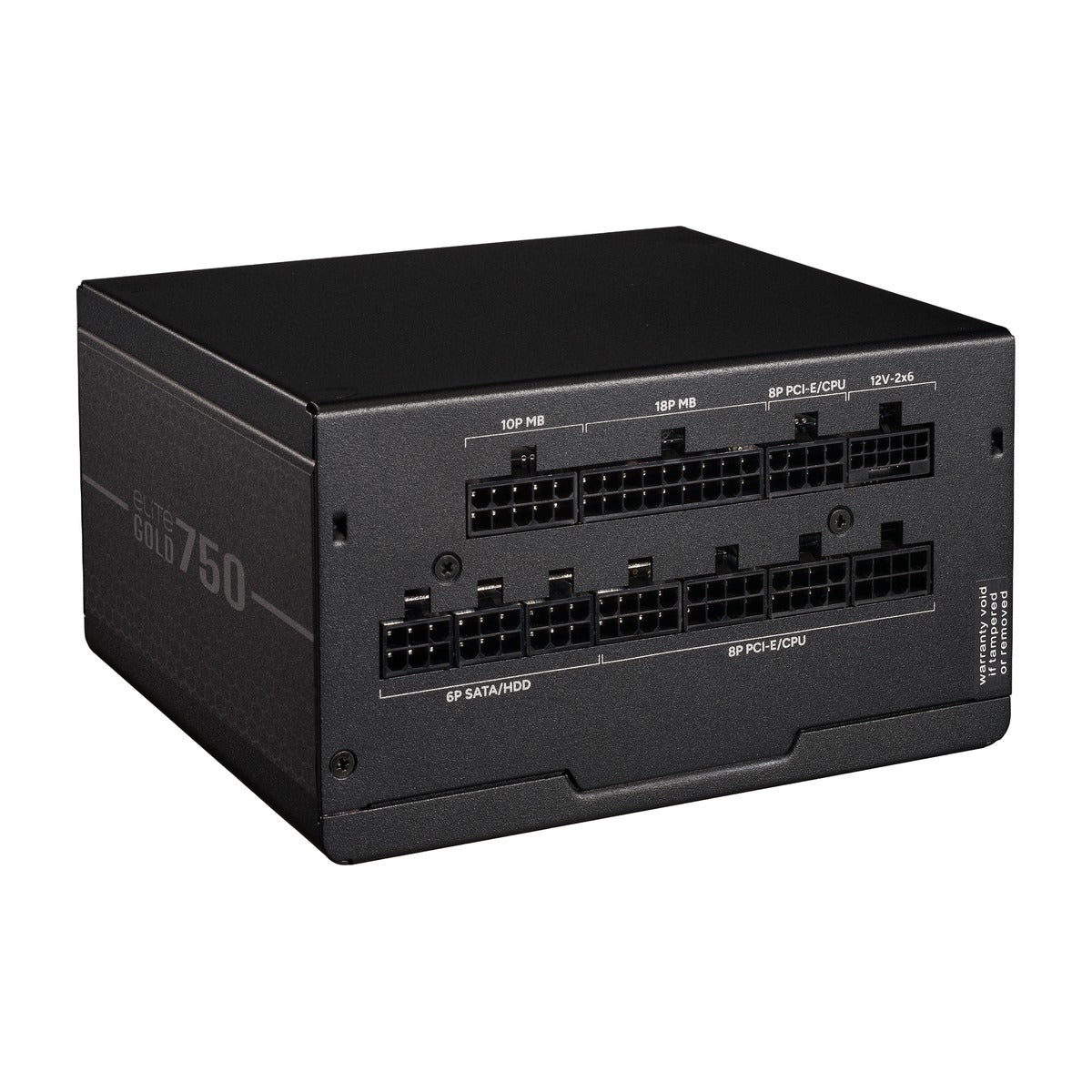

• Fully modular embossed flat black cable design for cleaner builds.
• Compact 140 x 150 x 86 mm length helps fit in smaller ATX cases.
• Quiet 120mm rifle bearing fan for low-noise operation.
• Operates reliably up to 40°C and has MTBF >100,000 hours @ 25°C ambient.
• Comprehensive protections: UVP, OVP, OPP, OTP, SCP.
• 10-year warranty.

Who should buy it

Choose this unit if you need a compact, modular 750W PSU with ATX 3.1 and PCIe 5.1 support for everyday gaming and mid-range to modern GPUs. If you need features or compatibility details not listed here (detailed cable pinouts or local warranty process), check with seller or manufacturer.

Compatibility

This PSU is compatible with ATX 12V Ver. 3.1 systems and supports PCIe Gen 5.1 devices (stated as suitable for RTX 50 GPUs). It follows the ATX form factor and fits standard ATX setups that accept a 140 x 150 x 86 mm unit.

• Compatible with ATX 12V Ver. 3.1 systems
• Compatible with PCIe Gen 5.1 (suitable for RTX 50 GPUs as stated)

Frequently asked questions

Does this unit include a 12V 12+4 (12V-2x6/12+4) adapter cable or is the 12+4 native on the unit?

The provided facts list a native 12+4 pin connector x1 with 650mm length, so a 12+4 connector is present on the unit.

Is the 140 x 150 x 86 mm compact length compatible with standard ATX PSU mounts in small/mid towers?

The PSU is described as a compact 140 mm length form factor and uses the ATX form factor, indicating it is intended to fit standard ATX mounts for compact builds.

Which exact cables and lengths are included in the box (complete pinout and lengths)?

Cable types and lengths are listed in the facts: ATX 24‑pin x1 (550mm); EPS 4+4 / EPS 8‑pin x2 (600+120mm); PCI‑e 6+2 pin x2 (500+120mm); 12+4 pin x1 (650mm); SATA & peripheral grouping listed as X4(s)+x2(p) = 2 [400(s)+120(s)+120(p) mm].

Is the warranty valid in India and how is warranty service claimed (local service center / RMA process)?

The facts state a 10 Years warranty but do not provide details on validity in India or the claim process.

Does the unit provide Zero RPM or semi-passive fan mode at low loads?

The facts note a quiet rifle bearing 120mm fan but do not state a Zero RPM or semi-passive fan mode.

What is the supported operating temperature range for continuous full-load operation?

Operating temperature is specified as 0–40°C for reliable operation.

Is this PSU compliant with BIS (Indian regulatory) standards listed under Regulatory?

BIS is listed among the regulatory certifications in the facts, indicating compliance is stated.

Does the product include PCIe cables required for high-end GPUs like RTX 4090/50 or are additional adapters required?

The facts list PCI‑e 6+2 pin connectors x2 and a native 12+4 pin connector compatible with PCIe Gen 5.1; whether adapters are required for specific high-end GPU power layouts is not detailed.

Brand warranty: 10 Years from the manufacturer — TechCure India helps you with the claim.
