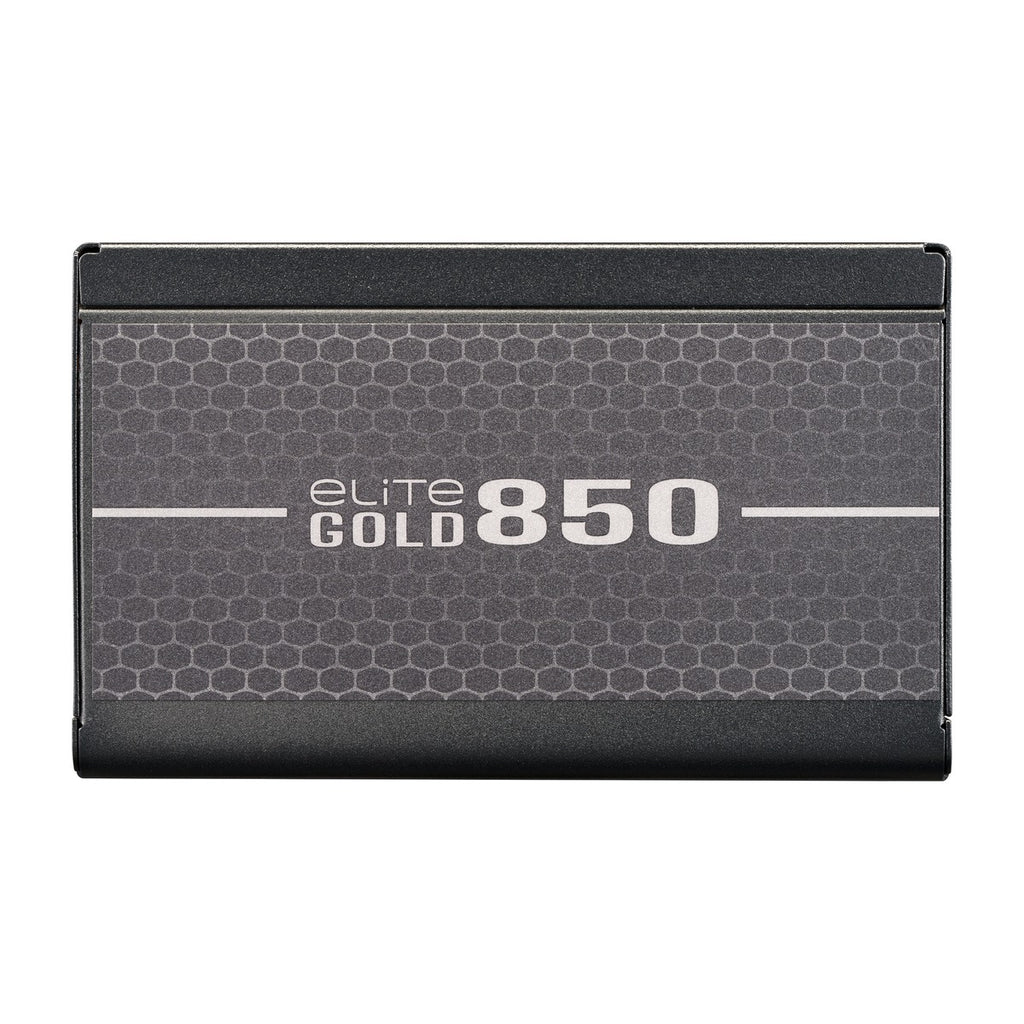

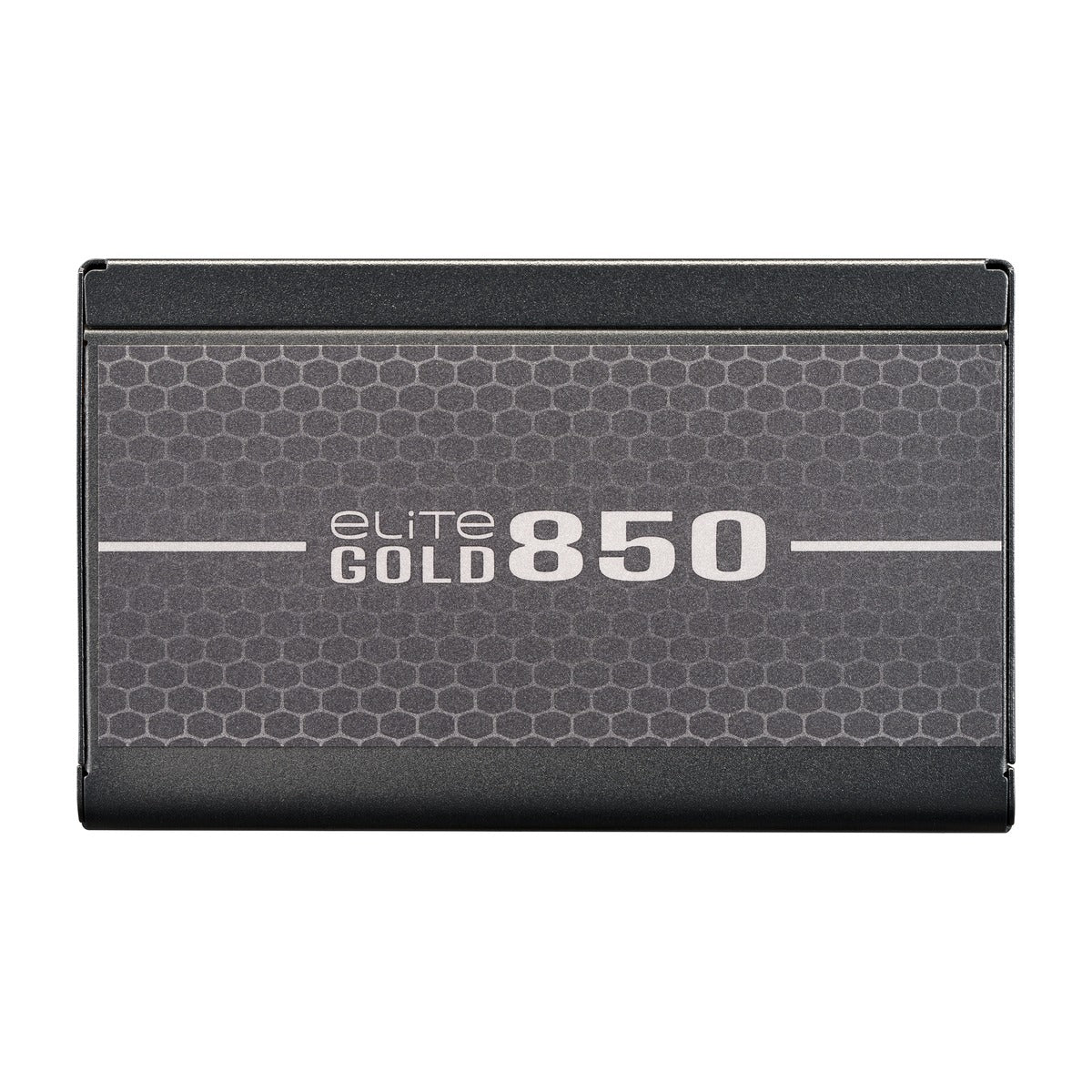

ELITE GOLD 850 - side/top view of Cooler Master Elite Gold 850W power supply showing fan grille

Cooler Master Elite Gold 850W 80 Plus Gold Fully Modular Power Supply (MPX-8505-AFAG-NBIN)

₹9,609

MRP ₹15,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

ELITE GOLD 850 is an 850W, fully modular ATX power supply in the Elite Series designed for compact builds and mid-range PCIe Gen5.1 GPUs. It suits builders who need an 140mm PSU with Gold efficiency and a long warranty.

Full specifications ↓

Highlights

850W capacity with ATX 12V Ver. 3.1 support for modern platform requirements
80 PLUS Gold efficiency with ≥90% typical load efficiency
Fully modular with embossed flat black cables for cleaner builds and easier routing
Compact 140 x 150 x 86 mm size fits space-conscious PC cases
Includes a rifle bearing 120mm fan for lower noise and longer lifespan
Supports PCIe Gen 5.1 GPUs and includes a 12+4 pin (12VHPWR) connector at 650mm length
Certified protections: UVP, OVP, OPP, OTP, SCP for component safety
10-year warranty for long-term coverage

Specifications

Product Name	ELITE GOLD 850
Model	MPX-8505-AFAG
ATX Version	ATX 12V Ver. 3.1
PFC	Active PFC
Input Voltage	100-240V
Input Current	6 ~ 12A
Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm
Fan Size	120mm
Fan Bearing	Rifle bearing
Efficiency	≥90% @ Typical Load
80 PLUS Rating	80 PLUS Gold
ErP 2014 Lot 3	Yes
Operating Temperature	0-40°C
Power Good Signal	100 - 150 ms
Hold Up Time	≥ 11ms @ 100% Load
MTBF	>100,000 hours @ 25℃ ambient
Protections	UVP / OVP / OPP / OTP / SCP
Regulatory	cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
ATX 24 Pin Connectors	x1 = 1 (550mm)
EPS 4+4 Pin Connectors	x1 = 1 (600mm)
EPS 8 Pin Connector	x1 = 1 (600mm)
SATA & Peripheral 4 Pin Connectors	X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
PCI-e 6+2 Pin Connectors	x3 = 1 (500+120mm), 1 (500mm)
12+4 Pin Connector	x1 = 1 (650mm)
Series	Elite Series
Form Factor	ATX
Watts	850W
Modular	Fully Modular
80 Plus Efficiency	Gold
Warranty	10 Years

Who should buy it

Choose this PSU if you build everyday gaming or compact PCs using ATX 12V Ver. 3.1 motherboards and mid-range PCIe Gen5.1 GPUs. If you need extreme high-end multi-GPU or detailed rail specs beyond provided facts, consider other specialist units.

Compatibility

Compatible with ATX 12V Ver. 3.1 motherboards and PCIe Gen 5.1 GPUs. The unit follows ATX 3.1 and PCIe Gen 5.1 standards and uses ATX form factor dimensions.

Compatible with ATX 12V Ver. 3.1 motherboards
Compatible with PCIe Gen 5.1 GPUs (mid-range / upcoming models mentioned)

Frequently asked questions

Does this PSU include a 12VHPWR (12+4) cable for PCIe Gen5 GPUs?

Yes. The PSU includes one 12+4 pin connector with a cable length of 650mm.

Is the 10-year warranty valid in India and what is the process for claims?

Warranty duration is 10 years. For country-specific claim process, refer to TechCure India or the official warranty documentation as process details are not provided in the facts.

Will this 140mm unit fit in compact/micro-ATX cases?

The PSU has compact dimensions of 140 x 150 x 86 mm, making it suitable for space-conscious PC builds and compact cases that support standard ATX power supplies.

How many SATA power connectors are available and what are their cable lengths?

There are two SATA & Peripheral groups listed as X4(s) + x2(p) = 2 with cable lengths noted as 400mm (s) + 120mm (s) + 120mm (p).

What protections does the PSU provide (OVP/UVP/OPP/etc.)?

It provides UVP, OVP, OPP, OTP and SCP protections.

Is the PSU fan zero-RPM at low loads or does it always spin?

The facts state a 120mm rifle bearing fan for lower noise and longer lifespan but do not specify zero-RPM behavior, so that detail is not available.

Does this PSU support Intel XTU / AMD overclocking load spikes (ATX 3.1 peak power behavior)?

The PSU supports ATX 3.1 and PCIe Gen 5.1 standards and has Power Good signal and hold-up time specifications, but specific behavior under XTU/AMD overclocking spikes is not detailed in the provided facts.

What are the exact rail specifications (single +12V rail details)?

Exact rail-by-rail specifications are not provided in the facts other than overall 850W capacity and ATX 12V Ver. 3.1 support.

Brand warranty: 10 Years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Cooler Master Elite Gold 850W 80 Plus Gold... — specifications

Brand	Cooler Master
Category	Power Supply Unit
Model / MPN	MPX-8505-AFAG
Product Name	ELITE GOLD 850
Model	MPX-8505-AFAG
ATX Version	ATX 12V Ver. 3.1
PFC	Active PFC
Input Voltage	100-240V
Input Current	6 ~ 12A
Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm
Fan Size	120mm
Fan Bearing	Rifle bearing
Efficiency	≥90% @ Typical Load
80 PLUS Rating	80 PLUS Gold
ErP 2014 Lot 3	Yes
Operating Temperature	0-40°C
Power Good Signal	100 - 150 ms
Hold Up Time	≥ 11ms @ 100% Load
MTBF	>100,000 hours @ 25℃ ambient
Protections	UVP / OVP / OPP / OTP / SCP
Regulatory	cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
ATX 24 Pin Connectors	x1 = 1 (550mm)
EPS 4+4 Pin Connectors	x1 = 1 (600mm)
EPS 8 Pin Connector	x1 = 1 (600mm)
SATA & Peripheral 4 Pin Connectors	X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
PCI-e 6+2 Pin Connectors	x3 = 1 (500+120mm), 1 (500mm)
12+4 Pin Connector	x1 = 1 (650mm)
Series	Elite Series
Form Factor	ATX
Watts	850W
Modular	Fully Modular
80 Plus Efficiency	Gold
Warranty	10 Years
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
