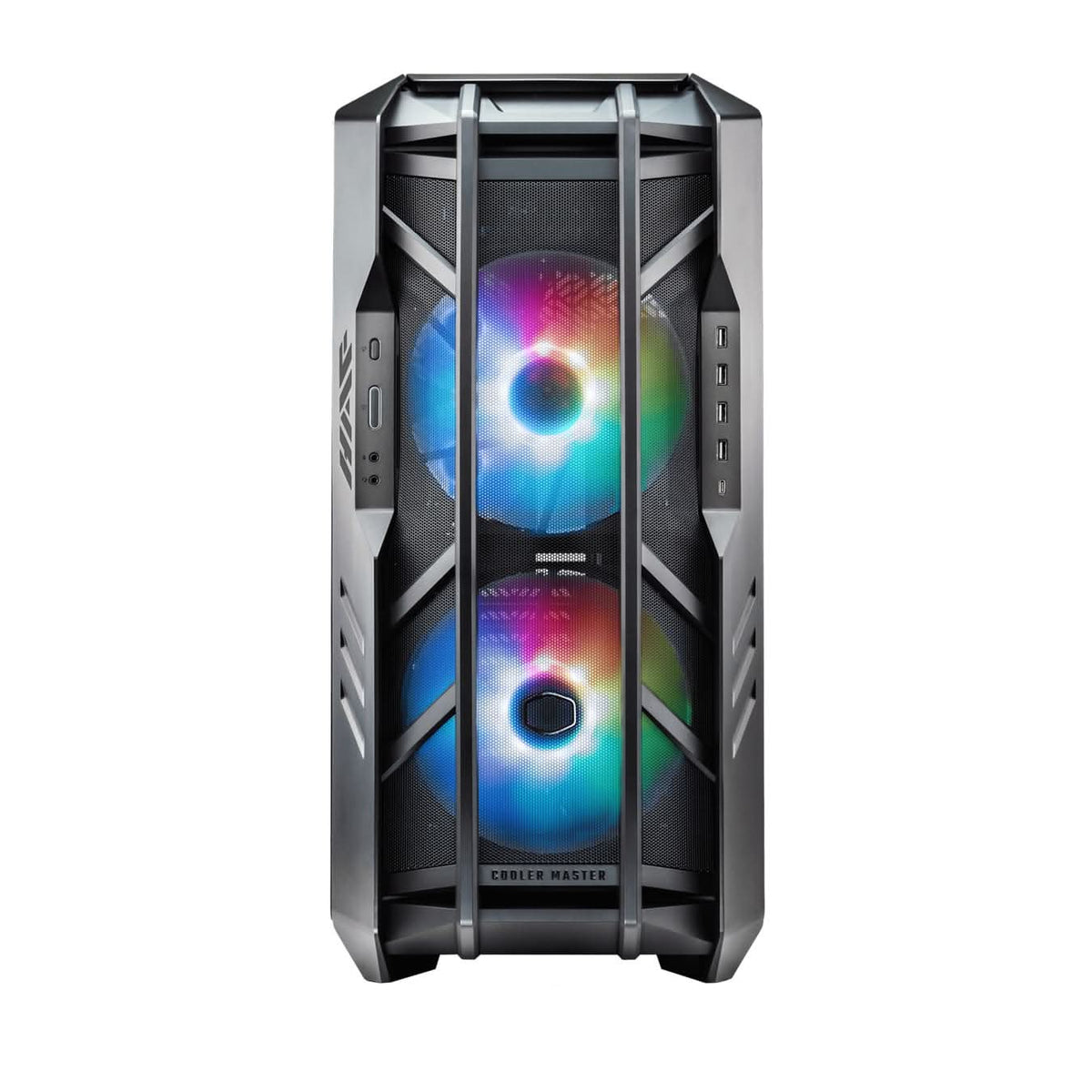

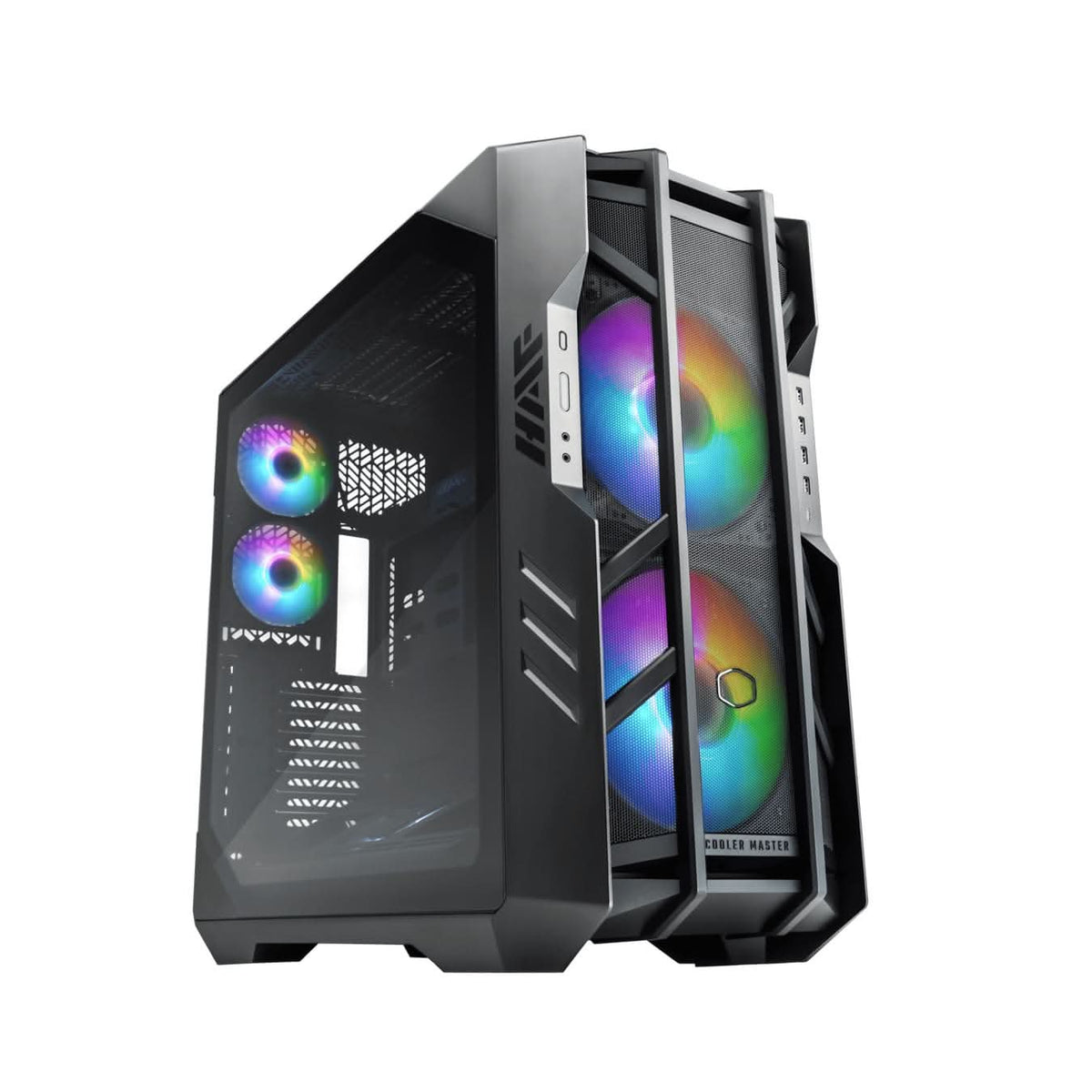

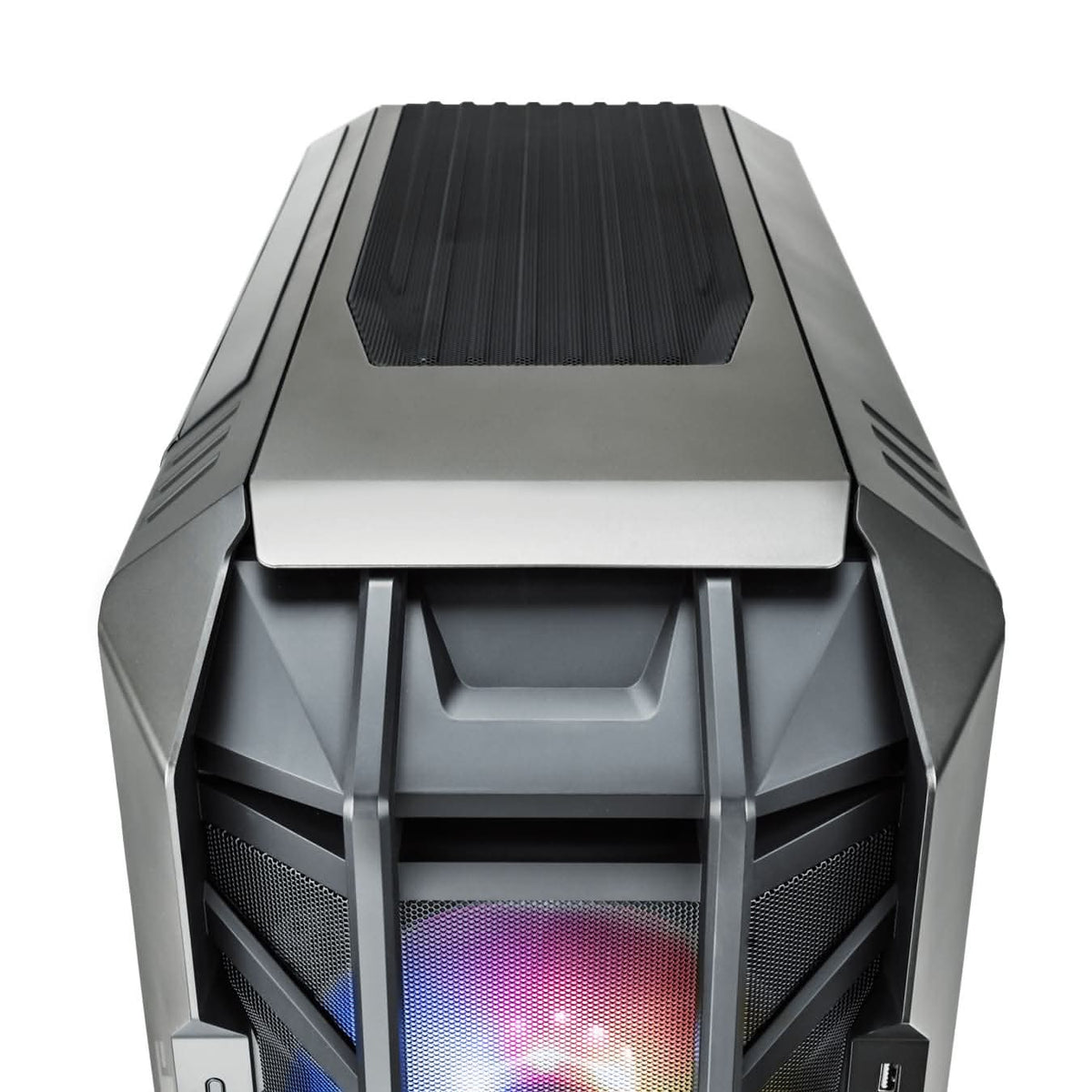

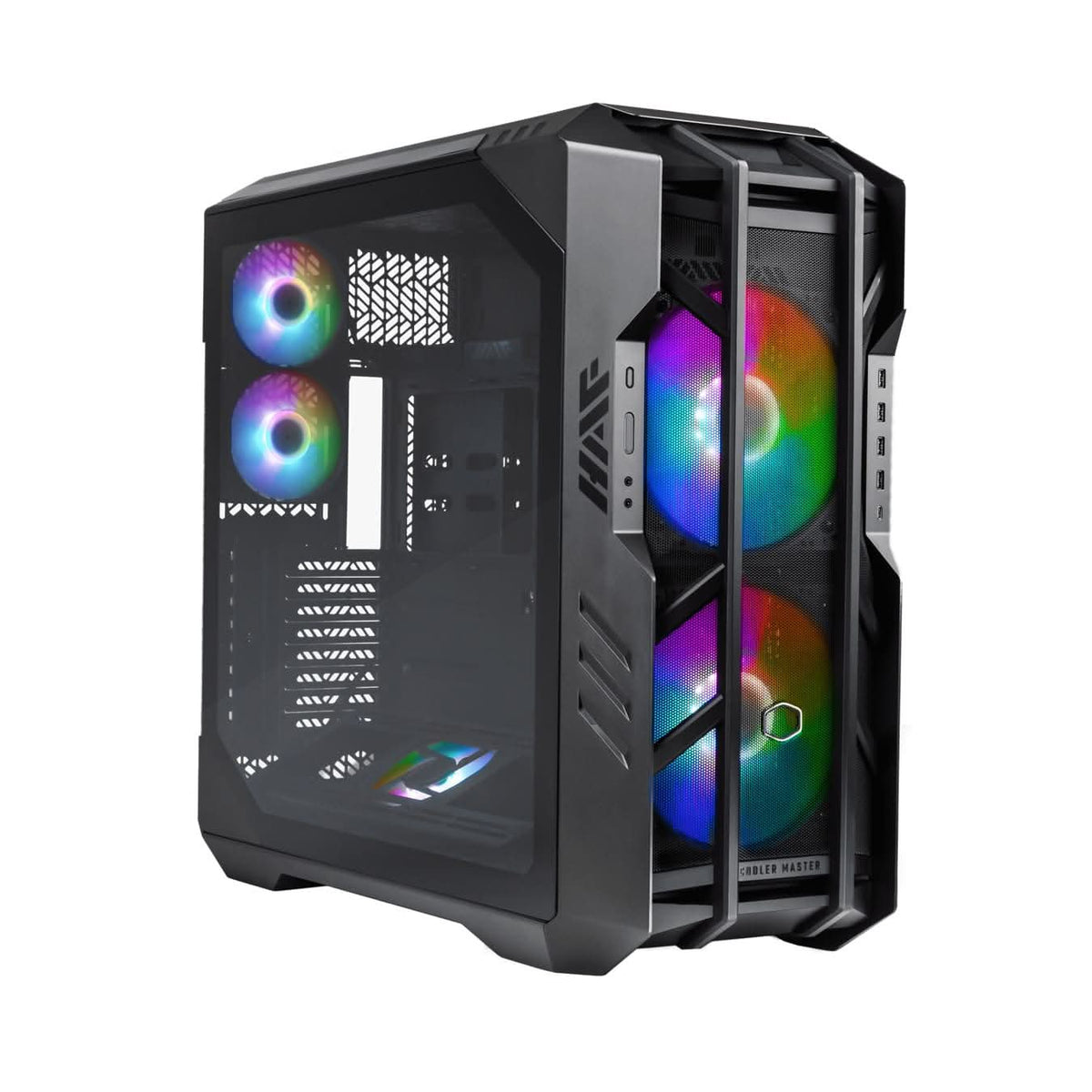

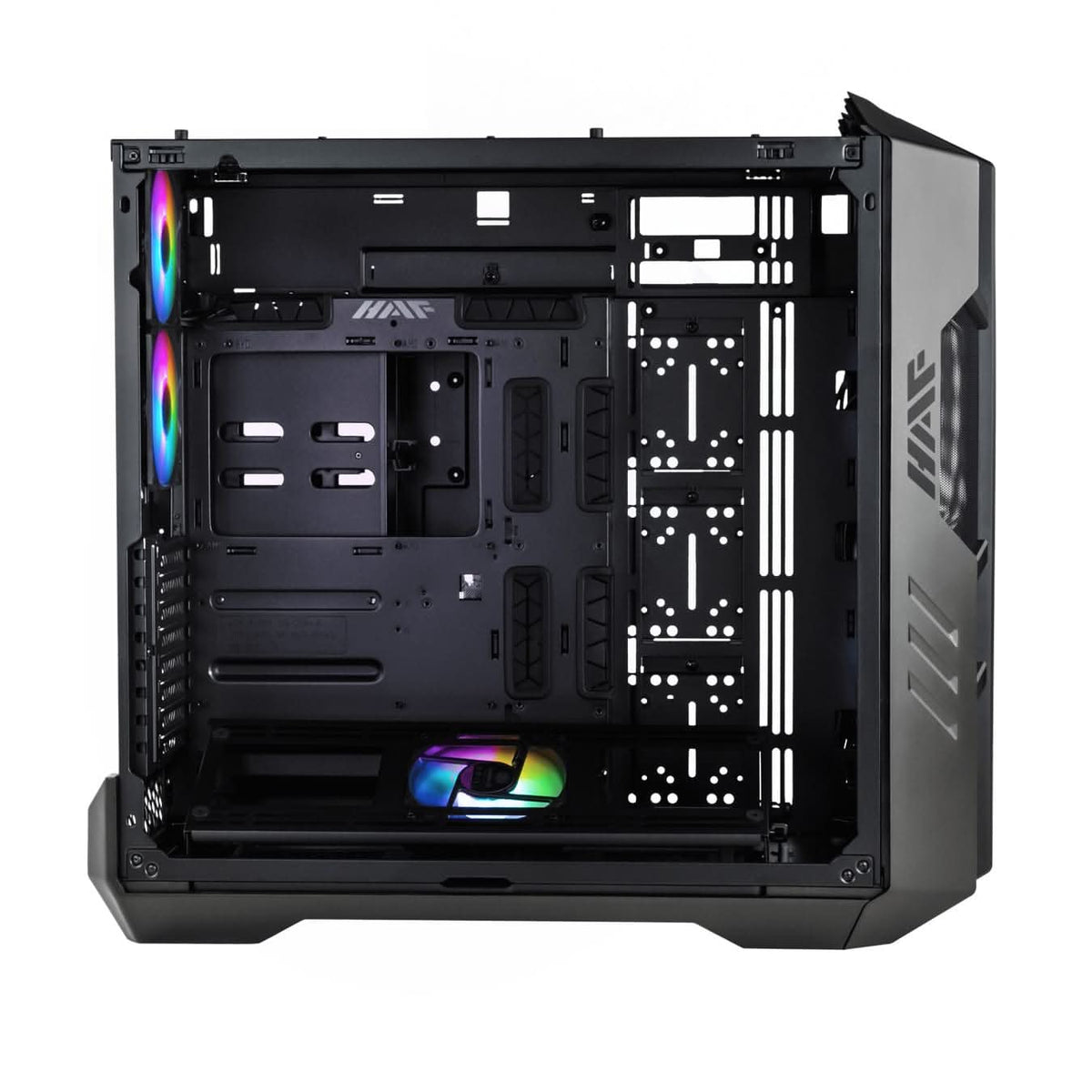

COOLER MASTER HAF 700 FULL-TOWER E-ATX CABINET

Key features

• Full-tower chassis supporting Mini-ITX through E-ATX, SSI-CEB and SSI-EEB boards
• Tempered glass left side panel with steel and plastic frame
• Pre-installed SickleFlow ARGB PWM fans (2x200mm front, 2x120mm rear, 1x120mm bottom)
• Extensive radiator support including up to 480mm on the side panel and 420mm on top
• 9 combo 2.5"/3.5" drive bays for flexible storage
• Front panel with USB 3.2 Gen 2 Type-C and 4x USB 3.2 Gen 1 ports
• Bottom and right-side dust filters for easier maintenance
• Bottom-mounted ATX PSU support with up to 200mm clearance
• Includes rotatable radiator bracket, ARGB Gen2 LED controller and ARGB/PWM hub

Understand This Product — TechCureIndia

What it does

This is a full-tower PC case designed to house large motherboards, multiple radiators, and high-airflow cooling setups for enthusiast or workstation builds.

What the key specifications mean

• Motherboard Support: Confirms the case can fit boards from Mini-ITX up to large SSI-EEB workstation boards.
• Expansion Slots: 8 slots allow multi-GPU or multiple expansion cards.
• 2.5"/3.5" Drive Bays: 9 combo bays give flexibility for mixing SSDs and HDDs.
• I/O Panel - USB Ports: Front USB-C and USB 3.2 Gen1 ports allow fast, modern peripheral and storage connections.
• Pre-installed Fans: Five ARGB PWM fans are included out of the box for front, rear and bottom airflow.
• Fan/Radiator Support: Multiple mounting positions let buyers configure air or liquid cooling across top, front, bottom, rear and side panels.
• Clearance - CPU Cooler/PSU/GFX: Defines maximum height for air coolers, PSU length, and graphics card length that will physically fit.
• Cable Routing - Behind Motherboard Tray: Indicates available space for routing and hiding cables for clean builds.
• Dust Filters: Bottom and right-side filters help reduce dust ingress at main intake points.
• Power Supply Support: PSU mounts at the bottom in a standard ATX form factor.

Practical benefits

• High airflow from five pre-installed ARGB fans
• Supports large custom liquid-cooling loops with multiple radiator positions
• Tool-less drive bay options for faster builds
• Clean cable management via dedicated routing space
• Tempered glass panel for component visibility

Who it suits

• Enthusiast gamers building high-end multi-GPU systems
• Workstation builds using SSI-EEB/E-ATX motherboards
• Users planning custom liquid-cooling loops with large radiators
• Builders wanting extensive storage flexibility

Compatibility and installation

• Motherboard must be Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, or SSI-EEB form factor
• PSU must be standard ATX type, bottom-mounted
• Radiators must match supported sizes per panel (check thickness note for non-30mm radiators)
• Body dimensions 556 x 279 x 540 mm; 666 x 291 x 626 mm including protrusions
• Requires clearance for bottom PSU intake and dust filter removal
• CPU cooler height limited to 166mm
• GPU length limited to 490mm
• PSU length limited to 200mm
• 90-101mm of space behind the motherboard tray for cable routing

Important limitations

• Radiator support assumes standard 30mm-thick radiators; thicker units require checking Cooler Master's compatibility sheet
• Large full-tower footprint requires adequate desk or floor space

Package contents

• 1x Rotatable Radiator Bracket
• 1x LED Controller A1 (ARGB Gen2)
• 1x ARGB/PWM Hub
• 2x SickleFlow 200 ARGB PWM (front)
• 2x SickleFlow 120 ARGB PWM (rear)
• 1x SickleFlow 120 ARGB PWM (bottom)

Buy separately:

• Motherboard, CPU, GPU, RAM, storage drives
• Power supply unit
• Additional case fans or radiators beyond pre-installed units
• Liquid cooling components (pump, tubing, coolant) if building a custom loop

Check before you buy

• Confirm your motherboard form factor is within supported list
• Verify GPU, CPU cooler, and PSU dimensions against stated clearances
• Check radiator thickness against the 30mm note before purchase
• Ensure available space for the case's full dimensions including protrusions

Warranty

2 years manufacturer warranty, serviced through the brand's authorised service network. TechCure India helps you with the claim.

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website (official product page). Specifications on the official website are final.
