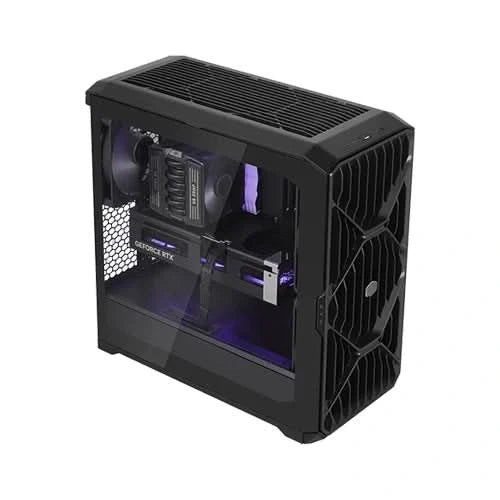

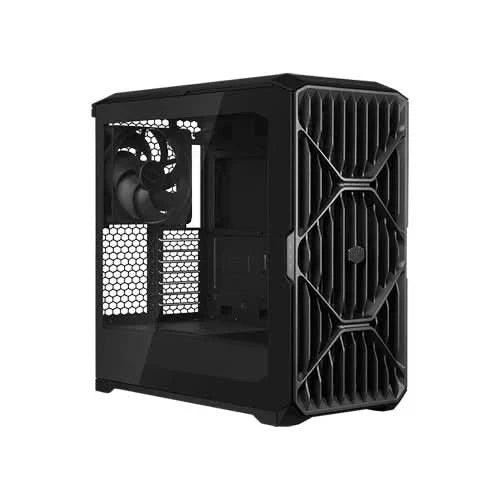

Cooler Master HAF II 500 Black Full Tower Gaming Cabinet

Key features

• Full-tower steel chassis with tempered glass left side panel
• Supports Mini-ITX up to E-ATX motherboards (up to 310 mm wide)
• Pre-installed 2 x Mighty40 F220 front fans and 1 x Mighty40 V180 rear fan
• Built-in fan hub with 6 PWM and 6 ARGB ports (54W total capacity)
• Front, top and PSU dust filters for easier maintenance
• Front I/O with USB 3.2 Gen 2x2 Type-C and two USB 3.2 Gen 1 Type-A ports
• Top and front radiator mounting with conditional support up to 360-180 mm
• 2-year case warranty and 5-year fan warranty

Understand This Product — TechCureIndia

What it does

A full-tower PC cabinet that houses and organizes the motherboard, power supply, storage drives, graphics card(s), and cooling fans/radiators for a desktop build.

What the key specifications mean

• Motherboard Support: Fits boards from Mini-ITX up to E-ATX (max 310 mm wide), giving flexibility for both compact and large builds.
• Clearance - CPU Cooler: Allows air coolers up to 221 mm (Intel) or 220 mm (AMD) tall, so check your cooler height before buying.
• Clearance - Power Supply: PSU length allowance changes with drive orientation (150 mm north-south or 210 mm east-west), affecting how many drive bays remain usable.
• Clearance - Graphics Card Length: Supports GPUs up to 430 mm long when the pre-installed front fans are in place.
• Clearance - Graphics Card Thickness: Thickness allowance drops as more GPUs are installed (72 mm/card for 2 GPUs, 40 mm/card for 4 GPUs).
• Fan Hub Ports: 6 PWM and 6 ARGB headers let you connect extra case fans and lighting without needing a separate controller.
• Radiator Support: Top and front locations support radiators up to 360-180 mm, but this is conditional and should be checked against your other components.
• I/O Panel USB Ports: Includes a fast USB 3.2 Gen 2x2 Type-C port alongside two USB 3.2 Gen 1 Type-A ports for front-panel connectivity.
• Dust Filters: Filters at the top, front, and PSU intake help keep internal components cleaner over time.

Practical benefits

• Tempered glass panel allows visibility of internal components and lighting
• Pre-installed fans provide front-to-back airflow out of the box
• Fan hub simplifies cable management for additional fans and ARGB lighting
• Wide motherboard and GPU support suits high-end, multi-GPU, or liquid-cooled builds

Who it suits

• Gamers and enthusiasts building large ATX or E-ATX systems
• Users planning multi-GPU configurations
• Builders using large air coolers or top/front-mounted radiators

Compatibility and installation

• Motherboard form factor must be Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB, or E-ATX (max 310 mm width)
• PSU length must match the chosen drive orientation for correct clearance
• CPU cooler height must not exceed 221 mm (Intel) or 220 mm (AMD)
• Radiator size selection should be confirmed as support is conditional
• Overall case dimensions: 557 x 262 x 548 mm (79.98 L volume)
• Front intake fans: 2 x Mighty40 F220 pre-installed; Rear exhaust: 1 x Mighty40 V180 pre-installed
• Fan hub supports up to 54W total power draw across connected PWM/ARGB fans
• Front I/O includes USB-C, USB-A, audio/mic jack, power LED, and reset switch

Important limitations

• GPU thickness allowance decreases significantly when installing more than 2 graphics cards
• Additional front fan configurations (3 x 120/140 mm or 2 x 160/180 mm) require MasterRails
• Radiator support at top and front locations is conditional and not guaranteed for all sizes
• Drive bay count depends on PSU length chosen

Package contents

• 2 x Mighty40 F220 front fans (pre-installed)
• 1 x Mighty40 V180 rear fan (pre-installed)
• 3 x 3.5-inch and 6 x 2.5-inch pre-installed drive bays

Buy separately:

• Power supply unit
• Motherboard, CPU, RAM, storage drives
• Graphics card
• CPU cooler or liquid cooling radiator/fans
• MasterRails (if additional front fan configurations are needed)

Check before you buy

• Confirm your PSU length against the drive orientation you plan to use
• Verify GPU length and thickness against clearance limits, especially for multi-GPU setups
• Check CPU cooler height does not exceed stated clearance
• Confirm radiator size compatibility given the conditional support noted for top/front mounting

Warranty

2 years manufacturer warranty, serviced through the brand's authorised service network. TechCure India helps you with the claim.
