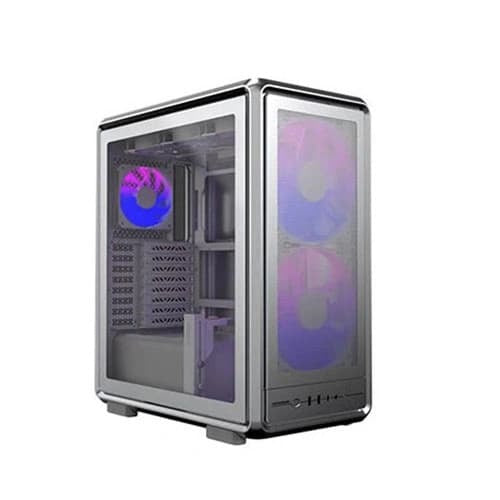

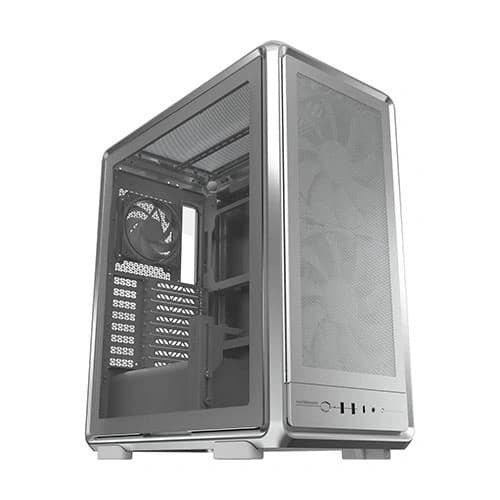

Cooler Master MasterFrame 500 Mesh ARGB Silver E-ATX Mid Tower Case

₹14,649

MRP ₹23,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MasterFrame 500 Mesh is a premium mid-tower PC case designed for builders who want modular builds, extreme cooling, and total customization. It supports a wide range of motherboards and high-end components for powerful systems.

Full specifications ↓

Highlights

Supports Mini-ITX to E-ATX motherboards for flexible build options.
Accommodates graphics cards up to 390mm for high-end GPUs.
Can house up to eight fans and multiple radiator sizes (up to 360mm).
Features mesh panels for improved airflow and cooling.
Includes pre-installed fans: 2x 200mm ARGB or non-ARGB front, 1x 120mm ARGB or non-ARGB rear.
Offers tool-free panel removal for easy access during builds.
Has 60.9L volume with SGCC steel and aluminum exterior.
Backed by a 2-year warranty for peace of mind.

Specifications

Model Number	Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB), Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB)
Color(s)	Black / Silver
Materials - Exterior	SGCC Steel, Aluminum
Materials - Side panel (Right / Left)	Tempered Glass
Dimensions (L x W x H)	471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions)
Volume	60.9 L (Excl. Protrusions)
Motherboard Support	Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX, SSI-CEB (*Conditional Support)
Power Supply Support	ATX
PCI Expansion Slots	8
3.5" Drive Bays	0
2.5" / 3.5" Drive Bays (or SSD)	1 (Bottom)
Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD)	1x 2.5 or 1x 3.5
I/O Panel - USB Ports	2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out	1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Front	ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm
Pre-installed Fans - Rear	ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm
Fan Support - Front	3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top	3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Rear	1x 120mm
Fan Support - Bottom	1x 120mm
Radiator Support - Front	120 / 140 / 240 / 280 / 360mm
Radiator Support - Top	120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear	120 mm
Dust Filters	Mesh Only (Removable Filters)
Clearance - CPU Cooler	190 mm
Clearance - PSU	235 mm
Clearance - Graphics Card	390 mm
Included Accessories	GPU Support Bracket
Cable Routing - Behind Motherboard Tray	43 mm
Warranty	2 years
Size	Mid Tower
Series	MasterFrame Series

Who should buy it

This case is ideal for PC builders who want to customize their system with modular components and advanced cooling. It may not suit those needing a compact case or specific drive bays like 3.5" bays.

Compatibility

Works with Mini-ITX, Mini-DTX, Micro-ATX, ATX, E-ATX, and SSI-CEB motherboards. Supports ATX power supplies and up to 390mm graphics cards. Requires 235mm for power supply clearance.

Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Accommodates graphics cards up to 390mm, offering plenty of space for high-end GPUs.
Can house up to eight fans and multiple radiator sizes (up to 360mm), ensuring superior thermal performance.

What's in the box

GPU Support Bracket

Frequently asked questions

What is the maximum GPU length supported by the MasterFrame 500 Mesh?

The MasterFrame 500 Mesh accommodates graphics cards up to 390mm.

Does the MasterFrame 500 Mesh support E-ATX motherboards?

Yes, it supports E-ATX motherboards with conditional support.

What is the warranty period for the MasterFrame 500 Mesh?

The MasterFrame 500 Mesh comes with a 2-year warranty.

How many fans can the MasterFrame 500 Mesh support?

It can house up to eight fans.

What is the size of the case in millimeters?

The case dimensions are 471 x 261 x 544 mm (incl. protrusions).

What is the material of the side panel?

The side panels are made of tempered glass.

Does the MasterFrame 500 Mesh come with pre-installed fans?

Yes, it includes 2x SickleFlow 200mm ARGB or non-ARGB fans at the front and 1x 120mm ARGB or non-ARGB fan at the rear.

What is the clearance for CPU coolers in the MasterFrame 500 Mesh?

The CPU cooler clearance is 190mm.

Brand warranty: 2 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Cooler Master
Category	PC Cabinet
Model / MPN	MF500M-SHNN-S01
Model Number	Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB), Silver: MF500M-SHNN-S01 (ARGB), MF500M-SHNN-S00 (Non-ARGB)
Color(s)	Black / Silver
Materials - Exterior	SGCC Steel, Aluminum
Materials - Side panel (Right / Left)	Tempered Glass
Dimensions (L x W x H)	471 x 261 x 544 mm (Incl. Protrusions), 471 x 261 x 531 mm (Excl. Protrusions)
Volume	60.9 L (Excl. Protrusions)
Motherboard Support	Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX, SSI-CEB (*Conditional Support)
Power Supply Support	ATX
PCI Expansion Slots	8
3.5" Drive Bays	0
2.5" / 3.5" Drive Bays (or SSD)	1 (Bottom)
Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD)	1x 2.5 or 1x 3.5
I/O Panel - USB Ports	2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out	1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Front	ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm
Pre-installed Fans - Rear	ARGB: 1x 120mm ARGB, Non-ARGB: 1x 120mm
Fan Support - Front	3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top	3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Fan Support - Rear	1x 120mm
Fan Support - Bottom	1x 120mm
Radiator Support - Front	120 / 140 / 240 / 280 / 360mm
Radiator Support - Top	120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear	120 mm
Dust Filters	Mesh Only (Removable Filters)
Clearance - CPU Cooler	190 mm
Clearance - PSU	235 mm
Clearance - Graphics Card	390 mm
Included Accessories	GPU Support Bracket
Cable Routing - Behind Motherboard Tray	43 mm
Warranty	2 years
Size	Mid Tower
Series	MasterFrame Series
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
