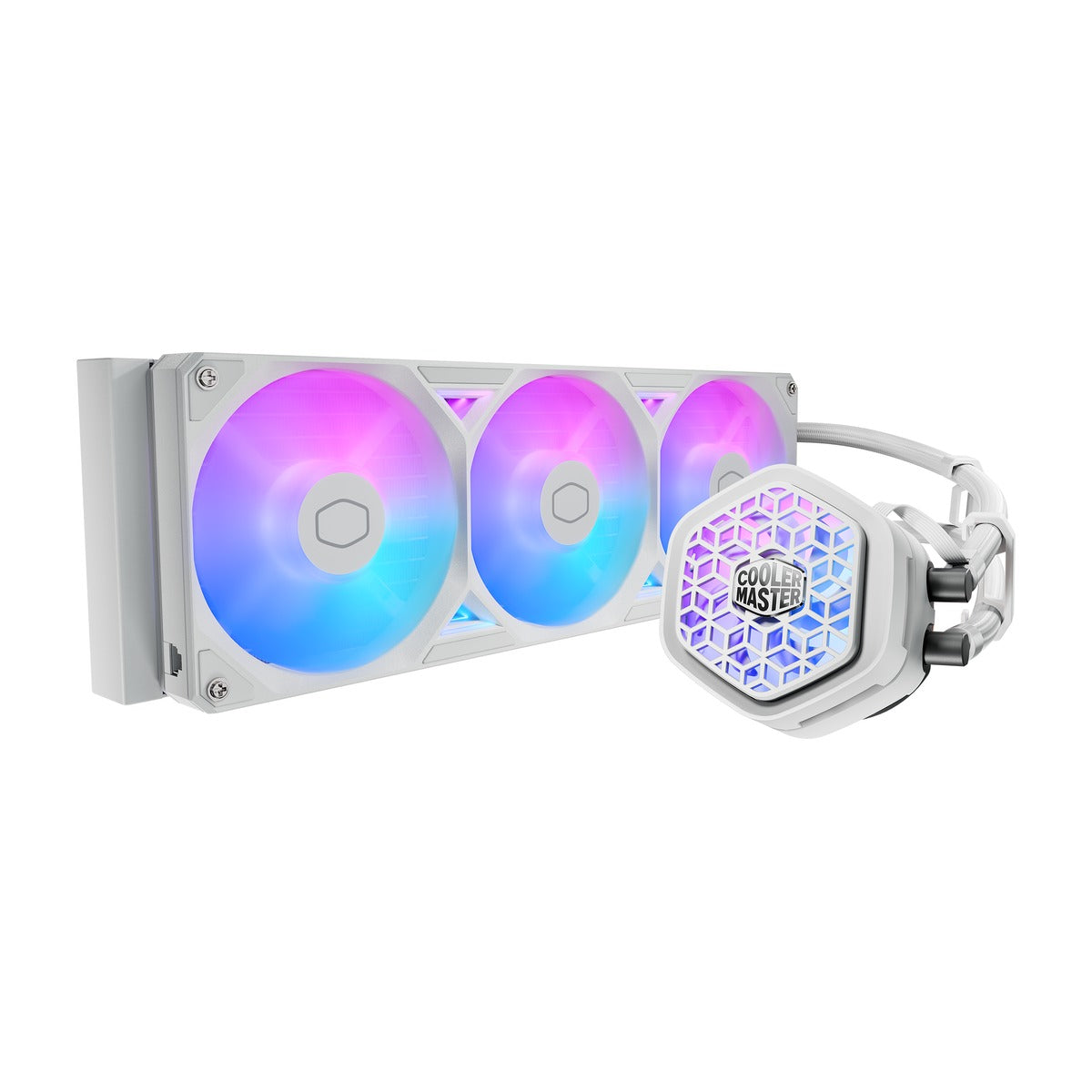

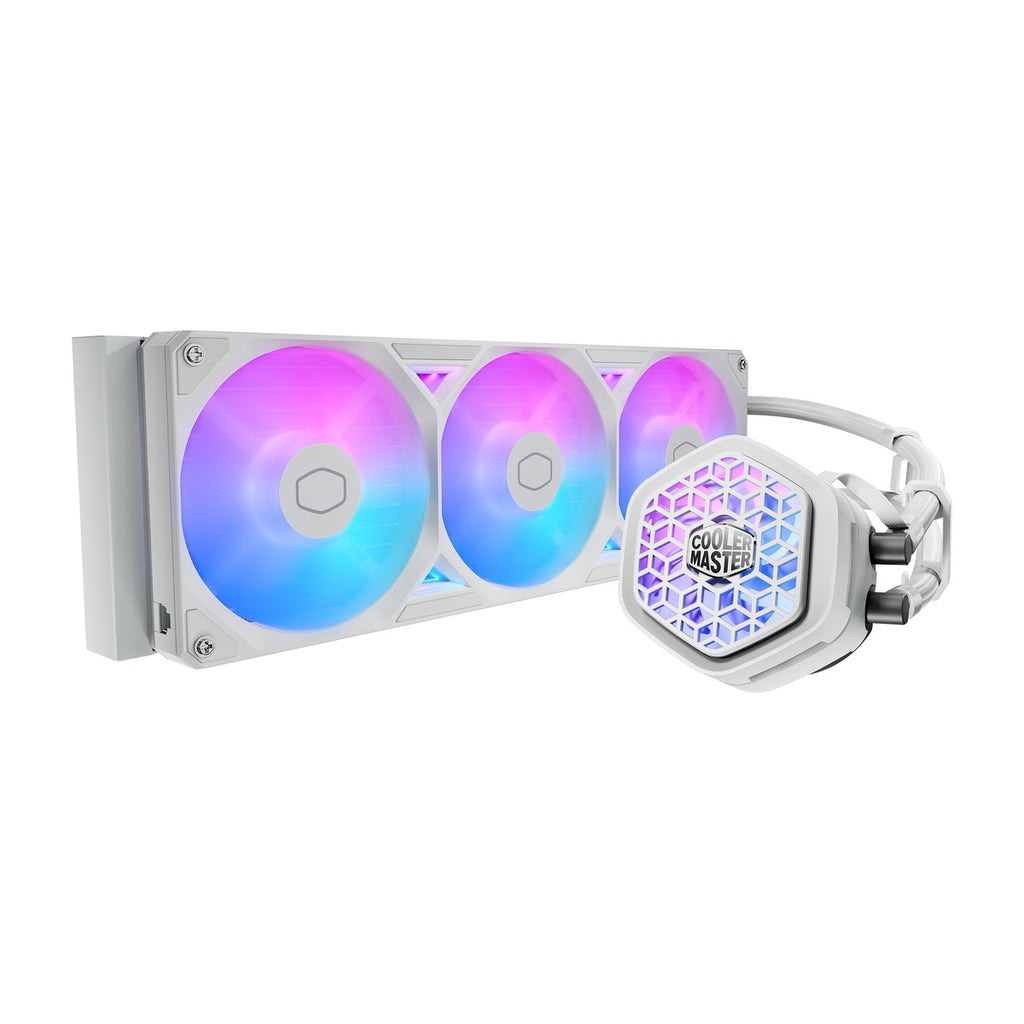

MasterLiquid Atmos II VRM Fan (360 White) MLX-D36M-A25SZ-VW - front/angled view of 360mm AIO radiator with three RGB fans and pump (black)

Cooler Master MasterLiquid 360 Atmos II VRM Fan White Liquid CPU Cooler (MLX-D36M-A25SZ-VW)

₹13,089

MRP ₹22,399 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

MasterLiquid Atmos II VRM Fan (360 White) MLX-D36M-A25SZ-VW is a 360 mm liquid CPU cooler with an included VRM fan module and ARGB pump and fans. It is for PC builders who want liquid cooling plus targeted motherboard/VRM airflow in a white exterior option.

Full specifications ↓

Highlights

360 mm aluminum radiator with ARGB pump and pre-installed SickleFlow Edge ARGB fan.
Includes a VRM fan module that directs airflow in six directions to cool motherboard hot zones (Cooler Master Lab reports up to 10.2°C reduction).
Patented dual-chamber pump design raises water pressure and optimizes flow to CPU hotspot.
Low-profile pump (92.5 x 87 x 38.5 mm) for compatibility with compact cases.
Pump speed up to 3400 ±300 RPM, pump noise up to 25 dBA and pump MTTF >210,000 hours.
360 fan airflow 322.8 m³/h (190 CFM) with speed 690–2500 RPM and fan MTTF >160,000 hours.
Includes CRYOFUZE thermal paste, tube clips, quick-mount kit and offset mounting brackets.
Supports Intel and AMD mainstream and newer sockets including LGA 1851 and AM5 (offset brackets provided for LGA 1851).

Specifications

Product Number	240 Black: MLX-D24M-A25SZ-V1, 240 White: MLX-D24M-A25SZ-VW, 360 Black: MLX-D36M-A25SZ-V1, 360 White: MLX-D36M-A25SZ-VW (*SKU may vary by region)
CPU Socket (Intel)	LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket (AMD)	AM5 / AM4
Radiator Material	Aluminum
Radiator Dimensions (240)	277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Radiator Dimensions (360)	394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions	92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles	Addressable Gen2 RGB
Pump Speed	3400 ± 300 RPM
Pump MTTF	>210,000 Hours
Pump Noise Level	25 dBA (Max)
Pump Rated Voltage	12 VDC
Pump Power Consumption	3.84 W
Pump Connector	3-Pin ARGB + 4-Pin PWM
Tube Length (240)	350 mm
Tube Length (360)	400 mm
Fan Dimensions (240)	241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Fan Dimensions (360)	361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
Fan Profile	Addressable Gen 2 RGB
Fan Quantity	1 PC (per product page listing; radiator size variants listed separately)
Fan Speed	690 ~ 2500 RPM ± 15%
Fan Airflow (240)	240.35 m³/h (141.4 CFM)
Fan Airflow (360)	322.8 m³/h (190 CFM)
Fan Air Pressure	3.61 mmH2O
Fan MTTF	>160,000 Hours
Fan Noise Level (240)	36 dB(A)
Fan Noise Level (360)	38.5 dB(A)
Fan Bearing Type	Loop Dynamic Bearing
Fan Connector	7-Pin PWM + ARGB
Fan Rated Voltage	12 VDC
Fan Rated Current	0.5 A
Fan Safety Current	0.8 A
Fan Power Consumption	6 W
Radiator Size (variants listed)	240 / 360
Cooler Type	Liquid Cooler
Series	MasterLiquid
VRM Fan Exterior Color	Black / White
VRM Fan Dimensions	85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
VRM Fan Wire Length	1000 mm
VRM Fan Speed	450 ~ 4000 RPM ±10%

Who should buy it

Choose this model if you want a 360 mm liquid cooler with additional VRM airflow and ARGB lighting, and need compatibility with compact cases. If you only need a simple air cooler or do not want VRM-focused airflow, consider other cooler types.

Compatibility

Works with Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 and AMD AM5 / AM4. Offset mounting brackets are provided for LGA 1851; check motherboard compatibility before installing.

Intel: LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
AMD: AM5 / AM4
Offset mounting brackets provided for LGA 1851 (check motherboard compatibility)

What's in the box

Included CRYOFUZE thermal paste
Tube clips included
Quick-mount kit and offset mounting brackets (referenced on product page)

Frequently asked questions

Is this exact model the 360 mm radiator white VRM Fan variant (MLX-D36M-A25SZ-VW)?

Yes. The model MLX-D36M-A25SZ-VW is the 360 White variant listed among the product numbers.

Which Intel and AMD sockets does this model support?

This model supports Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 and AMD AM5 / AM4.

Does the package include thermal paste and mounting hardware for my motherboard?

Yes. The box includes CRYOFUZE thermal paste, tube clips, a quick-mount kit and offset mounting brackets (referenced on the product page).

What are the fan and pump noise levels and speeds for the 360 variant?

The pump runs at 3400 ±300 RPM with a maximum noise of 25 dBA. The 360 fan speed range is 690–2500 RPM ±15% with a noise level of 38.5 dB(A).

Will the low-profile pump fit in my compact case?

The pump is ultra-low profile (92.5 x 87 x 38.5 mm) specifically noted for compatibility with compact cases, but check your case clearance to confirm fit.

Does the VRM fan require an additional motherboard header or power connection?

The facts list the VRM fan dimensions, wire length (1000 mm) and speed but do not specify an exact header requirement; refer to your motherboard and the product manual for connection details.

What is the expected MTTF (lifetime) for the pump and fans?

Pump MTTF is greater than 210,000 hours. Fan MTTF is greater than 160,000 hours.

Brand warranty: 6 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Cooler Master MasterLiquid 360 Atmos II VRM Fan... — specifications

Brand	Cooler Master
Category	Liquid Cooler
Model / MPN	MLX-D36M-A25SZ-VW
Product Number	240 Black: MLX-D24M-A25SZ-V1, 240 White: MLX-D24M-A25SZ-VW, 360 Black: MLX-D36M-A25SZ-V1, 360 White: MLX-D36M-A25SZ-VW (*SKU may vary by region)
CPU Socket (Intel)	LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket (AMD)	AM5 / AM4
Radiator Material	Aluminum
Radiator Dimensions (240)	277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Radiator Dimensions (360)	394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions	92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles	Addressable Gen2 RGB
Pump Speed	3400 ± 300 RPM
Pump MTTF	>210,000 Hours
Pump Noise Level	25 dBA (Max)
Pump Rated Voltage	12 VDC
Pump Power Consumption	3.84 W
Pump Connector	3-Pin ARGB + 4-Pin PWM
Tube Length (240)	350 mm
Tube Length (360)	400 mm
Fan Dimensions (240)	241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Fan Dimensions (360)	361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
Fan Profile	Addressable Gen 2 RGB
Fan Quantity	1 PC (per product page listing; radiator size variants listed separately)
Fan Speed	690 ~ 2500 RPM ± 15%
Fan Airflow (240)	240.35 m³/h (141.4 CFM)
Fan Airflow (360)	322.8 m³/h (190 CFM)
Fan Air Pressure	3.61 mmH2O
Fan MTTF	>160,000 Hours
Fan Noise Level (240)	36 dB(A)
Fan Noise Level (360)	38.5 dB(A)
Fan Bearing Type	Loop Dynamic Bearing
Fan Connector	7-Pin PWM + ARGB
Fan Rated Voltage	12 VDC
Fan Rated Current	0.5 A
Fan Safety Current	0.8 A
Fan Power Consumption	6 W
Radiator Size (variants listed)	240 / 360
Cooler Type	Liquid Cooler
Series	MasterLiquid
VRM Fan Exterior Color	Black / White
VRM Fan Dimensions	85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
VRM Fan Wire Length	1000 mm
VRM Fan Speed	450 ~ 4000 RPM ±10%
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
