Cooler Master MasterLiquid Atmos II Pixel LED 240mm ARGB Model MLX-D24M-A25SZ-P1 – Socket Intel LGA 1851 – TechCure India

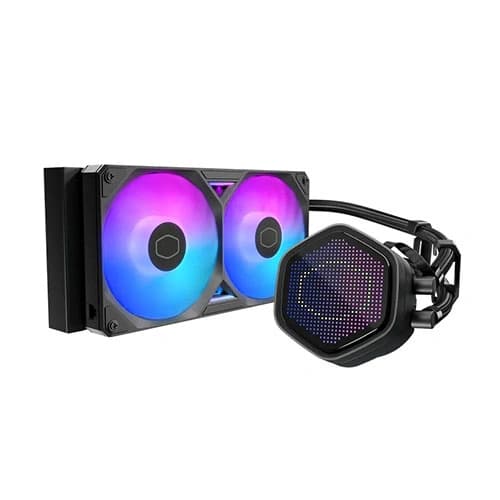

Cooler Master MasterLiquid Atmos II Pixel LED 240mm ARGB CPU Liquid Cooler

₹15,299

MRP ₹23,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MasterLiquid Atmos II Pixel LED is a liquid CPU cooler with a customizable Pixel LED panel. It fits Intel and AMD sockets and offers quiet, efficient cooling for your PC build.

Full specifications ↓

Highlights

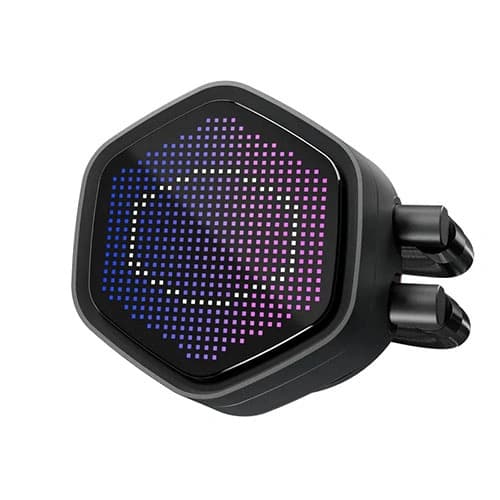

Pixel LED panel shows system stats, images, and custom patterns via MasterCTRL software
Dual chamber design improves water flow to CPU hot spots for better cooling
Ultra-low profile pump design fits compact PC cases
SickleFlow Edge ARGB fans provide quiet operation at 36 dB(A)
240mm radiator size with 240.35 m³/h airflow for effective cooling
Pump runs at 3400 RPM with 25 dBA noise level for quiet performance
6-year warranty for long-term reliability
Includes Cryofuze thermal paste and tube clips for easy setup

Specifications

Product Number	(240 Pixel LED Black) MLX-D24M-A25SZ-P1, (240 Pixel LED White) MLX-D24M-A25SZ-PW, (360 Pixel LED Black) MLX-D36M-A25SZ-P1, (360 Pixel LED White) MLX-D36M-A25SZ-PW (*SKU may vary by region)
CPU Socket	Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
Radiator Material	Aluminum
Radiator Dimensions	(240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Pump Dimensions	92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles	Addressable Gen2 RGB
Pump Speed	3400 ± 300 RPM
Pump MTTF	>210,000 Hours
Pump Noise Level	25 dBA (Max)
Pump Rated Voltage	12 VDC
Pump Power Consumption	3.84 W
Pump Connector	3-Pin ARGB + 4-Pin PWM
Tube Length	(240) 350 mm
Fan Dimensions (L x W x H)	(240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Profile	Addressable Gen 2 RGB
Fan Quantity	1 PC
Fan Speed	690 ~ 2500 RPM ± 15%
Fan Airflow	(240) 240.35 m³/h (141.4 CFM)
Fan Air Pressure	3.61 mmH2O
Fan MTTF	>160,000 Hours
Fan Noise Level	(240) 36 dB(A)
Fan Bearing Type	Loop Dynamic Bearing
Fan Connector	7-Pin PWM + ARGB
Fan Rated Voltage	12 VDC
Fan Rated Current	0.5 A
Fan Safety Current	0.8 A
Fan Power Consumption	6 W
Radiator Size	240
Cooler Type	Liquid Cooler
Series	MasterLiquid
Pixel LED Exterior Color	Black / White
Pixel LED Dimensions	85 x 79.2 x 16 mm (3.4 x 3.1 x 0.6 inch)
Pixel LED Connector	USB Type-C to Motherboard 9 pin
Pixel LED Screen Resolution	28 x 26 px (556 px)
Pixel LED Screen Orientation	Software-MasterCTRL adjustable
Pixel LED Rated Voltage	5 VDC
Pixel LED Rated Current	0.5 A
Pixel LED Safety Current	5.0 A
Pixel LED Power Consumption	2 W
Warranty	6 years

Who should buy it

This cooler is for PC builders who want a quiet, customizable cooling solution with a Pixel LED display. It is not for users needing a cooler for non-Intel/AMD sockets or those who prefer air cooling.

Compatibility

Works with Intel LGA 1851, 1700, 1200, 1150, 1151, 1155, 1156 and AMD AM5, AM4 sockets. Requires a motherboard with a 9-pin USB Type-C connector for the Pixel LED panel.

Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
AMD® AM5 / AM4

What's in the box

INCLUDED CRYOFUZE THERMAL PASTE
TUBE CLIPS INCLUDED

Frequently asked questions

What is the warranty period for the MasterLiquid Atmos II Pixel LED?

The MasterLiquid Atmos II Pixel LED comes with a 6-year warranty.

How does the Pixel LED panel work with MasterCTRL software?

The Pixel LED panel integrates custom patterns and system information via the MasterCTRL software.

What CPU sockets are supported by this cooler?

This cooler supports Intel LGA 1851, 1700, 1200, 1150, 1151, 1155, 1156 and AMD AM5, AM4 sockets.

What is the radiator size and dimensions for the 240mm model?

The 240mm radiator has dimensions of 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch).

What is the noise level of the pump and fans?

The pump has a noise level of 25 dBA (Max) and the fans have a noise level of 36 dB(A).

What is the dual chamber design and how does it improve cooling?

The dual chamber design increases water pressure and optimizes water flow directly to CPU hot spots for enhanced cooling synergy.

Brand warranty: 6 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Cooler Master
Category	Liquid Cooler
Model / MPN	MLX-D24M-A25SZ-P1
Product Number	(240 Pixel LED Black) MLX-D24M-A25SZ-P1, (240 Pixel LED White) MLX-D24M-A25SZ-PW, (360 Pixel LED Black) MLX-D36M-A25SZ-P1, (360 Pixel LED White) MLX-D36M-A25SZ-PW (*SKU may vary by region)
CPU Socket	Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
Radiator Material	Aluminum
Radiator Dimensions	(240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Pump Dimensions	92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles	Addressable Gen2 RGB
Pump Speed	3400 ± 300 RPM
Pump MTTF	>210,000 Hours
Pump Noise Level	25 dBA (Max)
Pump Rated Voltage	12 VDC
Pump Power Consumption	3.84 W
Pump Connector	3-Pin ARGB + 4-Pin PWM
Tube Length	(240) 350 mm
Fan Dimensions (L x W x H)	(240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Profile	Addressable Gen 2 RGB
Fan Quantity	1 PC
Fan Speed	690 ~ 2500 RPM ± 15%
Fan Airflow	(240) 240.35 m³/h (141.4 CFM)
Fan Air Pressure	3.61 mmH2O
Fan MTTF	>160,000 Hours
Fan Noise Level	(240) 36 dB(A)
Fan Bearing Type	Loop Dynamic Bearing
Fan Connector	7-Pin PWM + ARGB
Fan Rated Voltage	12 VDC
Fan Rated Current	0.5 A
Fan Safety Current	0.8 A
Fan Power Consumption	6 W
Radiator Size	240
Cooler Type	Liquid Cooler
Series	MasterLiquid
Pixel LED Exterior Color	Black / White
Pixel LED Dimensions	85 x 79.2 x 16 mm (3.4 x 3.1 x 0.6 inch)
Pixel LED Connector	USB Type-C to Motherboard 9 pin
Pixel LED Screen Resolution	28 x 26 px (556 px)
Pixel LED Screen Orientation	Software-MasterCTRL adjustable
Pixel LED Rated Voltage	5 VDC
Pixel LED Rated Current	0.5 A
Pixel LED Safety Current	5.0 A
Pixel LED Power Consumption	2 W
Warranty	6 years
