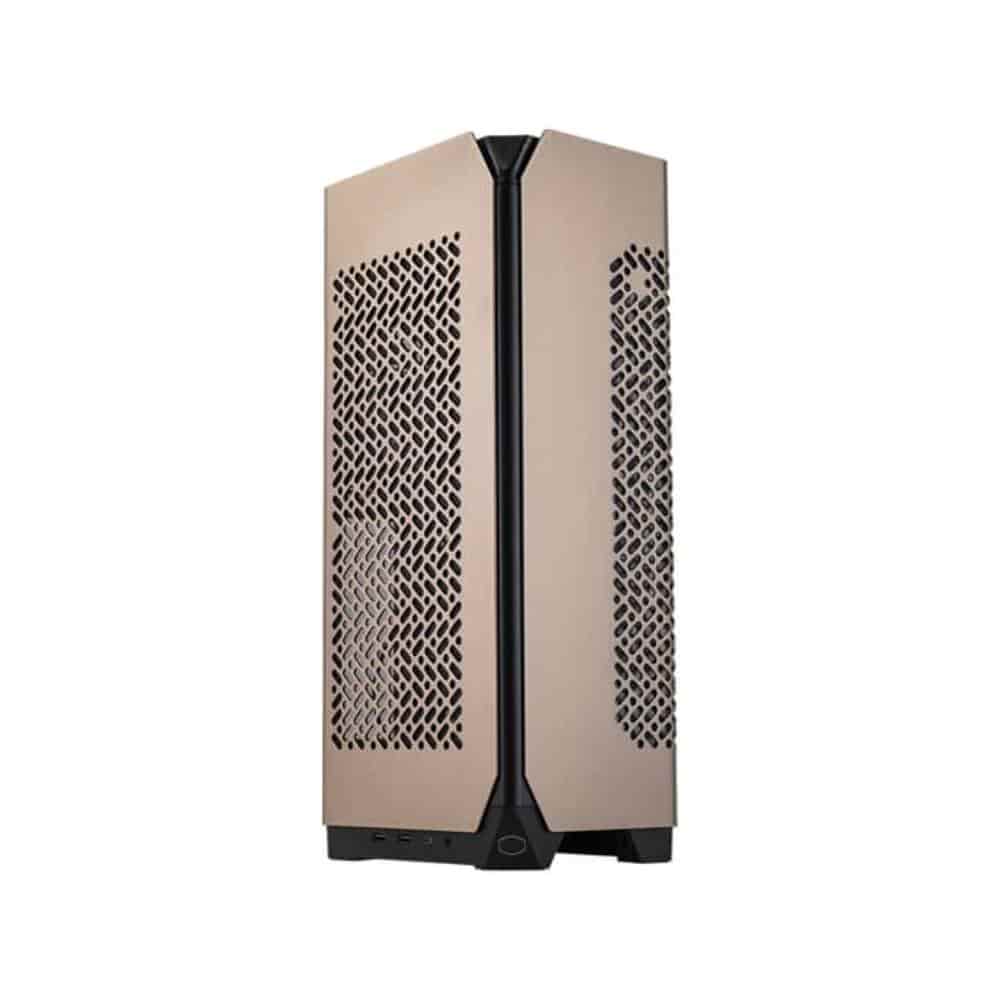

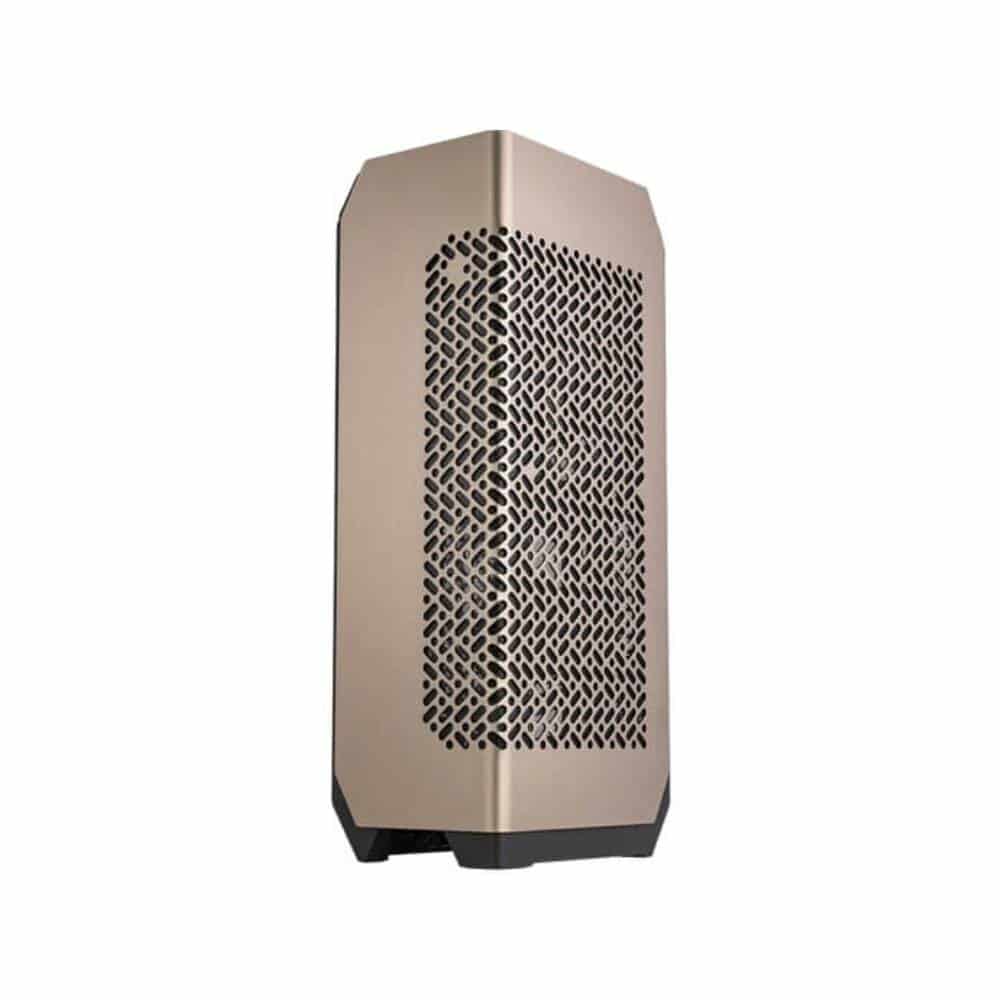

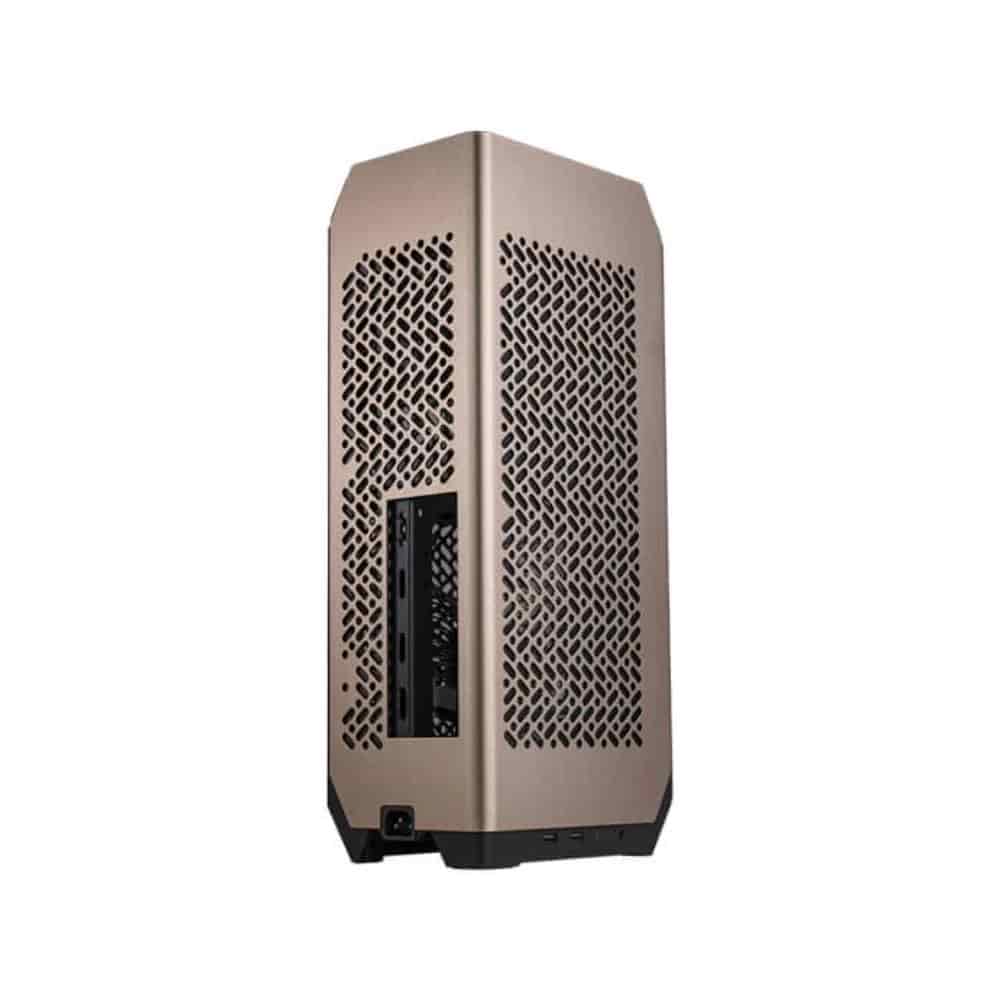

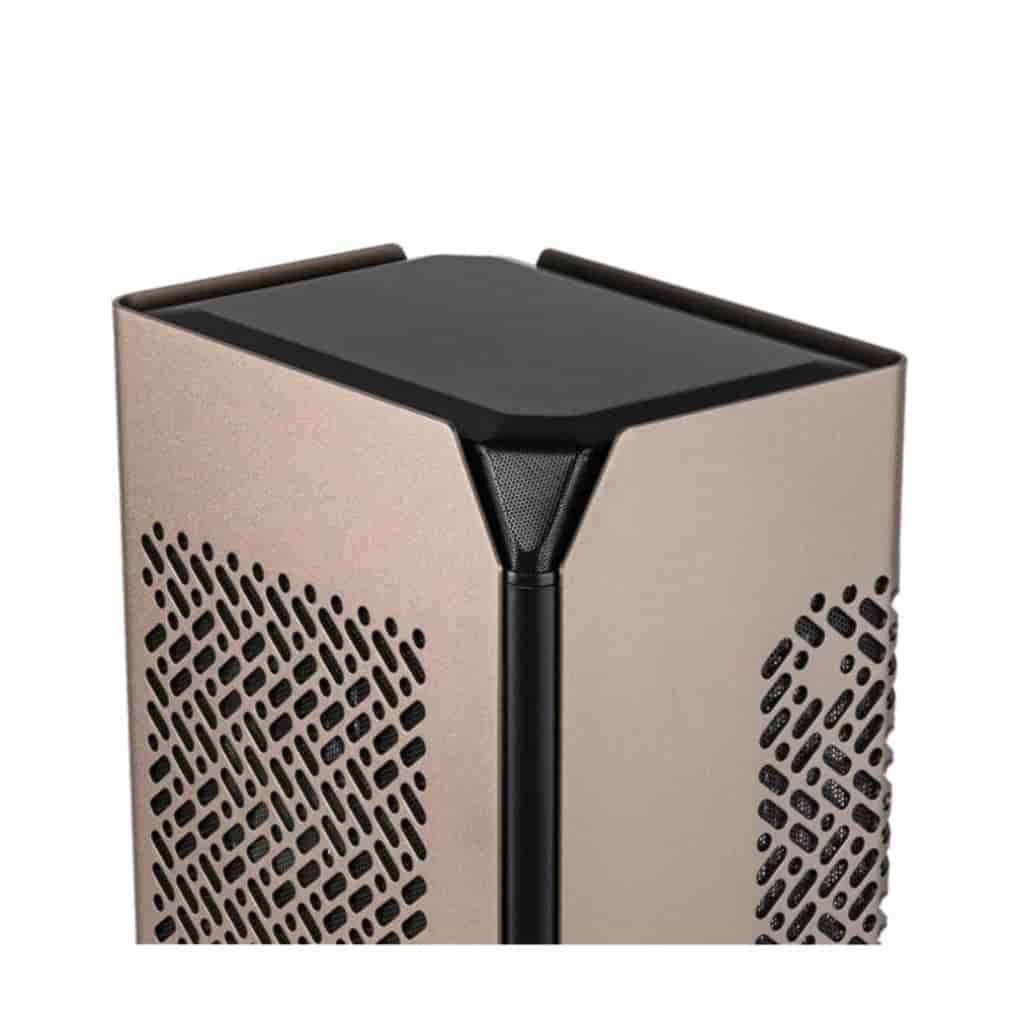

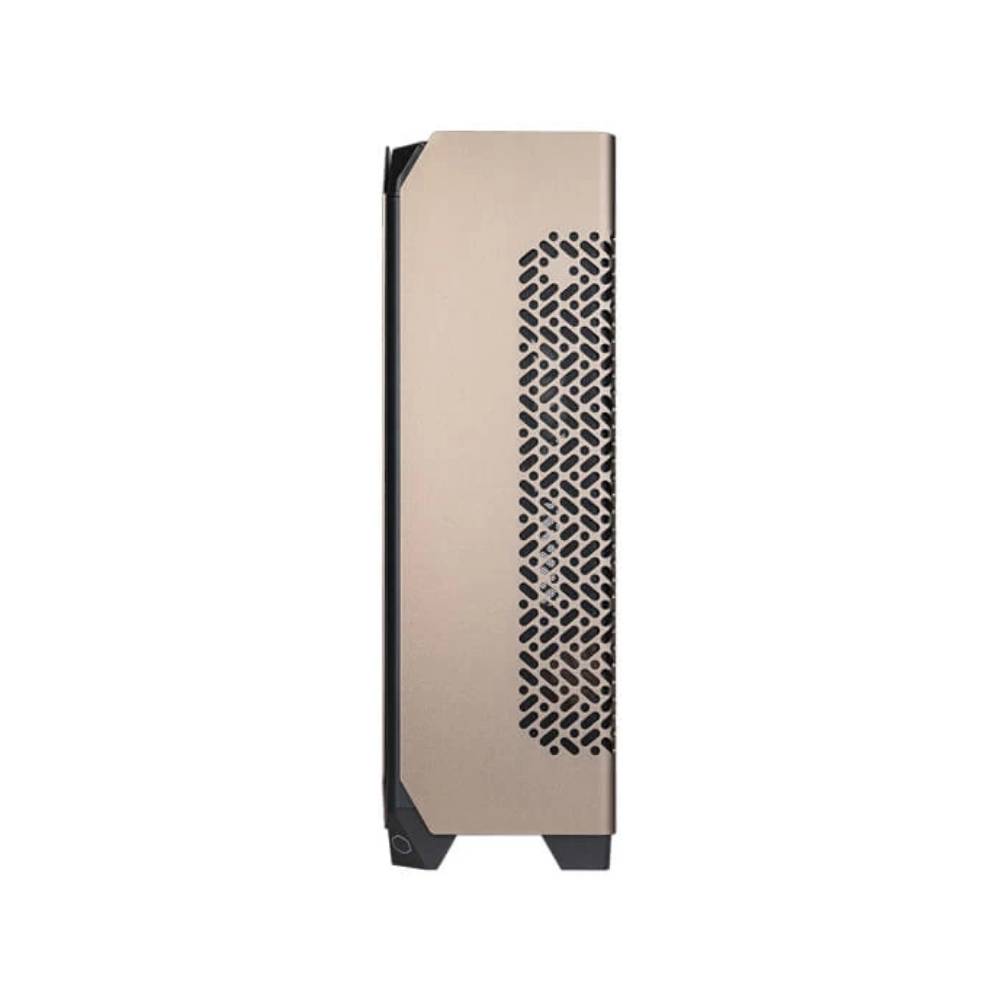

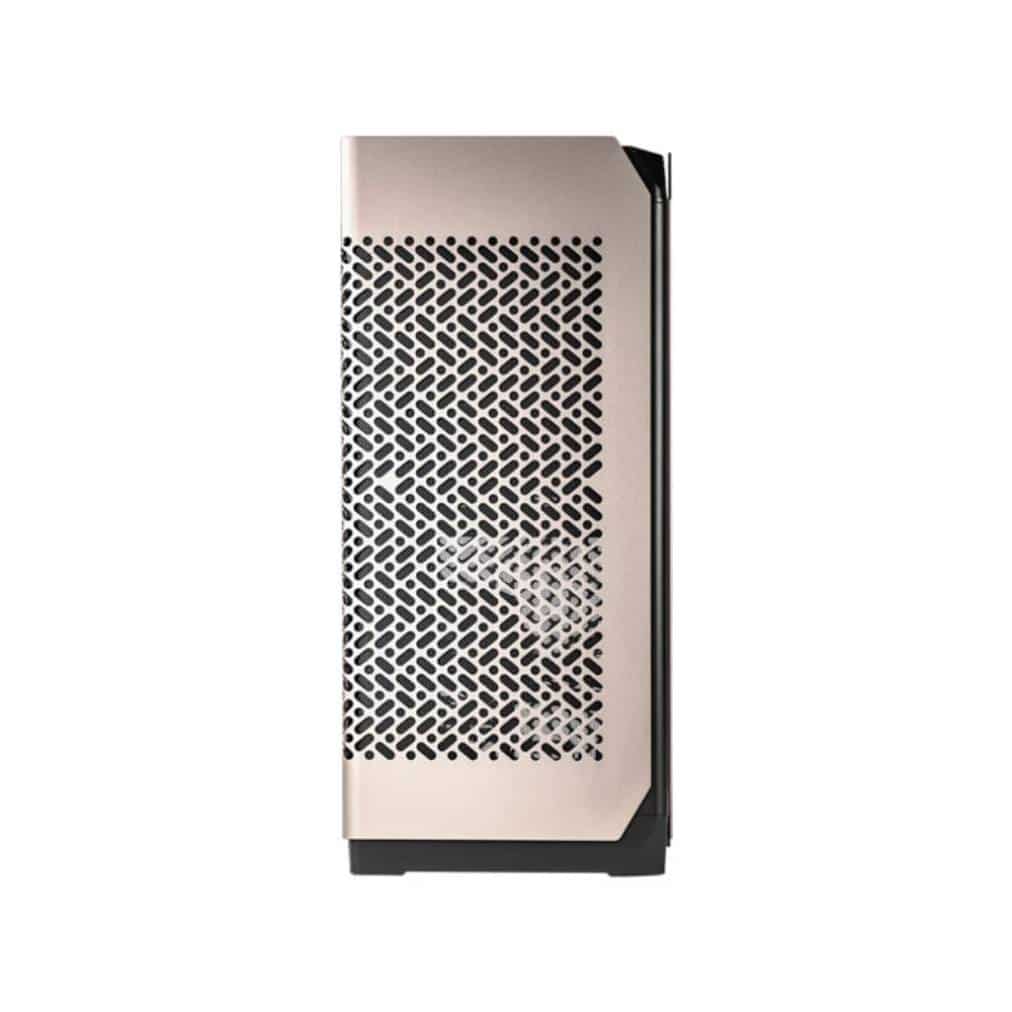

Cooler Master Ncore 100 Max Bronze Edition Cabinet

₹31,039

🚚 Free shipping across India on this product

🕒 On Order – On Availability · 6-7 din me dispatch

EMI available at checkout (credit / debit card EMI via Razorpay)

On Order – On Availability · dispatched in 6–7 days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The Cooler Master Ncore 100 Max Bronze Edition is a compact, high-performance ITX cabinet for building powerful, space-saving PCs. It is ideal for users who want advanced cooling and compatibility with high-end components.

Full specifications ↓

Highlights

Includes a 120mm AIO water cooler with a 38mm thick radiator and a custom PWM fan.
Supports triple-slot GPUs up to 336mm in length and 140mm in height.
Comes with a V SFX Gold 850W ATX 3.0 power supply for efficient power delivery.
Anodized aluminum panels and a pre-routed cable system for clean and easy builds.
Expandable width from 155mm to 172mm for better component compatibility.

Specifications

Product Name	Cooler Master Ncore 100 Max Bronze Edition
Product Number	NR100-ZNNN85-SL0
Exterior Color	Bronze
Materials - Exterior	Steel, Plastic, Aluminum
Materials - Side Panel	Aluminum
Dimensions (L x W x H) Normal mode	155mm x 212mm x 481mm
Dimensions (L x W x H) Incl. Protrusions	172mm x 212mm x 481mm
Dimensions (L x W x H) Excl. Protrusions	155mm x 212mm x 457mm
Volume	15.80L (Normal mode), 17.54L (Expansion mode)
Motherboard Support	ITX
Expansion Slots	3x PCIe Slot mounting
Drive Bays - 2.5" SSD	1
I/O Panel	2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm)
Included Accessories	1x 240mm PCIe 4.0 x16
Included CPU Cooling Solution	120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
Included Power Supply Unit	V SFX Gold 850W ATX 3.0
Pre-installed Fan(s) – Rear	120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
Clearances – CPU Cooler	48mm
Clearances – Power Supply	100mm
Clearances – RAM	48mm
Clearances – Graphics Card	337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick)
Cable Routing – Behind MB Tray	11mm
Dust Filters	Side Panels
Power Supply Support	SFX

Who should buy it

This cabinet is for users building compact, high-performance PCs with powerful GPUs and CPUs. Those needing larger form factors or more drive bays may need a different option.

Compatibility

It supports ITX motherboards, latest Intel and AMD CPUs, and triple-slot GPUs. It works with SFX power supplies and includes a 240mm PCIe 4.0 x16 slot.

Accommodates up to 3.9 Slot GPU
Supports latest Intel and AMD CPUs
ITX motherboard support

What's in the box

1x 240mm PCIe 4.0 x16
120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
V SFX Gold 850W ATX 3.0 PSU
120mm SickleFlow PWM Fan x1 (Max. 1800RPM)

Frequently asked questions

What is the maximum GPU length supported?

It supports GPUs up to 336mm in length in normal mode and 357mm in expansion mode.

Does it include a power supply?

Yes, it includes a V SFX Gold 850W ATX 3.0 power supply unit.

What type of cooling solution is included?

It includes a 120mm radiator with a custom PWM fan and a 240mm PCIe 4.0 x16 slot.

What is the warranty period for the case and thermal solution?

The case and thermal solution are covered under a 2-year warranty.
