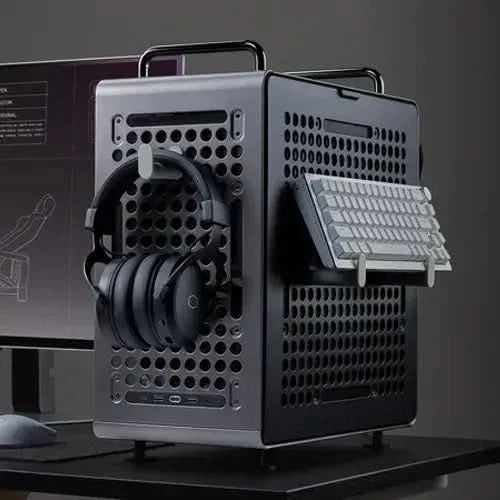

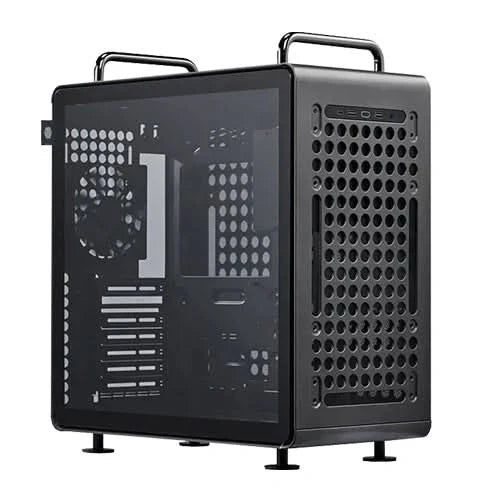

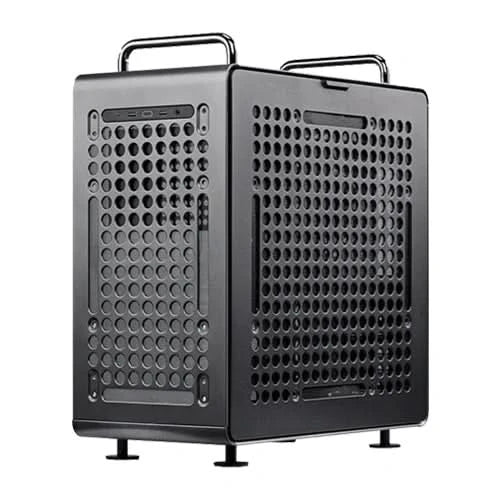

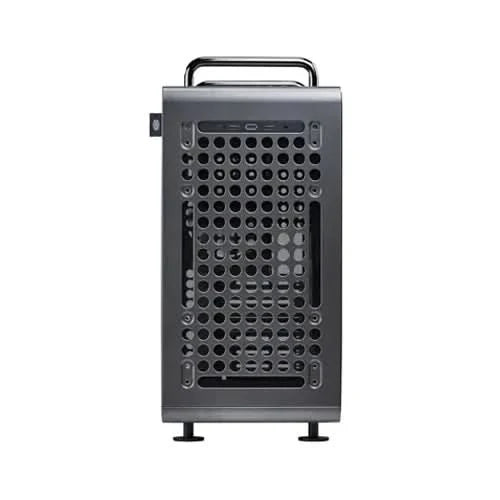

Cooler Master QUBE 540 Stardust Iron Mid Tower Gaming Cabinet

Key features

• Tempered glass left side panel with steel right panel and exterior
• Supports ITX, M-ATX, ATX and E-ATX (up to 280 mm) motherboards
• 7 expansion slots for multi-card or add-in builds
• Front I/O includes USB 3.2 Gen 2x2 Type-C and two USB 3.2 Gen 1 Type-A ports
• Radiator support up to 360 mm on front, top, and bottom
• Pre-installed 120 mm rear fan
• Top, bottom, and front dust filters for easier maintenance
• Supports both ATX and SFX power supplies

Understand This Product — TechCureIndia

What it does

This is a mid-tower PC cabinet used to house and organize a motherboard, power supply, storage drives, graphics card, and cooling components for a desktop build.

What the key specifications mean

• Motherboard Support: Tells you which board sizes fit, from compact ITX up to ATX and limited E-ATX (max 280 mm width).
• Expansion Slots: Determines how many multi-slot cards, such as a GPU plus additional cards, can be installed.
• Drive Bays: Shows storage capacity: one shared 3.5"/2.5" bay on the PSU bracket plus up to five 2.5" SSD mounting points.
• I/O Panel - USB Ports: Front-panel connectivity for peripherals and fast data transfer, including a USB-C port.
• Fan & Radiator Support: Indicates cooling flexibility; front, top, and bottom locations support fans or radiators up to 360 mm.
• Clearances: Maximum CPU cooler height (172 mm), PSU length (200 mm), and GPU length (415 mm without front fan) your parts must fit within.
• Cable Routing Space: 27 mm behind the motherboard tray for tucking away cables for a cleaner build.
• Power Supply Support: Compatible with both standard ATX and compact SFX power supply form factors.
• Dust Filters: Removable filters on top, bottom, and front help keep internal components cleaner.

Practical benefits

• Flexible motherboard compatibility from ITX to ATX/limited E-ATX
• Room for large air coolers and radiators up to 360 mm
• Modern front-panel USB-C for faster connectivity
• Tempered glass panel for viewing internal components
• Dust filtration to reduce maintenance frequency

Who it suits

• Gamers building ATX or M-ATX gaming PCs
• Builders wanting liquid cooling with up to 360 mm radiators
• Users who need SFX PSU support for a more compact build
• Builders using tall air coolers within 172 mm clearance

Compatibility and installation

• Motherboard: ITX / M-ATX / ATX / E-ATX up to 280 mm
• Power Supply: ATX or SFX form factor, max 200 mm length
• CPU Cooler: up to 172 mm height
• Graphics Card: up to 415 mm length (without front fan installed)
• Radiators: up to 360 mm on front, top, or bottom; 120 mm at rear
• External dimensions: 438.5 x 225 x 492.1 mm including protrusions
• Internal volume: 40.64 L (without protrusions) / 48.55 L (with panel, protrusions, feet)
• One 120 mm fan pre-installed at the rear
• 27 mm of cable routing space behind the motherboard tray
• Dust filters located at top, bottom, and front panels

Important limitations

• E-ATX support is limited to boards up to 280 mm wide
• Graphics card clearance of 415 mm applies only without a front fan installed
• Only one 3.5" HDD bay, shared with 2.5" mounting on the PSU bracket
• Rear radiator support limited to 120 mm only

Package contents

• 1x pre-installed 120 mm black fan at the rear

Buy separately:

• Motherboard, CPU, CPU cooler, RAM, storage drives
• Graphics card
• Power supply unit (ATX or SFX)
• Additional case fans or radiators beyond the pre-installed rear fan

Check before you buy

• Confirm your motherboard size falls within supported ITX/M-ATX/ATX/E-ATX (280 mm max) dimensions
• Verify your GPU length against the 415 mm clearance, especially if using a front fan
• Check your CPU cooler height does not exceed 172 mm
• Confirm your power supply is ATX or SFX form factor and fits within 200 mm length
• Verify radiator size compatibility (up to 360 mm front/top/bottom, 120 mm rear) if planning liquid cooling

Warranty

2 years manufacturer warranty, serviced through the brand's authorised service network. TechCure India helps you with the claim.
