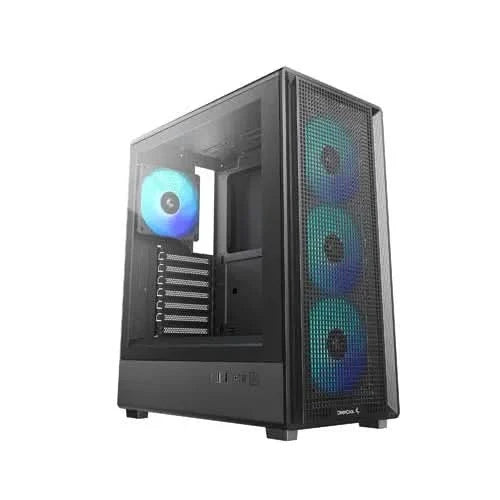

DeepCool CC550 4F Mid Tower Gaming Cabinet, Black

Key features

• Mid-tower case supporting Mini-ITX, Micro-ATX, and ATX motherboards
• Four pre-installed 120mm ARGB fans (3 front, 1 rear)
• Tempered glass side panel with ABS+SPCC construction
• Front I/O with USB 3.0, USB 2.0, Type-C, and audio jack
• Supports GPUs up to 317mm and CPU coolers up to 163mm tall
• Top radiator support up to 240mm
• 7 expansion slots for multi-GPU or add-in cards
• Maximum fan support of 8 fans for custom airflow configurations

Understand This Product — TechCureIndia

What it does

This is a PC case that houses and cools desktop components, offering mounting points for motherboards, drives, fans, and a power supply while supporting airflow through mesh panels and a tempered glass side.

What the key specifications mean

• Motherboard Support: Confirms the case fits Mini-ITX, Micro-ATX, or ATX boards, so buyers should match their board size before purchase.
• GPU Length Limit: Graphics cards up to 317mm long will physically fit inside the case.
• CPU Cooler Height Limit: Air coolers up to 163mm tall will clear the side panel.
• Power Supply Type: Requires an ATX PS2 form-factor PSU with a maximum length of 180mm.
• Radiator Support: A single radiator up to 240mm can be mounted at the top of the case.
• Pre-Installed Fans: Four ARGB fans (3 front intake, 1 rear exhaust) come fitted for immediate airflow and lighting.
• Expansion Slots: 7 slots allow for multiple expansion cards or multi-slot GPUs.
• Front I/O Ports: Includes USB 3.0, USB 2.0, Type-C, and a combined audio/mic jack for easy front-panel connectivity.

Practical benefits

• Pre-installed ARGB fans save on initial fan purchases and wiring effort
• Tempered glass panel allows visibility of internal components and lighting
• Mesh front panel design supports continuous airflow for better thermal performance
• Flexible fan and radiator mounting allows for custom cooling configurations

Who it suits

• Gaming PC builds using ATX, Micro-ATX, or Mini-ITX motherboards
• Builders wanting pre-installed ARGB lighting without buying separate fans
• Systems with mid-to-large GPUs up to 317mm and air coolers up to 163mm

Compatibility and installation

• Motherboard must be Mini-ITX, Micro-ATX, or ATX form factor
• GPU length must not exceed 317mm
• CPU air cooler height must not exceed 163mm
• PSU must be ATX PS2 type with a maximum length of 180mm
• Radiator (if used) must fit the top mount, limited to 120mm or 240mm sizes
• Case dimensions: 379x208x446mm (L×W×H)
• Net weight: 4.03Kg
• Front fan mounts: up to 3×120mm; Top: 2×120mm or 2×140mm; Bottom: 2×120mm; Rear: 1×120mm
• Drive bays: one 3.5" HDD slot and two 2.5" SSD mounting positions
• 7 expansion slots for additional cards

Important limitations

• GPU length is capped at 317mm, so larger cards will not fit
• CPU cooler height is limited to 163mm, excluding some tall air coolers
• PSU length must stay within 180mm
• Top radiator support is limited to 120mm or 240mm sizes only
• Storage is limited to one 3.5" bay and two 2.5" positions

Package contents

• Four pre-installed 120mm ARGB fans (3 front, 1 rear)
• Tempered glass side panel

Buy separately:

• Motherboard, CPU, RAM, and storage drives
• Graphics card
• Power supply unit (ATX PS2 type)
• Radiator/AIO cooler if liquid cooling is desired
• Additional case fans beyond the pre-installed four

Check before you buy

• Confirm your motherboard size (ATX, Micro-ATX, or Mini-ITX) matches case support
• Verify your GPU length is within the 317mm limit
• Check your CPU cooler height does not exceed 163mm
• Ensure your PSU length is 180mm or less
• Confirm radiator size compatibility (120mm or 240mm) if using liquid cooling
