Fanatec CSL Elite Pedals V2 CSL_EP_V2

₹54,899

MRP ₹61,199 (incl. of all taxes)

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

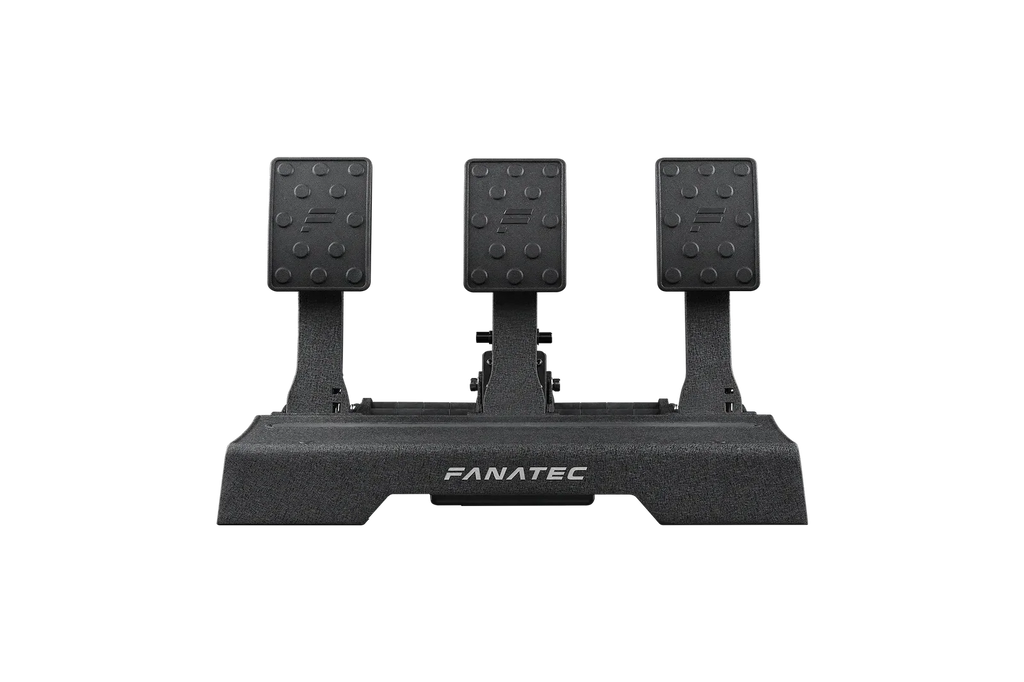

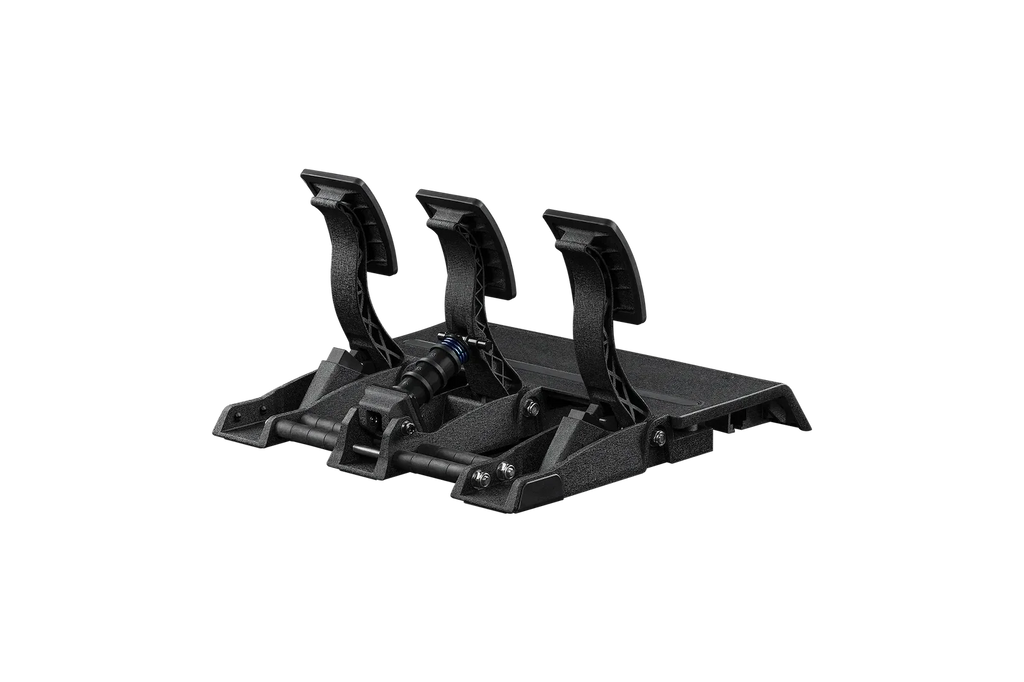

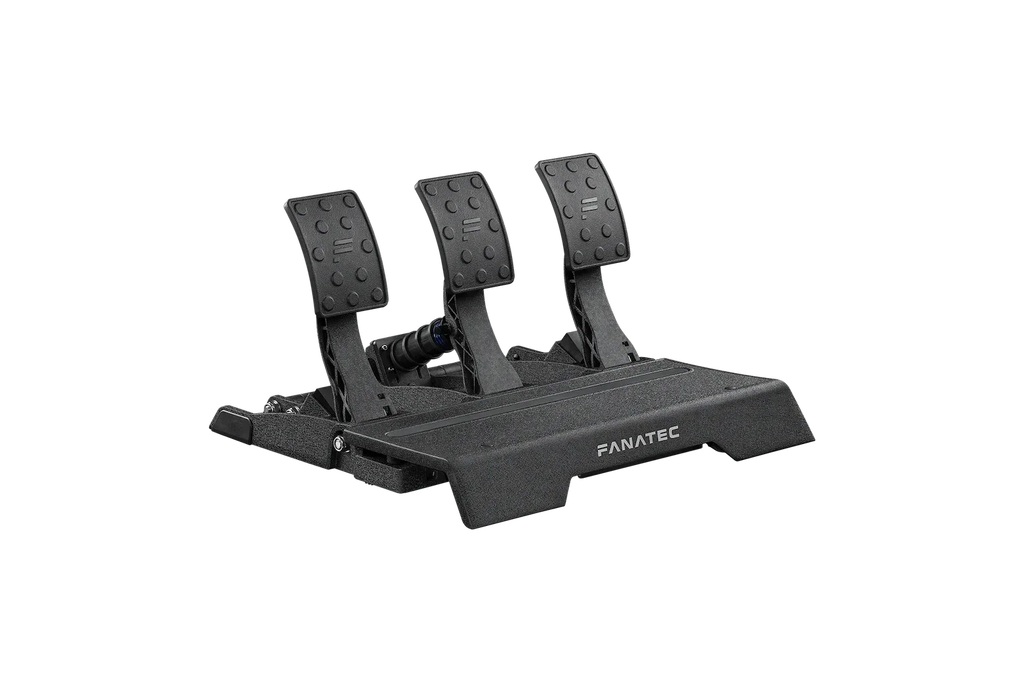

The CSL Elite Pedals V2 are precision racing pedals designed for sim racing enthusiasts. They feature magnetic sensors and a load cell brake system for realistic, consistent performance on PC and PlayStation.

Full specifications ↓

Highlights

Contactless Hall sensors ensure no wear and consistent performance on throttle and brake axes.
All-new load cell brake system rated >200 kg with adjustable sensitivity (approx. 10 kg minimum).
Detachable rubber pads offer high or low friction pedal surface choices.
Pedal position adjusts sideways along the heel rest for personalized fit.
Dual-stage brake action with elastomer stack and coil spring for realistic feel.
Connect directly to Fanatec Wheel Bases via RJ12 or use standalone as USB device on PC.
Includes 65, 75, and 85 Shore hardness elastomer springs for tuning.
Cast and machined aluminium construction for durability and stability.

Specifications

SKU	CSL_EP_V2
Current price	$329.99
Available	Usually ships within 1 to 3 business days
Free shipping	FREE STANDARD SHIPPING ON ORDERS OVER $29
Contactless Hall sensors	Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
Brake system	All-new load cell brake system
Load cell sensor rating	rated >200 kg
Load cell sensitivity	approx. 10 kg minimum
Elastomer springs included	65, 75, and 85 Shore hardness
Pedal arms material	cast and machined aluminium
Pedal faces material	cast and machined aluminium
Heel rest material	cast and machined aluminium
Pedal surface choice	Detachable rubber pads on the pedal faces give you the choice between high or low friction.
Connection options	RJ12 or USB connection
Compatibility with Fanatec Wheel Bases	Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
Standalone use	Use as a standalone USB input device (PC only)
Adjustable pedal position	Pedal position can be adjusted sideways along the heel rest
Configurable as two-pedal set	Easily configurable as a two-pedal set
Mounting options	Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
Brake force measurement	Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
Brake sensitivity adjustment	Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
Dual-stage brake action	Dual-stage brake action with elastomer stack incorporating a coil spring to simulate the initial movement of the brake pad to the disc.
Alternative metal spring	Alternative metal spring also included for stiffer preload
Revised structure	Revised structure on all pedals for greater durability
Hard-mounting access	Improved access to hard-mounting points
Dedicated handbrake port	Dedicated handbrake port

Who should buy it

These pedals are ideal for sim racing fans using Fanatec wheel bases on PC or PlayStation. Buyers seeking non-Fanatec compatible pedals should consider other options.

Compatibility

Works with all CSL Elite Wheel Bases, CSL DD, Gran Turismo DD Pro, ClubSport, and Podium Wheel Bases. Connects via RJ12 to Fanatec bases or USB on PC. Compatible with PlayStation 4 and 5 when connected to PlayStation-licensed Fanatec bases.

All CSL Elite Wheel Bases
CSL DD Wheel Base
Gran Turismo DD Pro Wheel Base
All ClubSport Wheel Bases
All Podium Wheel Bases
ClubSport Handbrake
PC: This product can be used on Windows PC via RJ12 on all compatible Fanatec Wheel Bases, or as a standalone input device via USB.
PlayStation: This product can be used on PlayStation 4 and PlayStation 5 consoles, if connected to a PlayStation-licensed Fanatec Wheel Base.

What's in the box

CSL Elite Pedals V2 (three-pedal set, fully assembled)
Alternative elastomers and metal spring for brake tuning
2x Brake pedal assembly helper
1x Wheel Base connection cable RJ12/RJ12 (~3 m)
1x USB cable (~3 m)
2x Wrench (13 mm)
1x Allen key (6 mm)
1x Allen key (4 mm)
1x Quick Guide
1x Sticker Set

Frequently asked questions

What is the difference between CSL Elite Pedals V1 and V2?

The V2 features an overhauled load cell brake, Hall sensors on throttle and clutch, and design refinements.

Can these pedals be used with non-Fanatec wheel bases?

No, they connect directly to compatible Fanatec Wheel Bases via RJ12.

How do I adjust the brake sensitivity on these pedals?

Adjust load cell sensitivity (approx. 10 kg minimum) via Tuning Menu or Fanatec Control Panel on PC.

Are the pedals fully assembled out of the box?

Yes, the CSL Elite Pedals V2 come as a fully assembled three-pedal set.

What is the purpose of the elastomer springs included with the pedals?

Elastomer springs (65, 75, 85 Shore hardness) allow tuning of brake firmness and pedal travel.

How do I mount these pedals to my cockpit?

Pedals can be individually mounted without heel rest or inverted; hard-mounting access is improved.

Can I use these pedals as a standalone USB device on PC?

Yes, they can be used as a standalone USB input device on PC.

What is the maximum force measured on the brake pedal?

Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg).

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Fanatec
Category	Racing Accessories
Model / MPN	CSL_EP_V2
SKU	CSL_EP_V2
Current price	$329.99
Available	Usually ships within 1 to 3 business days
Free shipping	FREE STANDARD SHIPPING ON ORDERS OVER $29
Contactless Hall sensors	Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
Brake system	All-new load cell brake system
Load cell sensor rating	rated >200 kg
Load cell sensitivity	approx. 10 kg minimum
Elastomer springs included	65, 75, and 85 Shore hardness
Pedal arms material	cast and machined aluminium
Pedal faces material	cast and machined aluminium
Heel rest material	cast and machined aluminium
Pedal surface choice	Detachable rubber pads on the pedal faces give you the choice between high or low friction.
Connection options	RJ12 or USB connection
Compatibility with Fanatec Wheel Bases	Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
Standalone use	Use as a standalone USB input device (PC only)
Adjustable pedal position	Pedal position can be adjusted sideways along the heel rest
Configurable as two-pedal set	Easily configurable as a two-pedal set
Mounting options	Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
Brake force measurement	Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
Brake sensitivity adjustment	Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
Dual-stage brake action	Dual-stage brake action with elastomer stack incorporating a coil spring to simulate the initial movement of the brake pad to the disc.
Alternative metal spring	Alternative metal spring also included for stiffer preload
Revised structure	Revised structure on all pedals for greater durability
Hard-mounting access	Improved access to hard-mounting points
Dedicated handbrake port	Dedicated handbrake port
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
