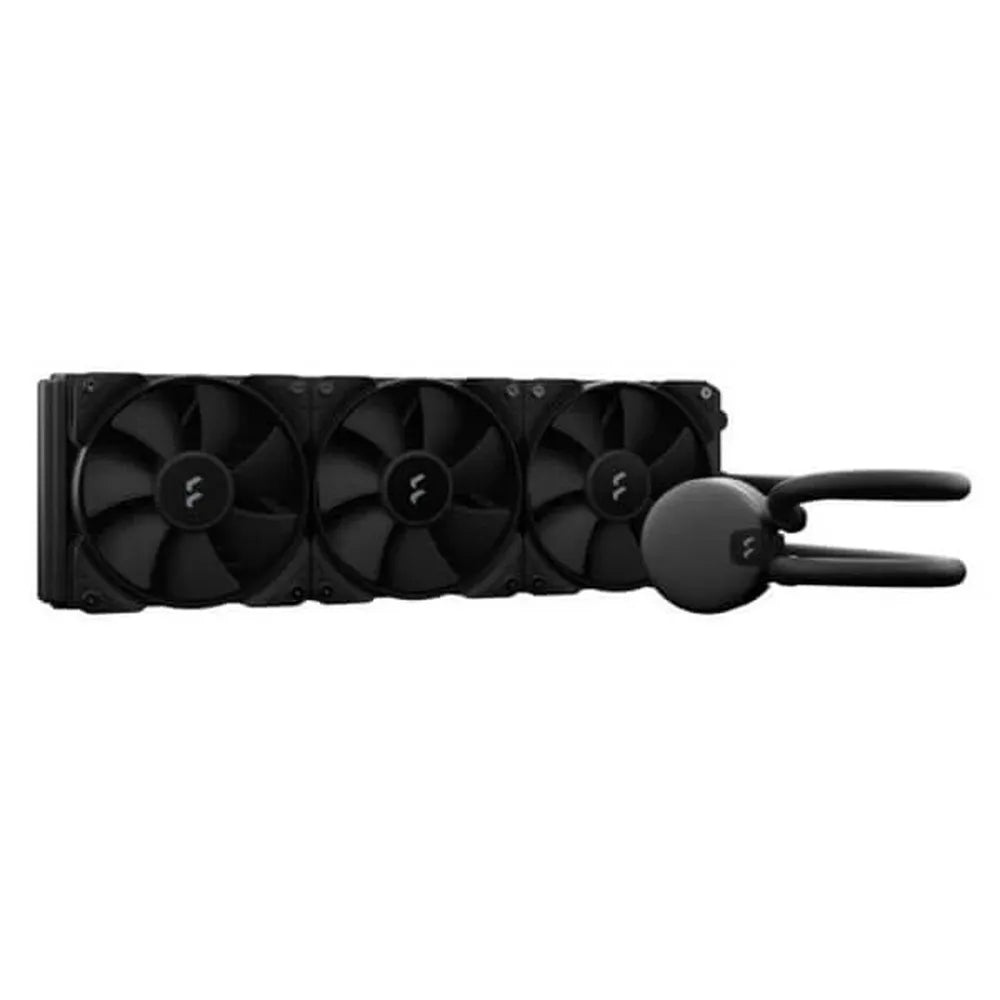

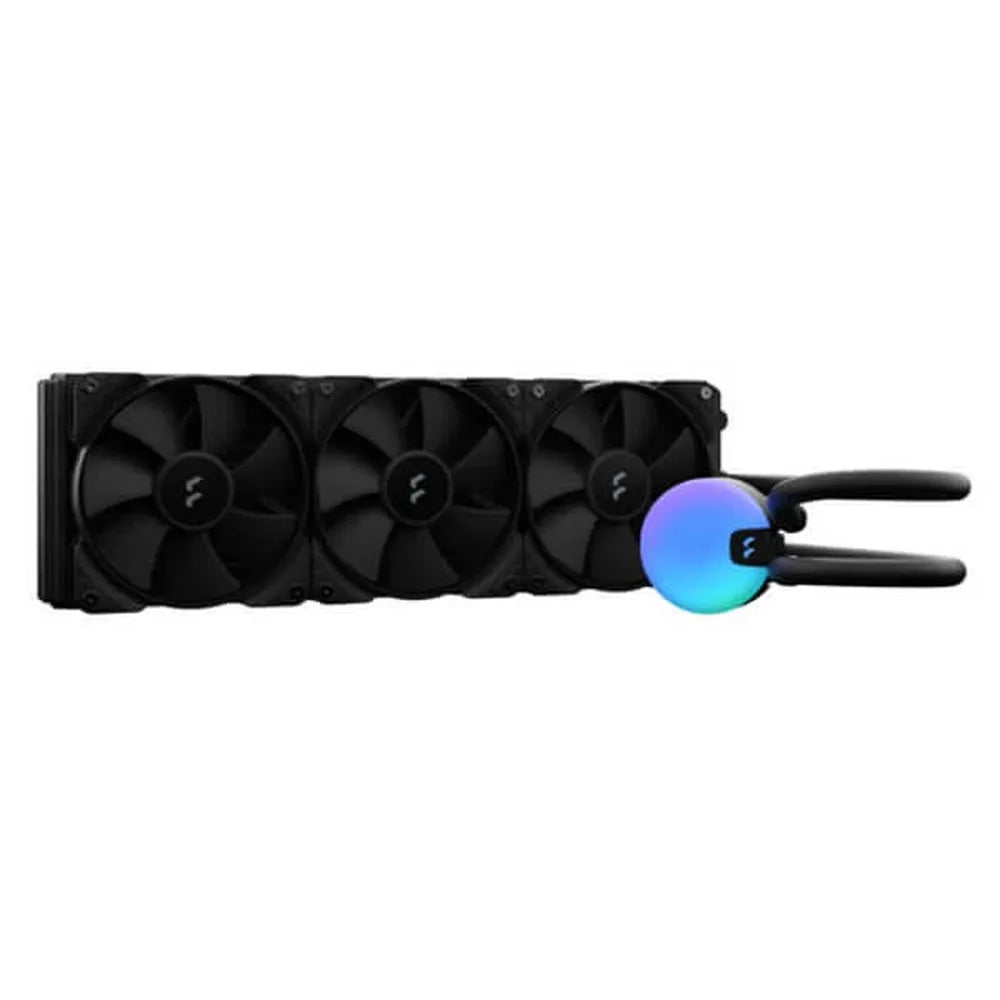

FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)

Features of FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)



 Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller
• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Compatible with LGA 1700 and AM5

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the FRACTAL DESIGN Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

The right way up

• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Low-permeability rubber tubes with braided nylon sleeves

From subtle to stunning

• Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller

Forget the thermal paste

• Thermal paste is pre-applied to ensure a proper and pain-free installation
• Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators

• Compatible with LGA 1700 and AM5
• Supports the most common sockets for both Intel and AMD



Specifications of FRACTAL DESIGN Lumen S36 V2 360mm CPU Liquid Cooler (Black)



Model Number	FD-W-L1-S3611
Sockets supported (Intel)	LGA1700/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
Sockets supported (AMD)	AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
Cold plate material	Copper
Thermal paste	Pre-applied
Tube length	400mm
Tube material	Low-permeability rubber with braided nylon sleeve
Fittings, block side	Articulating 90-degree Elbow
Fittings, radiator side	Barbed fitting
Block height	43mm
Block measurements (with fittings)	79 x 67 mm
Block diameter (main block body)	67 mm
Fan specifications
Fan type	Aspect 12 PWM
Rotational speed	500–2000 RPM
Fan bearing	Rifle bearings
Fan PWM control	Yes
Fan acoustical noise	<10–33.2 dBA
Fan maximum air flow	13-56 CFM
Fan maximum static pressure	0.230–2.34 mm H2O
Fan input voltage	12V
Fan maximum input current	0.37A
Fan MTTF	90,000 hours
Pump specifications
Rotational speed	4000 ± 10% RPM
Bearing type	Ceramic
PWM control	No
Acoustical noise (full speed)	22 dBA
Maximum pressure	1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage	12V DC
Input current (without fans)	0.34 A
MTTF	50 000 hours
Radiator specifications
Radiator dimensions	392 x 120 x 27 mm
Radiator fin material	Aluminum
Radiator housing material	Aluminum
Radiator fan screw threads	6-32

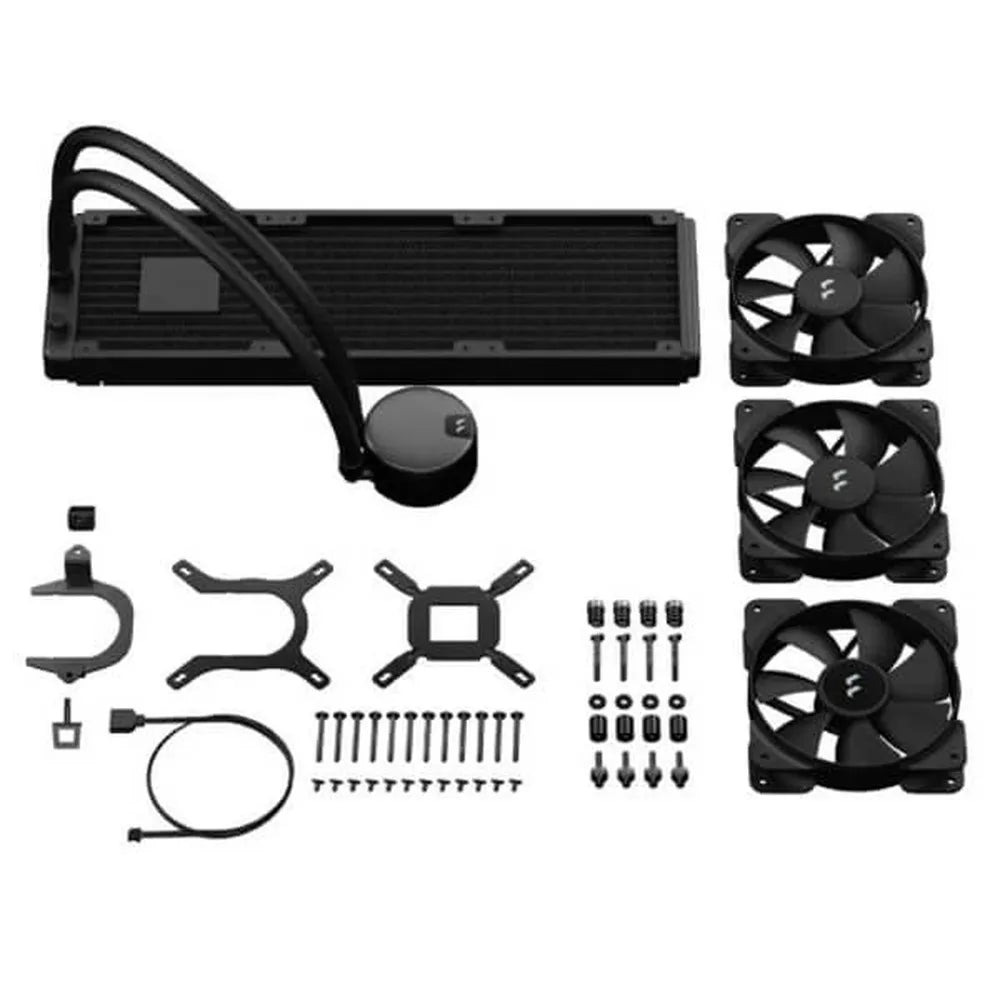

Package contents	CPU Cooler Assembly, 3x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
Warranty	5 Years
