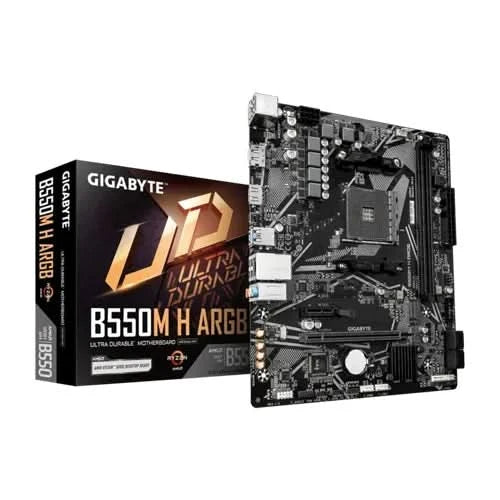

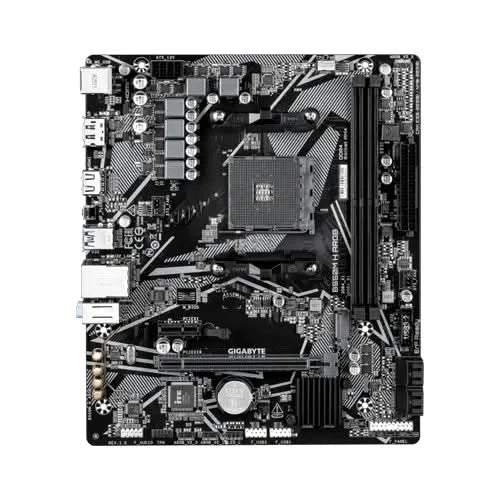

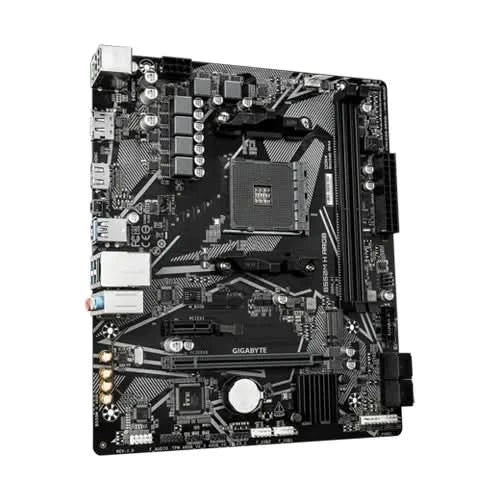

Gigabyte B550M H ARGB M-ATX Motherboard

₹6,258

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The B550M H ARGB (Rev. 1.1) is a micro ATX motherboard designed for building desktop PCs with AMD Ryzen processors. It supports high-speed memory and offers features for gamers and creators who want reliable performance.

Full specifications ↓

Better options in the B550 chipset range

Same B550 chipset family, a little more money — here is what you get extra.

MSI B550M PRO-VDH WIFI Micro-ATX AM4 DDR4 Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹10,290+₹3,140 more
Gigabyte B550M DS3H AC R2 M-ATX Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹9,491+₹3,290 more
Gigabyte B550M DS3H AC (Wi-Fi) Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹10,716+₹3,850 more

Highlights

Supports AMD Ryzen 5000, 4000, and 3000 series processors for smooth multitasking and gaming.
Dual channel DDR4 memory up to 64 GB for faster system performance.
Integrated DisplayPort and HDMI ports support 4K resolution at 60Hz for clear visuals.
PCIe 4.0 x4 M.2 slot for fast NVMe SSD storage options.
GbE LAN for stable and fast internet connectivity.
ARGB headers allow customization of lighting with compatible devices.
Smart Fan 6 with multiple temperature sensors for efficient cooling.
Supports Windows 11 and Windows 10 64-bit operating systems.

Specifications

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm

Who should buy it

This motherboard is ideal for users building a new PC with AMD Ryzen processors who want a balance of performance and features. It may not be suitable for those needing support for older Intel processors or specific non-AMD setups.

Compatibility

Works with AMD Ryzen 5000 G-Series, 5000 Series, 4000 G-Series, 3000 G-Series, and 3000 Series processors. Requires DDR4 memory modules and compatible storage devices like M.2 SSDs or SATA drives.

AMD Ryzen™ 5000 G-Series Processors
AMD Ryzen™ 5000 Series Processors
AMD Ryzen™ 4000 G-Series Processors
AMD Ryzen™ 3000 G-Series Processors
AMD Ryzen™ 3000 Series Processors

Frequently asked questions

What is the maximum RAM capacity supported by the B550M H ARGB motherboard?

The motherboard supports up to 64 GB of DDR4 memory across two slots.

Does the B550M H ARGB support PCIe 4.0 for M.2 SSDs?

Yes, it supports PCIe 4.0 x4 M.2 SSDs when used with compatible AMD Ryzen 5000/3000 Series processors.

Can I use the ARGB headers to connect RGB fans and lights?

Yes, the motherboard has ARGB headers for connecting RGB devices.

What is the difference between the PCIe 4.0 and PCIe 3.0 modes on this motherboard?

PCIe 4.0 is supported for AMD Ryzen 5000/3000 Series processors, while PCIe 3.0 is used for Ryzen 5000 G/4000 G/3000 G Series processors.

How many USB ports does the B550M H ARGB have on the back panel?

It has 4 USB 3.2 Gen 1 ports and 2 USB 2.0 ports on the back panel.

What is the maximum resolution supported by the DisplayPort and HDMI ports?

DisplayPort supports up to 5120x2880@60 Hz, and HDMI supports up to 4096x2160@60 Hz.

Does the motherboard support ECC memory?

Yes, it supports ECC Un-buffered DIMM memory modules, though they operate in non-ECC mode.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Gigabyte
Category	Motherboard
Model / MPN	B550M
CPU	AMD Socket AM4, support for:
Chipset	AMD B550
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
Audio	Realtek® Audio CODEC
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU:
Storage Interface	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
USB	CPU:
Internal I/O Connectors	1 x 24-pin ATX main power connector
Back Panel Connectors	2 x USB 2.0/1.1 ports
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
BIOS	1 x 128 Mbit flash
Unique Features	Support for GIGABYTE Control Center (GCC)
Bundled Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm
