GIGABYTE H610M-D3H WIFI DDR4 Motherboard

₹9,619

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

H610M D3H WIFI DDR4 is a Micro ATX motherboard for LGA1700 Intel processors. It suits builders who want a compact desktop with DDR4 memory, onboard Wi‑Fi and NVMe storage support.

Full specifications ↓

Highlights

Supports 14th/13th/12th Gen Intel Core, Pentium Gold and Celeron CPUs (LGA1700).
Dual-channel DDR4 memory support up to 64 GB, compatible with DDR4-3200/3000/2933/2666/2400/2133 and XMP modules.
PCIe 4.0 ready PCIe x16 slot for modern graphics cards; additional PCIe x1 slot for expansion.
Two M.2 sockets supporting NVMe PCIe 3.0 SSDs plus four SATA 6Gb/s ports for storage flexibility.
Integrated Intel HD graphics via HDMI supporting up to 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3).
Built-in Intel Wireless‑AC 9560 with dual‑band Wi‑Fi (2.4/5 GHz) and Bluetooth 5.1 for wireless connectivity.
Hardware monitoring and multiple fan headers with water cooling flow detection for system health control.
Includes 2 addressable RGB Gen2 headers and support for GIGABYTE Control Center and Q-Flash for easy firmware and lighting control.

Specifications

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Intel® H610 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3)
Audio	Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Intel® Wireless- AC 9560; WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5.1; Support 11ac 160MHz wireless standard
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB); 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB); 4 x SATA 6Gb/s connectors
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 2 x USB 2.0/1.1 ports available through the internal USB header; Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 2 x addressable RGB Gen2 LED strip headers; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper

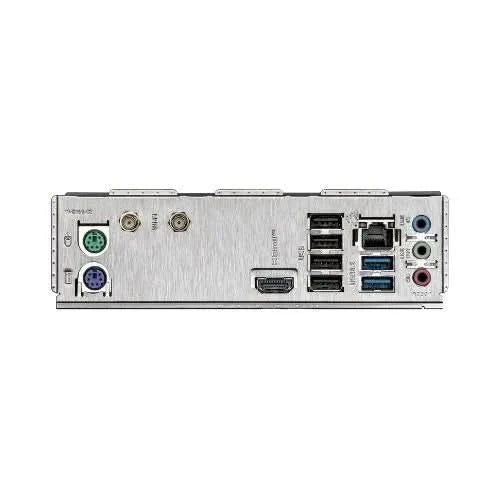

Back Panel Connectors	1 x PS/2 keyboard port; 1 x PS/2 mouse port; 2 x SMA antenna connectors (2T2R); 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control
BIOS	1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC); Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System	Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.0cm

Who should buy it

Choose this board if you want a compact micro‑ATX system with LGA1700 CPU support, DDR4 memory and onboard Wi‑Fi. If you need DDR5 memory or full‑size ATX expandability, consider a DDR5/ATX platform instead.

Compatibility

Works with Intel LGA1700 12th, 13th and 14th Generation Core, Pentium Gold and Celeron processors and supports Windows 10 and Windows 11 64-bit. Use DDR4 memory modules (speeds listed up to DDR4-3200) and NVMe PCIe 3.0 M.2 drives as supported.

Supports Intel® Core™ 14th/13th/12th Generation processors (LGA1700)
Supports DDR4 memory modules (listed speeds up to DDR4-3200)
Windows 11 64-bit and Windows 10 64-bit supported

Frequently asked questions

Does this board support 14th Gen Intel Core processors?

Yes. The H610M D3H WIFI DDR4 supports 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron processors on the LGA1700 socket.

What maximum RAM capacity and speed does this motherboard support?

It supports up to 64 GB using 2 DDR4 DIMM sockets, with supported speeds including DDR4-3200, 3000, 2933, 2666, 2400 and 2133 MT/s.

Does the board include onboard Wi‑Fi and Bluetooth — which standards are supported?

Yes. It includes Intel Wireless‑AC 9560 with Wi‑Fi 802.11 a/b/g/n/ac (2.4/5 GHz dual‑band) and Bluetooth 5.1; it also supports 11ac 160MHz.

How many M.2 slots and SATA ports are available?

The board has 2 M.2 Socket 3 connectors (both support 2280/2260; one supports PCIe 3.0 x4/x2, the other PCIe 3.0 x2) and 4 SATA 6Gb/s connectors.

Is the PCIe x16 slot PCIe 4.0 capable?

Yes. The CPU PCI Express x16 slot supports PCIe 4.0 and runs at x16.

What operating systems are supported (Windows 10/11)?

This motherboard supports Windows 11 64-bit and Windows 10 64-bit.

Does the board include addressable RGB headers?

Yes. It includes 2 addressable RGB Gen2 LED strip headers.

What are the exact back panel connectors (USB, HDMI, LAN, audio)?

The back panel provides 1 HDMI port, 2 USB 3.2 Gen 1 ports, 4 USB 2.0/1.1 ports, 1 RJ-45 GbE LAN port, 3 audio jacks, 2 SMA antenna connectors and PS/2 keyboard and mouse ports.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

GIGABYTE H610M-D3H WIFI DDR4 Motherboard — specifications

Brand	Gigabyte
Category	Motherboard
Model / MPN	H610M-D3H-WIFI-DDR4
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Intel® H610 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3)
Audio	Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Intel® Wireless- AC 9560; WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5.1; Support 11ac 160MHz wireless standard
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB); 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB); 4 x SATA 6Gb/s connectors
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 2 x USB 2.0/1.1 ports available through the internal USB header; Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 2 x addressable RGB Gen2 LED strip headers; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard port; 1 x PS/2 mouse port; 2 x SMA antenna connectors (2T2R); 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control
BIOS	1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC); Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System	Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 22.0cm
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
