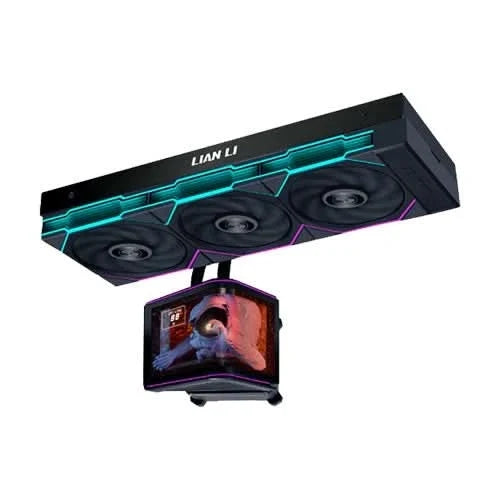

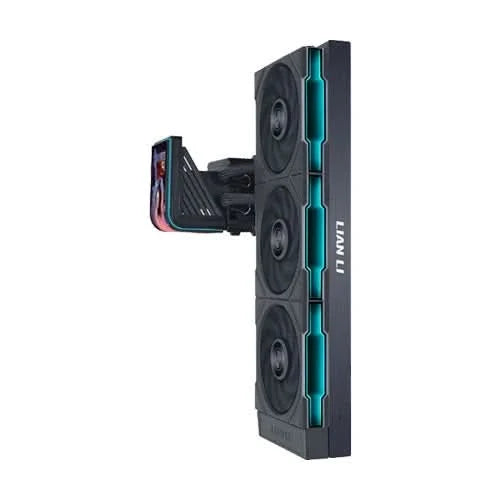

Lian Li HydroShift II OLED Curved 360TL Black, 360mm AIO Liquid CPU Cooler

Key features

• 6.67″ curved OLED display with 500 nits brightness built into the pump head
• 360mm single-wave aluminum radiator (400 × 122 × 24mm)
• Supports Intel LGA 1700/1851 and AMD AM4/AM5 sockets
• Pump speed range of 1600-2800RPM+10% with noise under 30.0 dBA at max
• 120mm fans rated up to 2600 RPM, 90.1 CFM airflow, 33 dBA noise
• Tube lengths of 450/475mm for flexible radiator-to-pump routing

Understand This Product — TechCureIndia

What it does

This is a 360mm all-in-one (AIO) liquid cooling system for desktop CPUs, combining a radiator, pump, tubing, and fans with a built-in OLED display on the pump head for visual customization or monitoring.

What the key specifications mean

• DISPLAY TYPE: A 6.67″ OLED screen on the pump head lets you view system data or custom visuals directly on the cooler.
• DISPLAY RESOLUTION: 2288 x 1048 pixels determines how sharp text and graphics appear on the OLED screen.
• BRIGHTNESS: 500 nits ensures the display stays visible even in well-lit rooms.
• PUMP HEAD DIMENSION: 126.5 × 87.1 × 108mm is the physical size of the pump block, which buyers should check against case clearance near the motherboard area.
• PUMP SPEED: A 1600-2800RPM+10% range indicates how hard the pump can work to circulate coolant for better heat transfer.
• PUMP NOISE LEVEL: Under 30.0 dBA at maximum keeps pump operation quiet even at higher speeds.
• RADIATOR DIMENSIONS: 400 × 122 × 24mm defines the radiator footprint, which must fit the case's radiator mounting area.
• RADIATOR DESIGN: The single-wave fin design is built to support efficient heat dissipation in the radiator.
• RADIATOR MATERIAL: Aluminum construction is used for the radiator body for heat exchange.
• TUBE LENGTH: 450/475mm tubing gives flexibility in positioning the radiator relative to the pump inside the case.
• CPU SOCKET COMPATIBILITY: Supports Intel LGA 1700/1851 and AMD AM4/AM5, covering most current desktop platforms.
• FAN DIMENSIONS: 120x124x28mm fans need adequate radiator mounting space and clearance for push/pull configurations.
• FAN SPEED: A 200-2600 RPM range allows balancing between cooling performance and noise level.
• FAN AIR PRESSURE: 3.97mmH₂O static pressure indicates the fans' ability to push air through the radiator fins.
• FAN AIRFLOW: 90.1 CFM airflow reflects the volume of air the fans can move for cooling.
• FAN NOISE LEVEL: 33 dBA is the noise output at the fans' operating range.
• WARRANTY: Coverage differs by component: 6 years for the AIO cooling system, 3 years for the OLED screen, and 3 years for the fans.

Practical benefits

• Strong 360mm radiator cooling suited for higher-wattage CPUs
• Integrated OLED display adds a visual customization element without extra accessories
• Quiet pump and fan operation even at higher speeds
• Wide CPU socket support reduces compatibility concerns across Intel and AMD platforms

Who it suits

• Gaming PCs needing strong CPU cooling
• Content creation or high-performance desktop builds
• Users who want a built-in display for system monitoring or custom visuals on their cooler

Compatibility and installation

• Intel LGA 1700 / LGA 1851 socket motherboards
• AMD AM4 / AM5 socket motherboards
• PC case must support a 360mm radiator with dimensions of 400 × 122 × 24mm
• Radiator requires mounting space of 400 × 122 × 24mm inside the case
• Pump head occupies 126.5 × 87.1 × 108mm near the CPU socket area
• Fans measure 120x124x28mm each and need radiator mounting clearance
• Tubing length of 450/475mm determines routing flexibility between pump and radiator

Important limitations

• Only compatible with the listed CPU sockets (Intel LGA 1700/1851, AMD AM4/AM5); other sockets are not supported
• Radiator size requires a case with 360mm radiator mounting support

Check before you buy

• Confirm your CPU socket matches the supported list (Intel LGA 1700/1851 or AMD AM4/AM5)
• Verify your case supports a 360mm radiator with the stated dimensions
• Check available clearance near the motherboard for the pump head size
• Ensure there is room for the OLED display cable and tubing routing inside the case

Warranty

5 years manufacturer warranty, serviced through the brand's authorised service network. TechCure India helps you with the claim.

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website (official product page). Specifications on the official website are final.
