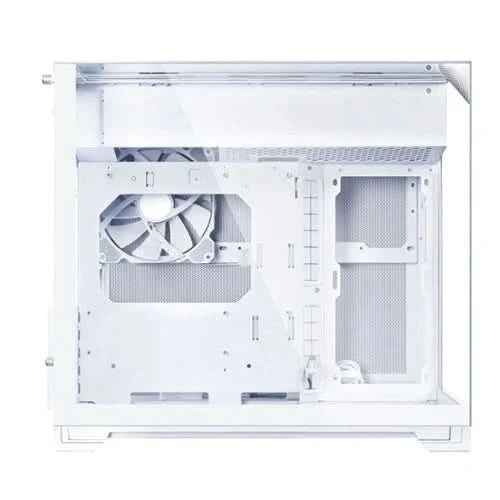

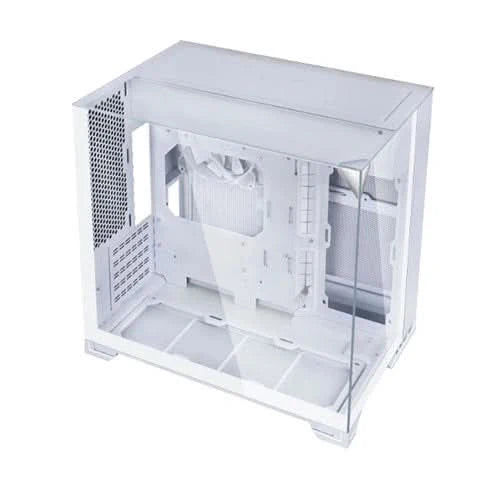

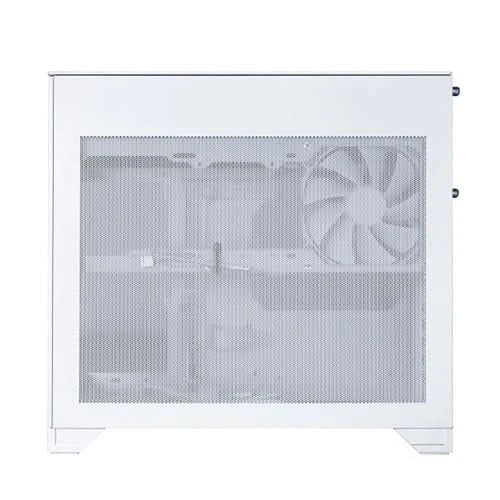

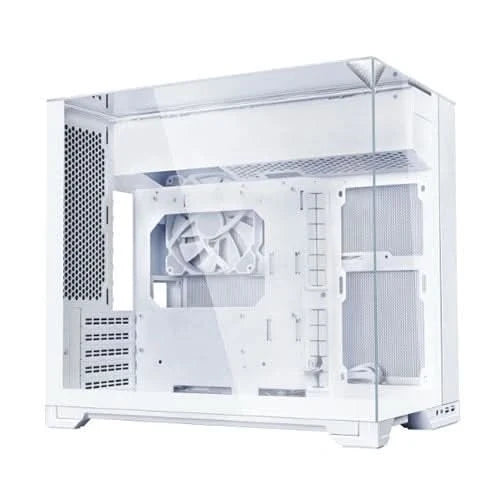

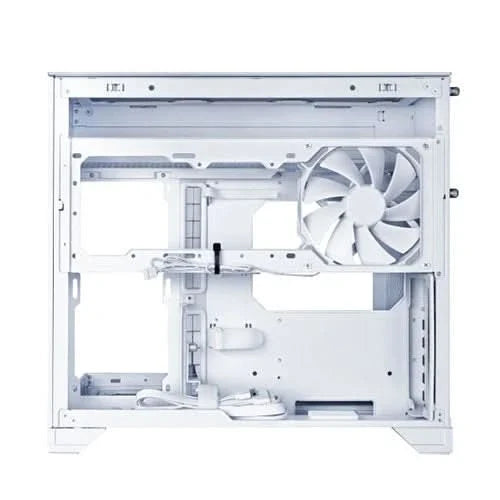

LIAN LI O11 VISION-M White, Micro-ATX Dual Chamber Gaming Cabinet

Key features

• Three-sided tempered glass panels (front, side, top) for a panoramic build view
• Dual-chamber layout separating PSU and cable routing from the main build area
• Supports graphics cards up to 410mm in length
• Top-mounted radiator support up to 360mm
• Pre-installed 140mm fan for AIO radiator airflow
• Adjustable anti-sag bracket for horizontal GPU mounting
• Supports ATX power supplies up to 182mm
• Flexible storage: up to three 2.5" SSDs or one 3.5" HDD with 2.5" SSDs

Understand This Product — TechCureIndia

What it does

This is a Micro-ATX/Mini-ITX PC cabinet designed with a dual-chamber internal layout and tempered glass on three sides, allowing builders to showcase components while keeping cabling and PSU hidden in a separate chamber.

What the key specifications mean

• Cabinet Size (MINI-TOWER): Indicates a compact footprint suited for smaller desks or setups while still fitting full-size components.
• Motherboard Size (M-ATX, M-ITX): Only Micro-ATX and Mini-ITX motherboards fit this case; standard ATX boards are not supported.
• Max CPU Cooler Height (162mm): Limits the size of air coolers that can be used; tall tower coolers beyond this height will not fit.
• Max PSU Length (182mm): Defines the longest ATX power supply that fits in the second chamber.
• Max GPU Length (410mm): Allows most high-end graphics cards to be installed, including larger flagship models.
• Max 3.5" HDD / Max 2.5" SSD: Storage capacity is flexible: either one 3.5" HDD with two 2.5" SSDs, or three 2.5" SSDs.
• Radiator Support: Supports multiple radiator sizes from 120mm up to 360mm for liquid cooling setups.
• Max Fan Support (13): Indicates the total number of fan mounting positions available across the case.
• Pre Installed Fans (1): One 140mm fan comes pre-installed in the second chamber to aid radiator cooling.
• I/O Panel: Front panel includes a power button, USB 3.0 Type-A, USB 3.2 Type-C port, and a single audio jack.

Practical benefits

• Panoramic tempered glass view of internal components and lighting
• Dual-chamber design keeps cables and PSU hidden for a cleaner look
• Enough GPU clearance for most high-end graphics cards despite compact size
• Flexible storage and cooling configuration options

Who it suits

• Compact gaming PC builds using Micro-ATX or Mini-ITX motherboards
• Builders wanting AIO liquid cooling with a showcase-style glass design
• Users who want a high-end GPU in a smaller case footprint

Compatibility and installation

• Motherboard must be Micro-ATX or Mini-ITX form factor
• CPU air cooler height must not exceed 162mm
• Power supply must be ATX form factor within 182mm length
• Graphics card length must not exceed 410mm
• Radiator chosen must match supported sizes (120mm to 360mm)
• Case uses steel, tempered glass, and aluminum construction
• Dust filter located at the bottom of the case
• 5 expansion slots available for add-in cards
• Fan connector type for the included fan is 4-Pin PWM
• I/O panel includes power button, USB 3.0 Type-A, USB 3.2 Type-C, and audio jack

Important limitations

• Only one fan comes pre-installed; additional fans must be purchased separately
• Maximum of one 3.5" HDD can be installed
• CPU cooler height is restricted to 162mm, limiting compatibility with larger air coolers
• Case only supports Micro-ATX and Mini-ITX motherboards, not full ATX

Package contents

• One pre-installed 140mm fan in the second chamber (side-mounted)

Buy separately:

• Motherboard, CPU, GPU, RAM, storage drives
• Power supply unit
• CPU cooler or AIO liquid cooler
• Additional case fans beyond the pre-installed one

Check before you buy

• Confirm your motherboard is Micro-ATX or Mini-ITX before purchase
• Measure your graphics card length against the 410mm limit
• Check your chosen radiator size against supported options (120mm–360mm)
• Verify your power supply length fits within 182mm
• Confirm your CPU cooler height is within the 162mm limit

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website. Specifications on the official website are final.
