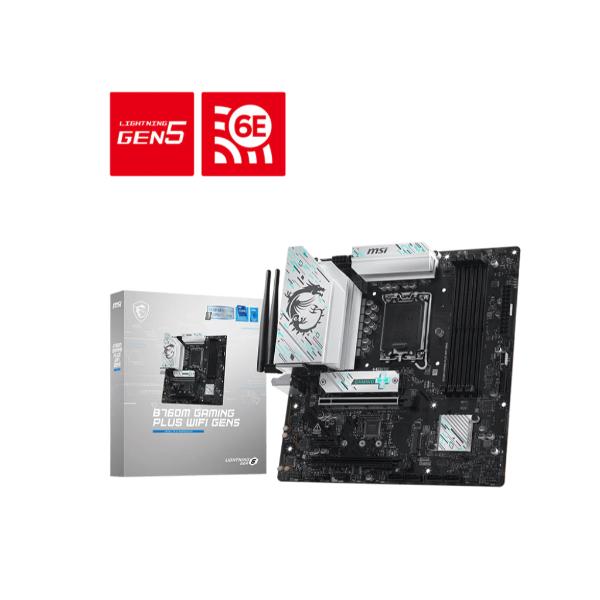

MSI B760M GAMING PLUS WIFI GEN5 Micro-ATX LGA 1700 DDR5 Motherboard

₹17,356

MRP ₹26,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The B760M GAMING PLUS WIFI GEN5 II is a motherboard designed for gamers and PC builders who want a reliable platform with modern features. It supports the latest Intel processors and offers fast connectivity options for a smooth computing experience.

Full specifications ↓

Better options in the B760 chipset range

Same B760 chipset family, a little more money — here is what you get extra.

Gigabyte B760 DS3H AX DDR5 Intel LGA 1700 ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Full ATX size: more slots and better spacing for a big GPU
₹17,909+₹40 more
MSI B760 GAMING PLUS WIFI ATX LGA 1700 DDR5 Motherboard
- Full ATX size: more slots and better spacing for a big GPU
₹18,348+₹2,180 more
MSI MAG B760 TOMAHAWK WIFI ATX LGA 1700 DDR5 Motherboard
- Full ATX size: more slots and better spacing for a big GPU
₹23,307+₹6,960 more

Highlights

Supports Intel® Core™ 14th/13th/12th Gen Processors and Intel® Pentium® Gold/Celeron® Processors
Features DDR5 memory support up to 7200 MT/s with XMP 3.0
Includes Wi-Fi 6E and Bluetooth 5.3 for seamless wireless connectivity
Offers 2.5G LAN for fast network speeds
Provides dual M.2 slots with PCIe 4.0 support for fast storage
Has HDMI™ 2.1 and DisplayPort 1.4 for 4K 60Hz display output
Equipped with 2x PCIe 5.0 x16 slots for high-speed graphics cards
Supports RAID 0, 1, 5, and 10 for SATA storage devices

Specifications

CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MT/s • 1DPC 2R Max speed up to 6600+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 10Gbps (Type-A) Audio Connectors
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT	PCB INFO mATX 243.84mmx243.84mm

Who should buy it

This motherboard is ideal for gamers and PC enthusiasts building systems with Intel 12th, 13th, or 14th Gen processors. It may not be suitable for users needing support for older processors or non-Intel platforms.

Compatibility

Works with Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors. Requires LGA 1700 socket. Supports DDR5 memory modules up to 256GB capacity.

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

What's in the box

PCB INFO
mATX
243.84mmx243.84mm

Frequently asked questions

What is the maximum memory capacity supported by this motherboard?

The motherboard supports up to 256GB of DDR5 memory with speeds up to 7200 MT/s (OC) or 5600 MT/s (JEDEC).

Does this motherboard support Wi-Fi 6E and Bluetooth 5.3?

Yes, it includes Intel® Wi-Fi 6E and supports Bluetooth® 5.3 for wireless connectivity.

What is the maximum PCIe speed supported by the M.2 slots?

M.2_1 supports PCIe 4.0 x4 and M.2_2 supports PCIe 4.0 x4 or SATA mode.

How many USB ports does this motherboard have?

It has 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), and 1x USB 5Gbps Type C (Front).

What is the chipset used on this motherboard?

The chipset is Intel B760.

Can this motherboard support DDR5 memory with XMP 3.0?

Yes, it supports DDR5 memory with XMP 3.0 for overclocking.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	B760M GAMING PLUS WIFI GEN5
CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
MEMORY	4x DDR5, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	2x HDMI™
SLOT	2x PCI-E x16 slot
AUDIO	Realtek® ALC897 Codec
STORAGE	2x M.2
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Keyboard / Mouse
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT	PCB INFO
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
