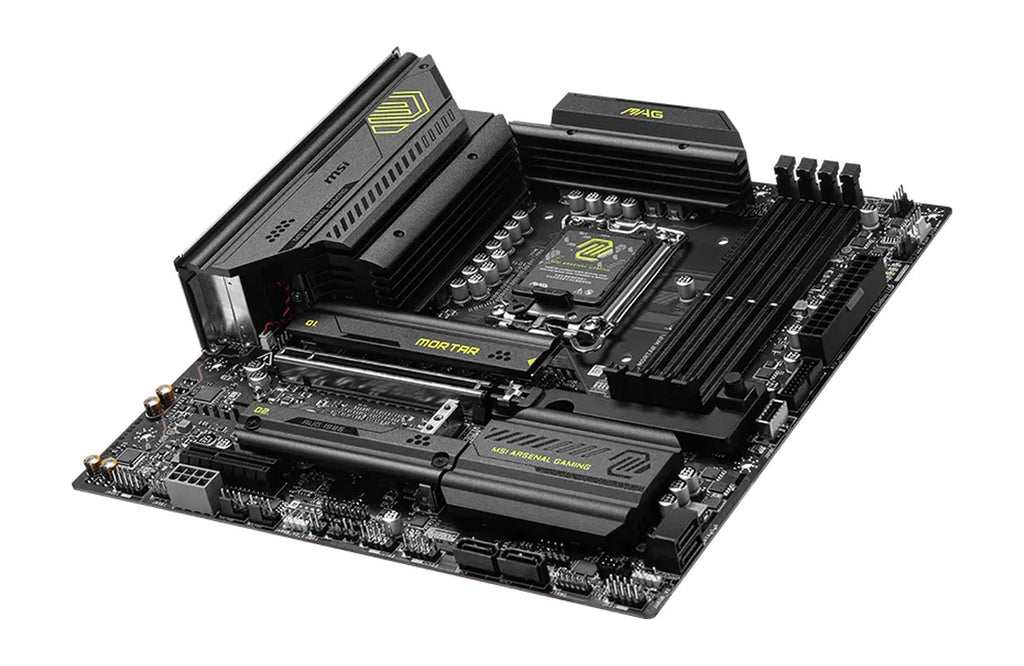

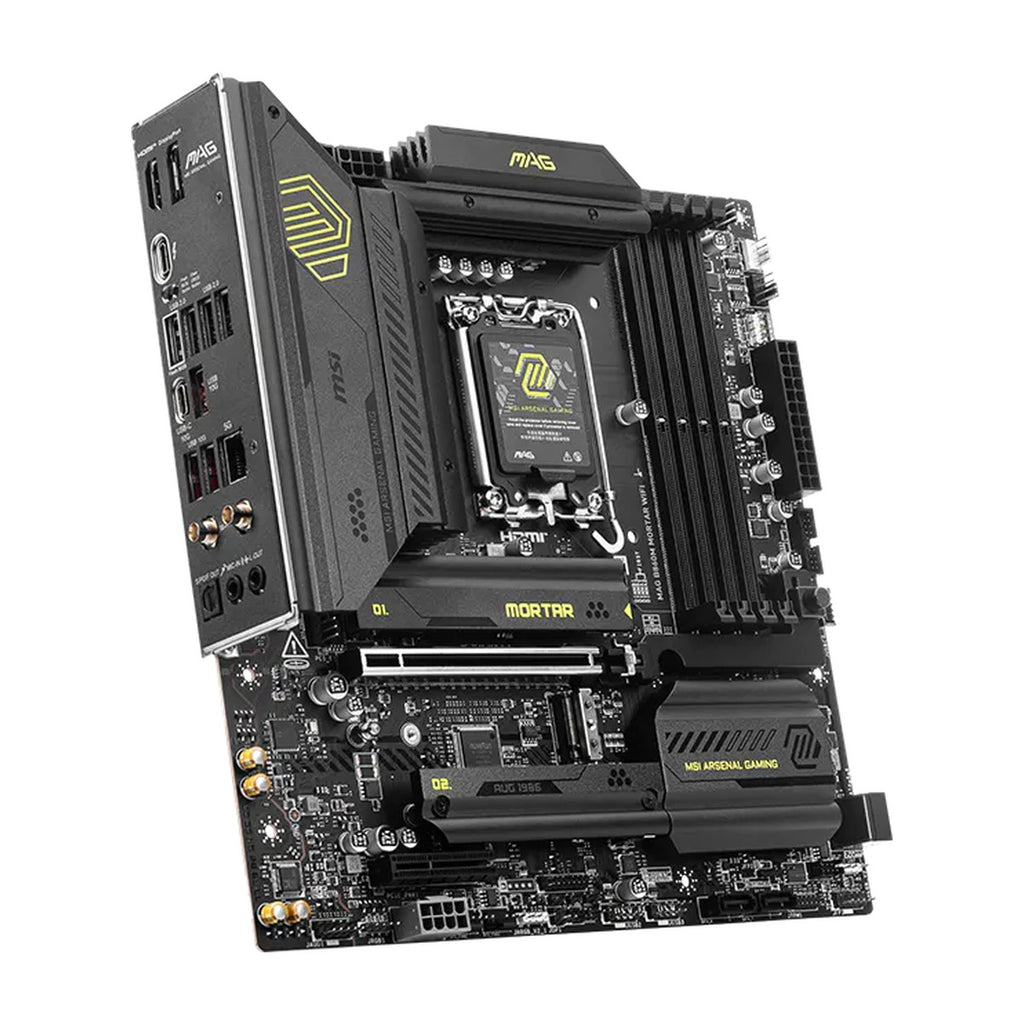

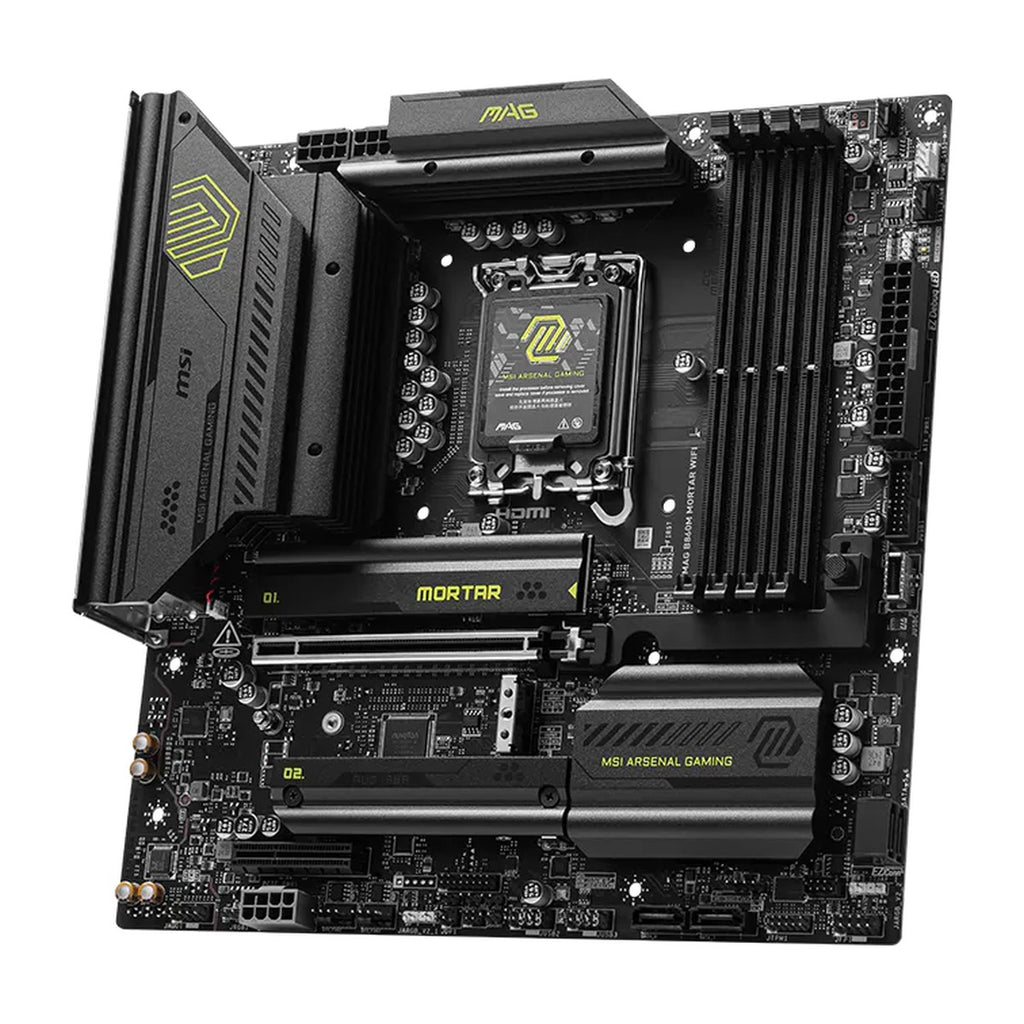

MSI MAG B860M Mortar WiFi DDR5 M-ATX Motherboard

₹23,499

🚚 Shipping ₹379 · FREE on orders above ₹25,000

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI MAG B860M MORTAR WIFI is a motherboard designed for gamers building PCs with Intel Core Ultra processors. It offers features like Wi-Fi 7, Thunderbolt 4, and PCIe 5.0 for a smooth gaming experience.

Full specifications ↓

Highlights

Supports Intel Core Ultra Processors (Series 2) for powerful performance
Features Wi-Fi 7 and Bluetooth 5.4 for seamless connectivity
Offers HDMI 2.1 with 8K 60Hz resolution for high-quality displays
Includes PCIe 5.0 x16 slot for fast graphics cards
Provides 4x DDR5 memory slots with up to 256GB capacity
Has Thunderbolt 4 ports supporting up to 40Gbps transfer rates
Supports RAID 0, 1, 5, and 10 for SATA storage devices
Includes EZ Debug LEDs for easy troubleshooting

Specifications

CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz/ * 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz/ * 1x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* Available only on processors featuring integrated graphics. * Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
STORAGE	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G **Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
ONBOARD THUNDERBOLT	Thunderbolt Resource CPU 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN	Intel® Killer™ E5000 5Gbps LAN
INTERNAL IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED

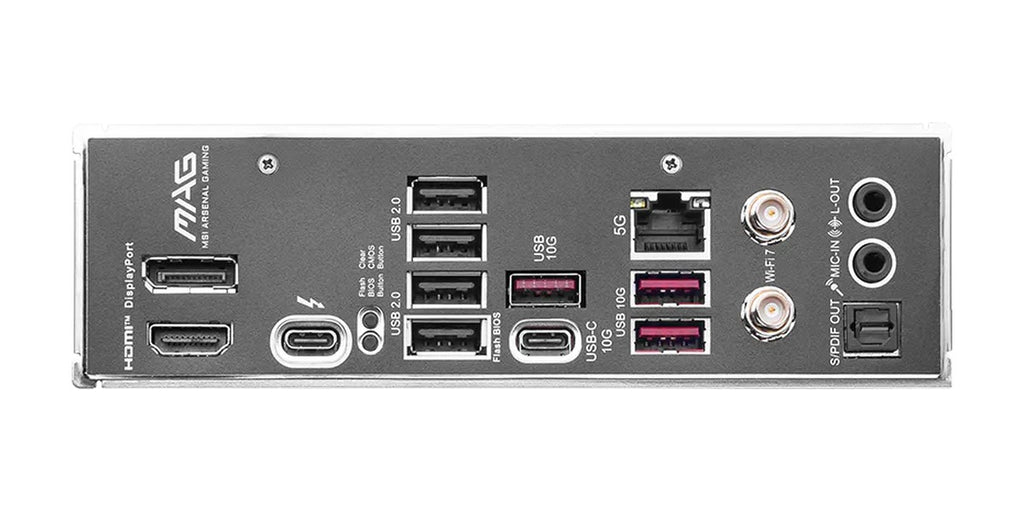

BACK PANEL PORTS	DisplayPort USB 2.0 USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) Flash BIOS Button Clear CMOS Button USB 10Gbps Type-C USB 10Gbps Type-A S/PDIF-OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO mATX 243.84mmx243.84mm

Who should buy it

This motherboard is ideal for gamers and PC builders who want a stable, durable foundation with modern features like Wi-Fi 7 and Thunderbolt 4. It is not for users needing compatibility with older processors or non-Intel systems.

Compatibility

Works with Intel Core Ultra Processors (Series 2) and supports DDR5 memory up to 256GB. Requires a compatible CPU and memory configuration for full performance.

Supports Intel® Core™ Ultra Processors (Series 2)

What's in the box

PCB INFO
mATX
243.84mmx243.84mm

Frequently asked questions

What is the maximum memory capacity supported by the MSI MAG B860M Mortar WiFi DDR5 M-ATX Motherboard?

The motherboard supports up to 256GB of DDR5 memory across 4 slots.

Does the motherboard support Wi-Fi 7 and Bluetooth 5.4?

Yes, it includes Intel Killer BE1750x Wi-Fi 7 and supports Bluetooth 5.4.

What is the maximum resolution supported by the HDMI 2.1 port?

HDMI 2.1 supports up to 8K 60Hz resolution.

How many PCIe 5.0 slots does the motherboard have?

It has one PCIe 5.0 x16 slot.

Can the motherboard support 8K display output?

Yes, with HDMI 2.1 and Thunderbolt 4 ports supporting up to 8K 60Hz.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

MSI MAG B860M Mortar WiFi DDR5 M-ATX Motherboard — specifications

Brand	MSI
Category	Motherboard
Model / MPN	MAG-B860M-MORTAR-WIFI-7
CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2)
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	1x PCI-E x16 slot
AUDIO	Realtek® ALC897 Codec
STORAGE	3x M.2
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
ONBOARD THUNDERBOLT	Thunderbolt Resource CPU
USB	4x USB 2.0 (Rear)
LAN	Intel® Killer™ E5000 5Gbps LAN
INTERNAL IO	1x Thunderbolt5 card connector(JTBT5, support RTD3)
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
