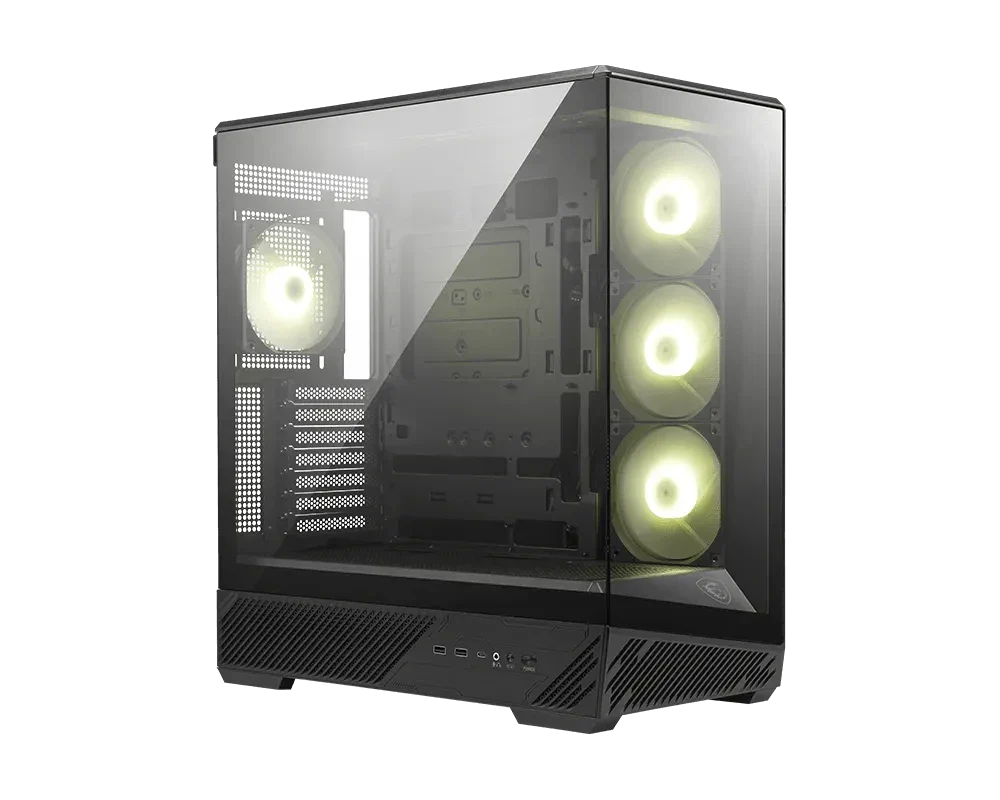

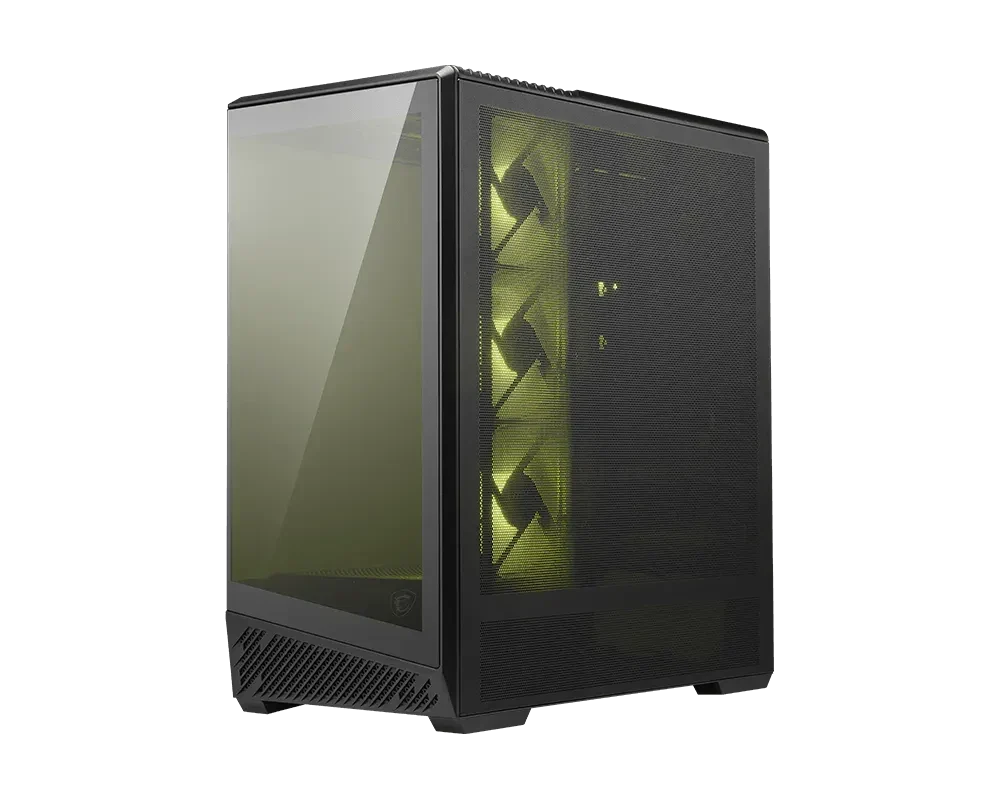

MSi MAG PANO 130R PZ Mid-Tower ATX, Micro-ATX, Mini-ITX case

Key features

• Supports Back-Connect ATX and Micro-ATX motherboards for hidden cable routing
• Fits graphics cards up to 400 mm long
• Top and side panels support radiators up to 360 mm
• Rotatable GPU bracket for horizontal or vertical card installation
• Pre-installed rear and side ARGB fans with reverse blade design
• Magnetic top and removable bottom dust filters
• Front panel includes USB Type-C (20Gbps) and dual USB Type-A (5Gbps) ports

Understand This Product — TechCureIndia

What it does

This is an empty mid-tower PC case/cabinet that houses and cools a custom-built desktop system, providing mounting points for the motherboard, power supply, storage drives, fans, and graphics card.

What the key specifications mean

• Case Form Factor: A mid-tower size that fits most desk setups while leaving room for full-size components.
• Motherboard Form Factor Support: Accepts standard ATX, Micro-ATX, and Mini-ITX boards, plus Back-Connect ATX/Micro-ATX boards for cleaner builds.
• Drive Mount Support: Enough mounting points for up to 3 SSDs and 2 hard drives, suiting mixed storage setups.
• I/O Ports: Front-panel USB-C and USB-A ports let you connect fast external drives and peripherals without reaching the rear of the case.
• Case Expansion Slots: 7 slots allow installation of multi-slot graphics cards and additional expansion cards.
• Maximum PSU Length: Power supplies up to 180 mm long will fit, covering most ATX units.
• Fan Support: Multiple mounting zones (top, rear, side, bottom) allow a flexible airflow configuration using up to 10 fans.
• Maximum GPU Length: Graphics cards up to 400 mm fit without clearance issues, covering most current high-end cards.
• Radiator Layout: Supports radiators up to 360 mm on the top and side panels, useful for liquid cooling setups.
• Maximum CPU Cooler Length: Air coolers up to 165 mm tall are supported, so check your cooler height before buying.
• Lightning: Pre-installed ARGB fans on the rear and side provide synced lighting without extra purchases.
• Power Supply: Uses standard ATX power supply units.

Practical benefits

• Cleaner cable management possible with Back-Connect motherboard support
• Flexible cooling options with multiple fan and radiator mounting positions
• Room for long, high-performance graphics cards
• Built-in ARGB lighting reduces need for separate fan purchases
• Dust filters help maintain airflow and reduce internal dust buildup

Who it suits

• Builders wanting a clean, cable-free aesthetic using Back-Connect motherboards
• Gaming or high-performance PC builds needing large GPU clearance
• Users planning custom liquid cooling with 240/280/360 mm radiators
• Builders who want factory-fitted ARGB lighting without buying extra fans

Compatibility and installation

• Motherboard must be ATX, Micro-ATX, or Mini-ITX (or Back-Connect ATX/Micro-ATX variant)
• Power supply must be standard ATX form factor, max 180 mm in length
• Graphics card must not exceed 400 mm in length
• CPU air cooler must be 165 mm or shorter
• Radiators must fit within listed top/rear/side size options
• Requires a standard ATX power supply (sold separately)
• Fan mounting zones at top, rear, side, and bottom for airflow configuration

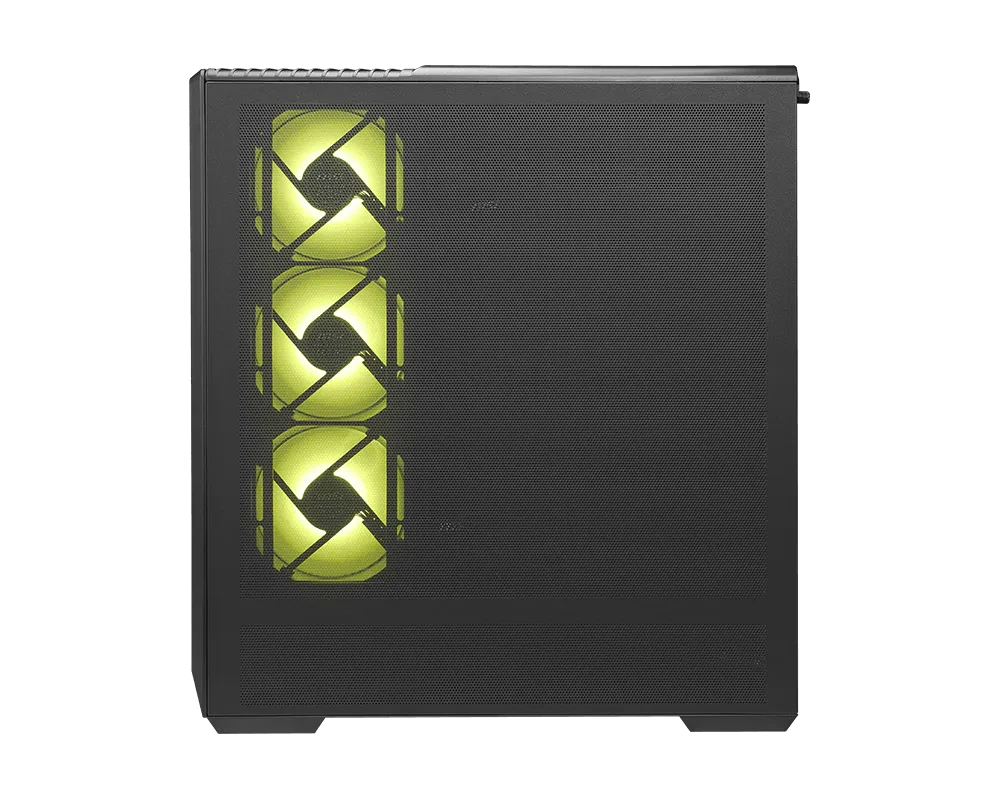

• Rear 120 mm ARGB fan and three side 120 mm ARGB fans pre-installed
• Front I/O includes USB-C, USB-A, audio jack, power and reset buttons

Important limitations

• No front fan or radiator mounting support (Front: N/A)
• No bottom radiator mounting support (Bottom: N/A)
• CPU cooler height limited to 165 mm
• PSU length limited to 180 mm

Package contents

• Specification verification required.

Buy separately:

• Motherboard
• Power supply unit (ATX)
• Graphics card
• CPU cooler or liquid cooling radiator/fans beyond pre-installed units
• Storage drives (SSD/HDD)

Check before you buy

• Confirm your motherboard is a supported form factor (including Back-Connect variant if applicable)
• Verify your GPU length is within 400 mm
• Verify your CPU cooler height is within 165 mm
• Confirm your PSU length is within 180 mm
• Check desired radiator size against supported top/side/rear positions

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website. Specifications on the official website are final.
