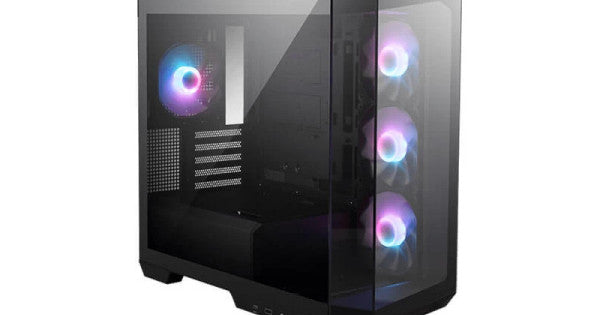

The MAG PANO M100R PZ / WHITE is a Micro-ATX tower case designed for building compact yet powerful PCs. It offers a sleek, modern look with panoramic glass and built-in ARGB lighting for a vibrant setup.

Full specifications ↓

Highlights

270-degree tempered glass for a clear view of your PC's interior without metal obstructions.
Supports up to 360 mm AIO liquid cooler on the top for efficient cooling.
Built-in 1-to-4 ARGB-PWM fans with a control board for easy lighting effects.
Quickly switch between lighting profiles with the Insta-Light Loop button.
Supports Micro-ATX Back-connect motherboards for simpler installation and cable management.
Holds up to 10 x 120 mm system fans for enhanced airflow.
Magnetic dust filter at the bottom for easy cleaning.
Maximum GPU length of 390 mm with horizontal installation only.

Specifications

Gross Weight	11.29 kg
Net Weight	8.66 kg
Dimensions (DxWxH)	488 x 235 x 453 mm / 19.21 x 9.25 x 17.84 inches
Radiator Size Support - Top	120 / 240 / 360 mm
Radiator Size Support - Front	NA
Radiator Size Support - Rear	120 / 140 mm
Radiator Size Support - Side	NA
Radiator Size Support - Bottom	NA
Pre-installed Fan Type - Side	3 x ARGB Fan (Reverse-blade)
Pre-installed Fan Type - Rear	1 x ARGB Fan
Pre-installed Fan Size - Side	3 x 120 mm
Pre-installed Fan Size - Rear	1 x 120 mm
Fan Size Support - Top	3 x 120 mm / 2 x 140 mm
Fan Size Support - Front	NA
Fan Size Support - Rear	1 x 120 mm / 1 x 140 mm
Fan Size Support - Side	3 x 120 mm
Fan Size Support - Bottom	1 x 120 mm
Fan Size Support - PSU Shroud	2 x 120 mm
Maximum PSU Length	200 mm / 7.87 inches
Power Supply Support	ATX
Maximum CPU Cooler Height	175 mm / 6.9 inches
Maximum GPU Length	390 mm / 15.35 inches *Support horizontal installation only.
Expansion Slots	5
Drive Mount Support	1 x 2.5" 1 x 2.5"/3.5" combo (up to 2 x 2.5" or 1 x 2.5"+ 1 x 3.5")
I/O Ports	1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button
Motherboard Form Factor Support	M-ATX(Back-connect supported) / ITX
Case Form Factor	Micro- ATX Tower
Product Name	MAG PANO M100R PZ / WHITE

Who should buy it

This case is ideal for gamers and PC builders who want a compact, well-ventilated setup with vibrant lighting. It may not suit those needing full ATX support or vertical GPU mounting.

Compatibility

Works with Micro-ATX Back-connect motherboards and supports B760M PROJECT ZERO and B650M PROJECT ZERO models. Requires ATX power supply and supports up to 390 mm GPU length.

Micro-ATX Back-connect motherboards
B760M PROJECT ZERO
B650M PROJECT ZERO

Frequently asked questions

What is the maximum GPU length supported by the MSI MAG PANO M100R PZ?

The MAG PANO M100R PZ supports a maximum GPU length of 390 mm, with horizontal installation only.

Does the MSI MAG PANO M100R PZ support horizontal GPU installation?

Yes, the case supports horizontal GPU installation with a maximum length of 390 mm.

What is the maximum CPU cooler height for the MSI MAG PANO M100R PZ?

The case supports a maximum CPU cooler height of 175 mm.

How many fans can be installed in the MSI MAG PANO M100R PZ?

The case supports up to 10 x 120 mm system fans.

What is the radiator size support for the top of the MSI MAG PANO M100R PZ?

The top supports radiators up to 360 mm.

Can the MSI MAG PANO M100R PZ support a 360mm AIO liquid cooler?

Yes, the case supports up to 360 mm AIO liquid cooler on the top.

What is the maximum PSU length supported by the MSI MAG PANO M100R PZ?

The case supports a maximum PSU length of 200 mm.

What is the form factor of the MSI MAG PANO M100R PZ?

The case is a Micro-ATX Tower.
