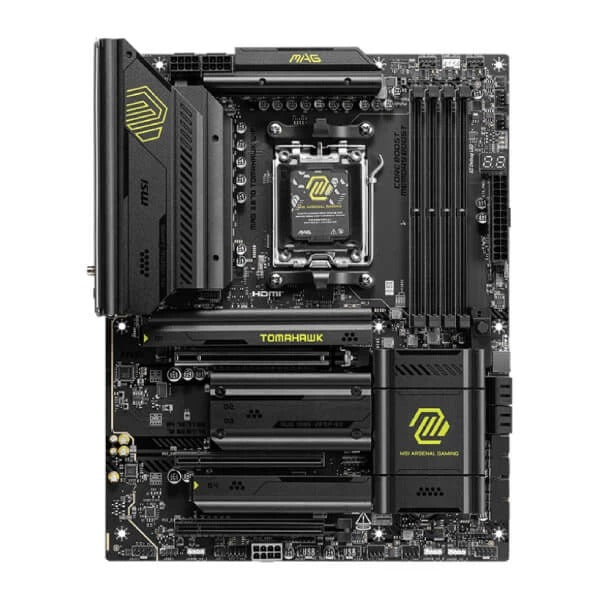

MSI MAG X870 Tomahawk WIFI DDR5 AM5 ATX Gaming Motherboard

₹34,100

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MAG X870 TOMAHAWK WIFI is a high-performance motherboard designed for building powerful desktop PCs with AMD Ryzen processors. It offers advanced features for gamers and enthusiasts who want a reliable foundation for their systems.

Full specifications ↓

Better options in the X870 chipset range

Same X870 chipset family, a little more money — here is what you get extra.

GIGABYTE X870 Aorus Stealth ATX Wifi7 DDR5 AMD Motherboard
- Wi-Fi 7 instead of older Wi-Fi
₹35,579+₹1,540 more
GIGABYTE X870E Aorus Elite X3D Wifi7 DDR5 AMD Motherboard
- Wi-Fi 7 instead of older Wi-Fi
₹28,925+₹2,180 more
GIGABYTE X870E Aorus Pro ICE WIFI7 DDR5 AMD Motherboard (White)
- Wi-Fi 7 instead of older Wi-Fi
₹37,438+₹3,470 more

Highlights

Supports AMD Ryzen™ 9000/8000/7000 Series processors for top-tier performance
4x DDR5 UDIMM slots with up to 256GB capacity and speeds up to 8400 MT/s
3x PCI-E x16 slots including PCIe 5.0 for future-proof graphics cards
Wi-Fi 7 and Bluetooth 5.4 for seamless wireless connectivity
4x M.2 slots with PCIe 5.0 support for ultra-fast storage
Realtek® 8126-CG 5G LAN for fast wired internet
Supports RAID 0, 1, 5, and 10 configurations for storage flexibility
One-click overclocking for easy performance tuning
4x EZ Debug LED for quick troubleshooting

Specifications

CHIPSET	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
STORAGE	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 & M2_2 slots • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4. * PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot. **** Please refer to the manual for M.2 SSD heatsink restrictions
MULTI-GPU	AMD MULTI-GPU Support
RAID	•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen™ 9000 series processors. RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	Realtek® 8126-CG 5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED
BACK PANEL PORTS	Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	ATX 304.8mmx243.84mm

Who should buy it

This motherboard is ideal for gamers and PC builders who want a stable, durable platform for AMD Ryzen 9000/8000/7000 series processors. It may not be the best choice for users needing support for older AMD processors or non-AMD systems.

Compatibility

Works with AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, supports DDR5 memory up to 8400 MT/s, and requires compatible M.2 SSDs for PCIe 5.0 speeds. It supports Windows® 11 64-bit operating system.

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

What's in the box

PCB INFO
ATX
304.8mmx243.84mm

Frequently asked questions

What is the maximum memory speed supported by this motherboard?

The motherboard supports DDR5 memory speeds up to 8400 MT/s (OC) for Ryzen™ 9000 Series processors.

How many M.2 slots does this motherboard have?

The motherboard has 4x M.2 slots with varying PCIe support depending on the processor.

Does this motherboard support Wi-Fi 7 and Bluetooth 5.4?

Yes, it supports Wi-Fi 7 and Bluetooth 5.4 as per the specifications.

What is the maximum resolution supported by the HDMI port?

The HDMI port supports up to 8K 60Hz resolution with HDMI™ 2.1 FRL.

Can this motherboard support RAID 5 configuration?

RAID 5 is supported for M.2 NVMe storage devices with Ryzen™ 9000 series processors.

What is the power delivery system for the CPU?

The motherboard features a 14+2+1 Duet Rail Power System 80A SPS for stable power delivery.

What is the size of the motherboard?

The motherboard is ATX size with dimensions 304.8mm x 243.84mm.

How does the EZ M.2 installation work?

The motherboard includes EZ M.2 installation features for easy SSD setup.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	MAG-X870-TOMAHAWK-WIFI
CHIPSET	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	3x PCI-E x16 slot
AUDIO	Realtek® ALC4080 Codec
STORAGE	4x M.2
MULTI-GPU	AMD MULTI-GPU Support
RAID	•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear)
LAN	Realtek® 8126-CG 5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
WIRELESS LAN & BLUETOOTH	Wi-Fi 7
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Clear CMOS Button
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	ATX
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
