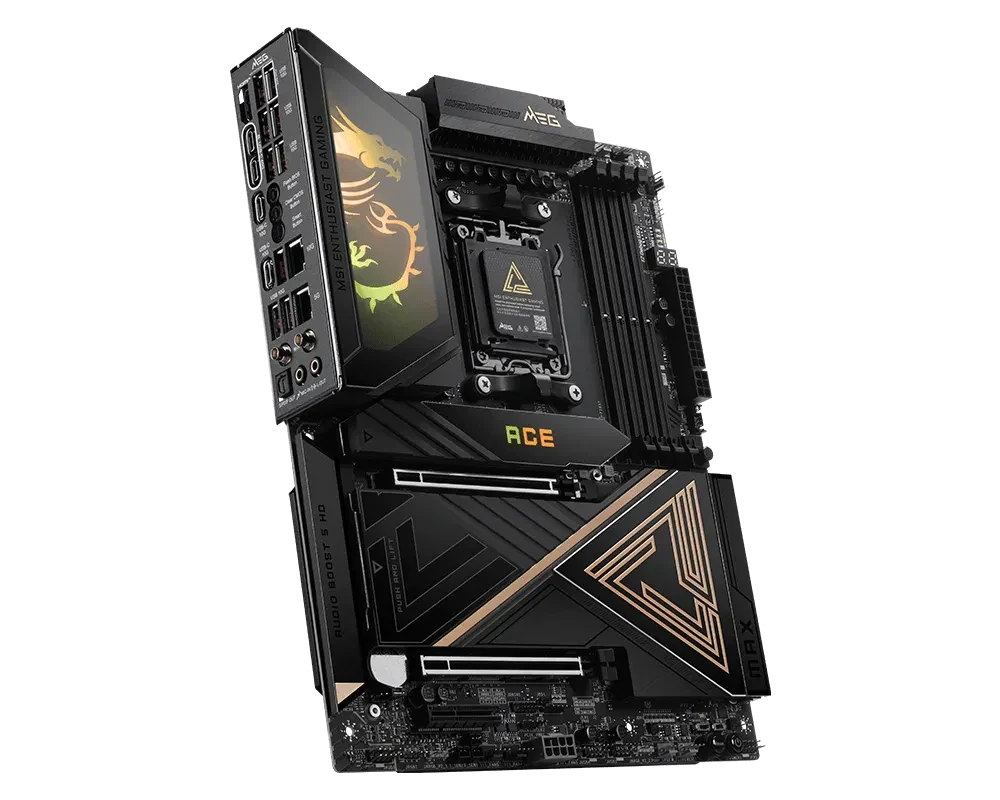

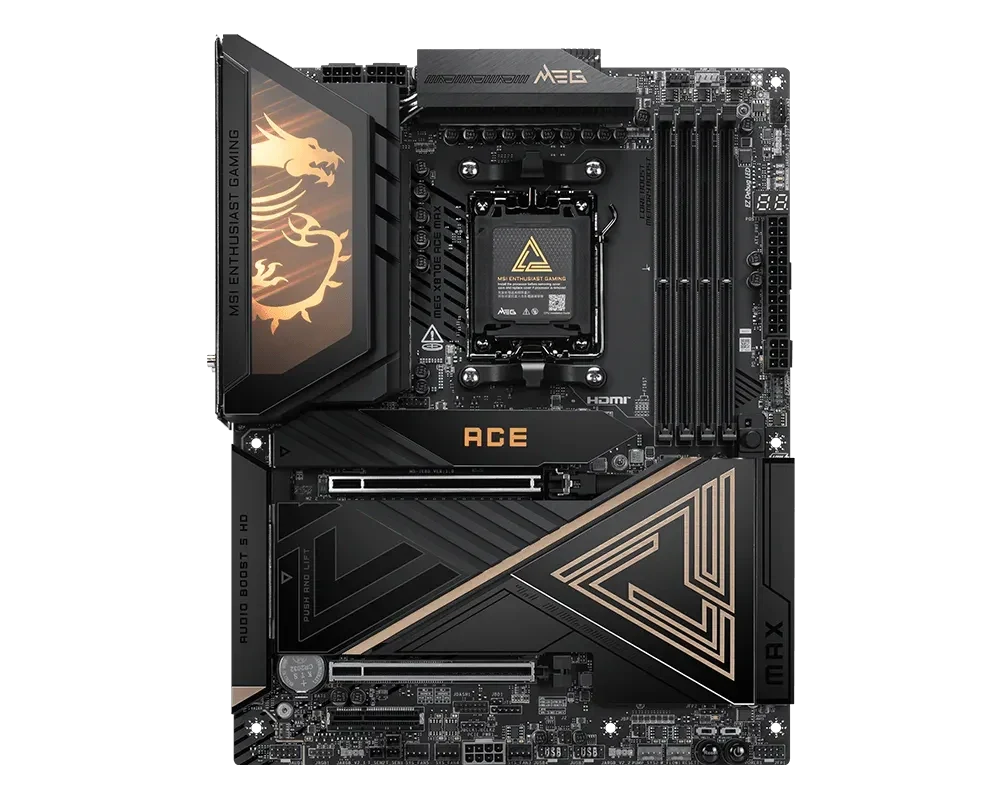

MSI MEG X870E ACE MAX AMD AM5 ATX Motherboard

₹64,465

MRP ₹89,000 (incl. of all taxes)

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI MEG X870E ACE MAX is a high-performance motherboard designed for PC builders who want to use the latest AMD Ryzen processors. It supports advanced features like PCIe 5.0, Wi-Fi 7, and high-speed memory for demanding tasks.

Full specifications ↓

Better options in the X870 chipset range

Same X870 chipset family, a little more money — here is what you get extra.

ASUS ROG CROSSHAIR X870E Apex Wifi7 DDR5 AMD Motherboard
- Wi-Fi 7 built in
- Supports faster DDR5 memory
₹68,899+₹3,220 more
ASUS ROG CROSSHAIR X870E HERO DDR5 AMD Motherboard
- Supports faster DDR5 memory
₹74,798+₹9,360 more

Highlights

Supports AMD Ryzen 9000/8000/7000 series processors with Socket AM5
Offers 4x DDR5 UDIMM slots with up to 256GB capacity
Features HDMI 2.1 for 8K 60Hz display output
Includes 5x M.2 slots with PCIe 5.0 and PCIe 4.0 support
Provides 10Gbps and 5Gbps LAN for fast networking
Equipped with Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity
Supports RAID 0, 1, 5, and 10 configurations for storage
Has 18+2+1 Duet Rail Power System for stable overclocking

Specifications

CHIPSET	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz* * Available only on processors featuring integrated graphics. ** Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) * PCI_E3 & M.2_1 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M.2_1 slot. ** Please refer to the PCIe configuration table in the manual for more details.
AUDIO	Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
STORAGE	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M.2_1: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2: • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. M.2_1 & PCI_E3 share the bandwidth. M.2_1 will run at x2 speed when installing device in the PCI_E3 slot. You can switch M.2_1 slot to x4 in the BIOS, but this will disable the PCI_E3 slot. * USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. **** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices *RAID 5/ 10 configuration is only supported by Ryzen™ 9000/ 7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) * USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors. * USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M.2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
LAN	1x Marvell® AQC113CS 10Gbps LAN 1x Realtek® 8126 5Gbps LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	1x EZ Digi-Debug LED 4x EZ Debug LED 1x EZ Memory Detection LED 1x EZ LED Control switch
BACK PANEL PORTS	USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button 10G LAN 5G LAN Wi-Fi / Bluetooth HD Audio Connectors HDMI™ 2.1 Port USB 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	ATX 243.84mmx304.8mm

Who should buy it

This motherboard is ideal for users building high-end gaming or AI PCs with AMD Ryzen 9000/8000/7000 series processors. It may not be the best choice for those using older Ryzen 8000 series processors or who need specific compatibility not covered by the listed features.

Compatibility

Works with AMD Ryzen 9000/8000/7000 series desktop processors. Requires DDR5 memory with support for AMD POR Speed and JEDEC Speed. Needs compatible M.2 SSDs for PCIe 5.0 and PCIe 4.0 storage options.

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

Frequently asked questions

What is the maximum memory capacity supported by the MSI MEG X870E ACE MAX?

The motherboard supports up to 256GB of DDR5 memory with 4x DDR5 UDIMM slots.

Does the MSI MEG X870E ACE MAX support Wi-Fi 7 and Bluetooth 5.4?

Yes, it includes a Wi-Fi 7 solution and supports Bluetooth 5.4.

Can the MSI MEG X870E ACE MAX handle PCIe 5.0 x16 for both GPU slots?

PCI_E1 supports PCIe 5.0 x16 and PCI_E2 supports PCIe 5.0 x8 for Ryzen 9000/7000 series processors.

What is the maximum resolution supported by the HDMI 2.1 port?

The HDMI 2.1 port supports up to 8K 60Hz resolution.

How many M.2 slots does the MSI MEG X870E ACE MAX have, and what are their speeds?

It has 5 M.2 slots: M.2_1 and M.2_2 support PCIe 5.0 x4, while M.2_3, M.2_4, and M.2_5 support PCIe 4.0 x4.

Does the MSI MEG X870E ACE MAX support RAID 5 and RAID 10 configurations?

Yes, it supports RAID 5 and RAID 10 for M.2 NVMe storage devices with Ryzen 9000/7000 series processors.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	X870E
CHIPSET	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	2x PCI-E x16 slot
AUDIO	Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
STORAGE	5x M.2
RAID	Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
USB	4x USB 2.0 (Front)
LAN	1x Marvell® AQC113CS 10Gbps LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution
LED FEATURE	1x EZ Digi-Debug LED
BACK PANEL PORTS	USB 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	ATX
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
