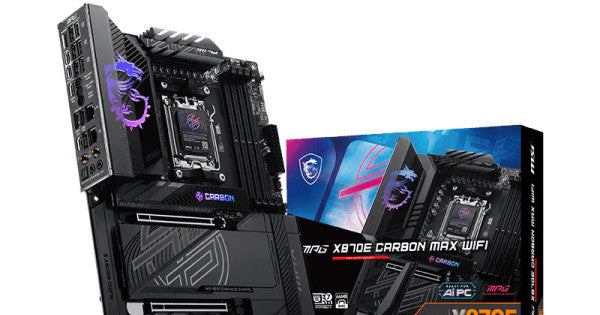

MSI MPG X870E Carbon Max Wifi Motherboard

₹53,308

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI MPG X870E CARBON MAX WIFI is a high-performance motherboard designed for gamers and creators using AMD Ryzen 9000, 8000, and 7000 series processors. It offers advanced features like Wi-Fi 7, PCIe 5.0 support, and robust connectivity for a smooth computing experience.

Full specifications ↓

Better options in the X870 chipset range

Same X870 chipset family, a little more money — here is what you get extra.

Gigabyte GA X870E AORUS MASTER X ICE 3D AMD Motherboard AM5 DDR5 ATX WiFi 7
- Wi-Fi 7 instead of older Wi-Fi
- Full ATX size: more slots and better spacing for a big GPU
- Supports faster DDR5 memory
₹59,750+₹7,640 more
ASUS ROG STRIX X870-I Gaming WIFI7 DDR5 AMD Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹55,839+₹1,240 more
ASUS ROG STRIX X870-F Gaming Wifi7 DDR5 AMD Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹56,619+₹2,020 more

Highlights

Supports AMD Ryzen 9000/8000/7000 series processors with Socket AM5
Features 4x DDR5 UDIMM slots with up to 256GB capacity
Offers 3x PCIe 5.0 x16 slots for top-tier graphics cards
Includes Wi-Fi 7 and Bluetooth 5.4 for seamless wireless connectivity
Provides 4x M.2 slots with PCIe 5.0 and PCIe 4.0 support
Supports HDMI 2.1 with 8K 60Hz resolution for high-quality displays
Equipped with 5G and 2.5G LAN for fast internet speeds
Features EZ M.2 Shield Frozr II for easy M.2 storage installation

Specifications

CHIPSET	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
STORAGE	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2/* slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors M.2_3 slot • Supports up to PCIe 4.0 x4 M.2_4 slot • Supports up to PCIe 4.0 x4 The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series. * USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
RAID	•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen™ 9000 series processors. * RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	ATX 243.84mmx304.8mm

Who should buy it

This motherboard is ideal for users building a powerful PC with AMD Ryzen 9000, 8000, or 7000 series processors. It may not be suitable for those using older processors or Intel platforms.

Compatibility

Works with AMD Ryzen 9000/8000/7000 series desktop processors on Socket AM5. Requires Windows 11 64-bit for full functionality.

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Supports 12th Gen Intel® Core™, Pentium Gold and Celeron Processors
Processor socket LGA1700

Frequently asked questions

What is the maximum memory capacity supported by the MSI MPG X870E CARBON MAX WIFI motherboard?

The motherboard supports up to 256GB of DDR5 memory across 4x slots.

Does the motherboard support Wi-Fi 7 and Bluetooth 5.4?

Yes, it includes a Wi-Fi 7 solution and supports Bluetooth 5.4.

Can the M.2_2 slot be used with Ryzen 8000 Series processors?

No, the M.2_2 slot is unavailable when using Ryzen 8000 Series processors.

What is the maximum resolution supported by the HDMI port?

The HDMI port supports up to 8K 60Hz resolution.

How many PCIe 5.0 slots does the motherboard have?

It has 3x PCIe 5.0 slots, with PCI_E1 and PCI_E2 supporting PCIe 5.0.

What is the purpose of the EZ M.2 Shield Frozr II?

It provides easy installation and cooling for M.2 storage devices.

What is the difference between the M.2_1 and M.2_2 slots in terms of PCIe support?

M.2_1 supports PCIe 5.0 x4 for Ryzen 9000/7000 series, while M.2_2 supports PCIe 5.0 x4 but is unavailable for Ryzen 8000 series.

What is the maximum speed of the USB 40Gbps Type-C ports?

The USB 40Gbps Type-C ports support up to 40Gbps data transfer speed.
