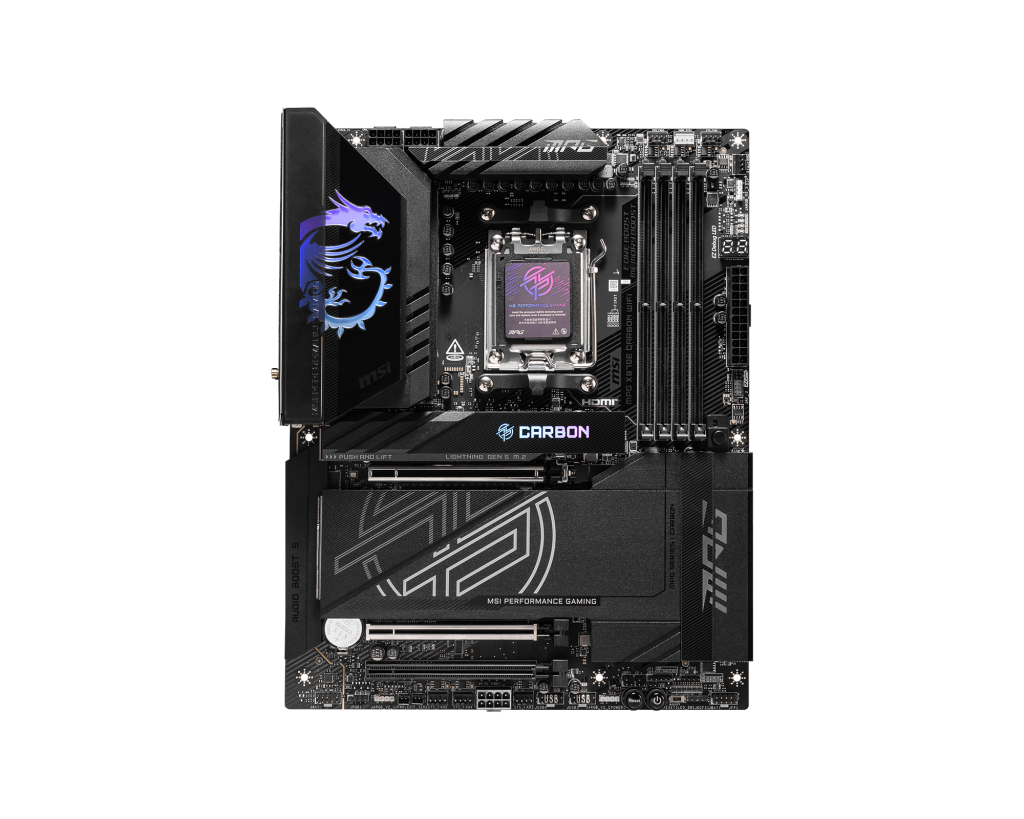

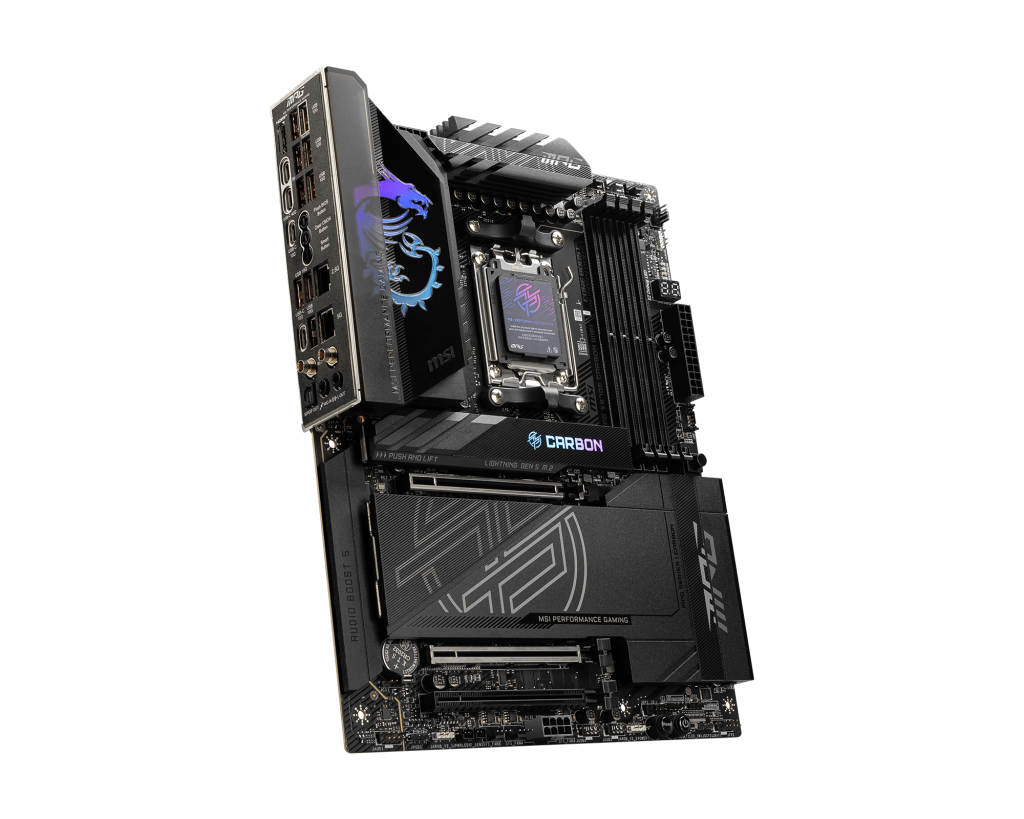

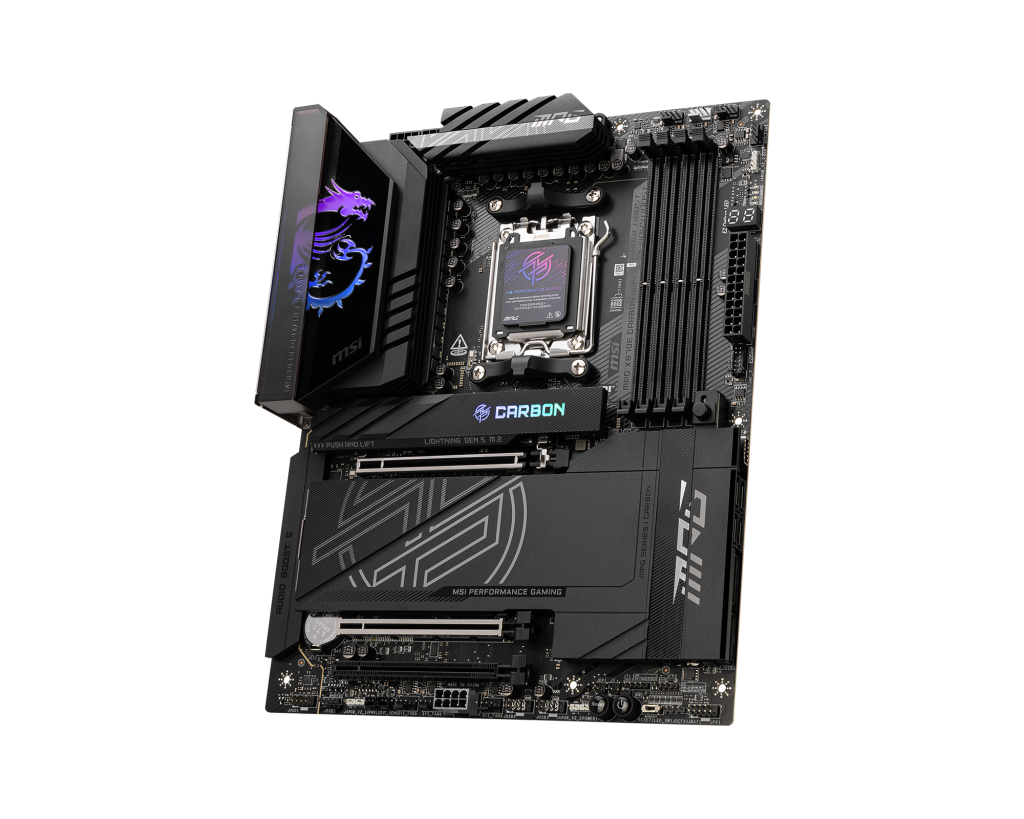

MSI MPG X870E Carbon WIFI Motherboard

₹49,589

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MPG X870E CARBON WIFI is a high-performance motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. It offers advanced features like Wi-Fi 7, 5G LAN, and USB 40Gbps for a smooth computing experience.

Full specifications ↓

Better options in the X870 chipset range

Same X870 chipset family, a little more money — here is what you get extra.

Gigabyte GA X870E AORUS MASTER X ICE 3D AMD Motherboard AM5 DDR5 ATX WiFi 7
- Wi-Fi 7 instead of older Wi-Fi
- Full ATX size: more slots and better spacing for a big GPU
- Supports faster DDR5 memory
₹59,750+₹11,300 more
ASUS ROG STRIX X870-I Gaming WIFI7 DDR5 AMD Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹55,839+₹4,900 more
ASUS ROG STRIX X870-F Gaming Wifi7 DDR5 AMD Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹56,619+₹5,680 more

Highlights

Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors with Socket AM5
Features 4x DDR5 UDIMM slots with up to 256GB capacity and speeds up to 8400+ MT/s
Includes 3x PCI-E x16 slots with PCIe 5.0 support for high-speed graphics cards
Offers 4x M.2 slots with PCIe 5.0 and PCIe 4.0 support for fast storage
Provides Wi-Fi 7 and Bluetooth 5.4 for seamless wireless connectivity
Equipped with 9x USB 10Gbps Type A and 2x USB 40Gbps Type C ports on the rear
Supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage devices
Features 5G LAN and 2.5G LAN for fast wired internet connections

Specifications

CHIPSET	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
STORAGE	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2* slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors M.2_3 slot • Supports up to PCIe 4.0 x4 M.2_4 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
RAID	•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and RAID 10* for M.2 NVMe storage devices *RAID 5/ 10 configuration is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED

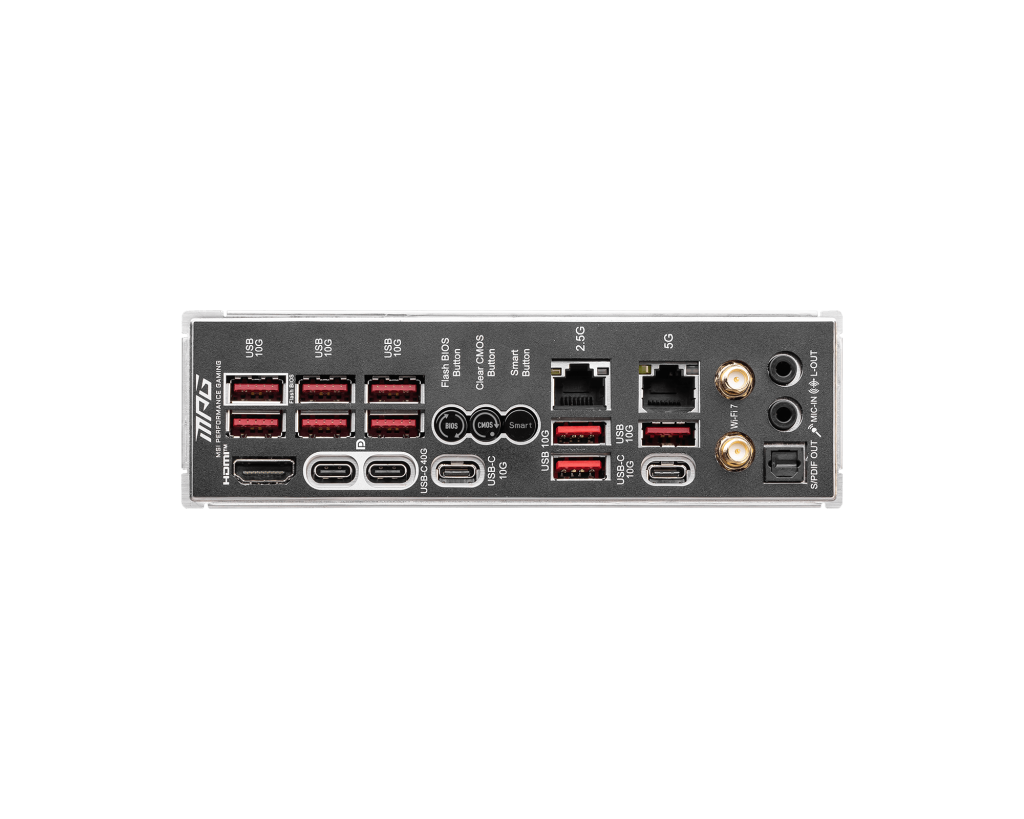

BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO ATX 243.84mmx304.8mm

Who should buy it

This motherboard is ideal for users building a powerful PC with AMD Ryzen 9000, 8000, or 7000 series processors. It may not be suitable for those using older processors or Intel platforms.

Compatibility

Works with AMD Ryzen™ 9000/8000/7000 Series Desktop Processors on Socket AM5. Requires compatible processors for full functionality, including PCIe 5.0 support on certain slots.

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Supports 12th Gen Intel® Core™, Pentium Gold and Celeron Processors
Processor socket LGA1700

What's in the box

PCB INFO
ATX
243.84mmx304.8mm

Frequently asked questions

What is the maximum memory speed supported by this motherboard?

The motherboard supports DDR5 memory speeds up to 8400+ MT/s with Ryzen™ 9000 Series processors in 1DPC 1R configuration.

Does this motherboard support Wi-Fi 7 and Bluetooth 5.4?

Yes, it features a Wi-Fi 7 solution and supports Bluetooth® 5.4 with MLO and 4KQAM.

Can I use the M.2_2 slot with Ryzen 8000 series processors?

No, the M.2_2 slot will be unavailable when using Ryzen™ 8000 Series processors.

What is the maximum resolution supported by the HDMI port?

The HDMI™ port supports up to 8K 60Hz resolution with FRL port, depending on the CPU installed.

How many USB 40Gbps ports does this motherboard have?

It has 2x USB 40Gbps Type C ports on the rear.

What is the VRM power design of this motherboard?

The motherboard features an 18+2+1 DRPS power design for stable performance.

Does this motherboard support RAID 5 and RAID 10 for M.2 NVMe storage devices?

Yes, it supports RAID 5 and RAID 10 for M.2 NVMe storage devices with Ryzen™ 9000/7000 series processors.

What is the significance of the EZ M.2 CLIP II in installation?

The EZ M.2 CLIP II simplifies M.2 installation with a tool-free design.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	X870E
CHIPSET	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	3x PCI-E x16 slot
AUDIO	Realtek® ALC4080 Codec
STORAGE	4x M.2
RAID	•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Front)
LAN	1x Realtek® 8126 5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
