MSI MPG X870I EDGE TI EVO WIFI AM5 DDR5 Motherboard

₹34,092

MRP ₹47,999 (incl. of all taxes)

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

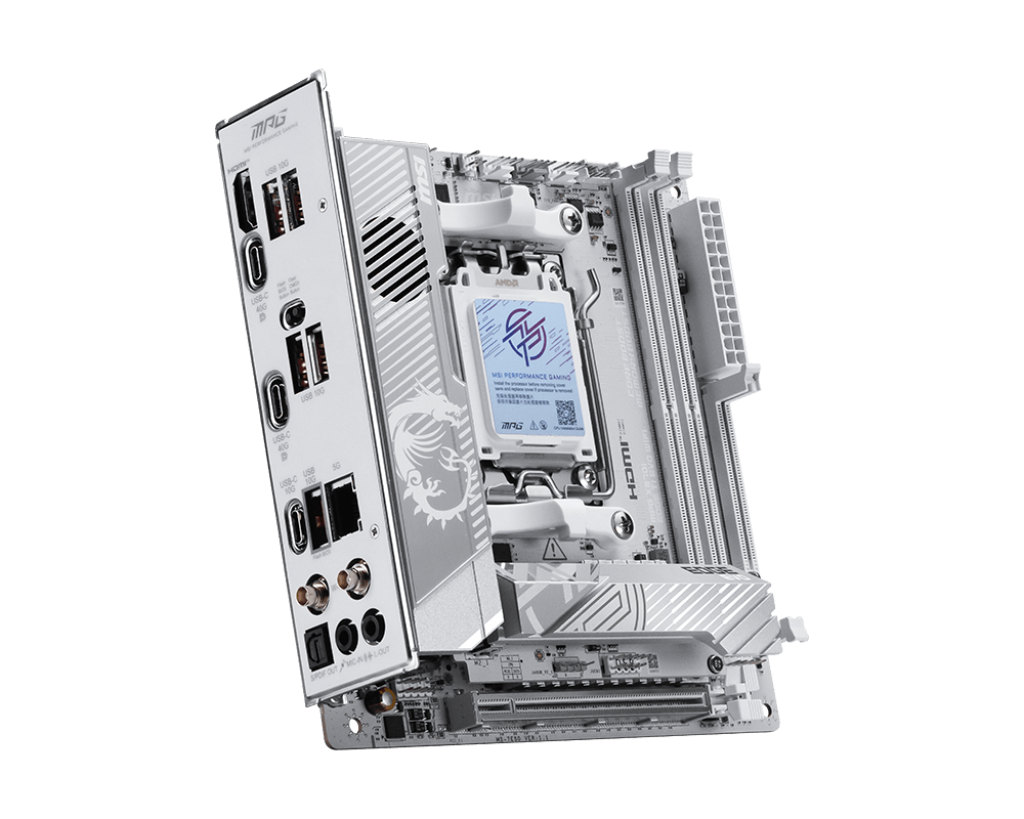

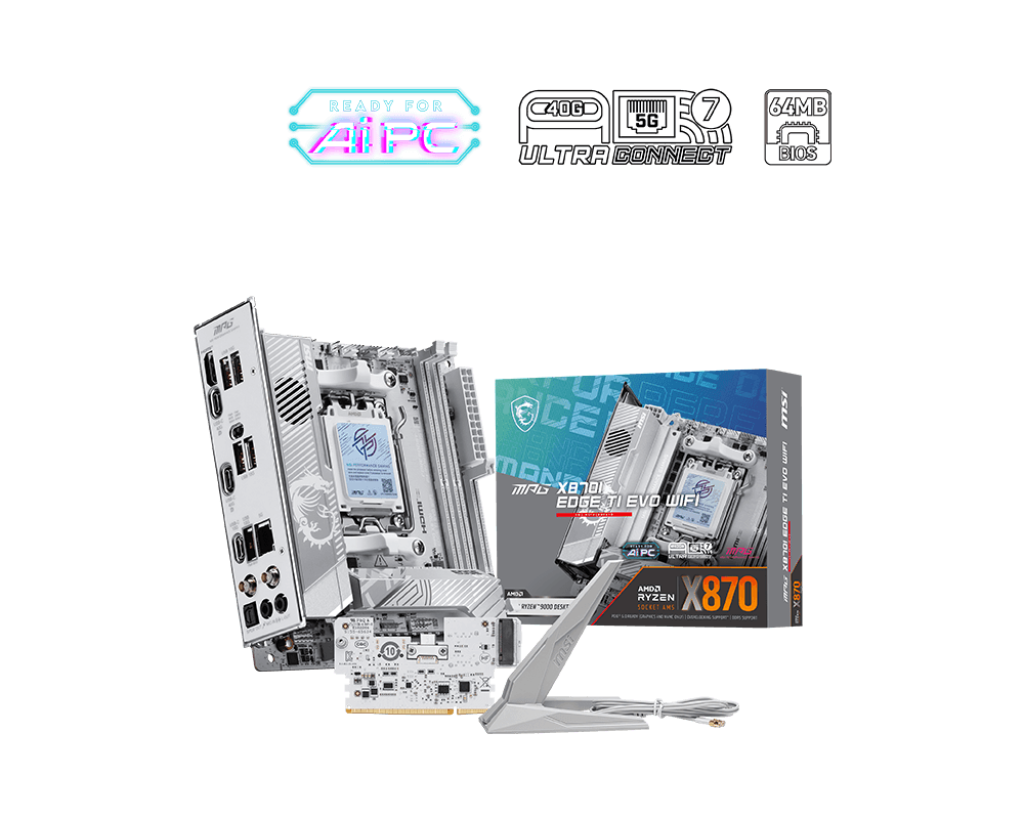

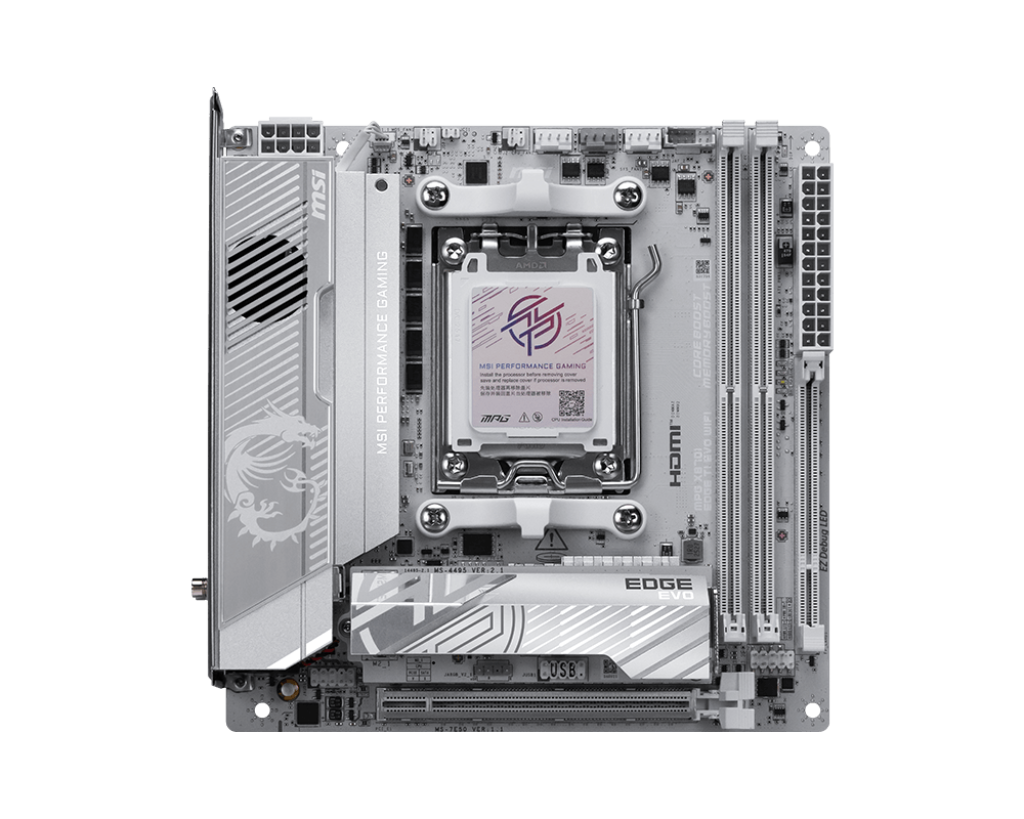

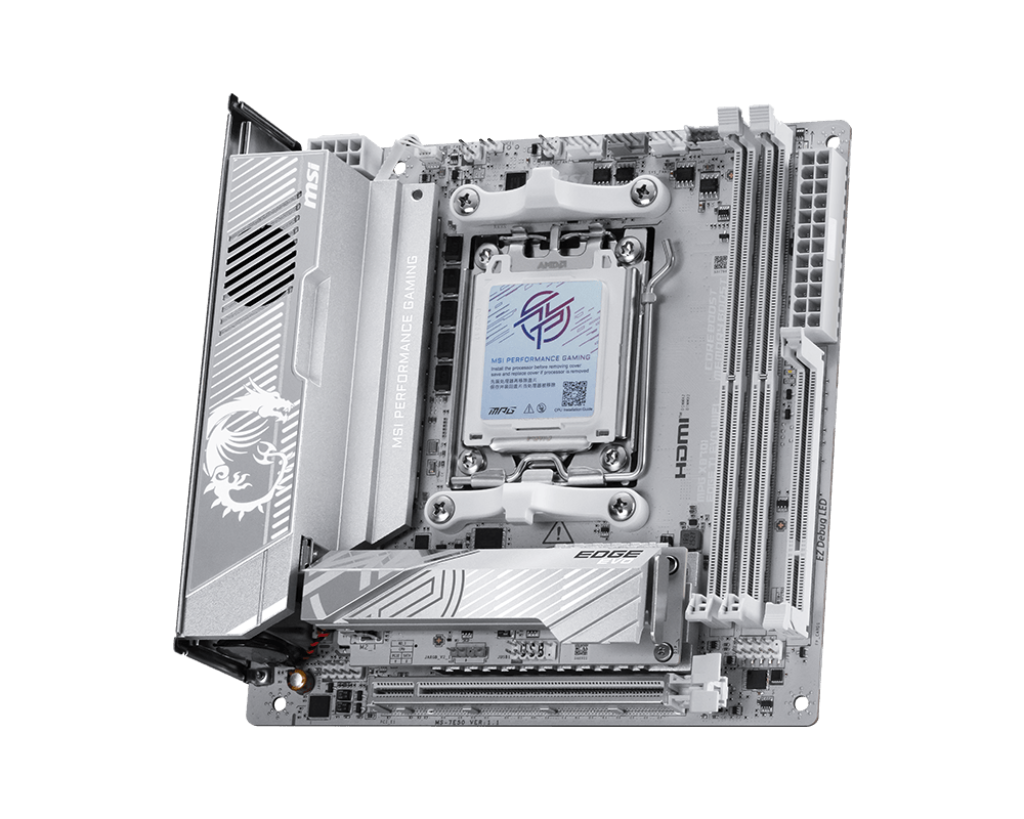

The MSI MPG X870I EDGE TI EVO WIFI is a Mini-ITX motherboard designed for building compact yet powerful desktop PCs. It supports AMD Ryzen™ 9000, 8000, and 7000 series processors for gamers and creators who want high performance in a small form factor.

Full specifications ↓

Highlights

Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors on Socket AM5
Features Wi-Fi 7 and Bluetooth 5.4 for seamless wireless connectivity
Offers PCIe 5.0 x4 M.2_1 slot for ultra-fast storage
Includes 2x USB 40Gbps Type-C ports for high-speed data transfer
Supports DDR5 memory up to 5600 MT/s (JEDEC) and 8400+ MT/s (OC)
Provides 5G LAN for fast wired internet
Has a silver-white color scheme for white PC builds
Includes 4x EZ Debug LEDs for easy troubleshooting

Specifications

CHIPSET	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz* 2x Type-C DisplayPort *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot • Supports the installation of MSI 5-in-1 XPANDER card only.
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
STORAGE	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2280 storage devices • Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2280 storage devices • Supports single sided M.2 SSD only
RAID	• Supports RAID 0, and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED

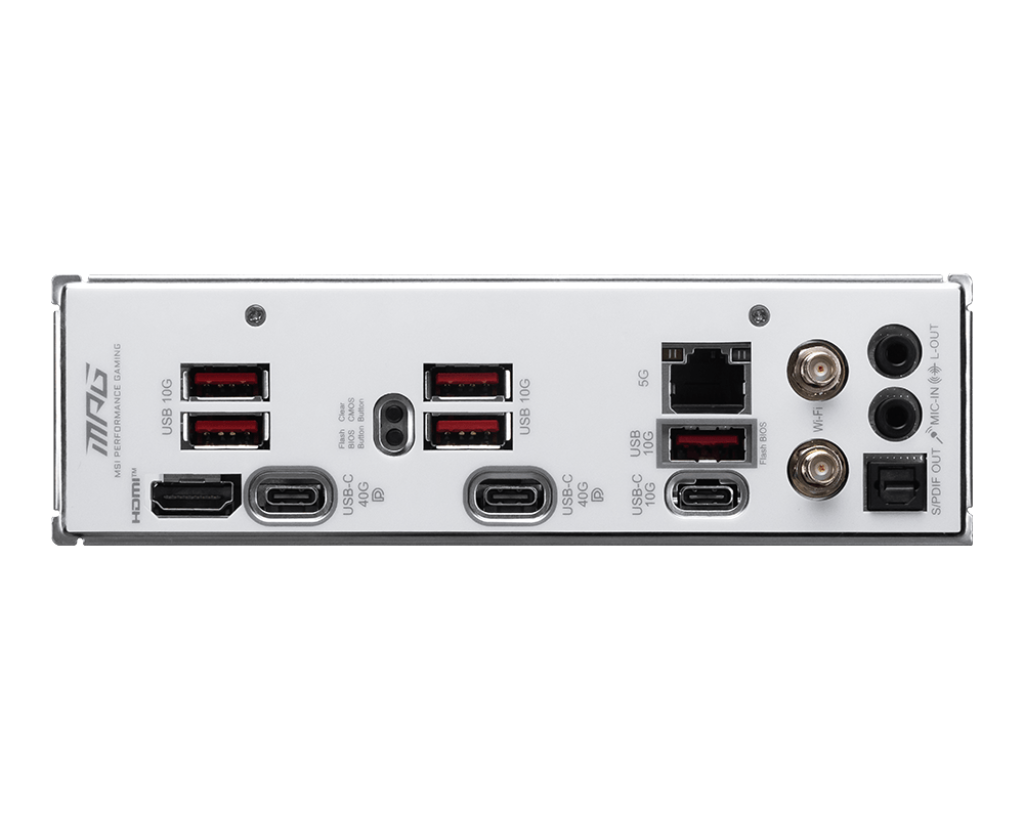

BACK PANEL PORTS	USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	Mini-ITX 170mmx170mm

Who should buy it

This motherboard is ideal for builders who want a compact, high-performance system with Wi-Fi 7 and PCIe 5.0 support. It is not for users needing non-AMD processors or those who prefer larger motherboard form factors.

Compatibility

Works with AMD Ryzen™ 9000/8000/7000 Series Desktop Processors on Socket AM5. Requires DDR5 memory with support for Non-ECC, Un-buffered types. Compatible with M.2_1 PCIe 5.0 x4 storage devices and supports RAID 0, 1, and RAID 5 for M.2 NVMe storage.

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

Frequently asked questions

What is the maximum memory capacity supported by the MSI MPG X870I EDGE TI EVO WIFI motherboard?

The motherboard supports up to 128GB of DDR5 memory with speeds up to 5600 MT/s (JEDEC) and 8400+ MT/s (OC).

Does the MSI MPG X870I EDGE TI EVO WIFI support Wi-Fi 7 and Bluetooth 5.4?

Yes, it features Wi-Fi 7 and Bluetooth 5.4 support for wireless connectivity.

What is the form factor of the MSI MPG X870I EDGE TI EVO WIFI motherboard?

It is a Mini-ITX motherboard with dimensions of 170mm x 170mm.

Can the MSI MPG X870I EDGE TI EVO WIFI support RAID 5 configuration?

Yes, it supports RAID 5 for M.2 NVMe storage devices, but only with Ryzen™ 9000 series processors.

What is the maximum PCIe speed supported by the M.2_1 slot?

The M.2_1 slot supports up to PCIe 5.0 x4 for Ryzen™ 9000/7000 Series processors.

How many USB 40Gbps Type C ports does the MSI MPG X870I EDGE TI EVO WIFI have on the rear?

It has 2x USB 40Gbps Type-C ports on the rear.

What is the maximum resolution supported by the HDMI port on the MSI MPG X870I EDGE TI EVO WIFI?

The HDMI port supports up to 4K 60Hz resolution.
