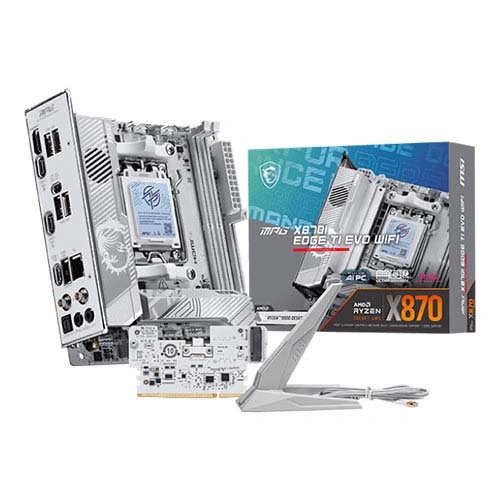

MSI Mpg X870I Edge Ti Evo WiFi7 M-ITX Motherboard

₹34,092

MRP ₹49,999 (incl. of all taxes)

🚚 Free shipping across India on this product

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI MPG X870I EDGE TI EVO WIFI is a Mini-ITX motherboard designed for gamers and PC builders who want a compact yet powerful system. It supports the latest AMD Ryzen processors and offers features like Wi-Fi 7 and PCIe 5.0 compatibility.

Full specifications ↓

Highlights

Supports AMD Ryzen 9000/8000/7000 Series processors with Socket AM5
Features Wi-Fi 7 and Bluetooth 5.4 for seamless connectivity
Offers PCIe 5.0 x4 M.2 slot for fast storage
Provides 2x DDR5 memory slots with up to 128GB capacity
Includes 5G LAN and USB 40Gbps ports for high-speed connections
Supports HDMI 2.1 with 4K 60Hz resolution
Has 8+2+1 DRPS power design for stable performance
Features 4 EZ Debug LEDs for easy troubleshooting

Specifications

CHIPSET	AMD X870
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz* 2x Type-C DisplayPort *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot • Supports the installation of MSI 5-in-1 XPANDER card only.
AUDIO	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
STORAGE	1x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G (Qty) M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2280 storage devices • Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2280 storage devices • Supports single sided M.2 SSD only
RAID	• Supports RAID 0, and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
USB	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x PUMP_SYS Fan 1x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED

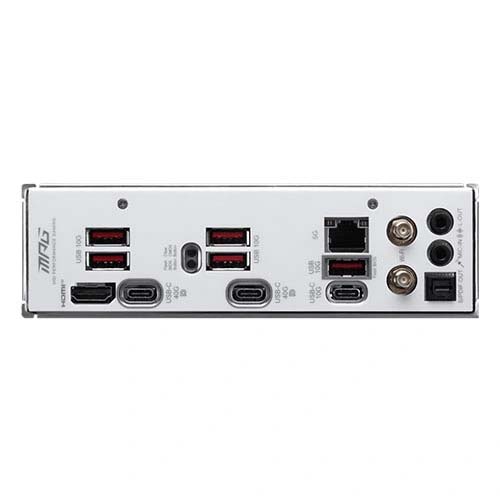

BACK PANEL PORTS	USB 10Gbps Type-A Clear CMOS Button USB 10Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 40Gbps Type-C Flash BIOS Button USB 10Gbps Type-C Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	Mini-ITX 170mmx170mm

Who should buy it

This motherboard is ideal for gamers and PC enthusiasts building compact systems with AMD Ryzen 9000 series processors. It may not suit users needing Intel LGA1700 compatibility or those who prefer non-white themed builds.

Compatibility

Works with AMD Ryzen 9000/8000/7000 Series processors on Socket AM5. Also supports 12th Gen Intel Core, Pentium Gold, and Celeron processors on LGA1700 (check intel.com for details).

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Supports 12th Gen Intel® Core™, Pentium Gold and Celeron Processors Processor socket LGA1700 Please go to intel.com for compatibility information.

What's in the box

MSI does not guarantee the risks or damages caused by changing the cover. These pictures are for reference only and may vary without notice.

Frequently asked questions

What is the maximum memory speed supported by this motherboard?

The motherboard supports DDR5 up to 5600 MT/s (JEDEC) and up to 8400+ MT/s with Ryzen 9000 Series processors in 1DPC 1R mode.

Does this motherboard support Wi-Fi 7 and Bluetooth 5.4?

Yes, it features Wi-Fi 7 and Bluetooth 5.4 support as part of its wireless capabilities.

Can I use CUDIMM memory with this motherboard?

Yes, it supports CUDIMM in Clock Driver bypass mode only.

What is the maximum PCIe version supported for M.2 slots?

M.2_1 supports PCIe 5.0 x4, while M.2_2 and M.2_3 support PCIe 4.0 x4.

How many USB 40Gbps ports does this motherboard have?

It has 2x USB 40Gbps Type-C ports on the rear.

What is the form factor of this motherboard?

It is a Mini-ITX motherboard with dimensions 170mm x 170mm.

Does this motherboard support RAID 5 configuration?

Yes, it supports RAID 5 for M.2 NVMe storage devices with Ryzen 9000 series processors.

What is the maximum resolution supported by the HDMI port?

The HDMI port supports up to 4K 60Hz resolution.

Brand warranty: as per manufacturer from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder
