The MSI MPG Z890 CARBON WIFI is a high-performance ATX motherboard designed for users building systems with Intel Core Ultra Processors (Series 2). It offers advanced features like Wi-Fi 7, Thunderbolt 4, and support for high-speed memory and storage.

Full specifications ↓

Better options in the Z890 chipset range

Same Z890 chipset family, a little more money — here is what you get extra.

GIGABYTE Z890 AI Top Wifi7 DDR5 Intel Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹68,899+₹16,270 more
MSI MEG Z890 Ace Wifi7 DDR5 Intel Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹74,383+₹21,160 more
ASUS ROG STRIX Z890-F Gaming Wifi DDR5 Intel Motherboard
- Supports faster DDR5 memory
₹57,919+₹2,440 more

Highlights

Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
Features 4x DDR5 UDIMM slots with up to 256GB capacity and speeds up to 9200 MT/s
Includes 3x PCIe 5.0 slots for powerful graphics cards and storage
Offers 5x M.2 slots with PCIe 5.0 and PCIe 4.0 support for fast storage
Provides Wi-Fi 7 and Bluetooth 5.4 for seamless connectivity
Equipped with 2x Thunderbolt 4 ports supporting up to 8K display
Supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage
Features 4x EZ Debug LEDs for easy troubleshooting

Specifications

CHIPSET	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
ONBOARD GRAPHICS	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 supports BIOS adjustment to x8+x4+x4* • PCI_E2 supports BIOS adjustment to x4+x4*
AUDIO	Realtek® ALC1220P Codec 7.1-Channel USB High Defination Audio Supports S/PDIF output
STORAGE	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	•Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
ONBOARD THUNDERBOLT	2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED

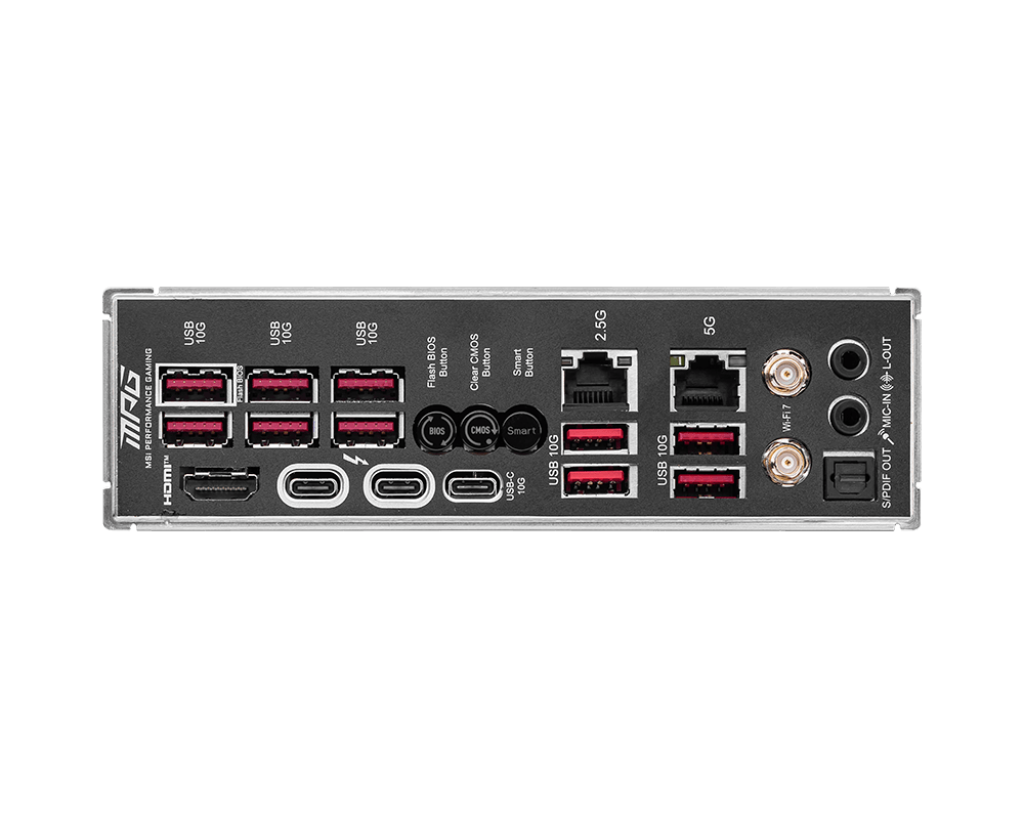

BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO ATX 243.84mmx304.8mm

Who should buy it

This motherboard is ideal for gamers and users needing high performance for AI tasks. It is not suitable for systems using older processors or non-Intel platforms.

Compatibility

Works with Intel Core Ultra Processors (Series 2) and supports DDR5 memory up to 256GB. Requires compatible Intel processors and specific memory configurations for optimal performance.

Supports Intel® Core™ Ultra Processors (Series 2)
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices

What's in the box

PCB INFO
ATX
243.84mmx304.8mm

Frequently asked questions

What is the maximum memory capacity supported by the MSI MPG Z890 CARBON WIFI motherboard?

The motherboard supports up to 256GB of DDR5 memory with speeds up to 9200 MT/s.

Does the motherboard support Wi-Fi 7 and Bluetooth 5.4?

Yes, it features Intel Killer BE1750x Wi-Fi 7 and supports Bluetooth 5.4.

How many PCIe 5.0 slots does the motherboard have?

It has 3x PCIe 5.0 slots: PCI_E1 supports PCIe 5.0 up to x16, PCI_E2 supports PCIe 5.0 up to x8, and PCI_E3 supports PCIe 4.0 up to x4.

What is the maximum resolution supported by the HDMI port?

The HDMI port supports up to 8K 60Hz resolution with HDMITM 2.1.

Can the motherboard support 8K display output?

Yes, the Thunderbolt 4 ports support up to 8K display output.

What is the purpose of the EZ M.2 CLIP II Remover?

The facts do not mention the EZ M.2 CLIP II Remover.

How does the EZ M.2 Shield Frozr II simplify M.2 SSD installation?

The facts do not mention the EZ M.2 Shield Frozr II.

What is the significance of the 20+1+1+1 power design?

The facts do not mention the 20+1+1+1 power design.
