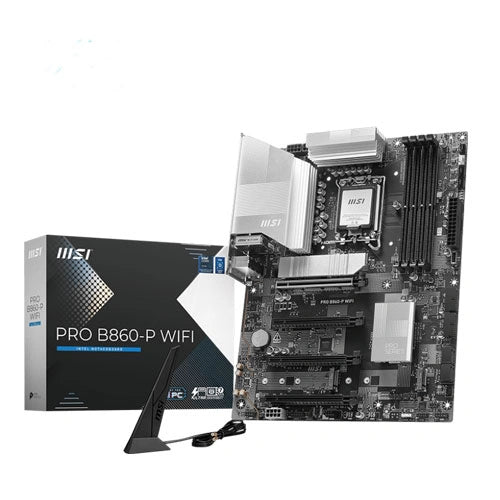

MSI Pro B860-P WIFI ATX Motherboard

₹19,712

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI PRO B860-P WIFI is a high-performance motherboard designed for users building systems with Intel® Core™ Ultra Processors (Series 2). It offers features like Wi-Fi 7, Thunderbolt 4, and PCIe 5.0 support for smooth computing and multitasking.

Full specifications ↓

Better options in the B860 chipset range

Same B860 chipset family, a little more money — here is what you get extra.

ASUS TUF Gaming B860M-Plus Wifi7 DDR5 Intel Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹26,100+₹6,830 more
ASUS TUF GAMING B860-Plus Wifi7 DDR5 Intel Motherboard
- Wi-Fi 7 instead of older Wi-Fi
- Supports faster DDR5 memory
₹28,899+₹10,260 more
GIGABYTE B860M Aorus Elite ICE Wifi6 DDR5 Intel Motherboard
- Supports faster DDR5 memory
₹19,338+₹1,630 more

Highlights

Supports Intel® Core™ Ultra Processors (Series 2) for powerful performance
Features Wi-Fi 7 with EZ Antenna for fast wireless connectivity
Includes Thunderbolt 4 for up to 40Gbps transfer rates and 8K display support
Offers PCIe 5.0 M.2 slots for ultra-fast storage
Supports DDR5 memory up to 8800 MT/s with overclocking
Provides 5G LAN for reliable wired internet
Includes HDMI 2.1 and DisplayPort 1.4 for 4K 60Hz display output
Has 4x M.2 slots for flexible storage expansion

Specifications

CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
ONBOARD THUNDERBOLT	1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN	Realtek® 8126 5Gbps LAN
INTERNAL IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort USB 2.0 USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 10Gbps Type-A Clear CMOS Button
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO ATX 243.84mmx304.8mm

Who should buy it

This motherboard is ideal for professionals and users seeking efficient multitasking and high performance. It is not suitable for systems using non-Intel processors or older CPU generations.

Compatibility

Requires Intel® Core™ Ultra Processors (Series 2) and DDR5 memory. Works with PCIe 5.0 M.2 SSDs and supports Wi-Fi 7 and Bluetooth 5.4.

Supports Intel® Core™ Ultra Processors (Series 2)
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Supports Intel® Wi-Fi 7
Supports Bluetooth® 5.4

What's in the box

PCB INFO
ATX
243.84mmx304.8mm

Frequently asked questions

What is the maximum memory capacity supported by the MSI PRO B860-P WIFI motherboard?

The motherboard supports up to 256GB of DDR5 memory with speeds up to 8800 MT/s.

Does the MSI PRO B860-P WIFI support DDR5 memory overclocking?

Yes, it supports memory overclocking and Intel® XMP 3.0 for DDR5 memory.

What is the maximum resolution supported by the HDMI 2.1 port on the MSI PRO B860-P WIFI?

The HDMI 2.1 port supports up to 4K 60Hz resolution.

Can the MSI PRO B860-P WIFI support 8K display output via Thunderbolt 4?

Yes, Thunderbolt 4 supports up to 8K display output.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	PRO-B860-P-WIFI
CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2)
MEMORY	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	4x PCI-E x16 slot
AUDIO	Realtek® ALC897 Codec
STORAGE	3x M.2
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
ONBOARD THUNDERBOLT	1x Thunderbolt4 ports (Rear)
USB	4x USB 2.0 (Rear)
LAN	Realtek® 8126 5Gbps LAN
INTERNAL IO	1x Thunderbolt5 card connector(JTBT5, support RTD3)
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 7
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
