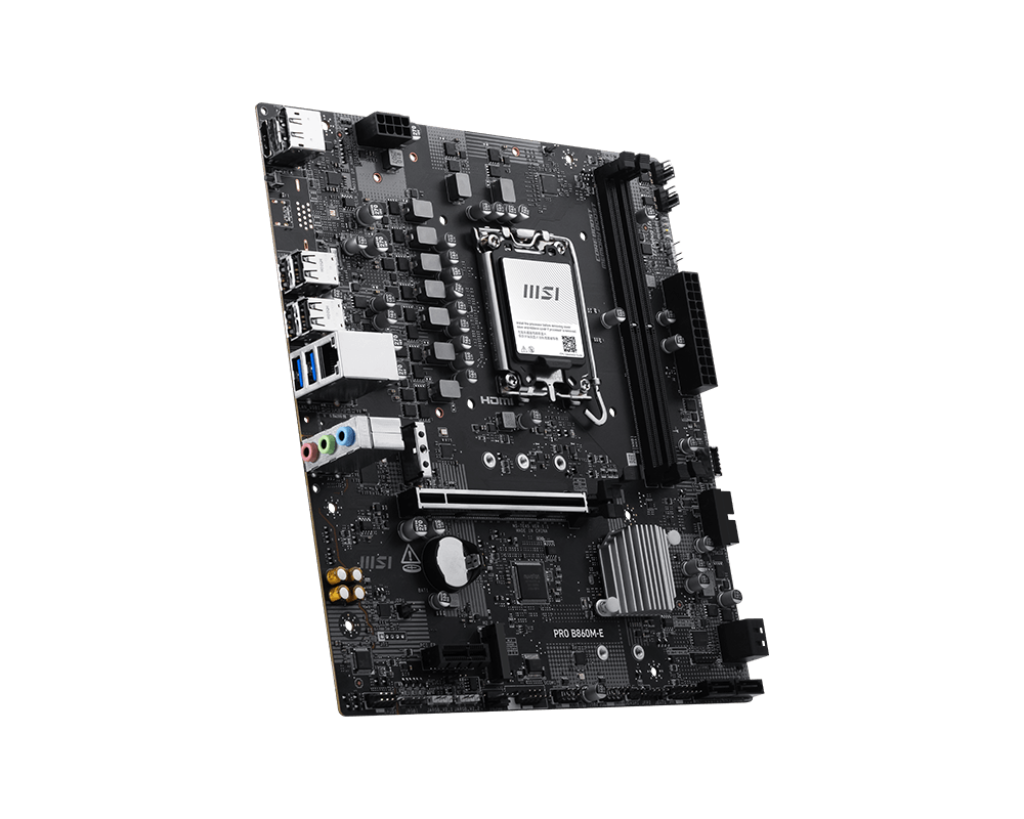

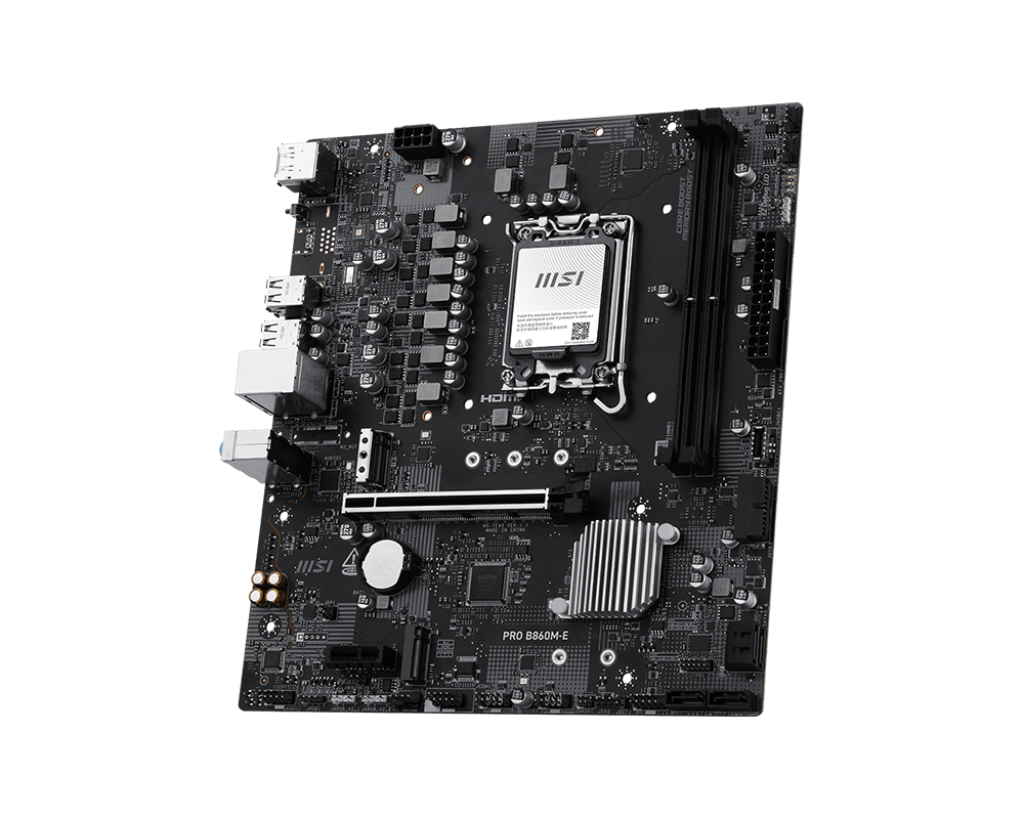

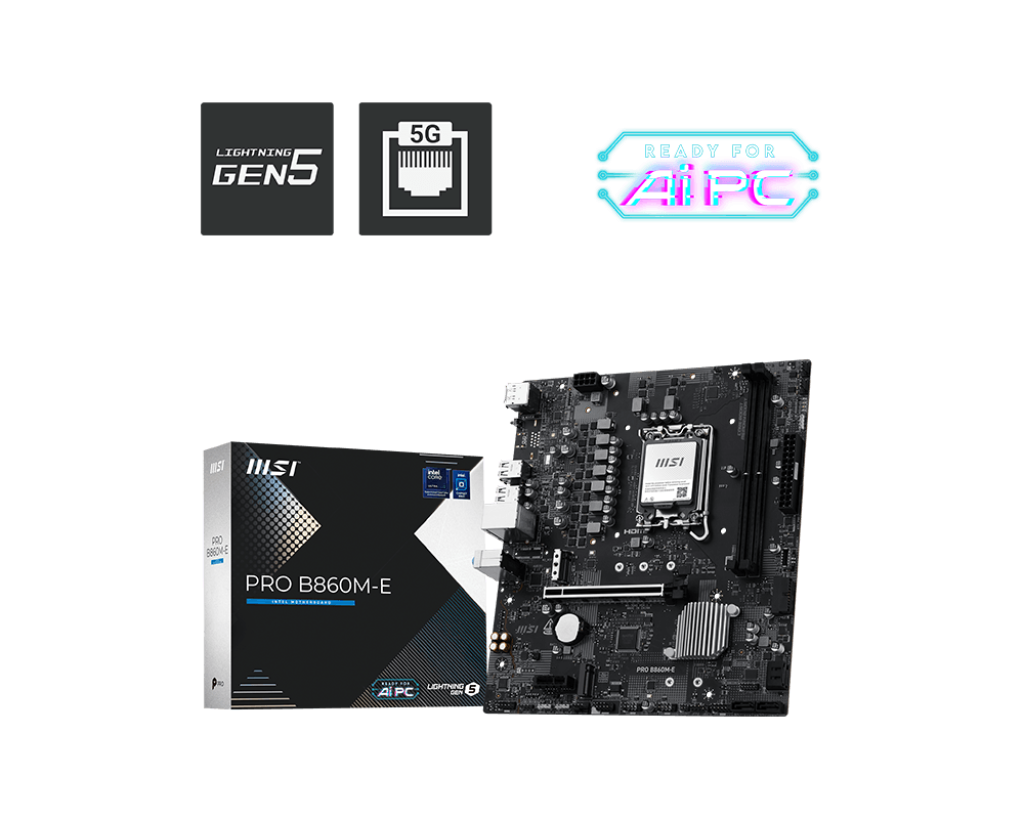

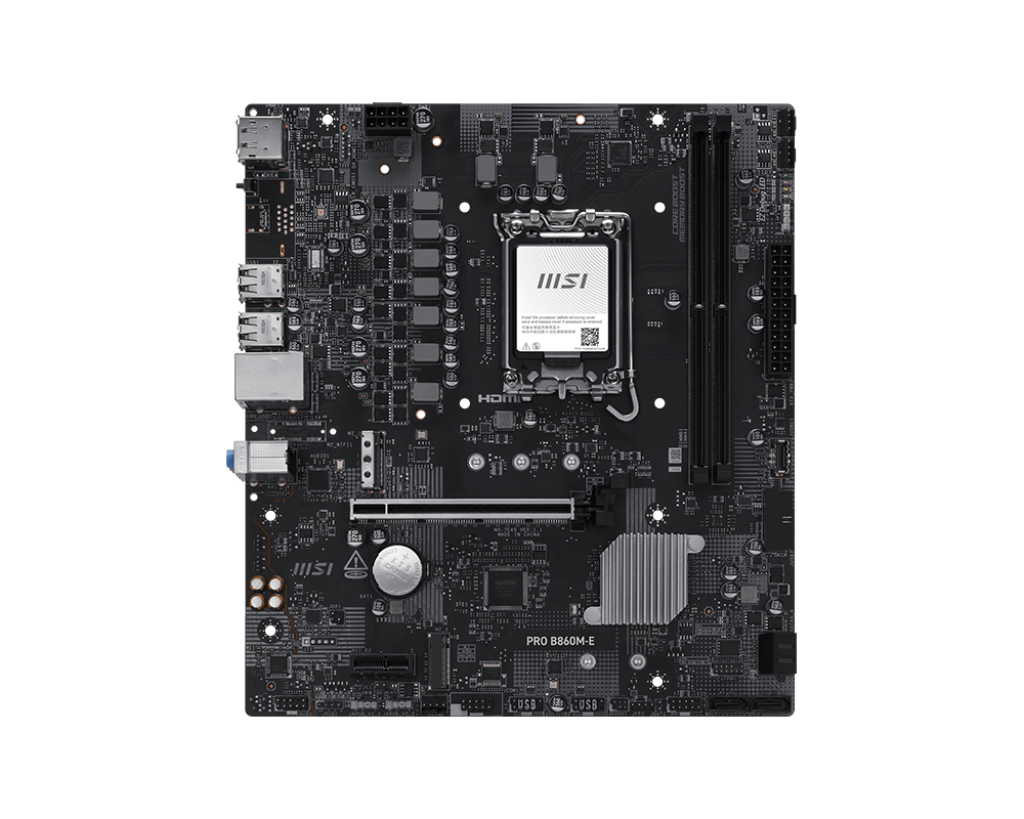

MSI PRO B860M-E INTEL LGA 1851 DDR5 Motherboard

₹10,290

MRP ₹13,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI PRO B860M-E is a motherboard designed for professionals who need reliable performance and efficiency. It supports Intel Core Ultra Processors and offers features for smooth multitasking and productivity.

Full specifications ↓

Better options in the B860 chipset range

Same B860 chipset family, a little more money — here is what you get extra.

MSI Pro B860M-B Wifi Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹14,500+₹3,260 more
ASUS B860M AYW Gaming Wifi DDR5 Intel Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹14,299+₹4,310 more
MSI B860M GAMING WIFI Micro-ATX LGA 1851 DDR5 Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹14,877+₹4,470 more

Highlights

Supports Intel Core Ultra Processors (Series 2) for powerful computing
Features DDR5 memory support up to 128GB with overclocking options
Includes HDMI 2.1 and DisplayPort 1.4 for 4K 60Hz display output
Offers PCIe 5.0 M.2 slots for fast storage solutions
Provides 5G LAN for high-speed internet connectivity
Includes USB 10Gbps Type-C for fast data transfer
Designed with a business elegance for professional use
Supports Intel XMP 3.0 for easy memory overclocking

Specifications

CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
MEMORY	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN	Realtek® 8126 5Gbps LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	DisplayPort Clear CMOS Button USB 2.0 5G LAN Audio Connectors HDMI™ USB 5Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO mATX 220mmx243.84mm

Who should buy it

This motherboard is ideal for professionals seeking efficient multitasking and productivity. It is not for users needing Mac compatibility or specific non-Intel processors.

Compatibility

Requires Intel Core Ultra Processors (Series 2) and DDR5 memory. Works with Windows 11 64-bit operating system.

Supports Intel® Core™ Ultra Processors (Series 2)
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Supports Intel® Core™ Ultra Processors (Series 2)

What's in the box

PCB INFO
mATX
220mmx243.84mm

Frequently asked questions

What is the maximum memory capacity supported by the MSI PRO B860M-E motherboard?

The MSI PRO B860M-E supports up to 128GB of DDR5 memory with speeds up to 9066 MT/s.

Does the MSI PRO B860M-E support DDR5 memory overclocking?

Yes, it supports memory overclocking and Intel XMP 3.0 for DDR5 memory.

Can the MSI PRO B860M-E be used with Intel Core Ultra processors?

Yes, it supports Intel Core Ultra Processors (Series 2).

What is the maximum resolution supported by the HDMI and DisplayPort on the MSI PRO B860M-E?

It supports up to 4K 60Hz resolution via HDMI 2.1 and DisplayPort 1.4.

Does the MSI PRO B860M-E support PCIe 5.0 M.2 SSDs?

Yes, it has an M.2_1 slot that supports PCIe 5.0 x4 for M.2 SSDs.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	B860M-E
CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2)
MEMORY	2x DDR5 UDIMM, Maximum Memory Capacity 128GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	1x PCI-E x16 slot
AUDIO	Realtek® ALC897 Codec
STORAGE	2x M.2
USB	4x USB 2.0 (Rear)
LAN	Realtek® 8126 5Gbps LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT	PCB INFO
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
