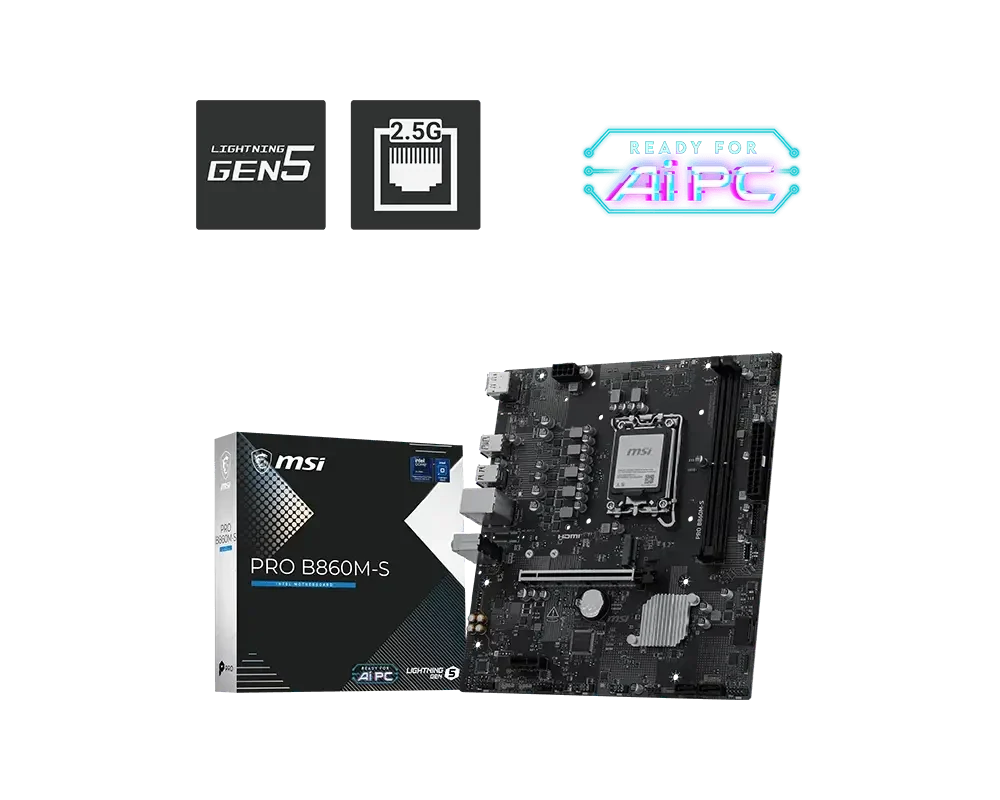

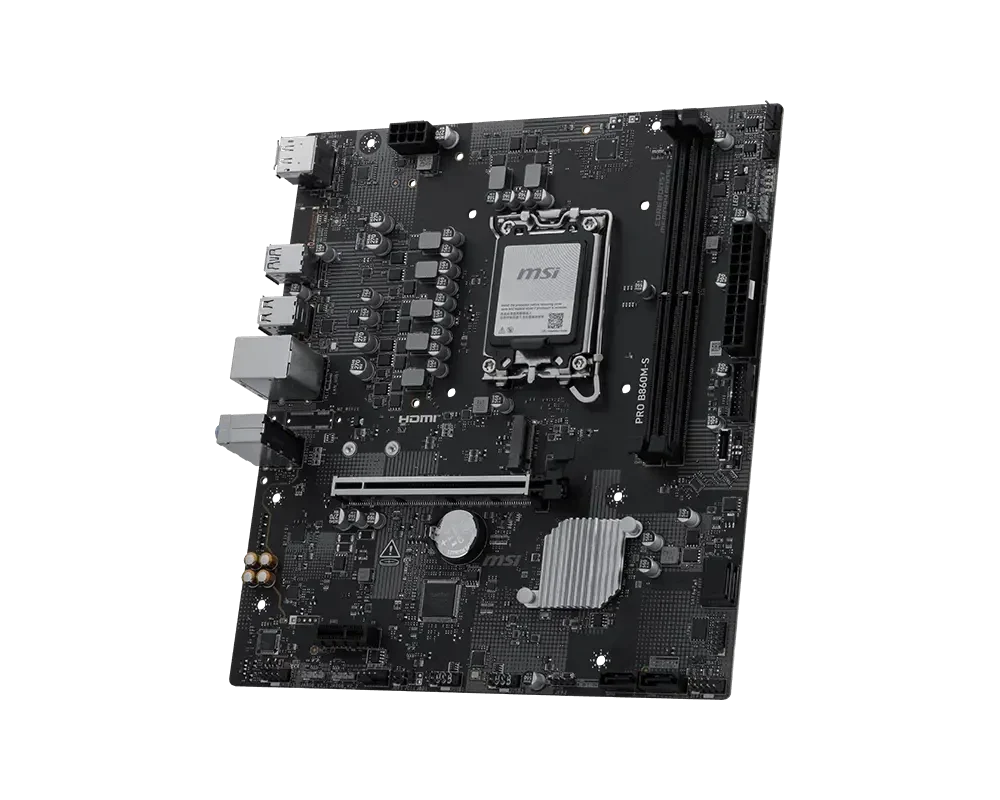

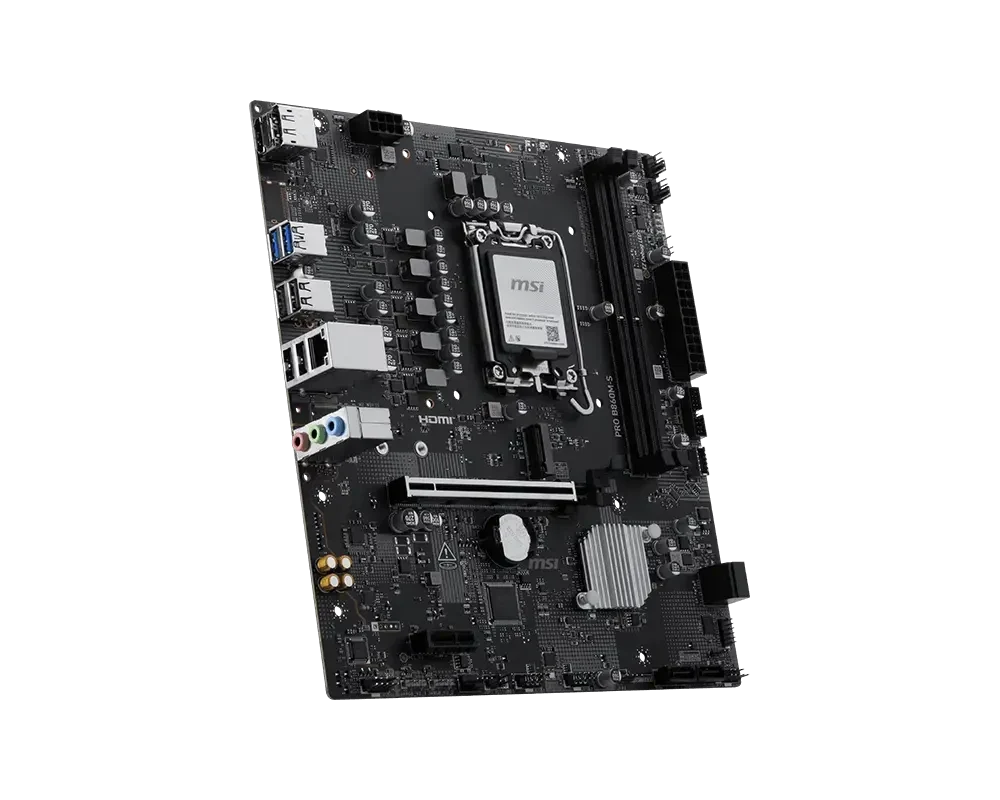

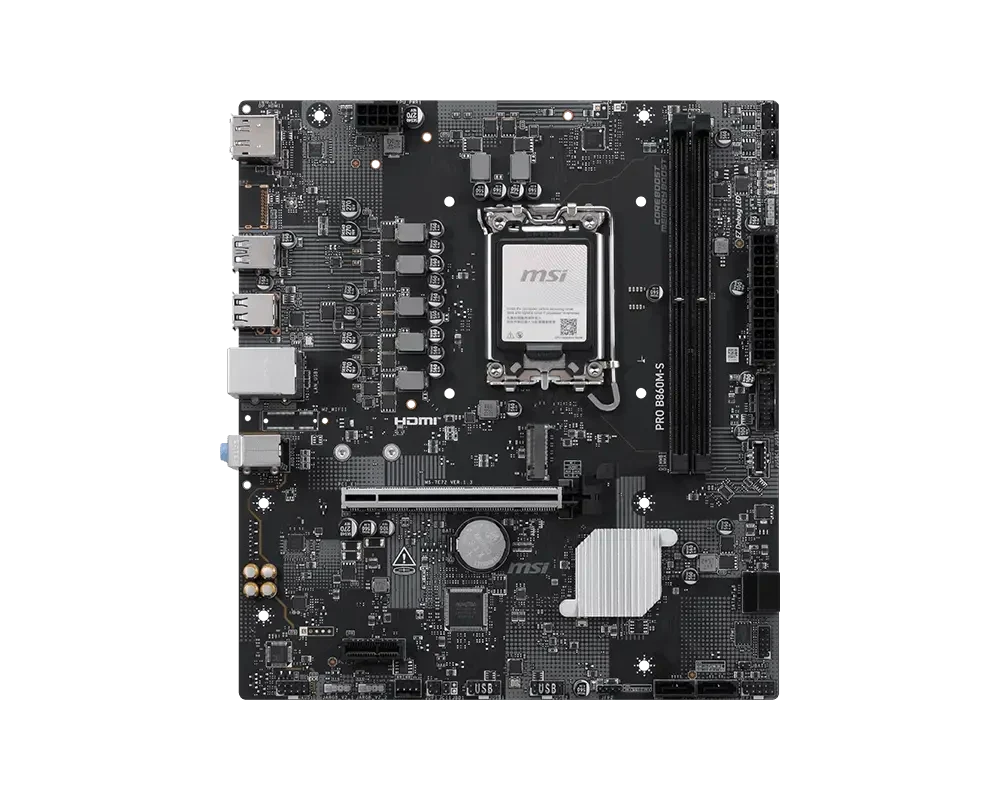

MSI PRO B860M-S DDR5 LGA 1851 Motherboard

₹9,050

MRP ₹13,999 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

✓ Sold by an MSI Authorized Channel Partner →

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The MSI PRO B860M-S is a motherboard designed for building powerful desktop PCs with Intel Core Ultra processors. It offers features like 2.5G LAN and PCIe 5.0 for smooth performance and connectivity.

Full specifications ↓

Better options in the B860 chipset range

Same B860 chipset family, a little more money — here is what you get extra.

MSI Pro B860M-B Wifi Motherboard
- Built-in Wi-Fi — no extra Wi-Fi card needed
₹14,500+₹4,740 more

Highlights

Supports Intel Core Ultra Processors (Series 2) for high performance
2.5G LAN for fast internet speeds
PCIe 5.0 for next-gen graphics cards
DDR5 memory support up to 128GB
HDMI 2.1 and DisplayPort 1.4 for 4K 60Hz display
Dual-Channel memory mode for better speed
XMP 3.0 for easy memory overclocking
Simple design that matches white or black PC builds

Specifications

CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
MEMORY	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN	Realtek® 8125D 2.5Gbps LAN
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	DisplayPort USB 5Gbps Type-A USB 2.0 2.5G LAN Audio Connectors HDMITM USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	mATX 220mmx243.84mm

Who should buy it

This motherboard is ideal for users building a new PC with Intel Core Ultra processors who want reliable performance and modern features. It is not for users needing Mac compatibility or specific older processors.

Compatibility

Works with Intel Core Ultra Processors (Series 2) and DDR5 memory. Requires a compatible CPU and memory configuration for full features. Supports Windows 11 64-bit.

Supports Intel® Core™ Ultra Processors (Series 2)
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Supports Intel® Core™ Ultra Processors (Series 2)

What's in the box

PCB INFO
mATX
220mmx243.84mm

Frequently asked questions

What is the maximum memory capacity supported by the MSI PRO B860M-S motherboard?

The motherboard supports up to 128GB of DDR5 memory.

Does the MSI PRO B860M-S support DDR5 memory overclocking?

Yes, it supports memory overclocking and Intel XMP 3.0.

What is the maximum resolution supported by the HDMI and DisplayPort on the MSI PRO B860M-S?

HDMI 2.1 and DisplayPort 1.4 support up to 4K 60Hz resolution.

Can the MSI PRO B860M-S be used with Intel Core Ultra processors?

Yes, it supports Intel Core Ultra Processors (Series 2).

How many PCIe slots does the MSI PRO B860M-S have?

It has one PCIe x16 slot and one PCIe x1 slot.

Does the MSI PRO B860M-S support 2.5G LAN?

Yes, it includes a Realtek 8125D 2.5Gbps LAN.

What is the size of the MSI PRO B860M-S motherboard?

It is an mATX motherboard measuring 220mm x 243.84mm.

Brand warranty: 3 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	MSI
Category	Motherboard
Model / MPN	B860M-S
CHIPSET	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2)
MEMORY	2x DDR5 UDIMM, Maximum Memory Capacity 128GB
ONBOARD GRAPHICS	1x HDMI™
SLOT	1x PCI-E x16 slot
AUDIO	Realtek® ALC897 Codec
STORAGE	1x M.2
USB	4x USB 2.0 (Rear)
LAN	Realtek® 8125D 2.5Gbps LAN
INTERNAL IO	1x Power Connector(ATX_PWR)
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort
OPERATING SYSTEM	Support for Windows® 11 64-bit
PCB INFO	mATX
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
