Which motherboards fit the MSi PRO FORGE M051A?

It takes Micro-ATX and smaller motherboards.

Can I fit a liquid cooler?

Check radiator support with us on WhatsApp before ordering.

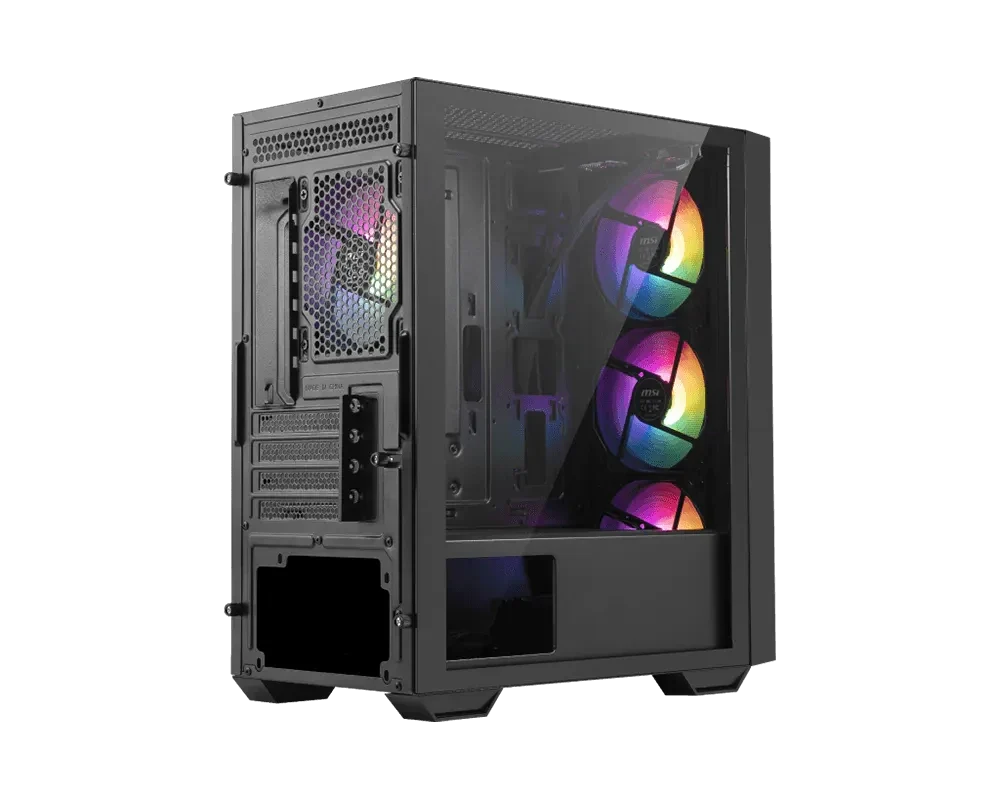

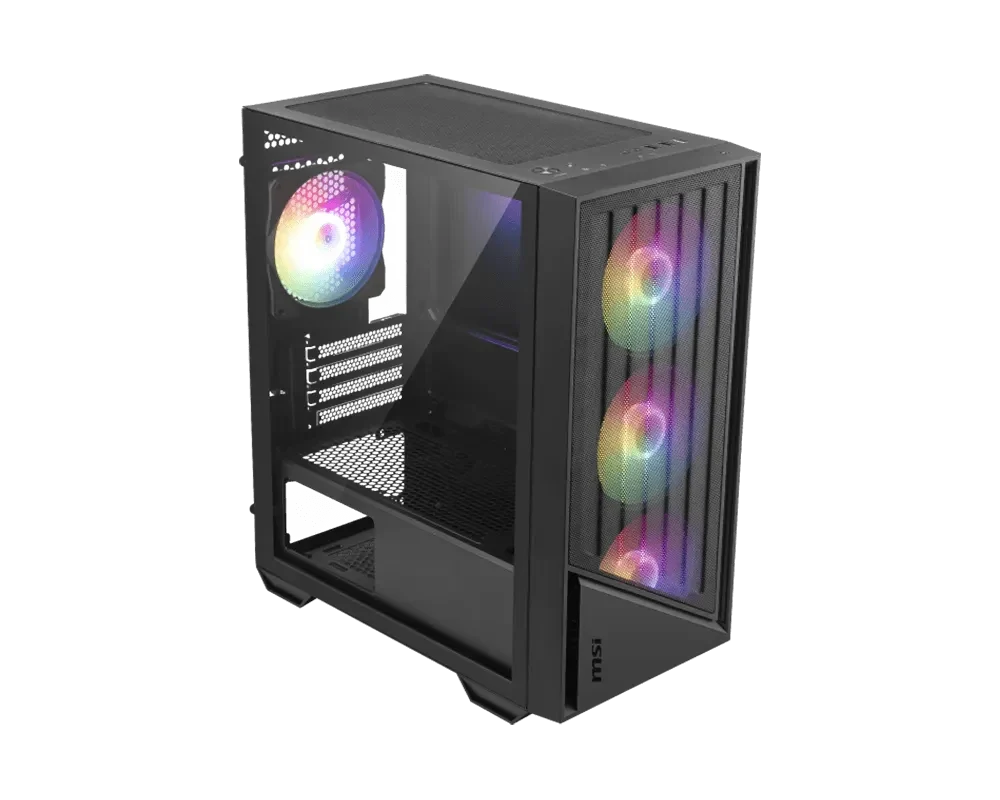

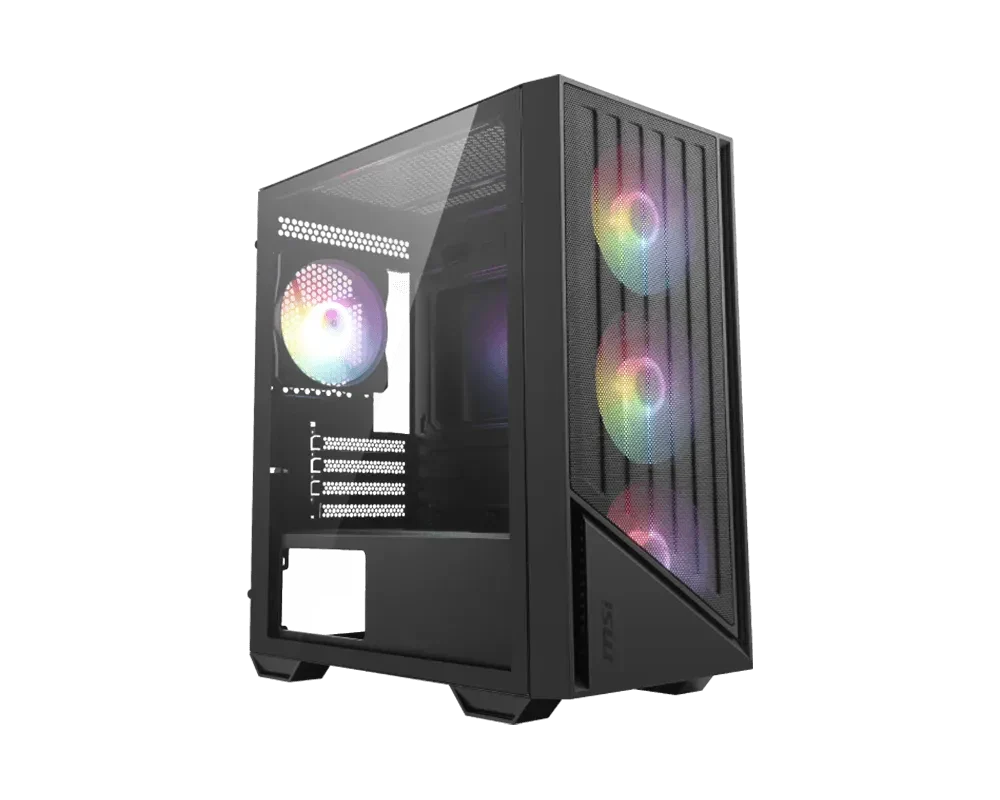

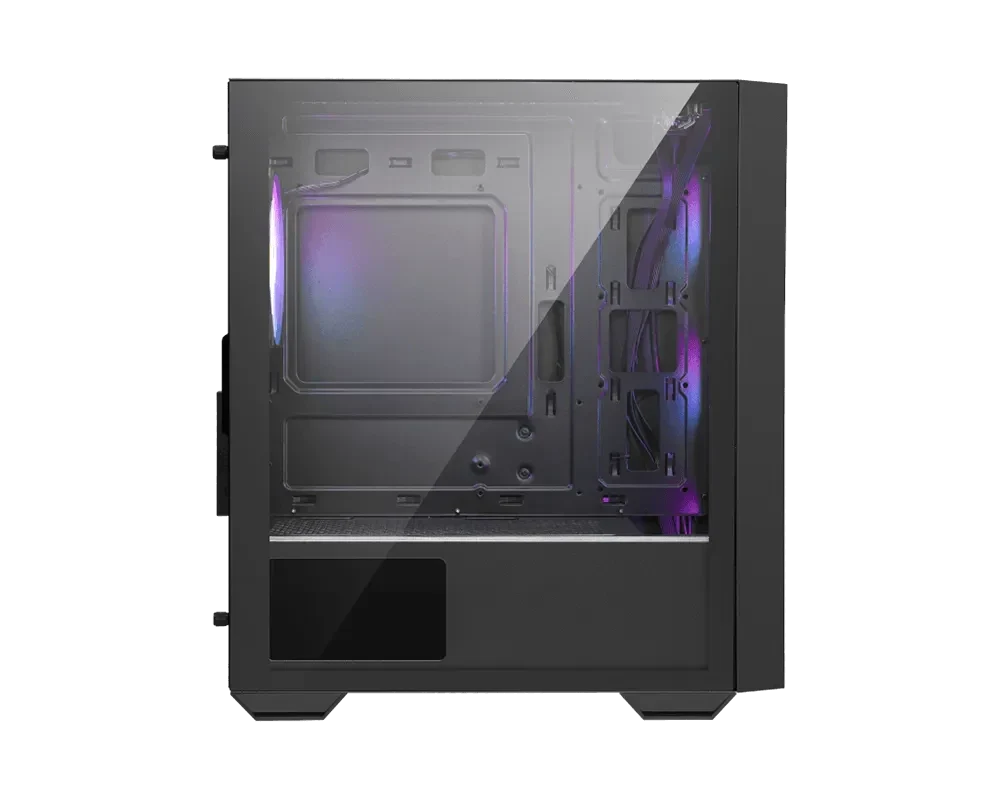

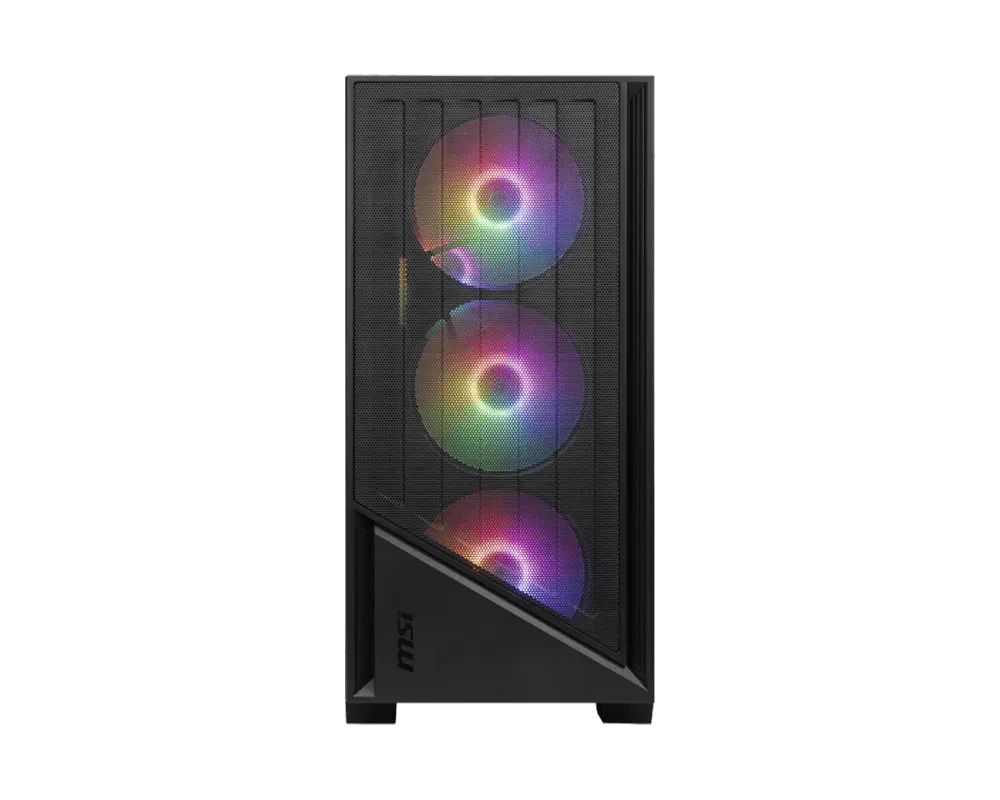

MSi PRO FORGE M051A Micro-ATX, Mini ITX Case

₹4,419

The MSI PRO FORGE M051A is a Mini Tower cabinet built for Micro-ATX and Mini-ITX motherboards, offering a mix of cooling flexibility and clean front-panel connectivity. It ships with pre-installed fans featuring an Auto-RGB rainbow effect, along with dust filters to help keep internal components clean. This case suits users building a compact yet capable desktop system with room for standard ATX power supplies.

Full specifications ↓

Key features

Mini Tower case supporting Micro-ATX and Mini-ITX motherboards
Four pre-installed fans with Auto-RGB rainbow lighting effect
Top and bottom dust filters for improved airflow and dust protection
Front panel includes USB 5Gbps (Type-A) port plus standard USB, audio, and power/reset buttons
Supports top and rear radiator mounting options
4 expansion slots for add-in cards
Supports standard ATX power supplies up to 170 mm in length

Technical specifications

Case Form Factor	Mini Tower
Motherboard Form Factor Support	Regular: Micro-ATX, Mini ITX
Product Name	PRO FORGE M051A
Drive Mount Support	2 x 2.5" 2 x 2.5" / 3.5" Combo Tray
I/O Ports	1 x Power Button 1 x Reset Button 1 x Mic In 1 x Audio Out 2 x USB (Type-A) 1 x USB 5Gbps (Type-A) 1 x LED On / Off Button
Case Expansion Slots	4
Maximum PSU Length	170 mm / 6.69 inches
Fan Support	Front: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Top: 2 x 120 mm Side: N/A Bottom: N/A
Radiator Layout	Front: N/A Rear: 120 mm Top: 120 / 240 mm Side: N/A Bottom: N/A
Power Supply	ATX

Understand This Product — TechCureIndia

What it does

A Mini Tower PC case designed to house a Micro-ATX or Mini-ITX motherboard along with a power supply, storage drives, and cooling fans for a complete desktop build.

What the key specifications mean

Case Form Factor: A Mini Tower size, suited for a relatively compact desktop footprint compared to full tower cases.
Motherboard Form Factor Support: Only Micro-ATX and Mini-ITX motherboards fit; standard ATX boards are not supported.
Drive Mount Support: Provides mounting for two 2.5" drives plus two combo trays for 2.5"/3.5" drives, covering SSD and HDD storage needs.
I/O Ports: Front panel gives quick access to power/reset buttons, audio jacks, two standard USB Type-A ports, and one faster USB 5Gbps Type-A port.
Case Expansion Slots: 4 slots are available for installing expansion cards such as a graphics card.
Maximum PSU Length: Power supplies longer than 170 mm will not fit in this case.
Fan Support: Multiple fan mounting positions at front, rear, and top allow building a custom airflow configuration.
Radiator Layout: Supports a single 120 mm radiator at the rear and a 120 mm or 240 mm radiator at the top, useful for liquid cooling setups.
Power Supply: Takes a standard ATX power supply unit.

Practical benefits

Compact Mini Tower footprint for space-conscious desktop setups
Pre-installed RGB fans add visual appeal without extra purchases
Dust filters help maintain airflow and protect components over time
Flexible fan and radiator placement options for air or liquid cooling

Who it suits

Users building a compact Micro-ATX or Mini-ITX desktop PC
Builders wanting pre-installed RGB cooling without buying separate fans
Users planning air cooling or a single top/rear liquid cooling radiator

Compatibility and installation

Motherboard must be Micro-ATX or Mini-ITX form factor
Power supply must be standard ATX type
Power supply must not exceed 170 mm in length
Front fan mounts support up to 3 x 120 mm or 2 x 140 mm fans
Rear fan mount supports 1 x 120 mm fan
Top fan mount supports 2 x 120 mm fans
Rear radiator mount supports up to 120 mm radiator
Top radiator mount supports 120 mm or 240 mm radiator
No side or bottom fan/radiator mounting support

Important limitations

Does not support full-size ATX motherboards
No side or bottom fan or radiator mounting positions
Power supply length limited to 170 mm
Case Form Factor is Mini Tower, not suited for users wanting a full tower's capacity

Package contents

Four pre-installed fans with Auto-RGB rainbow lighting effect
Top and bottom dust filters

Buy separately:

Motherboard (Micro-ATX or Mini-ITX)
CPU, RAM, and storage drives
Graphics card and other expansion cards
Power supply unit (ATX, within 170 mm length)
Liquid cooling radiator/AIO if desired

Check before you buy

Confirm your motherboard is Micro-ATX or Mini-ITX before purchase
Measure your power supply length to ensure it is within 170 mm
Verify your planned radiator size matches the supported rear (120 mm) or top (120/240 mm) positions
Confirm your graphics card and other components fit within the case's internal clearance, as dimensions are not listed

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.

** For complete and latest product details, please also verify once on the manufacturer's official website. Specifications on the official website are final.

MSi PRO FORGE M051A Micro-ATX, Mini ITX Case — specifications

Brand	MSI
Category	PC Cabinet
Model / MPN	M051A
Form factor	Micro-ATX
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
