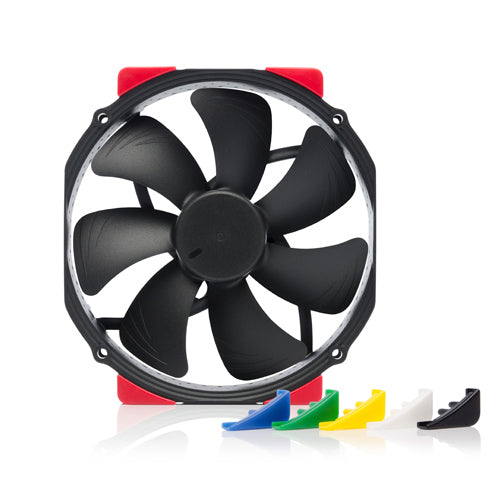

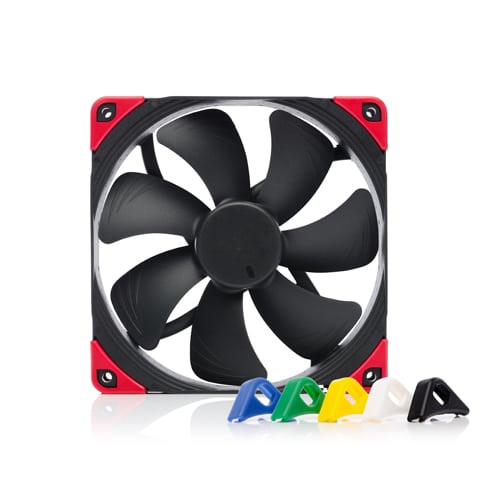

Noctua 140mm NF-A15 HS-PWM Chromax Black Swap Edition Fan

₹1,771

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

The NF-A15 HS-PWM chromax.black.swap is a high-performance fan designed for quiet and efficient cooling in high-end PC builds. It's ideal for users who want reliable, long-lasting cooling without compromising on noise levels.

Full specifications ↓

Highlights

6-year warranty for peace of mind
Swappable anti-vibration pads in 6 colours
Max airflow of 140.2 m³/h at 1500 rpm
Low noise level of 24.6 dB(A) at maximum speed
Designed with SSO2 bearing for smooth operation
Flow Acceleration Channels for better airflow
140 x 150 x 25 mm round frame size
Includes 8 pads of each colour in the box

Specifications

Size (Form factor)	140 x 150 x 25 mm (round)
Speed range	0 – 1500 rpm
Airflow (max.)	140.2 m³/h (82.52 CFM)
Acoustical noise (max.)	24.6 dB(A)
Static pressure (max.)	2.08 mm H₂O
Rated voltage	12 V
Input power (typical)	1.056 W
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	140 x 150 x 25 mm
Dimensions with anti-vibration pads	141 x 152 x 27 mm
Frame shape	Round
Mounting hole spacing(s)	105 x 105 mm
Weight	170 g
Material frame	PBT GF30
Material impeller	PBT GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Black
Connector type	A2543-4PIN (or equal)
Cable length	10 mm
Cable length with extension cable (included)	310 mm
Wire	26 AWG
Sleeving	Fibreglass silicone mesh
Rotational speed (max.)	1500 rpm
Rotational speed @ 20% PWM	300 rpm
Rotational speed @ 0% PWM	0 rpm
Acoustical noise with LNA (max.)	19.2 dB(A)
Static pressure with LNA (max.)	1.51 mm H₂O
Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD1
Starting voltage	7 V
Max. operating voltage	13.2 V
Pin configuration - Pin 1	Black: Ground (GND)

Who should buy it

This fan is perfect for PC enthusiasts building high-end systems who prioritize quiet operation and durability. It may not be the best choice for users needing fans for non-PC applications like home appliances.

Compatibility

Tailor-made for high-end CPU coolers like the NH-D15, NH-D15S, and NH-U14S. Works with 4-pin PWM fans and requires a 12V power source.

Tailor-made for use on high-end CPU coolers
Ideal for use on CPU coolers such as the popular NH-D15, NH-D15S or NH-U14S

What's in the box

8x NA-AVP3 chromax.black anti-vibration pads
8x NA-AVP3 chromax.blue anti-vibration pads
8x NA-AVP3 chromax.green anti-vibration pads
8x NA-AVP3 chromax.red anti-vibration pads
8x NA-AVP3 chromax.white anti-vibration pads
8x NA-AVP3 chromax.yellow anti-vibration pads
NA-EC1 chromax.black 30 cm extension cable
Fan screws

Frequently asked questions

What is the noise level of the NF-A15 HS-PWM chromax.black.swap fan?

The fan has a maximum acoustical noise level of 24.6 dB(A) at full speed.

How does the swappable anti-vibration pad system work?

The fan includes 8 anti-vibration pads of each colour (black, blue, green, red, white, yellow) for easy swapping.

What CPU coolers are compatible with this fan?

It is tailor-made for high-end CPU coolers such as the NH-D15, NH-D15S, or NH-U14S.

What is the warranty period for this fan?

The fan comes with a 6-year warranty.

What is the airflow and static pressure of this fan?

Max airflow is 140.2 m³/h (82.52 CFM) and max static pressure is 2.08 mm H₂O.

How many anti-vibration pads are included in the box?

The box includes 8 pads of each colour (black, blue, green, red, white, yellow).

What is the difference between the chromax.black.swap edition and other chromax editions?

The chromax.black.swap edition includes swappable anti-vibration pads in 6 colours.

What is the MTTF (Mean Time To Failure) for this fan?

The MTTF is not provided in the facts.

Brand warranty: 6 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Noctua
Category	PC Fan
Model / MPN	NF-A15 HS PWM CH BK S
Size (Form factor)	140 x 150 x 25 mm (round)
Speed range	0 – 1500 rpm
Airflow (max.)	140.2 m³/h (82.52 CFM)
Acoustical noise (max.)	24.6 dB(A)
Static pressure (max.)	2.08 mm H₂O
Rated voltage	12 V
Input power (typical)	1.056 W
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	140 x 150 x 25 mm
Dimensions with anti-vibration pads	141 x 152 x 27 mm
Frame shape	Round
Mounting hole spacing(s)	105 x 105 mm
Weight	170 g
Material frame	PBT GF30
Material impeller	PBT GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Black
Connector type	A2543-4PIN (or equal)
Cable length	10 mm
Cable length with extension cable (included)	310 mm
Wire	26 AWG
Sleeving	Fibreglass silicone mesh
Rotational speed (max.)	1500 rpm
Rotational speed @ 20% PWM	300 rpm
Rotational speed @ 0% PWM	0 rpm
Acoustical noise with LNA (max.)	19.2 dB(A)
Static pressure with LNA (max.)	1.51 mm H₂O
Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD1
Starting voltage	7 V
Max. operating voltage	13.2 V
Pin configuration - Pin 1	Black: Ground (GND)
