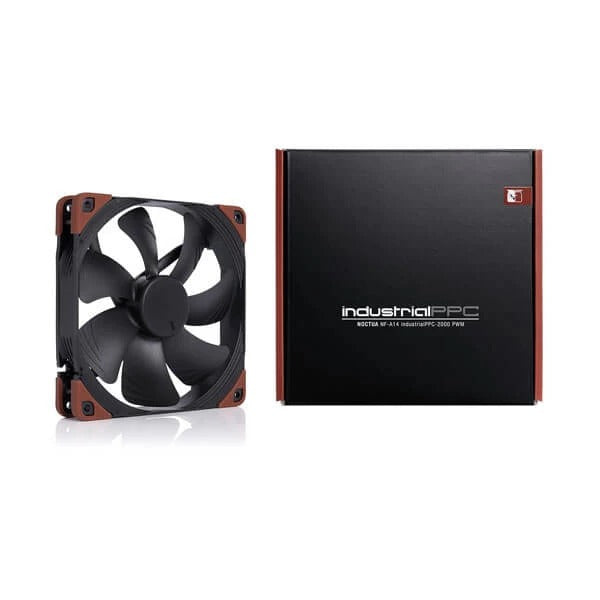

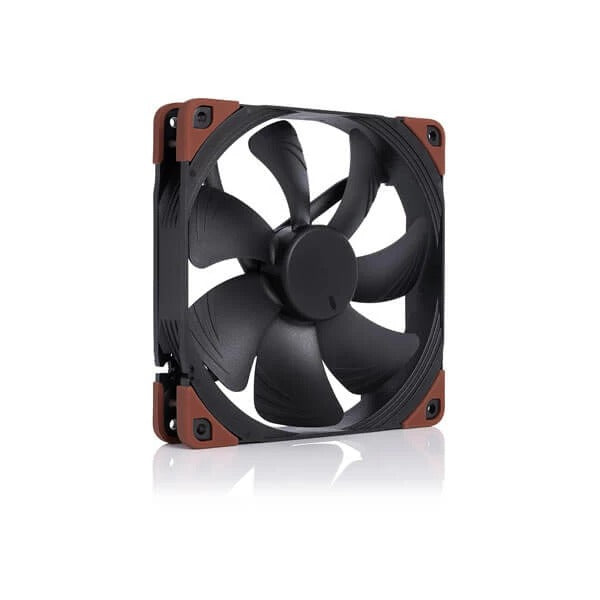

Noctua NF-A14 IndustrialPPC-2000 PWM Cabinet Fan (Single Pack)

₹3,250

MRP ₹3,950 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The NF-A14 industrialPPC-2000 PWM is a high-performance industrial fan designed for demanding applications requiring superior cooling and durability. It features a 140mm square form factor with a 2000rpm speed range for exceptional airflow.

Full specifications ↓

Highlights

2000rpm top speed for significant performance boost over standard fans
IP52 certified protection against dust and dripping water
Fibre-glass reinforced polyamide construction withstands temperatures up to 140°C
6-year warranty for long-term reliability
Three-phase motor with 6 slots for smoother operation and reduced vibrations
4-pin PWM control for precise speed adjustment
182.5 m³/h maximum airflow for efficient cooling
31.5 dB(A) maximum noise level for industrial environments

Specifications

Size (Form factor)	140 x 140 x 25 mm (square)
Speed range	0 – 2000 rpm
Airflow (max.)	182.5 m³/h (107.42 CFM)
Acoustical noise (max.)	31.5 dB(A)
Static pressure (max.)	4.18 mm H₂O
Rated voltage	12 V
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	140 x 140 x 25 mm
Dimensions with anti-vibration pads	141 x 141 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	124.5 x 124.5 mm
Weight	200 g
Material frame	PA66 GF30
Material impeller	PA66 GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Brown
Connector type	A2543-4PIN (or equal)
Cable length	400 mm
Wire	26 AWG
Sleeving	Fibreglass silicone mesh
Rotational speed (max.)	2000 rpm
Rotational speed @ 20% PWM	400 rpm
Rotational speed @ 0% PWM	0 rpm
Motor type (phases)	Three phase
Poles	4
Slots	6
Driver IC	NE-FD2
Starting voltage	7 V
Max. operating voltage	13.2 V
Pin configuration - Pin 1	Black: Ground (GND)
Pin configuration - Pin 2	Yellow: Voltage (Vcc)
Pin configuration - Pin 3	Green: RPM Signal
Pin configuration - Pin 4	Blue: PWM Signal
Input power (max)	2.16 W

Who should buy it

This fan is ideal for industrial applications needing robust cooling performance. It is not suitable for low-noise PC builds where quieter operation is required.

Compatibility

Works with standard 4-pin PWM fan headers. Requires 12V power supply with 7V starting voltage.

High-speed fan for industrial applications. Unsuitable for low-noise PC builds.

What's in the box

NF-A14 industrialPPC-2000 PWM premium fan
Fan screws

Frequently asked questions

What is the warranty period for this fan?

The NF-A14 industrialPPC-2000 PWM comes with a 6-year warranty.

What is the IP rating of this fan?

The fan has an IP52 rating, providing dust resistance and protection against dripping water equivalent to 3mm rainfall per minute.

What is the maximum operating temperature for this fan?

The fan's construction withstands temperatures up to 140°C.

Brand warranty: 6 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	Noctua
Category	PC Fan
Model / MPN	NF-A14iPPC-2000 PWM
Size (Form factor)	140 x 140 x 25 mm (square)
Speed range	0 – 2000 rpm
Airflow (max.)	182.5 m³/h (107.42 CFM)
Acoustical noise (max.)	31.5 dB(A)
Static pressure (max.)	4.18 mm H₂O
Rated voltage	12 V
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	140 x 140 x 25 mm
Dimensions with anti-vibration pads	141 x 141 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	124.5 x 124.5 mm
Weight	200 g
Material frame	PA66 GF30
Material impeller	PA66 GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Brown
Connector type	A2543-4PIN (or equal)
Cable length	400 mm
Wire	26 AWG
Sleeving	Fibreglass silicone mesh
Rotational speed (max.)	2000 rpm
Rotational speed @ 20% PWM	400 rpm
Rotational speed @ 0% PWM	0 rpm
Motor type (phases)	Three phase
Poles	4
Slots	6
Driver IC	NE-FD2
Starting voltage	7 V
Max. operating voltage	13.2 V
Pin configuration - Pin 1	Black: Ground (GND)
Pin configuration - Pin 2	Yellow: Voltage (Vcc)
Pin configuration - Pin 3	Green: RPM Signal
Pin configuration - Pin 4	Blue: PWM Signal
Input power (max)	2.16 W
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
