Noctua NF-A14 PWM chromax black swap 140mm Premium Case Fan – 4-pin – TechCure India

Noctua NF-A14 PWM chromax black swap 140mm Premium Case Fan, Black

₹2,875

MRP ₹4,299 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

NF-A14 PWM chromax.black.swap is a 140 mm PWM case and radiator fan with swappable coloured anti-vibration pads. It suits builders who want high airflow and low noise for case ventilation or water-cooling radiators.

Full specifications ↓

Highlights

140.2 m³/h (82.52 CFM) maximum airflow for strong ventilation
Maximum rotational speed 1500 rpm with quiet acoustical noise up to 24.6 dB(A)
Static pressure up to 2.08 mm H₂O for radiator compatibility
SSO2 bearing rated for >150,000 h MTTF and a 6 year warranty

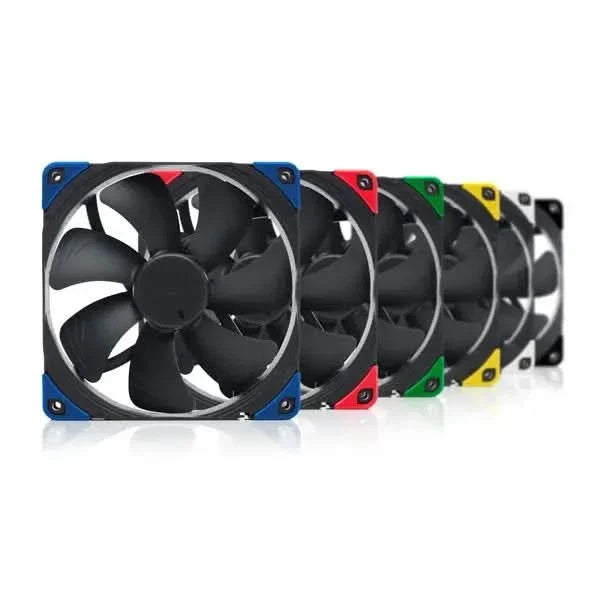

Chromax.black.swap edition includes multiple coloured anti-vibration pads for custom looks
Includes NA-EC1 30 cm extension cable and standard 4-pin connector for PWM control
Compact square frame (140 x 140 x 25 mm) with 124.5 x 124.5 mm mounting hole spacing

Specifications

Size (Form factor)	140 x 140 x 25 mm (square)
Speed range	0 – 1500 rpm
Airflow (max.)	140.2 m³/h (82.52 CFM)
Acoustical noise (max.)	24.6 dB(A)
Static pressure (max.)	2.08 mm H₂O
Rated voltage	12 V
Input power (typical)	1.19 W
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	140 x 140 x 25 mm
Dimensions with anti-vibration pads	141 x 141 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	124.5 x 124.5 mm
Weight	195 g
Material frame	PA66 GF30
Material impeller	PA66 GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Brown
Connector type	A2543-4PIN (or equal)
Cable length	10 mm
Cable length with extension cable (included)	310 mm
Wire	28 AWG
Sleeving	None
Rotational speed (max.)	1500 rpm
Rotational speed @ 20% PWM	300 rpm
Rotational speed @ 0% PWM	0 rpm
Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD1
Max. operating voltage	13.2 V
Pin 1	Black: Ground (GND)
Pin 2	Black: Voltage (Vcc)
Pin 3	Black: RPM Signal
Pin 4	Black: PWM Signal

Who should buy it

Choose this fan if you need a quiet, high-airflow 140 mm fan for case ventilation or radiators and want replaceable coloured anti-vibration pads. If you need specifications not listed here, check other models.

Compatibility

Ideal for use on radiators and for case ventilation. It uses a 4-pin PWM connector and includes a 30 cm extension cable for easier connection.

Ideal for use on radiators & case ventilation

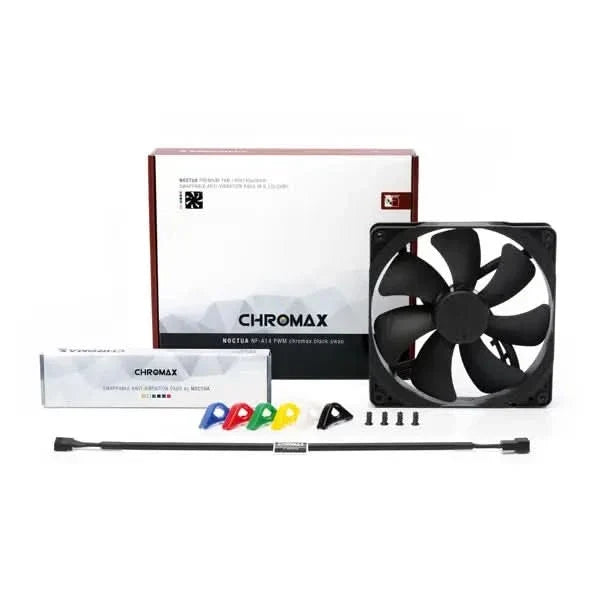

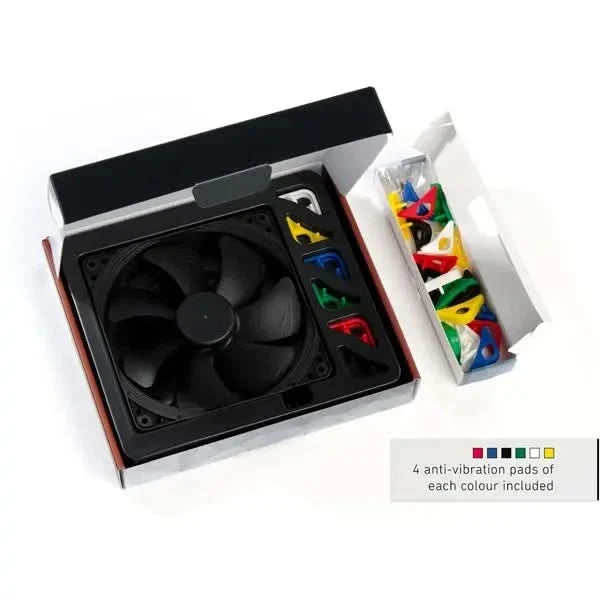

What's in the box

4x NA-AVP1 chromax.black anti-vibration pads
4x NA-AVP1 chromax.blue anti-vibration pads
4x NA-AVP1 chromax.green anti-vibration pads
4x NA-AVP1 chromax.red anti-vibration pads
4x NA-AVP1 chromax.white anti-vibration pads
4x NA-AVP1 chromax.yellow anti-vibration pads
NA-EC1 chromax.black 30 cm extension cable
Fan screws

Frequently asked questions

Is this the PWM version of the NF-A14?

Yes. This model is the NF-A14 PWM chromax.black.swap and uses a 4-pin PWM connector.

What is the maximum rotational speed (rpm) of this model?

The maximum rotational speed is 1500 rpm.

Does it include coloured anti-vibration pads?

Yes. The box includes chromax.black, blue, green, red, white and yellow NA-AVP1 anti-vibration pads.

What connector type is used and is an extension cable included?

Connector type is A2543-4PIN (or equal) and the NA-EC1 chromax.black 30 cm extension cable is included.

What is the warranty period?

The fan carries a 6 year warranty.

What are the airflow and static pressure specifications?

Maximum airflow is 140.2 m³/h (82.52 CFM) and maximum static pressure is 2.08 mm H₂O.

Is this model suitable for radiator use?

Yes. It is listed as ideal for use on radiators and for case ventilation.

Brand warranty: 6 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Noctua NF-A14 PWM chromax black swap 140mm Premium... — specifications

Brand	Noctua
Category	PC Fan
Model / MPN	NF-A14 PWM chromax.black.swap
Size (Form factor)	140 x 140 x 25 mm (square)
Speed range	0 – 1500 rpm
Airflow (max.)	140.2 m³/h (82.52 CFM)
Acoustical noise (max.)	24.6 dB(A)
Static pressure (max.)	2.08 mm H₂O
Rated voltage	12 V
Input power (typical)	1.19 W
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	140 x 140 x 25 mm
Dimensions with anti-vibration pads	141 x 141 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	124.5 x 124.5 mm
Weight	195 g
Material frame	PA66 GF30
Material impeller	PA66 GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Brown
Connector type	A2543-4PIN (or equal)
Cable length	10 mm
Cable length with extension cable (included)	310 mm
Wire	28 AWG
Sleeving	None
Rotational speed (max.)	1500 rpm
Rotational speed @ 20% PWM	300 rpm
Rotational speed @ 0% PWM	0 rpm
Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD1
Max. operating voltage	13.2 V
Pin 1	Black: Ground (GND)
Pin 2	Black: Voltage (Vcc)
Pin 3	Black: RPM Signal
Pin 4	Black: PWM Signal
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
