Noctua NF-F12 PWM chromax black swap 120mm Premium Case Fan – 4-pin – TechCure India

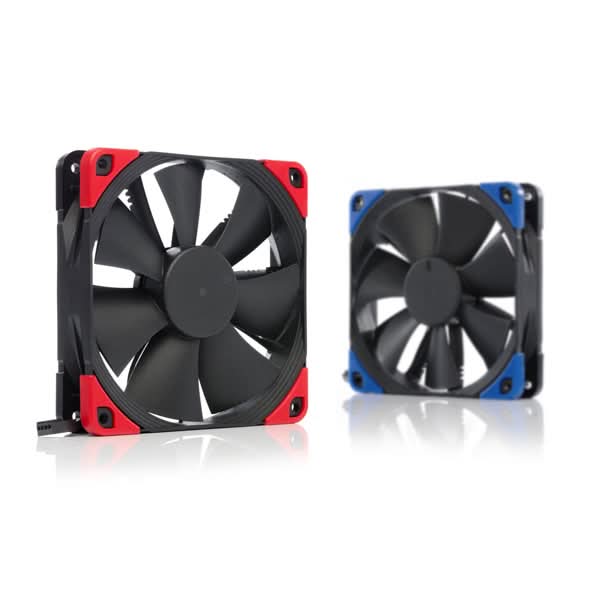

Noctua NF-F12 PWM chromax black swap 120mm Premium Case Fan, Black

₹3,075

MRP ₹4,599 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The NF-F12 PWM chromax.black.swap is a 120 x 120 x 25 mm PWM case and cooling fan designed for pressure-demanding tasks like heatsinks and radiators. It is suited for Indian PC builders who need a quiet, high-static-pressure 120mm fan with swappable anti-vibration pads.

Full specifications ↓

Highlights

Focused Flow™ frame optimised for static pressure on heatsinks and radiators.
Max airflow 93.4 m³/h (54.97 CFM) with max static pressure 2.61 mm H₂O.
Quiet operation up to 22.4 dB(A) at maximum speed.
PWM control range 0–1500 rpm with 300 rpm at 20% PWM and 0 rpm at 0% PWM.
SSO2 bearing for improved stabilisation and durability.
Includes NA-EC1 30 cm chromax.black extension cable for full-length cable option.

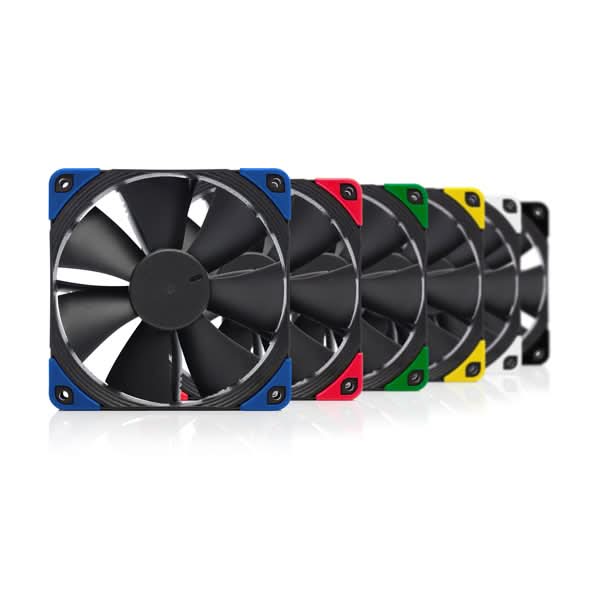

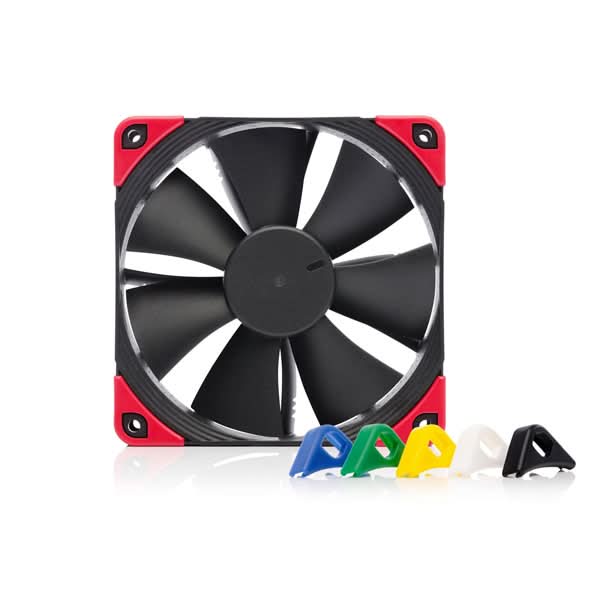

Comes with six colours of swappable anti-vibration pads (black, white, red, blue, green, yellow).
6 years warranty from the manufacturer.

Specifications

Size (Form factor)	120 x 120 x 25 mm (square)
Speed range	0 – 1500 rpm
Airflow (max.)	93.4 m³/h (54.97 CFM)
Acoustical noise (max.)	22.4 dB(A)
Static pressure (max.)	2.61 mm H₂O
Rated voltage	12 V
Input power (typical)	0.4 W
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	120 x 120 x 25 mm
Dimensions with anti-vibration pads	120 x 120 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	105 x 105 mm
Weight	170 g
Material frame	PBT GF30
Material impeller	PBT GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Multi colour
Cable length	10 mm
Cable length with extension cable (included)	310 mm
Wire	26 AWG
Sleeving	None
Rotational speed (max.)	1500 rpm
Rotational speed @ 20% PWM	300 rpm
Rotational speed @ 0% PWM	0 rpm
Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD1
Max. operating voltage	13.2 V
Pin 1	Black: Ground (GND)
Pin 2	Black: Voltage (Vcc)
Pin 3	Black: RPM Signal
Pin 4	Black: PWM Signal
Input power (max)	0.6 W

Who should buy it

Choose this fan if you need a 120mm PWM fan for case, CPU heatsink or radiator cooling where static pressure and low noise matter. If you require a non-PWM 5V variant or different size, consider other models.

Compatibility

Uses a 4-pin PWM connector compatible with motherboards and PWM fan controllers. It is designed specifically for pressure-demanding applications such as heatsinks and radiators.

Designed for pressure-demanding applications such as heatsinks and radiators.
4-pin PWM connector compatible with motherboards and PWM fan controllers.

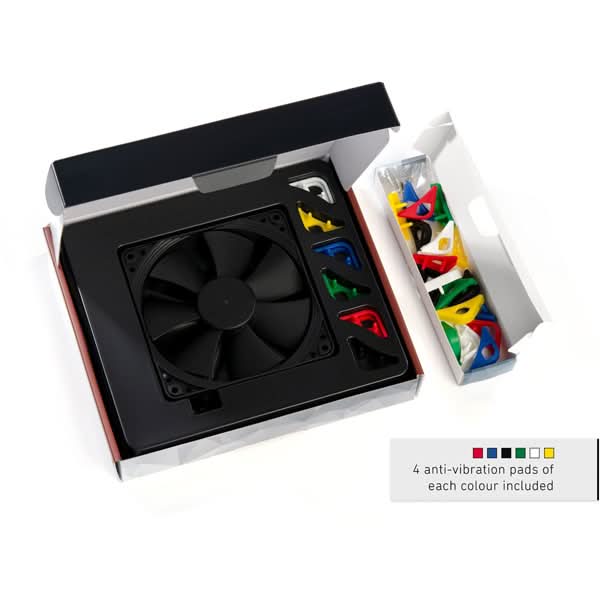

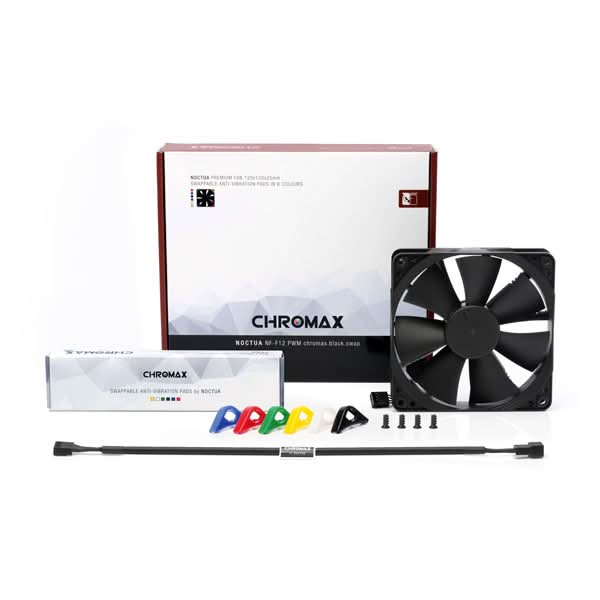

What's in the box

4x NA-AVP1 chromax.black anti-vibration pads
4x NA-AVP1 chromax.blue anti-vibration pads
4x NA-AVP1 chromax.green anti-vibration pads
4x NA-AVP1 chromax.red anti-vibration pads
4x NA-AVP1 chromax.white anti-vibration pads
4x NA-AVP1 chromax.yellow anti-vibration pads
NA-EC1 chromax.black 30 cm extension cable
Fan screws

Frequently asked questions

Is this the PWM version (4-pin) or a 5V variant?

This is the PWM version with a 4-pin connector compatible with motherboards and PWM fan controllers.

What cable length is included and is an extension provided?

The fan cable is 10 mm; the package includes an NA-EC1 chromax.black 30 cm (310 mm) extension cable for a full-length option.

Which anti-vibration pad colours are included in the box?

The box includes chromax.black, chromax.blue, chromax.green, chromax.red, chromax.white, and chromax.yellow NA-AVP1 anti-vibration pads.

What is the maximum RPM and acoustic noise level?

Maximum rotational speed is 1500 rpm and maximum acoustical noise is 22.4 dB(A).

Does this fan use the SSO2 bearing and what is the MTTF?

The fan uses the SSO2 bearing (second generation) for improved stabilisation and durability. The provided facts do not state an MTTF.

What warranty period does Noctua provide for this model?

The warranty period is 6 years.

What are the exact dimensions with and without anti-vibration pads?

Dimensions without pads are 120 x 120 x 25 mm; with anti-vibration pads they are 120 x 120 x 27 mm.

Brand warranty: 6 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Noctua NF-F12 PWM chromax black swap 120mm Premium... — specifications

Brand	Noctua
Category	PC Fan
Model / MPN	NF-F12
Size (Form factor)	120 x 120 x 25 mm (square)
Speed range	0 – 1500 rpm
Airflow (max.)	93.4 m³/h (54.97 CFM)
Acoustical noise (max.)	22.4 dB(A)
Static pressure (max.)	2.61 mm H₂O
Rated voltage	12 V
Input power (typical)	0.4 W
Connector	4-pin
Colour	Black
Warranty	6 years
Dimensions without anti-vibration pads	120 x 120 x 25 mm
Dimensions with anti-vibration pads	120 x 120 x 27 mm
Frame shape	Square
Mounting hole spacing(s)	105 x 105 mm
Weight	170 g
Material frame	PBT GF30
Material impeller	PBT GF30
Material anti-vibration pads	Silicone rubber
Bearing	SSO2
Rotational direction	Counter-clockwise
Frame colour	Black
Impeller colour	Black
Anti-vibration pads colour	Multi colour
Cable length	10 mm
Cable length with extension cable (included)	310 mm
Wire	26 AWG
Sleeving	None
Rotational speed (max.)	1500 rpm
Rotational speed @ 20% PWM	300 rpm
Rotational speed @ 0% PWM	0 rpm
Motor type (phases)	Single phase
Poles	4
Slots	4
Driver IC	NE-FD1
Max. operating voltage	13.2 V
Pin 1	Black: Ground (GND)
Pin 2	Black: Voltage (Vcc)
Pin 3	Black: RPM Signal
Pin 4	Black: PWM Signal
Input power (max)	0.6 W
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
