NZXT H3 Flow (2025) Micro-atx Mid-tower Gaming Cabinet - White (CC-H31FW-01)

₹6,200

MRP ₹9,730 (incl. of all taxes)

🚚 Shipping ₹379 · FREE on orders above ₹25,000

EMI available at checkout (credit / debit card EMI via Razorpay)

In stock · dispatched in 1–2 working days
Delivery across India in 2–8 days · insured

Genuine productBrand warranty · terms
GST invoiceClaim input credit
7-day returnsOn PC components
Insured deliveryAll over India

Secure payments by Razorpay · UPI, cards, net banking, EMI

Track an order Google reviews ↗

The H3 Flow micro-ATX case is designed for builders who want a compact yet powerful computer case. It supports full-sized components with excellent airflow and cooling options for a smooth build experience.

Full specifications ↓

Highlights

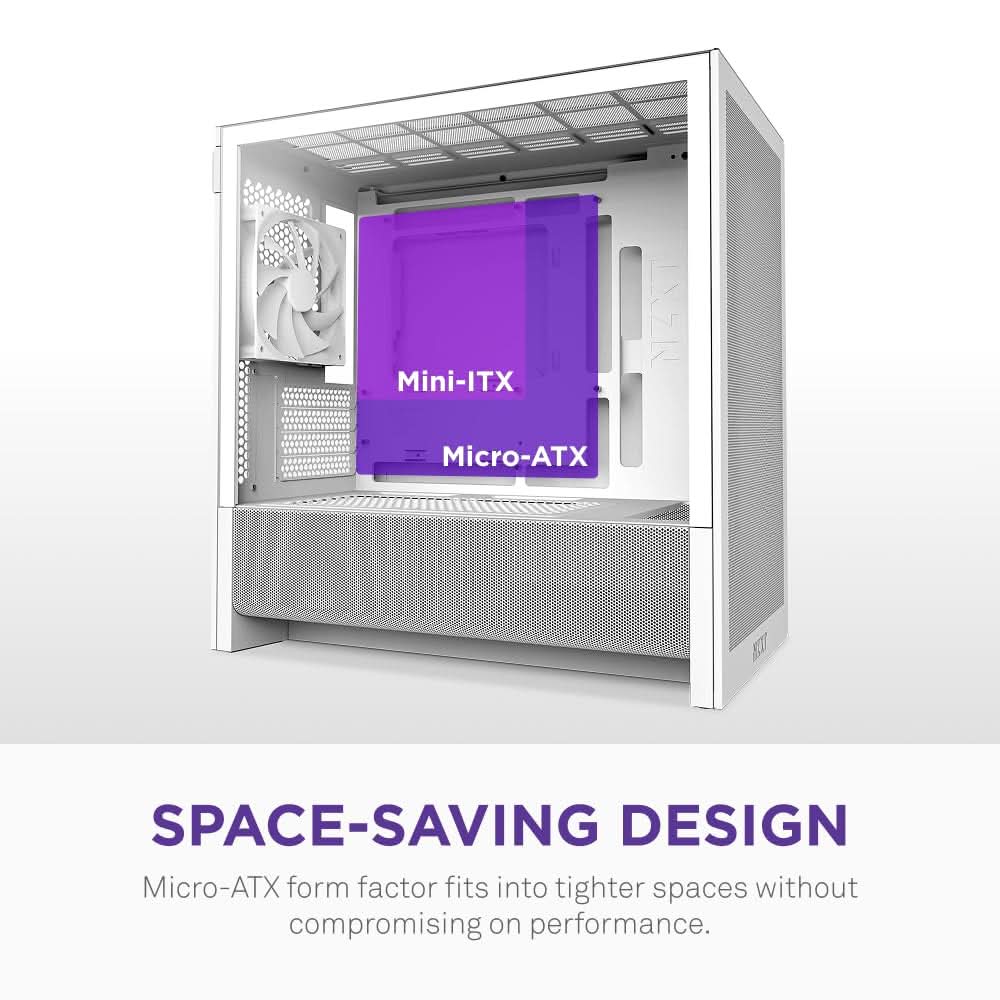

Space-efficient micro-ATX design fits high-performance components without compromise.
Ultra-fine mesh panels and ventilated PSU shroud maximize airflow while filtering dust.
Supports up to 280 mm front radiator and 240 mm top radiator for customizable cooling.
Pre-installed rear fan provides efficient exhaust airflow right out of the box.

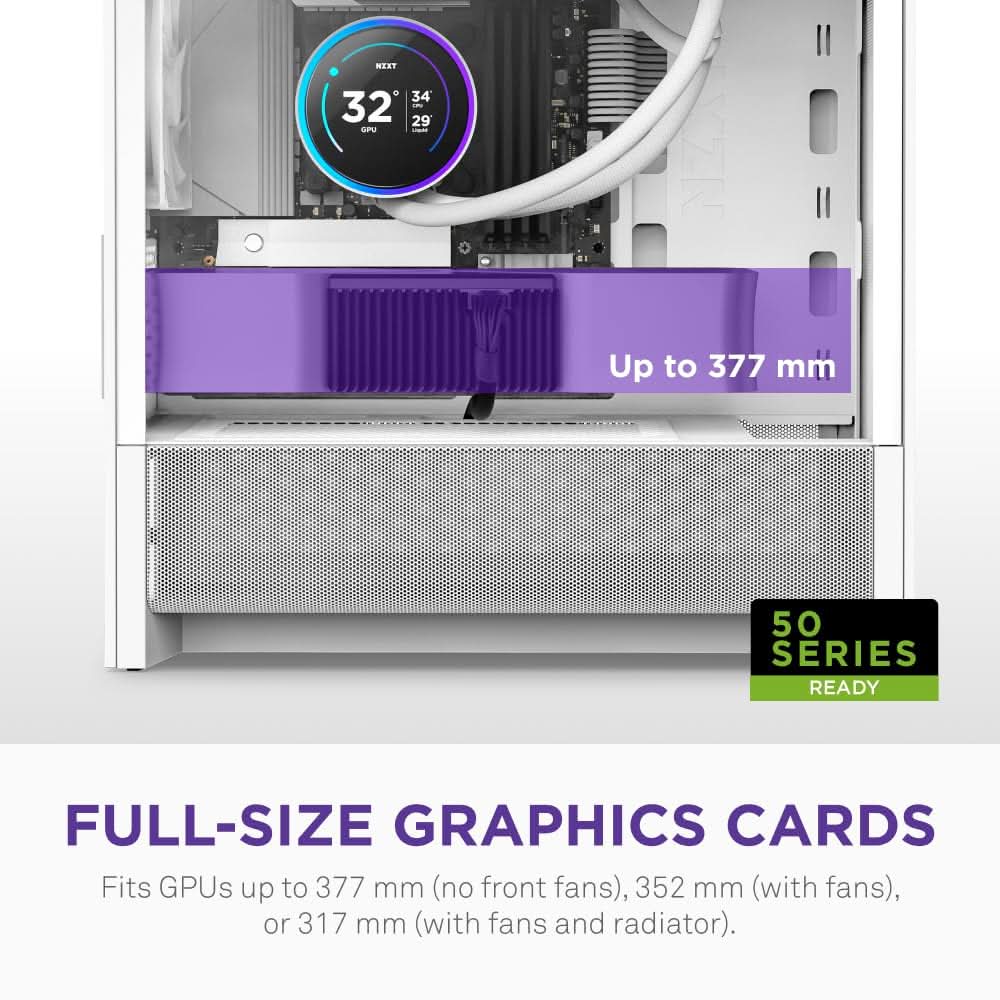

Fits graphics cards up to 377 mm without front fans for full-size GPU support.
Back-connect motherboard compatible for a clean, cable-free aesthetic.
Tool-free access to top, front, and side panels for easy upgrades and cleaning.
Simplified cable management with integrated channels and tie-down points.

Specifications

Enclosure Type	Micro-ATX case
Motherboard Support	Micro-ATX, Mini-ITX
Back-Connect Motherboard Support	Yes (Micro-ATX)
Power Supply Type	ATX
Materials	SGCC steel, clear tempered glass (white), tinted tempered glass (black)

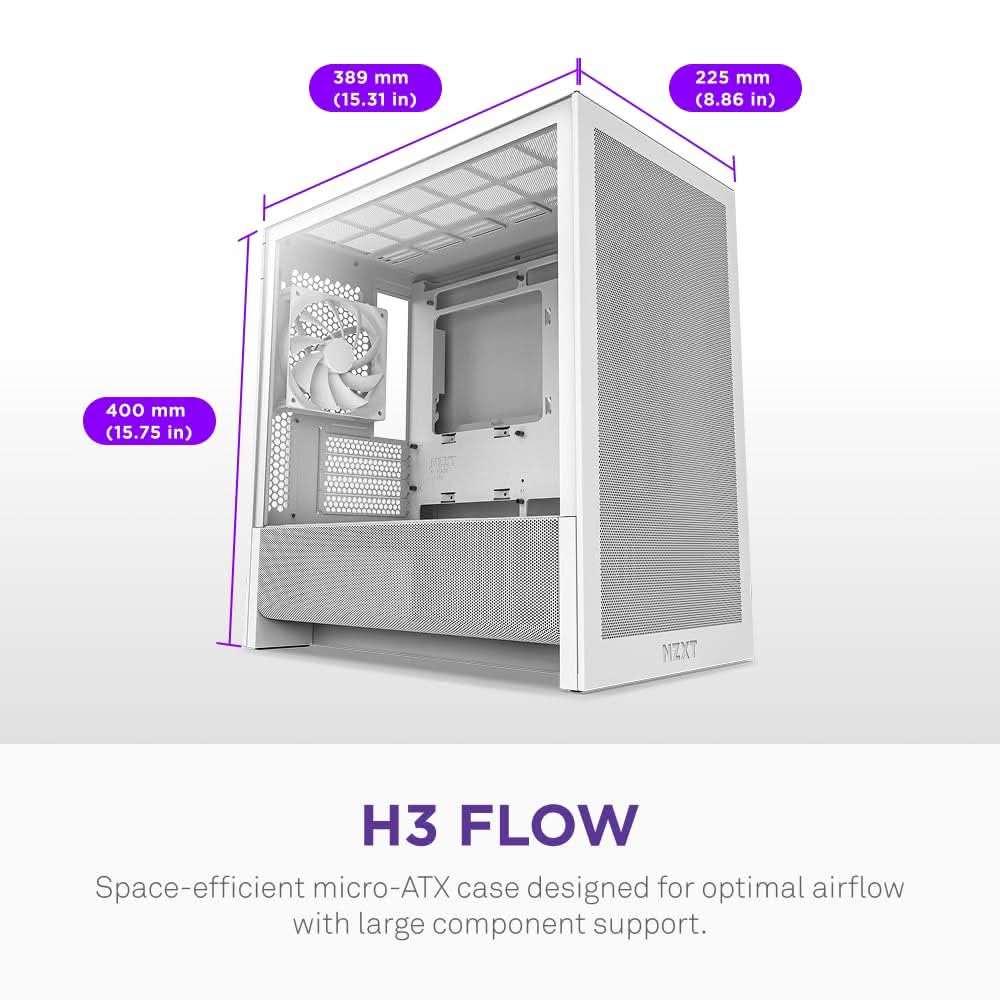

Dimensions (H x W x D)	400 x 225 x 389 mm (15.7 x 8.9 x 15.3 in)
Volume	35.0 L
Weight	5.017 kg (11.1 lb)
CPU Cooler Height	170 mm (6.7 in)
GPU Length	Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)
PSU Length	Up to 185 mm (7.3 in)
Cable Routing Space	Up to 31.5 mm (1.2 in)
Front Radiator + Fan Thickness	Up to 63 mm (2.5 in)
Top Radiator + Fan Thickness	Up to 70 mm (2.8 in)
USB 3.2 Type-A	1
USB 3.2 Gen 2x2 Type-C	1
Expansion Slots	4
2.5" Drive Bays	1+2
3.5" Drive Bays	1
Front Fans	2 x 120 mm / 2 x 140 mm
Top Fans	2 x 120 mm
Bottom Fans	2 x 120 mm
Rear Fan	1 x 120 mm (1 included)
Front Radiator	Up to 280 mm
Top Radiator	Up to 240 mm
Model	F120Q (Case Version)
Quantity	1
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static Pressure	1.05 mmH₂O
Noise Level	24.1 dBA
Fan Connector	3-pin
Warranty	2 years
Model Number	CC-H31FW-01 (White) / CC-H31FB-01 (Black) / CC-H31FW-02 (White AU) / CC-H31FB-02 (Black AU)
UPC	810074848039 (White) / 810074848046 (Black) / 810074843508 (White AU) / 810074843515 (Black AU)
EAN	5056547207971 (White) / 5056547207988 (Black) / 5056547203393 (White AU) / 5056547203409 (Black AU)

Who should buy it

This case is ideal for builders who need a compact micro-ATX case with strong cooling support. It is not suitable for those who want vertical GPU mounting or need more than 4 PCIe slots.

Compatibility

Works with Micro-ATX and Mini-ITX motherboards. Compatible with ASUS BTF and MSI Project Zero back-connect motherboards for a clean build. Requires ATX power supply.

Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.
The H3 Flow only has 4 PCIe slot brackets, so vertical GPU mounting is not supported.

What's in the box

F120Q (Case Version) x1
Installation Accessories
User Guide

Frequently asked questions

What is the maximum GPU length without front fans?

The H3 Flow supports graphics cards up to 377 mm without front fans.

What is the maximum GPU length with front fans?

The H3 Flow supports graphics cards up to 352 mm with front fans.

What is the maximum GPU length with front radiator and fans?

The H3 Flow supports graphics cards up to 317 mm with front radiator and fans installed.

Are they compatible with Micro-ATX back-connect motherboards?

The H3 Flow is compatible with ASUS BTF and MSI Project Zero back-connect motherboards.

Are there any removable dust filters?

The H3 Flow features ultra-fine mesh panels that filter dust without requiring removable filters.

Brand warranty: 2 years from the manufacturer — TechCure India helps you with the claim.

Why buy from TechCure India

Genuine product with brand warranty
GST invoice on every order
Insured delivery across India
Free compatibility check before dispatch — or build a full PC with our PC Builder

Specifications

Brand	NZXT
Category	PC Cabinet
Model / MPN	CC-H31FW-01
Enclosure Type	Micro-ATX case
Motherboard Support	Micro-ATX, Mini-ITX
Back-Connect Motherboard Support	Yes (Micro-ATX)
Power Supply Type	ATX
Materials	SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Dimensions (H x W x D)	400 x 225 x 389 mm (15.7 x 8.9 x 15.3 in)
Volume	35.0 L
Weight	5.017 kg (11.1 lb)
CPU Cooler Height	170 mm (6.7 in)
GPU Length	Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)
PSU Length	Up to 185 mm (7.3 in)
Cable Routing Space	Up to 31.5 mm (1.2 in)
Front Radiator + Fan Thickness	Up to 63 mm (2.5 in)
Top Radiator + Fan Thickness	Up to 70 mm (2.8 in)
USB 3.2 Type-A	1
USB 3.2 Gen 2x2 Type-C	1
Expansion Slots	4
2.5" Drive Bays	1+2
3.5" Drive Bays	1
Front Fans	2 x 120 mm / 2 x 140 mm
Top Fans	2 x 120 mm
Bottom Fans	2 x 120 mm
Rear Fan	1 x 120 mm (1 included)
Front Radiator	Up to 280 mm
Top Radiator	Up to 240 mm
Model	F120Q (Case Version)
Quantity	1
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static Pressure	1.05 mmH₂O
Noise Level	24.1 dBA
Fan Connector	3-pin
Warranty	2 years
Model Number	CC-H31FW-01 (White) / CC-H31FB-01 (Black) / CC-H31FW-02 (White AU) / CC-H31FB-02 (Black AU)
UPC	810074848039 (White) / 810074848046 (Black) / 810074843508 (White AU) / 810074843515 (Black AU)
EAN	5056547207971 (White) / 5056547207988 (Black) / 5056547203393 (White AU) / 5056547203409 (Black AU)
Condition	New, sealed box
Warranty	Manufacturer warranty · details
Invoice	GST tax invoice (input credit available)
Delivery	Insured shipping to every serviceable pin code in India
