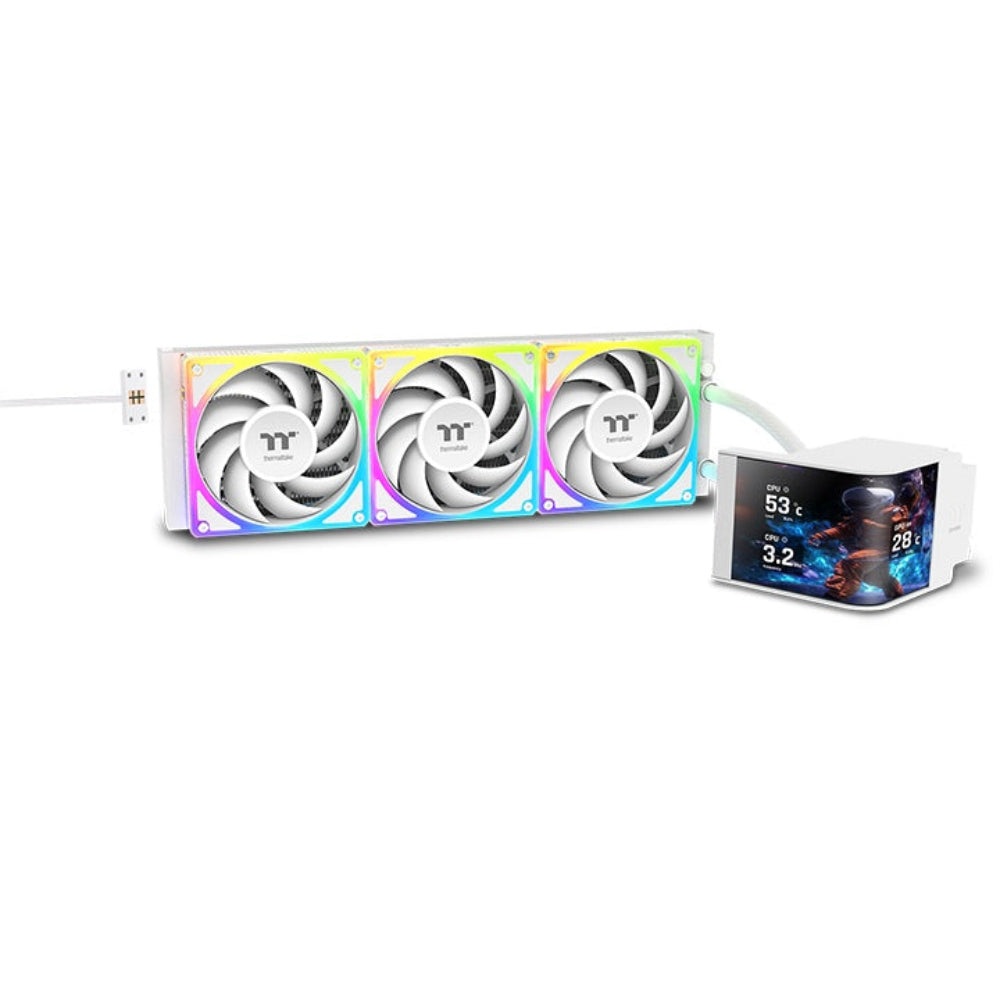

THERMALTAKE Magcurve 360 Ultra ARGB Sync 360mm CPU Liquid Cooler ( Snow White )

Key features

• 6.67-inch curved AMOLED display on pump head for monitoring and custom visuals
• Swappable fan blade design for standard or reverse airflow direction
• Copper water block for efficient heat transfer
• Aluminum 360mm radiator with three 120mm ARGB fans
• PWM-controlled pump (1500-3300 RPM) and fans (500-2500 RPM) for adjustable performance and noise
• Wide CPU socket support across current and older Intel and AMD platforms
• Supports TT RGB PLUS 3.0 software for display customization on Windows 10/11

Understand This Product — TechCureIndia

What it does

This is a 360mm closed-loop liquid CPU cooler that transfers heat from the processor through a copper water block, pump, and tubing to an aluminum radiator, where three fans dissipate it. It also includes an AMOLED display for visual customization and system monitoring.

What the key specifications mean

• Pump Motor Speed (PWM 1500-3300 RPM): Indicates the pump can ramp coolant circulation up or down based on load, balancing cooling performance with noise.
• CPU Display (6.67" AMOLED, 2240×1080): A high-resolution screen on the pump top lets you display system stats, custom images, or video, adding a personalization option not found on standard coolers.
• Display Interface (Micro USB to USB, Windows 10/11): Confirms the display requires a USB connection to the motherboard and a Windows PC to configure and run.
• Water Block Material (Copper): Copper offers strong thermal conductivity, helping the block absorb heat efficiently from the CPU surface.
• Fan Specs (120x120x25mm, PWM 500-2500 RPM): Describes the standard radiator fan size and speed range buyers should check against their case clearance and airflow needs.
• Swappable Fan Blades (Standard vs Reverse): Lets users choose between two airflow profiles (higher airflow vs adjusted pressure/noise) without changing the whole fan.
• Radiator Dimension (396 × 120 × 27 mm): This is the footprint buyers must match against case radiator mounting space, particularly length and thickness.
• Tube Length (460mm) and Material (Rubber): Indicates how much slack is available for routing the radiator and pump within the case.
• TDP (365W): Shows the maximum heat load the cooler is rated to handle, useful for matching against your CPU's thermal output.
• CPU Socket Compatibility: Lists the full range of Intel and AMD sockets supported, which buyers should check against their motherboard socket type.

Practical benefits

• Effective cooling for higher-TDP CPUs up to 365W
• Visual customization through a large curved AMOLED screen
• Flexible airflow configuration via swappable fan blades
• Wide compatibility across multiple CPU platforms and generations

Who it suits

• Users building high-performance desktops needing strong CPU cooling
• Enthusiasts wanting a visually customizable, RGB-lit liquid cooler
• Builders who want airflow flexibility for intake or exhaust fan orientation

Compatibility and installation

• Requires a CPU socket listed under COMPATIBILITY (Intel LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150 or AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1)
• Display configuration requires a Windows 10 or 11 system and a free USB header/port via Micro USB to USB (9PIN) connection
• Radiator requires a case mounting location of at least 396 × 120 × 27 mm
• Three 120 × 120 × 25 mm fans are needed for radiator airflow
• Tubing length of 460mm should be checked against pump-to-radiator routing distance in your case
• Pump and fans need proper 12V (and 5V for fans) PWM headers on the motherboard

Important limitations

• Cooling performance is rated up to 365W TDP; higher-TDP CPUs may not be adequately supported
• Display customization software and interface require a Windows 10/11 PC connection to function

Package contents

• Specification verification required.

Buy separately:

• Thermal paste may be needed if not pre-applied (not stated in FACTS)
• PC case with 360mm radiator support must be purchased separately if not already owned

Check before you buy

• Confirm your CPU socket is on the supported list before purchase
• Verify your case has sufficient clearance for a 396 × 120 × 27 mm radiator and three 120mm fans
• Ensure you have a spare USB header for the AMOLED display connection if using the customization software

Questions about compatibility? Ask TechCure India on WhatsApp

Explanation written by TechCure India from the manufacturer's published specifications — it is not a measured test result.
